Telematics Switch

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

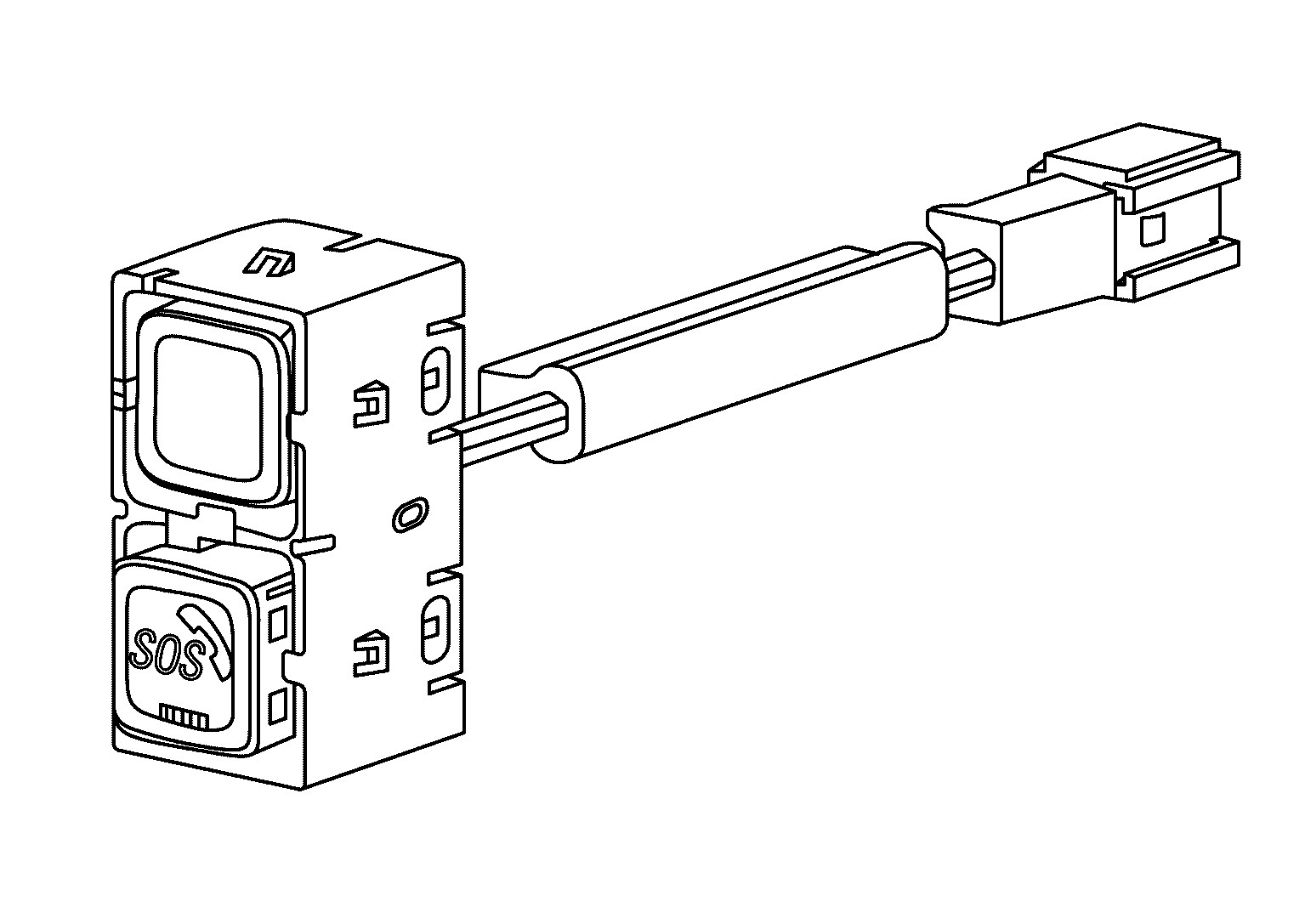

The Telematics switch is located on the map lamp assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
The Telematics switch is connected to TCU and transmits an operation signal.

The state of LED (ON/Blink/OFF) shows the status of SOS call.

LED ON	:SOS Call available
LED Blink	:SOS Call in communication
LED OFF	:Out of service area or system error
