Vacuum Hose Drawing

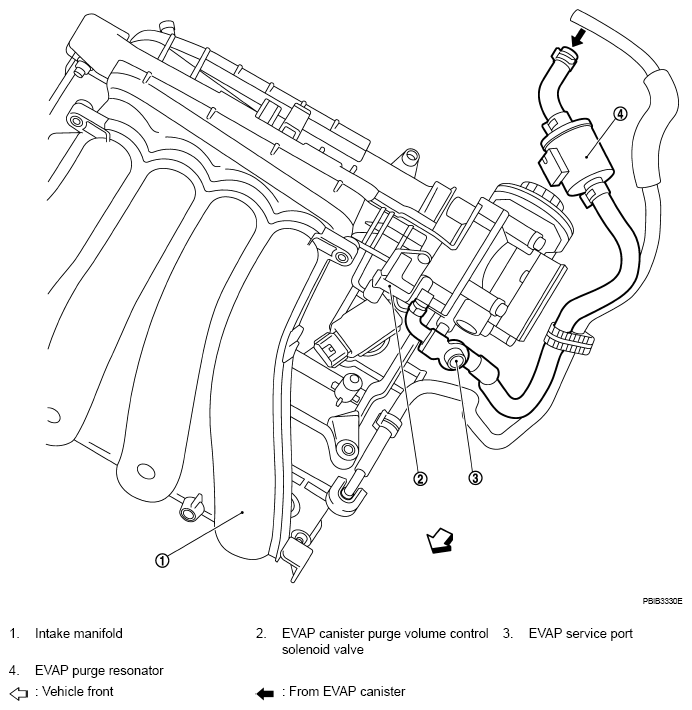

Fig 1: Vacuum Hose Drawing

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

Refer to "SCHEMATIC " for Vacuum Control System.
