Engine Control System: Schematic

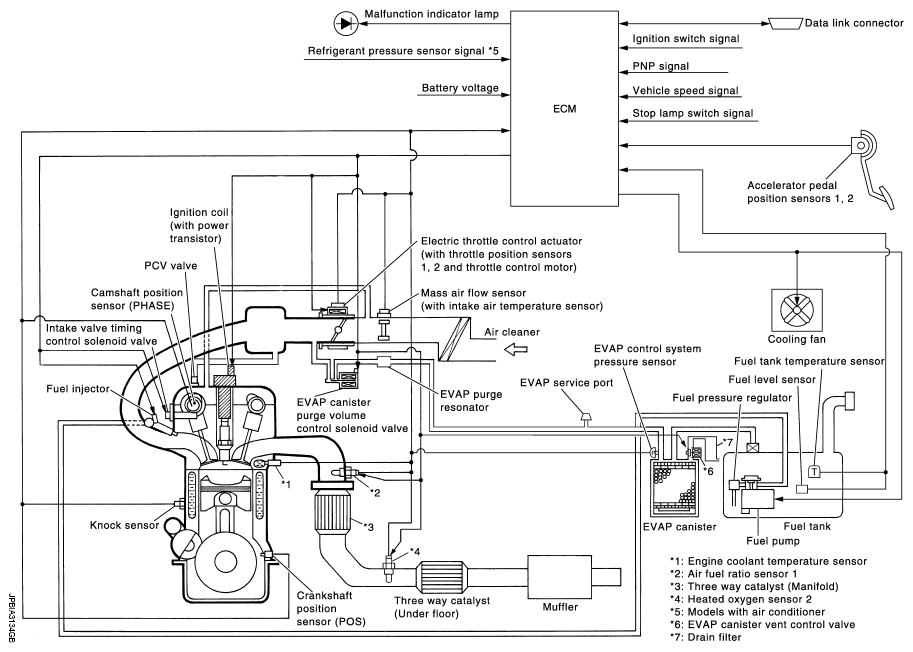

Fig 1: Engine Control System Schematic

G08275187

Courtesy of NISSAN NORTH AMERICA, INC.
