Brake Booster: Removal

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  • Be careful not to deform or bend brake lines, during removal of booster.
  • Replace clevis pin if it is damaged.
  • Be careful not to damage brake booster stud bolt threads. If brake booster is tilted or inclined during installation, the dash panel may damage the threads.
  • Attach the check valve in the correct orientation.
  1. Remove strut tower bar, if equipped. Refer to "COMPONENTS ".
  2. Remove air cleaner and inlet duct. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the brake master cylinder. Refer to "REMOVAL ".
  4. Remove vacuum hose from the brake booster. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove lower driver instrument panel. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove the brake pedal attachment snap pin and clevis pin from inside the vehicle.
  7. Remove the nuts on the brake booster and brake pedal assembly.
  8. Remove brake booster assembly from the engine compartment side.

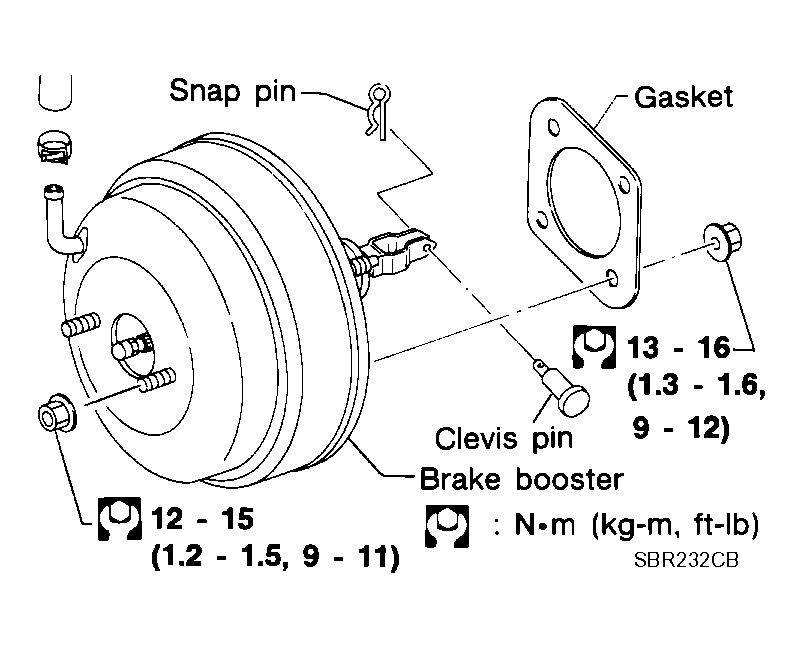

    Fig 1: Removing Brake Booster Assembly With Torque Specifications
    G04194590Courtesy of NISSAN MOTOR CO., U.S.A.
