Removal and Installation

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Lock the CD changer unit mechanism (models with CD changer). Refer to "LOCKING CD AUTOCHANGER MECHANISM ".
Disconnect both terminals from battery and wait three minutes.
Disconnect air bag module connectors in advance.
Be careful not to scratch pad and other parts.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

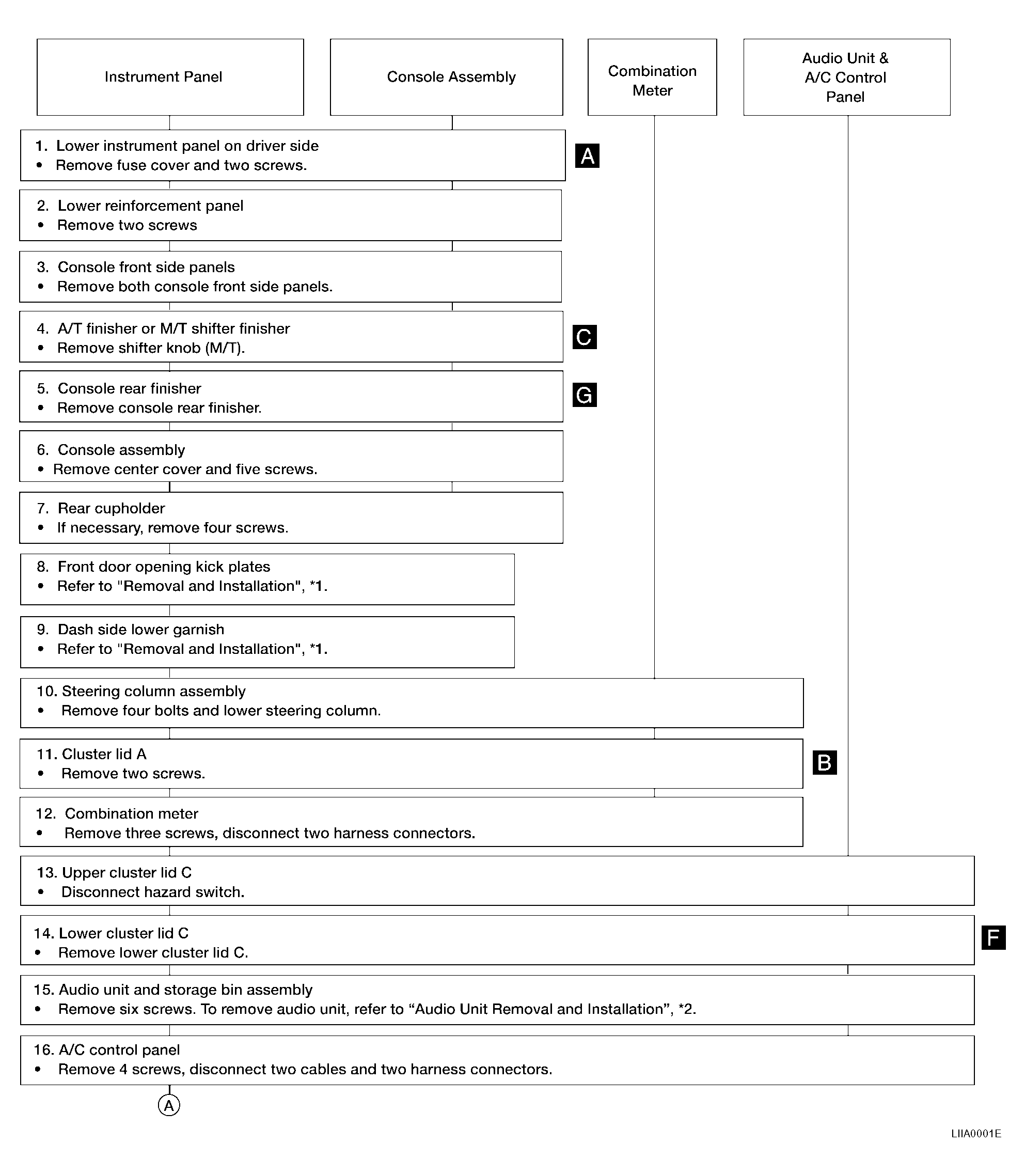

Fig 1: Instrument Panel Assembly Flow Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1. REMOVAL AND INSTALLATION
*2. CD AUTOCHANGER (IF EQUIPPED) REMOVAL AND INSTALLATION

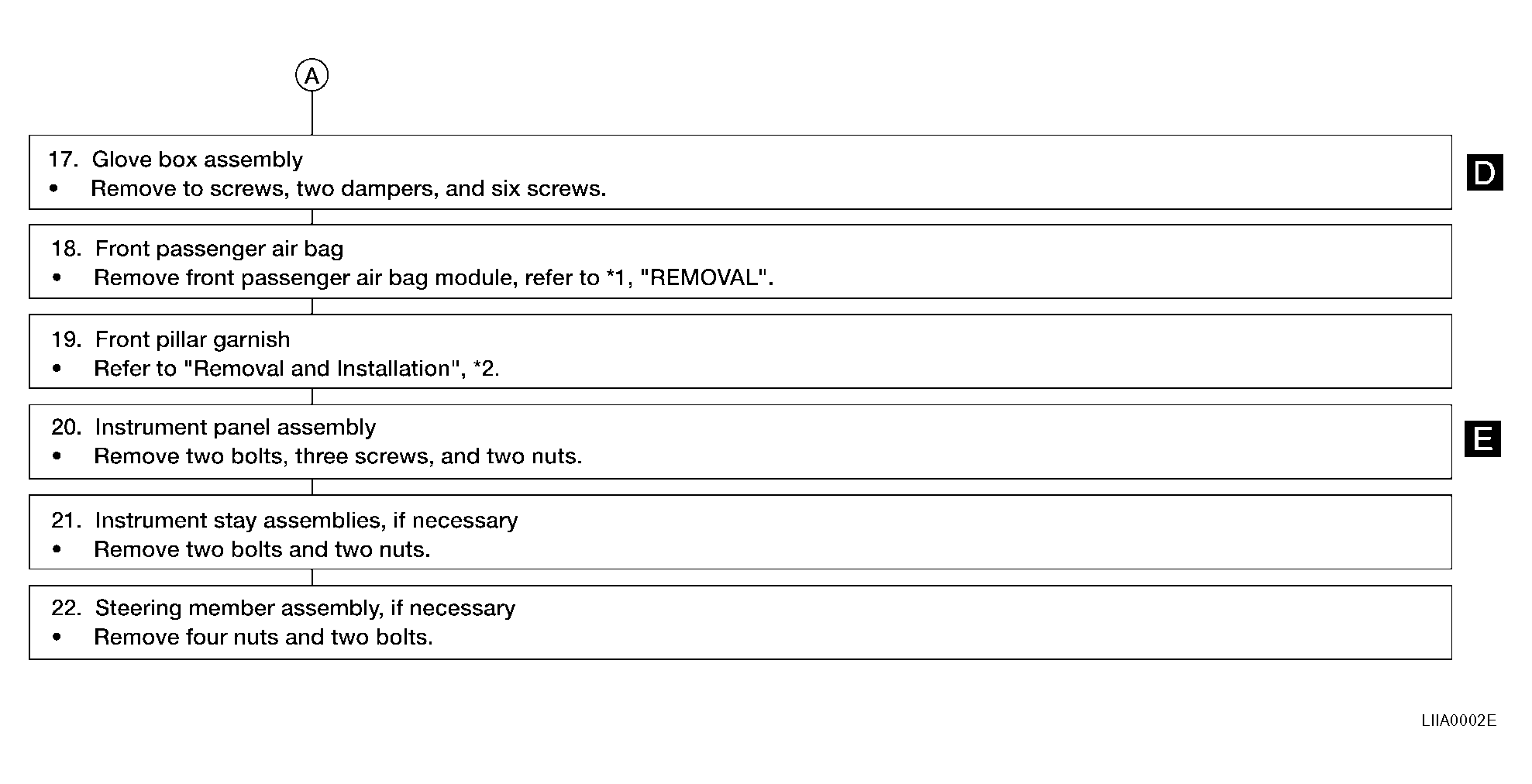

Fig 2: Instrument Panel Assembly Flow Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1. REMOVAL
*2. REMOVAL AND INSTALLATION

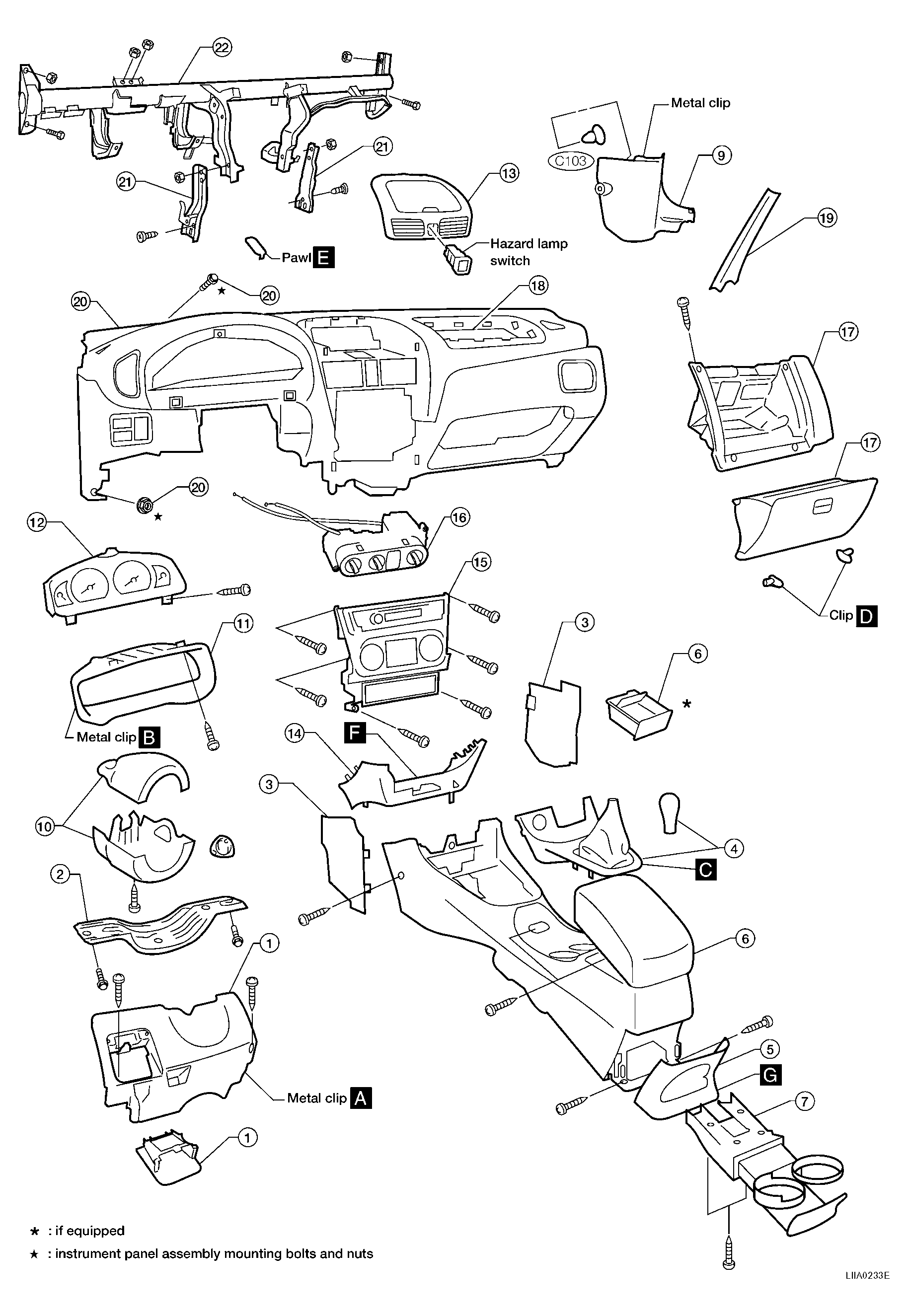

Fig 3: Exploded View Of Instrument Panel Assembly (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

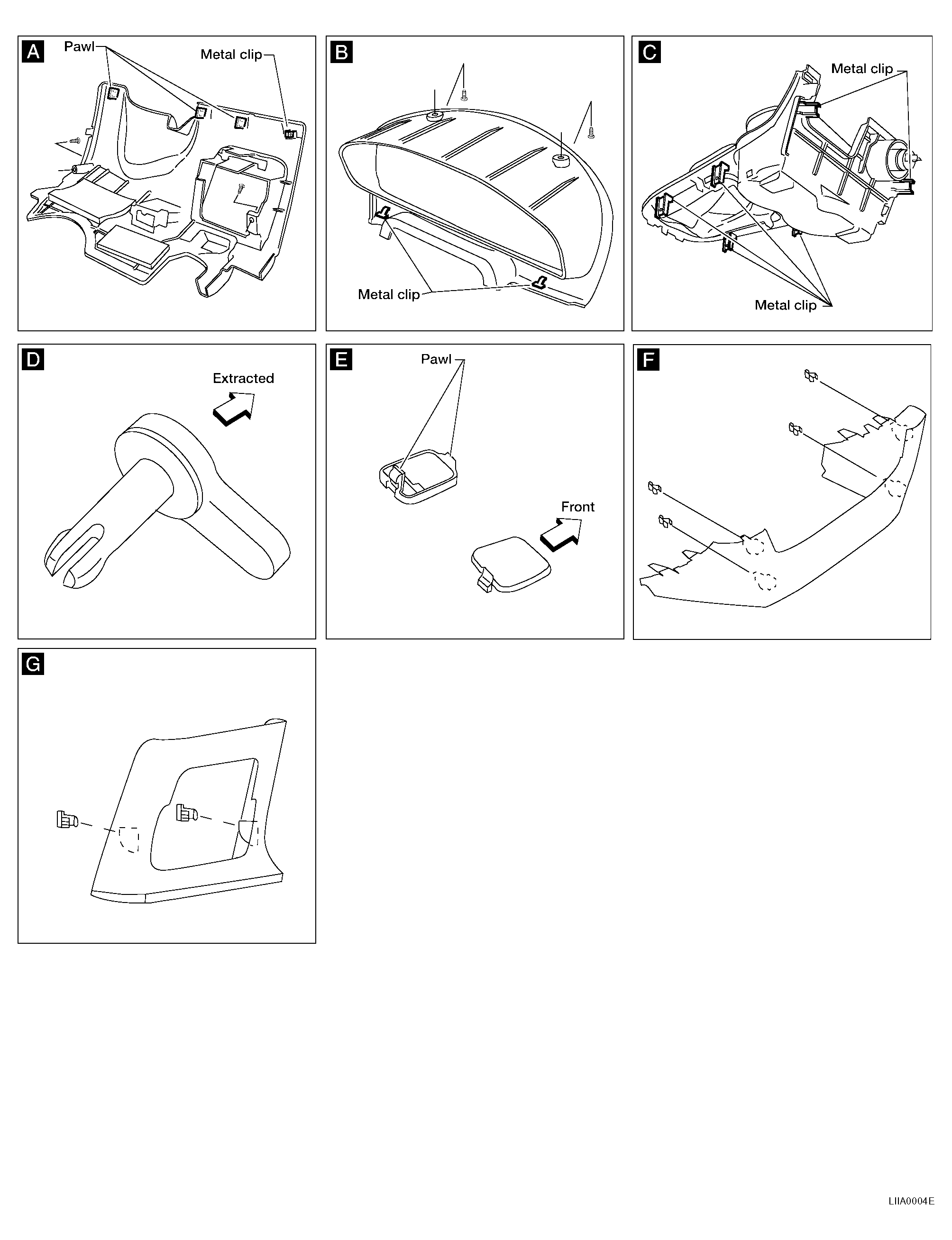

Fig 4: Exploded View Of Instrument Panel Assembly (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
