Band Servo Piston Assembly: Assembly

  1. Install new D-rings to servo piston retainer.
    CAUTION:
    • Do not reuse D-rings.
    • Apply ATF to D-rings.
    • Pay attention to position of each D-ring.

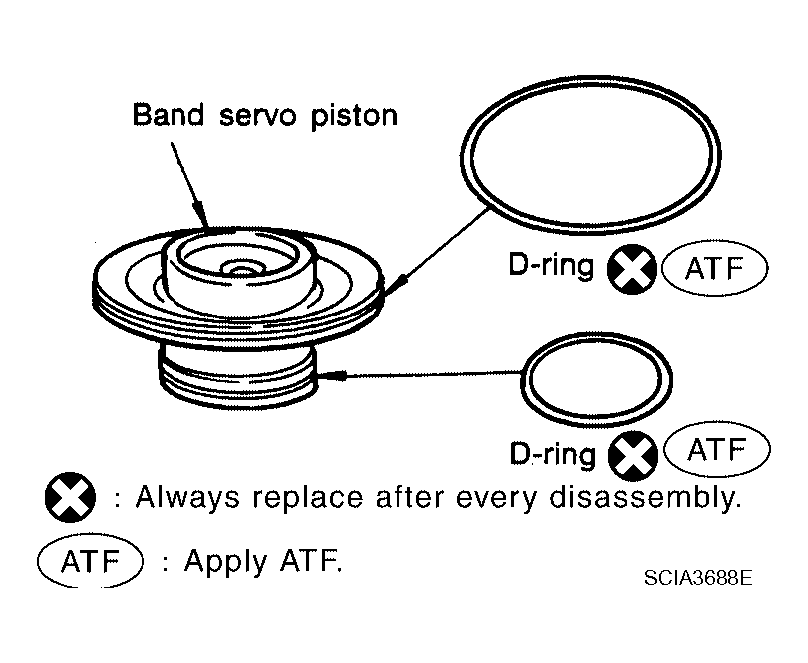

      Fig 1: Identifying D-Rings
      G04197930Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.

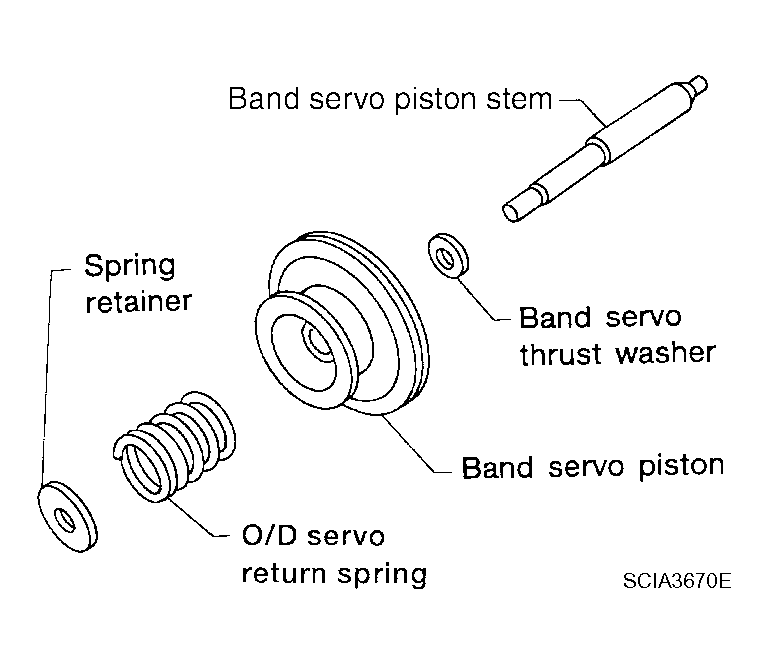

    Fig 2: Identifying Band Servo Piston Stem
    G04197931Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place band servo piston stem end on a wooden block. While pushing spring retainer down, install E-ring using suitable tool.

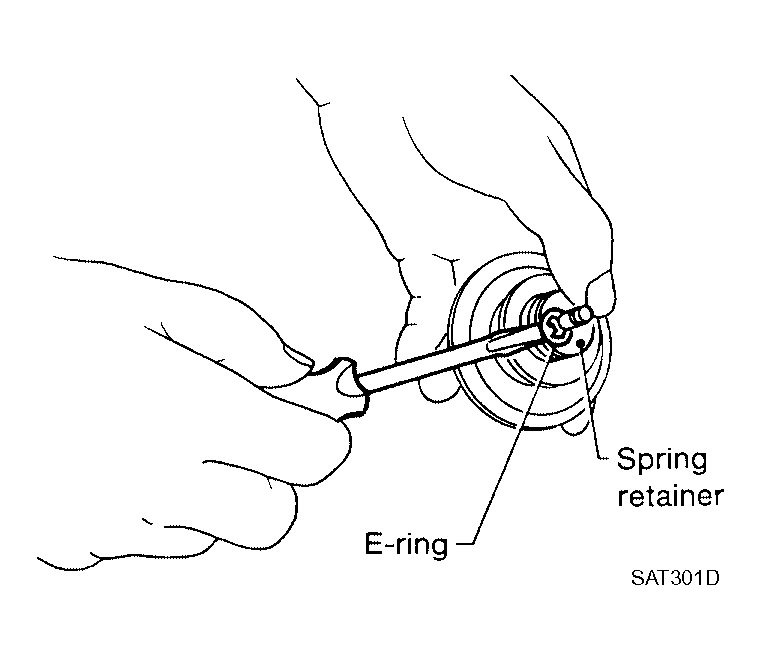

    Fig 3: Identifying E-Ring
    G04197932Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install new O-rings to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.

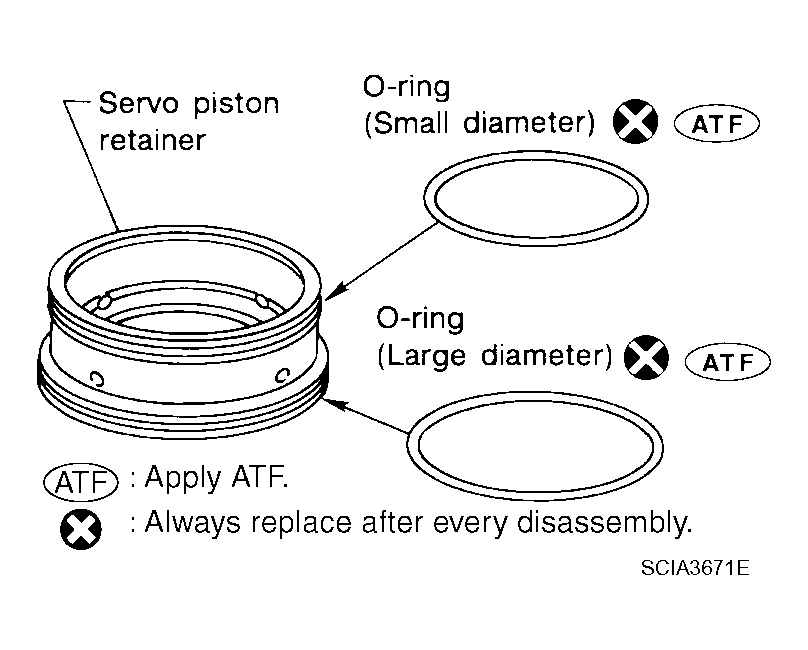

      Fig 4: Identifying O-Rings To O/D Servo Piston Retainer
      G04197933Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.

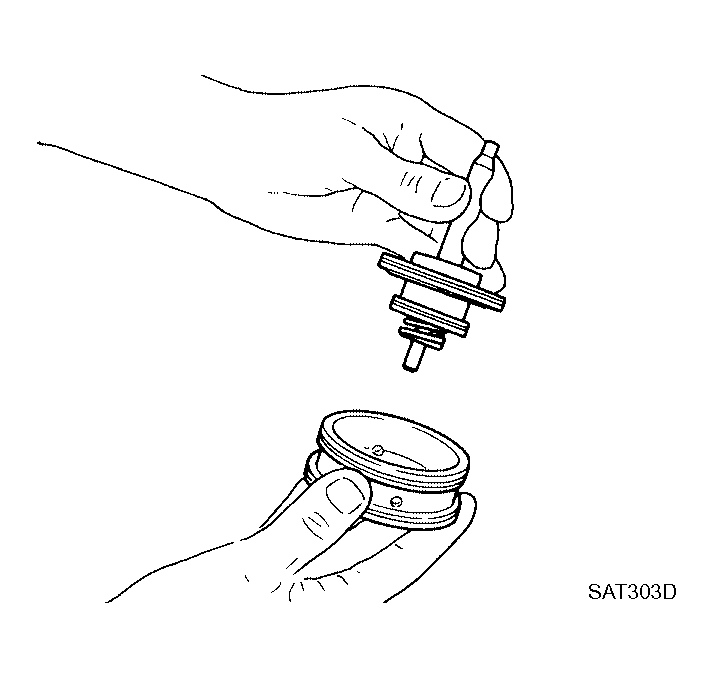

    Fig 5: Identifying Band Servo Piston Assembly
    G04197934Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install new D-ring to O/D servo piston.
    CAUTION:
    • Do not reuse D-ring.
    • Apply ATF to D-ring.

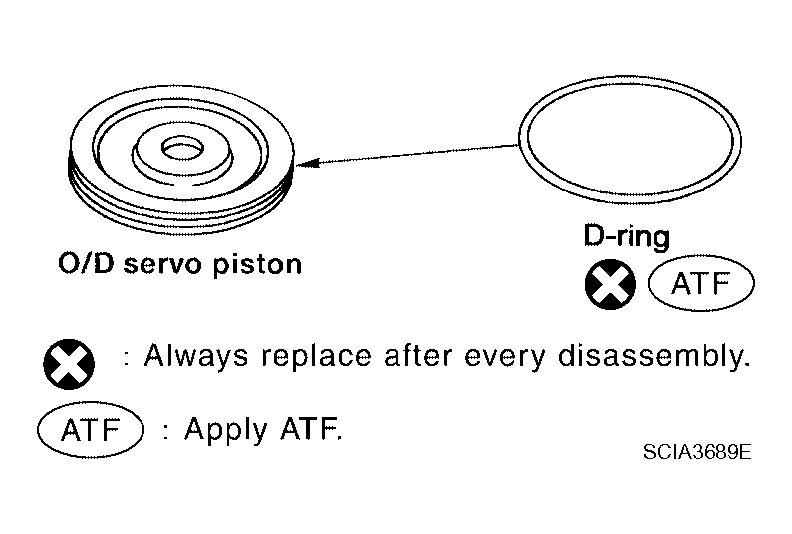

      Fig 6: Identifying D-Ring To O/D Servo Piston
      G04197935Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install new O-rings to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.

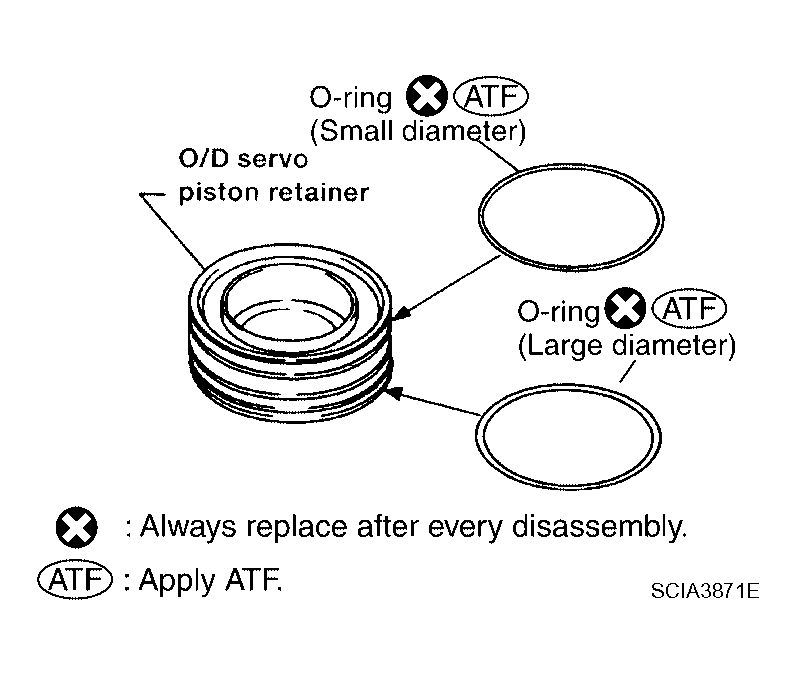

      Fig 7: Identifying O-Rings
      G04197936Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install O/D servo piston to O/D servo piston retainer.

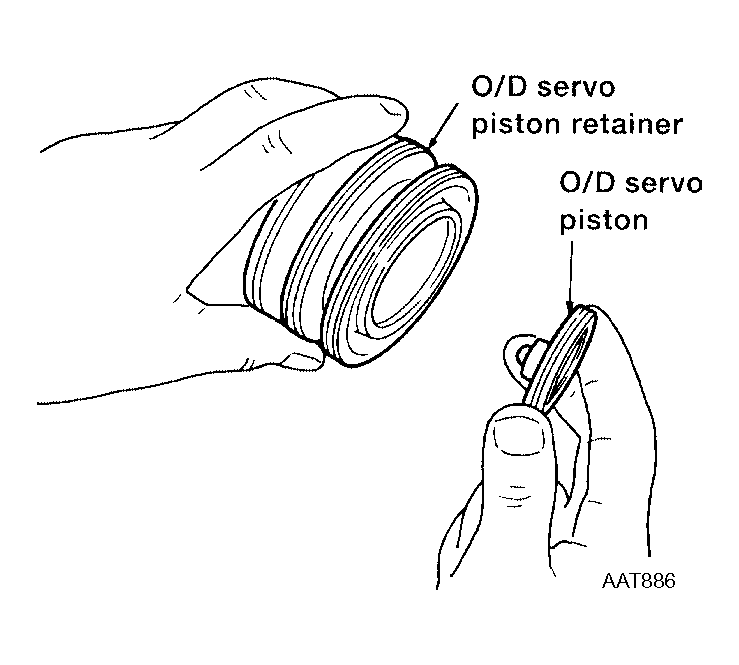

    Fig 8: Identifying O/D Servo Piston To O/D Servo Piston Retainer
    G04197937Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transaxle case.
    CAUTION: Apply ATF to O-ring of band servo piston assembly and transaxle case.

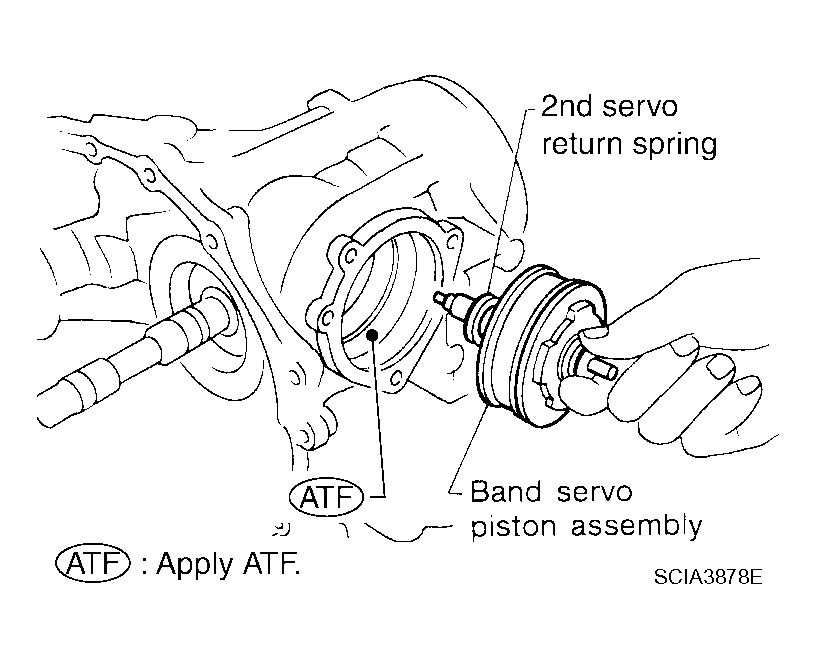

    Fig 9: Identifying Band Servo Piston Assembly
    G04197938Courtesy of NISSAN MOTOR CO., U.S.A.

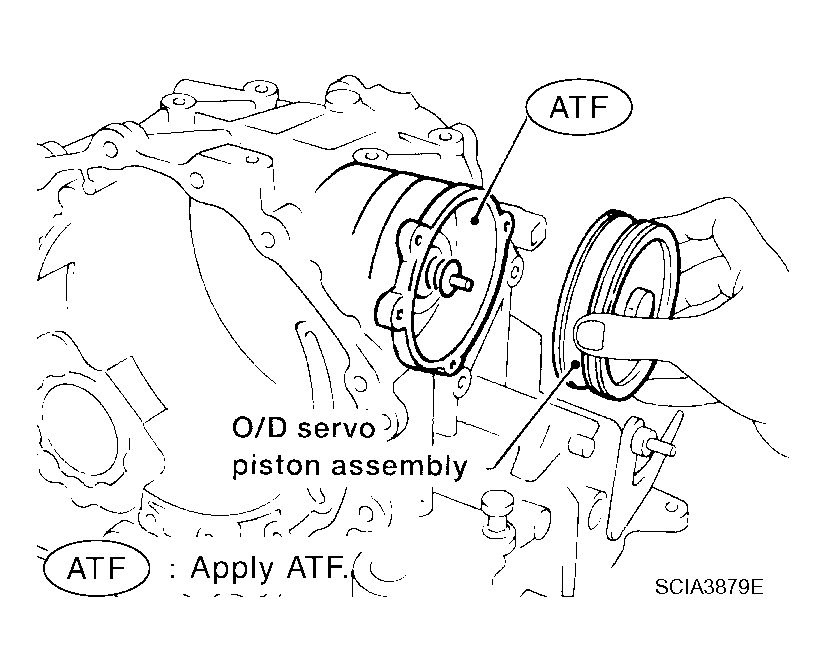

  10. Install O/D servo piston assembly to transaxle case.
    CAUTION: Apply ATF to O-ring of O/D servo piston assembly and transaxle case.
  11. Install new O-ring to O/D servo piston retainer.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
      Fig 10: Identifying O-Ring
      G04197939Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install O/D servo piston retainer to transaxle case. Refer to "COMPONENTS ".

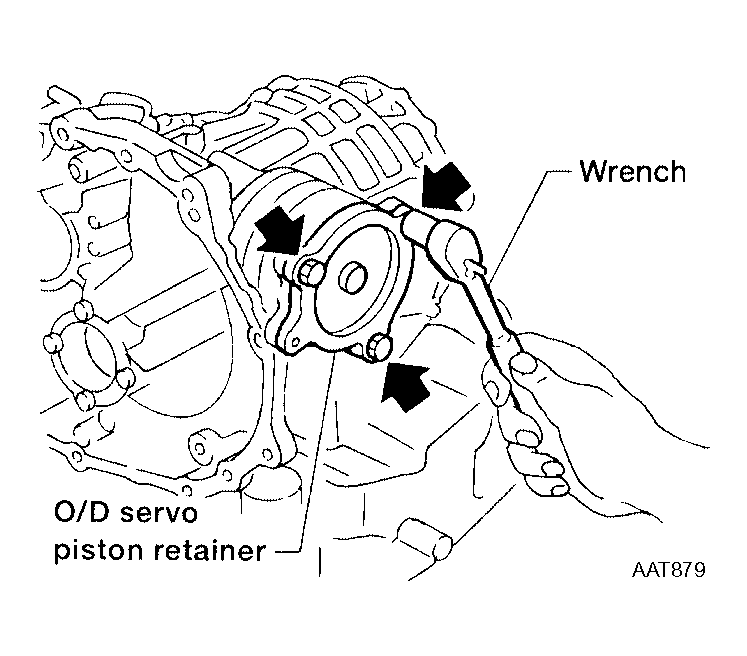

    Fig 11: Identifying O/D Servo Piston Retainer
    G04197940Courtesy of NISSAN MOTOR CO., U.S.A.
