Automatic Transmission - Component Testing (Re4F04B)
>>
Repair For Component Parts
>>
Band Servo Piston Assembly
>>
Components
Band Servo Piston Assembly: Components

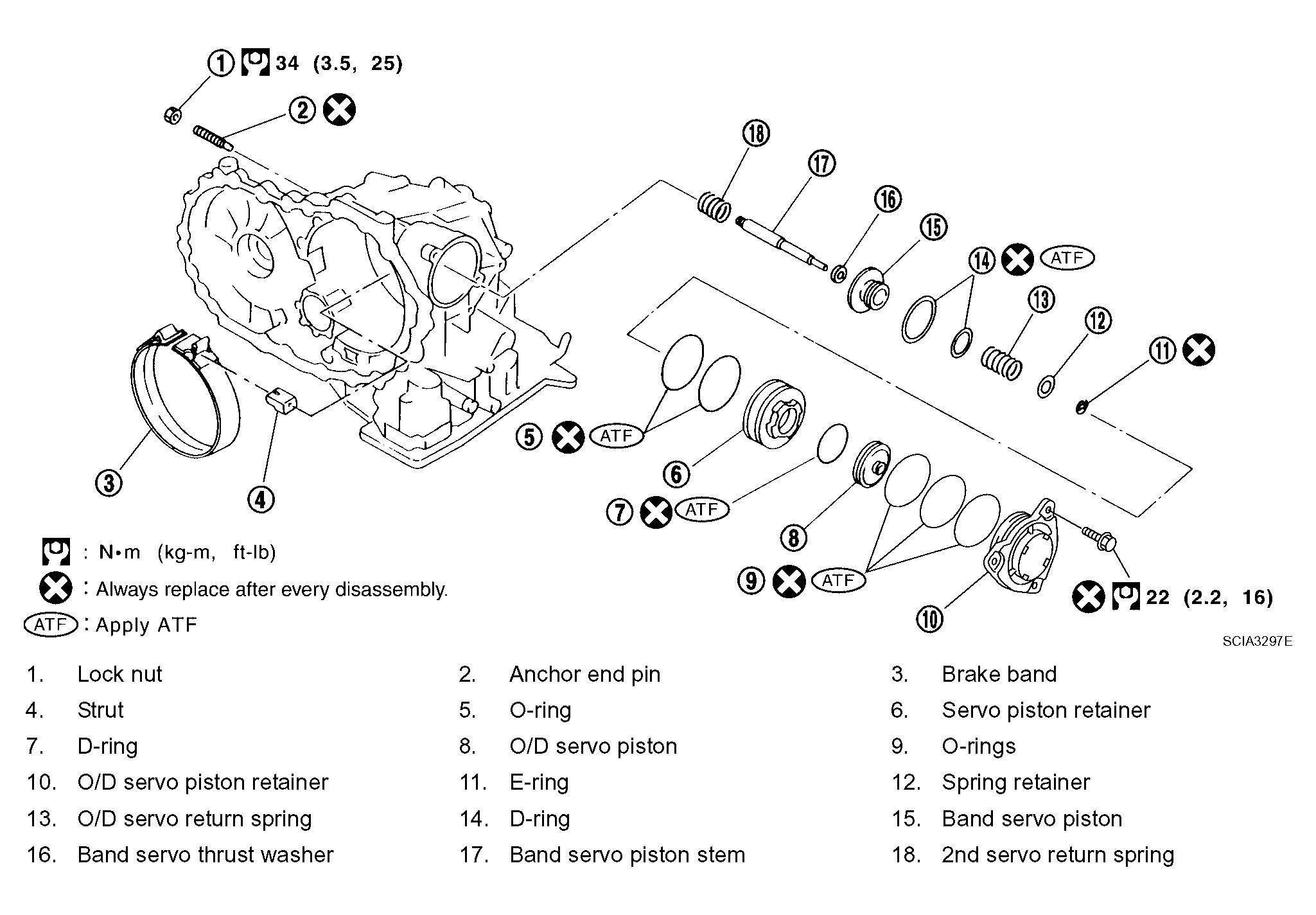

Fig 1: View Of Band Servo Piston Assembly Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
