Read Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

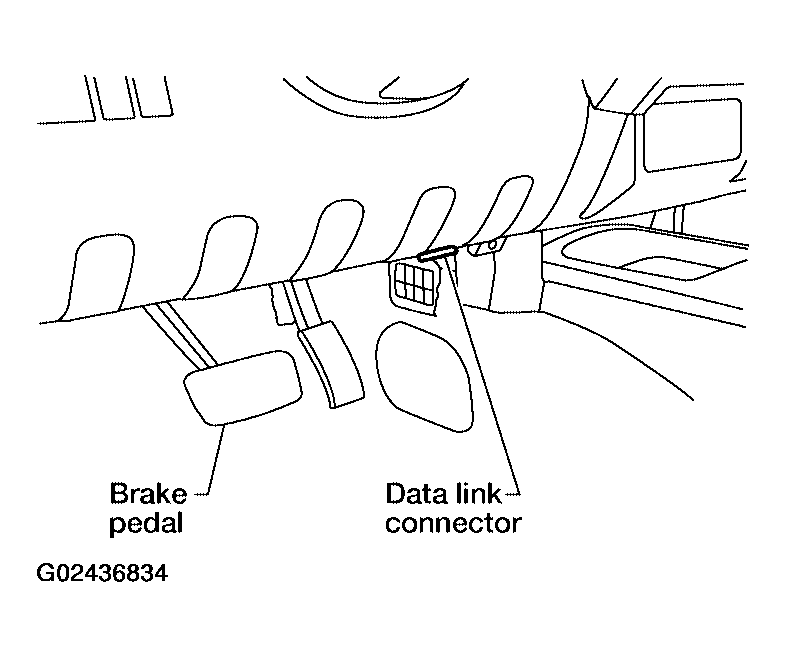

    Fig 1: Connecting Data Link Connector
    G02436834Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

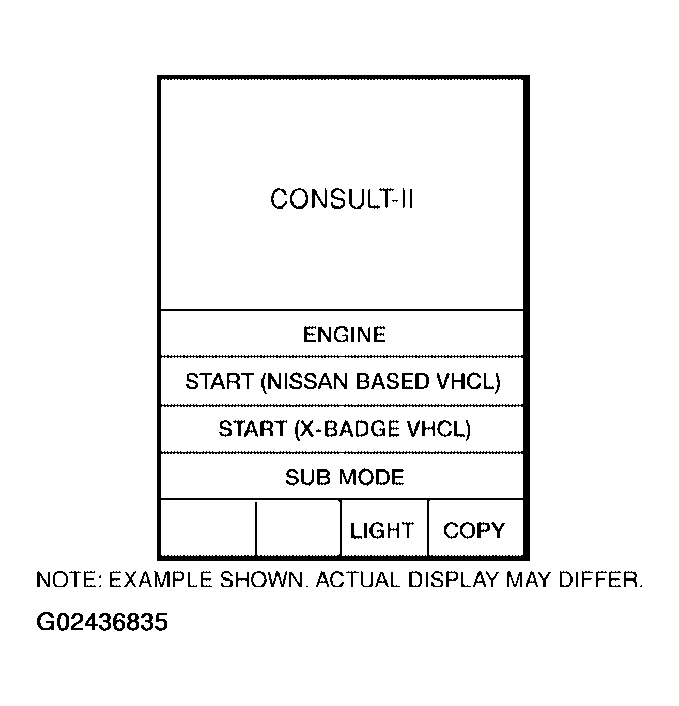

    Fig 2: Configuration Procedure Nissan Based Vhcl Display
    G02436835Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, go to GI section to check CONSULT II data link connector (DLC) circuit. Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

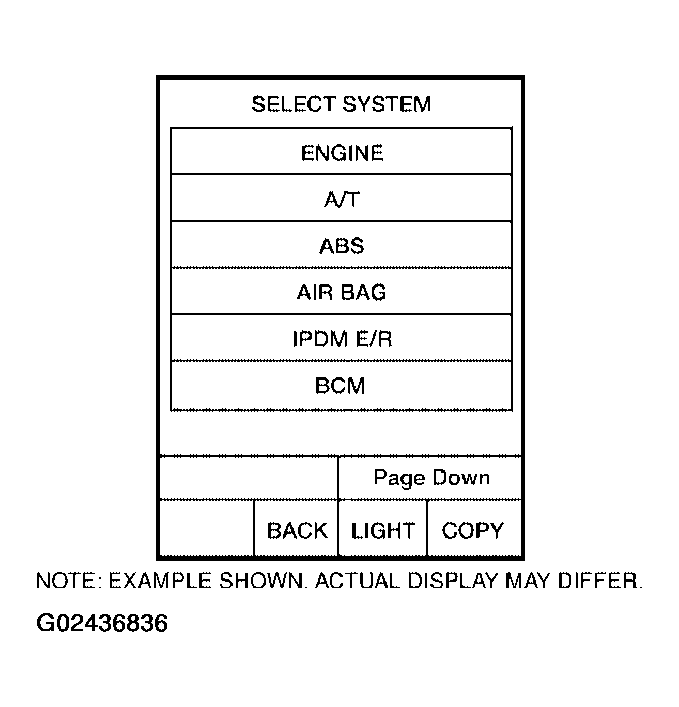

    Fig 3: Configuration Procedure Select Item Display
    G02436836Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

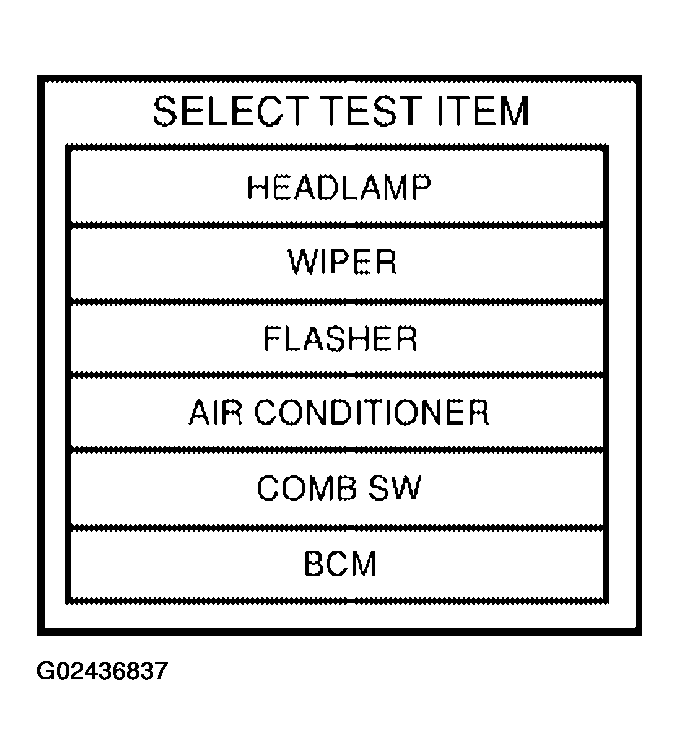

    Fig 4: Configuration Procedure Select Test Item Display
    G02436837Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

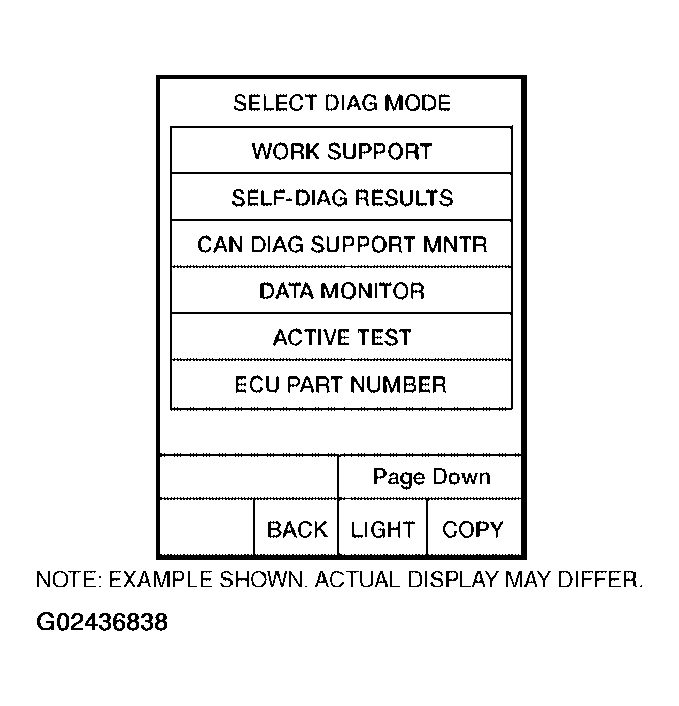

    Fig 5: Configuration Procedure Select Diag Mode Display
    G02436838Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "R51/D40/N51" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION in General Information article.

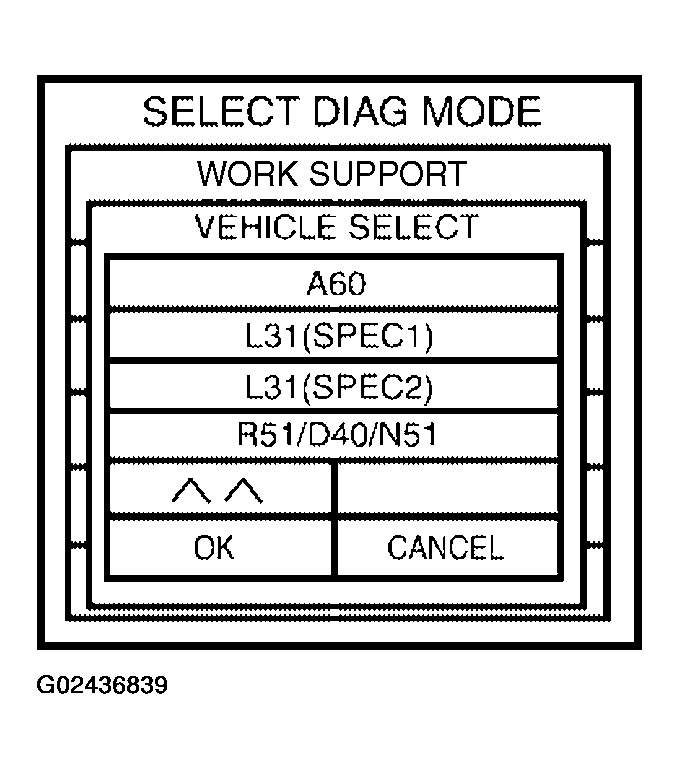

    Fig 6: Configuration Procedure Vehicle Select Display
    G02436839Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "READ CONFIGURATION" on "SELECT CONFIG ITEM" screen.

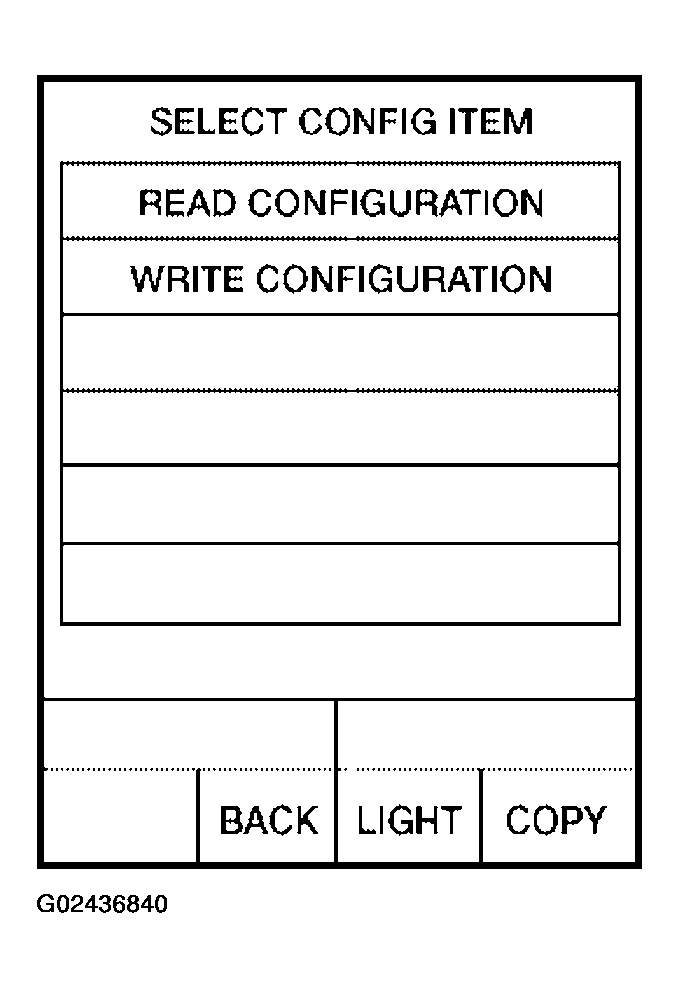

    Fig 7: Configuration Procedure Read Configuration Display
    G02436840Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to WRITE CONFIGURATION PROCEDURE .

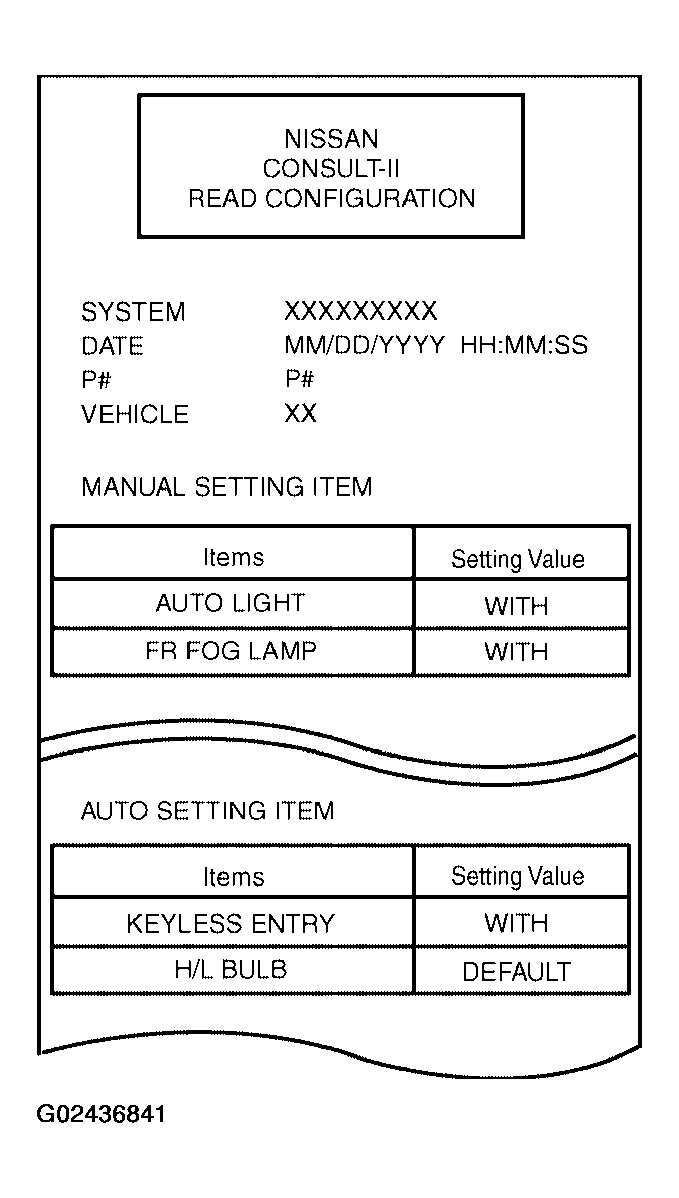

    Fig 8: Configuration Procedure Auto Setting Items Display
    G02436841Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" on "READ CONFIGURATION" screen.

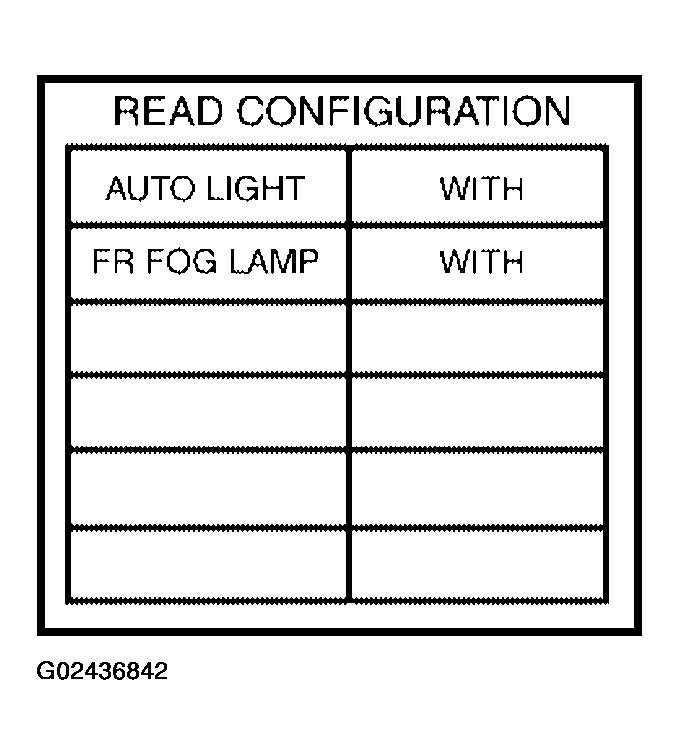

    Fig 9: Configuration Procedure Read Configuration Display
    G02436842Courtesy of NISSAN MOTOR CO., U.S.A.
