Write Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

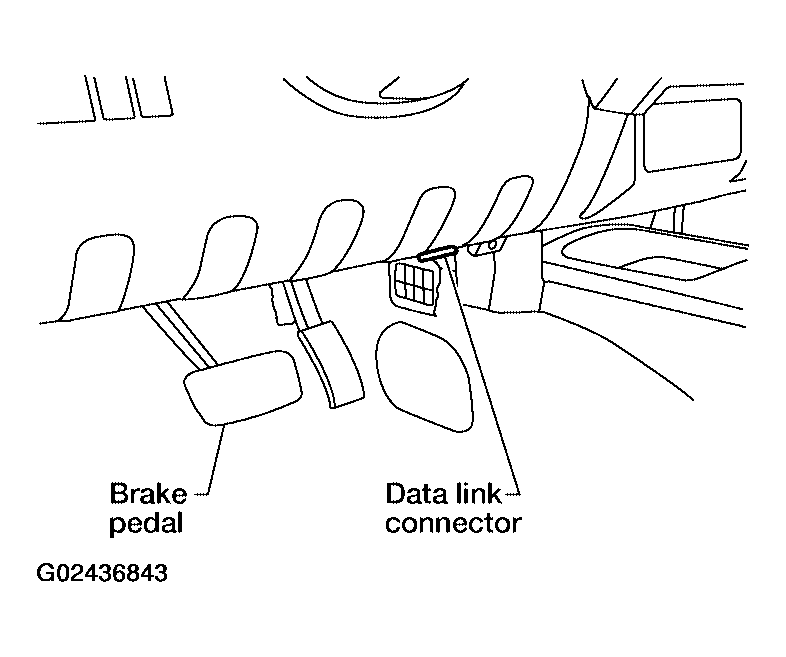

Fig 1: Connecting Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

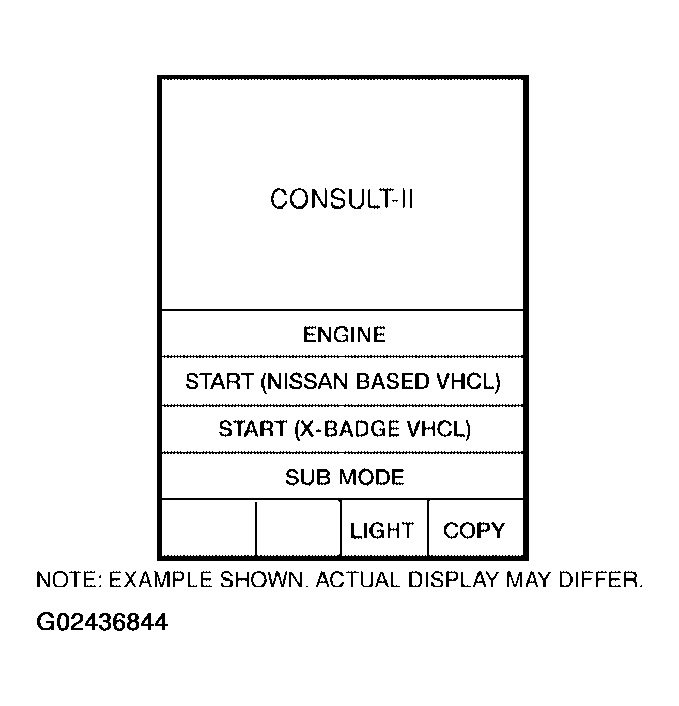

Touch "START (NISSAN BASED VHCL)".

Fig 2: Write Configuration Procedure Nissan Based Vhcl Display
Courtesy of NISSAN MOTOR CO., U.S.A.

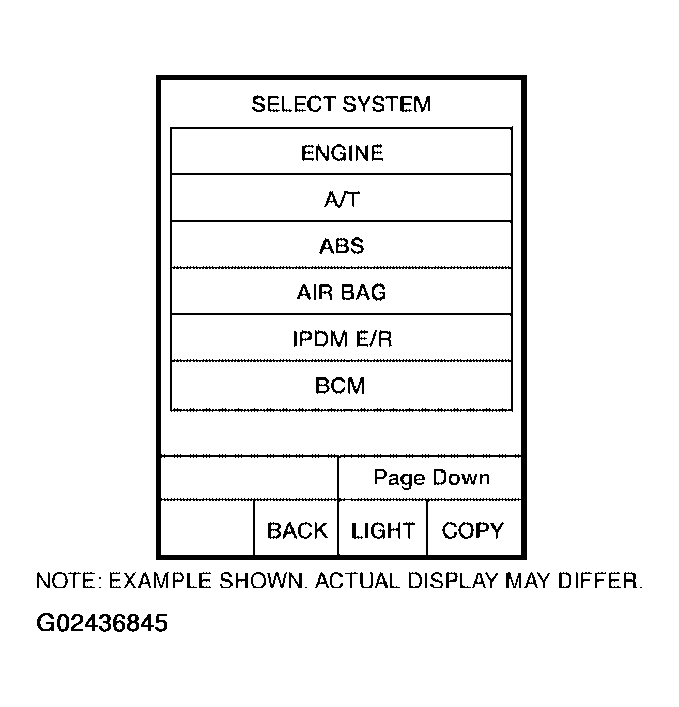

Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, go to GI section to check CONSULT II data link connector (DLC) circuit. Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Write Configuration Procedure Select Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT TEST ITEM" screen.

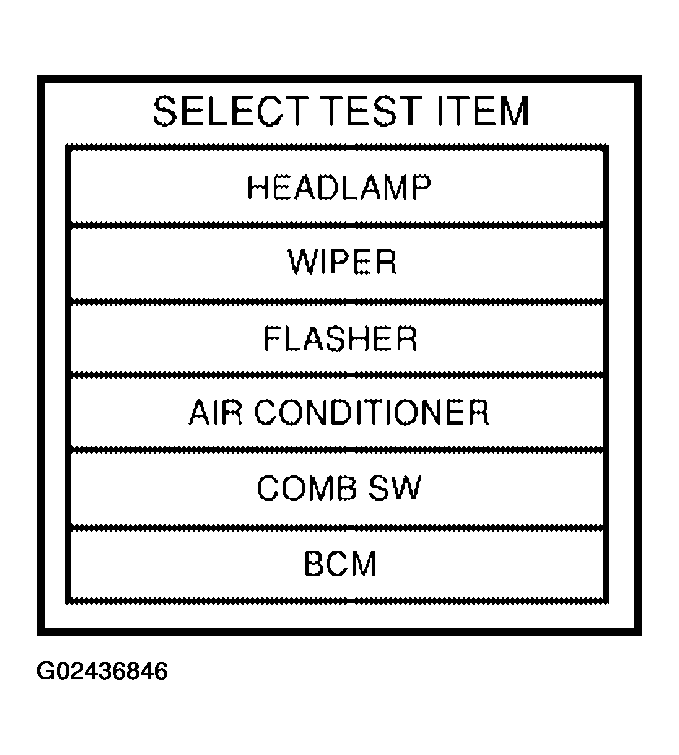

Fig 4: Write Configuration Procedure Select Test Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

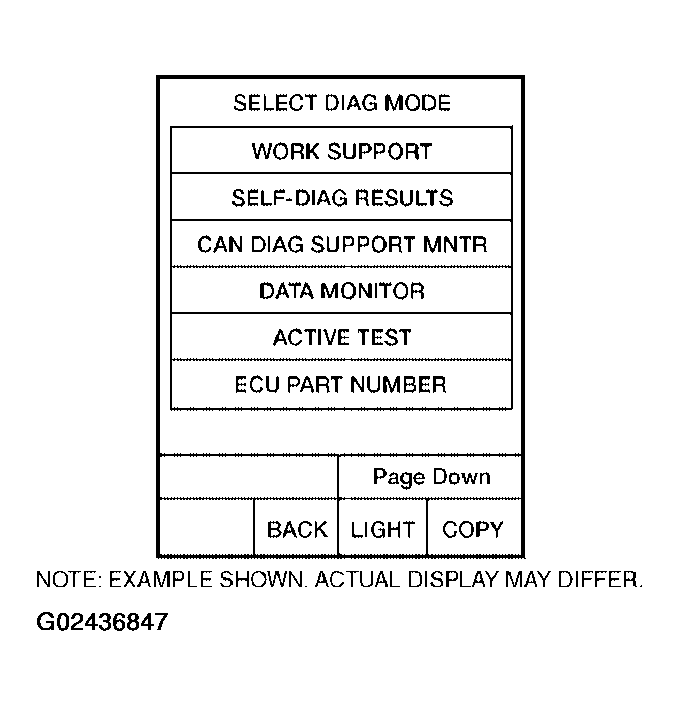

Fig 5: Write Configuration Procedure Select Diag Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "R51/D40/N51" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

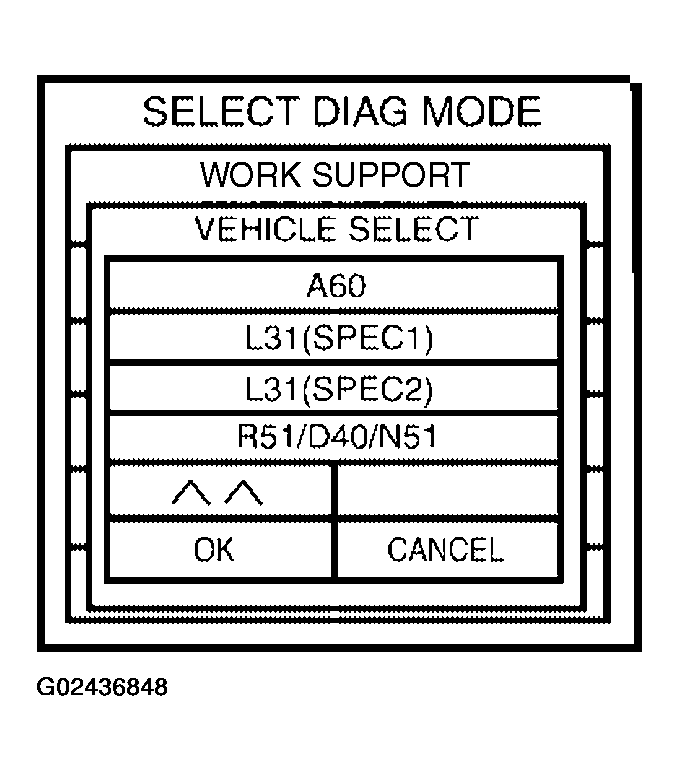

Fig 6: Write Configuration Procedure Vehicle Select Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

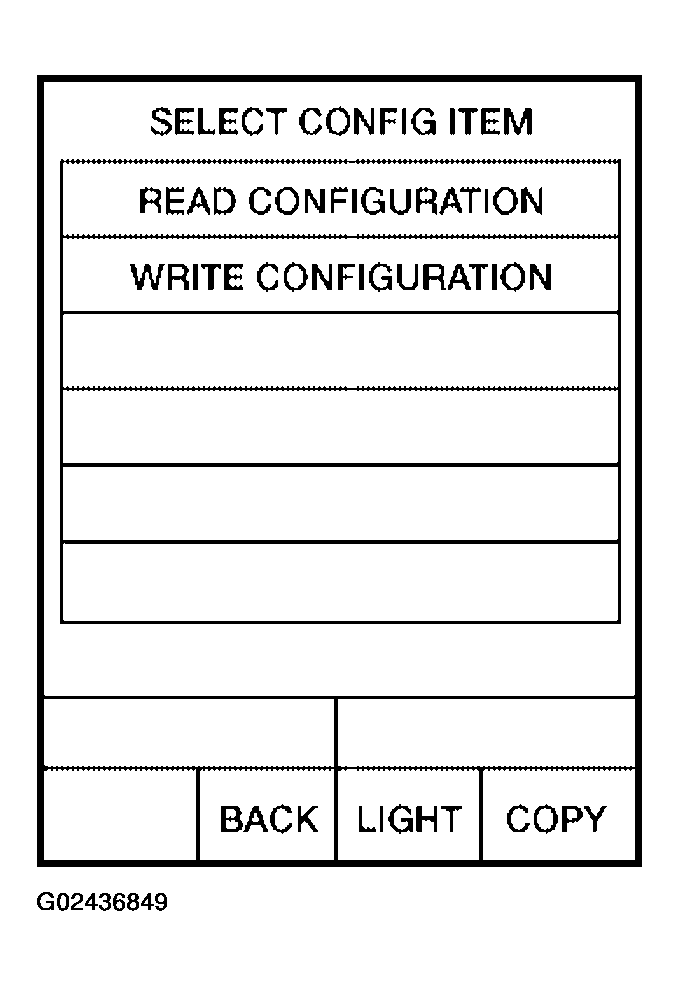

Fig 7: Write Configuration Procedure Select Config Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "YES".
For canceling, touch "NO".

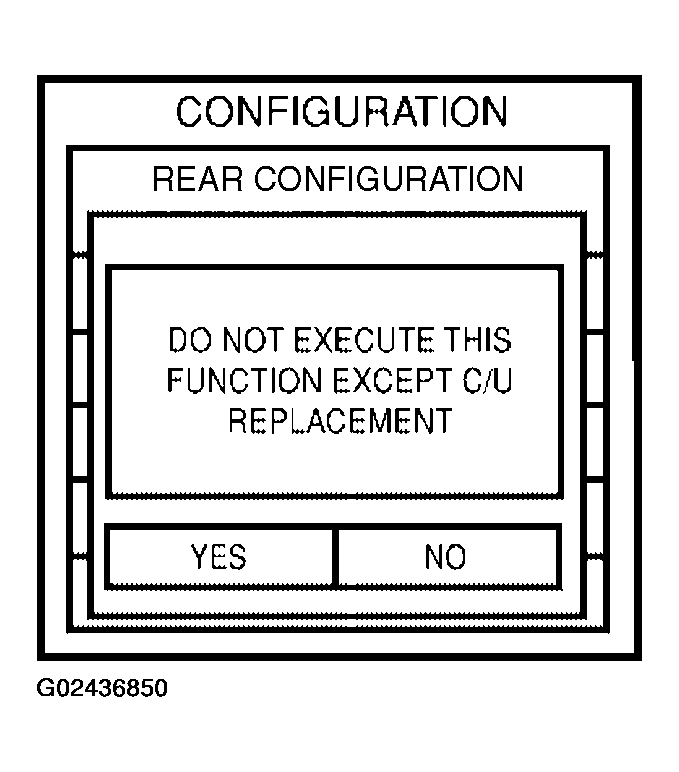

Fig 8: Write Configuration Procedure Configuration Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Using the following flow chart, identify the correct model and configuration list. Confirm and/or change setting value for each item according to the configuration list.

Depending on CONSULT-II software version being used, some or all of the write configuration items shown in the following configuration lists may be displayed. If an item does not appear on the CONSULT-II "WRITE CONFIGURATION" screen(s), then it is an auto setting item and it cannot be manually set or changed.

NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

IDENTIFICATION PLATE

Item	SET VAL
AUTO LIGHT	WITH > -- > WITHOUT
DTRL	WITH > -- > WITHOUT

Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.
If not, configuration which is set automatically by selecting vehicle model cannot be memorized.

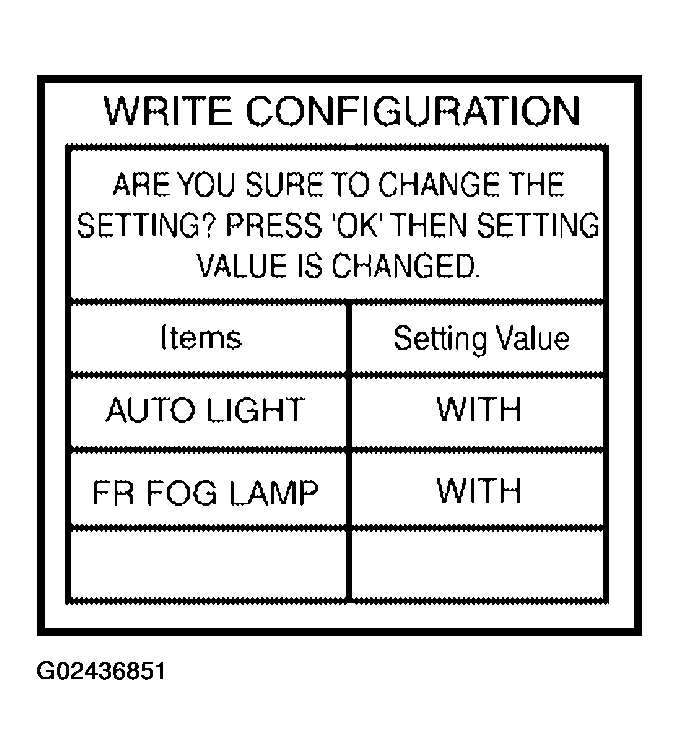

Touch "OK" on "WRITE CONFIGURATION" screen. If "CANCEL" is touched, it will return to previous screen.

Fig 9: Write Configuration Procedure Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Wait until the next screen during setting.

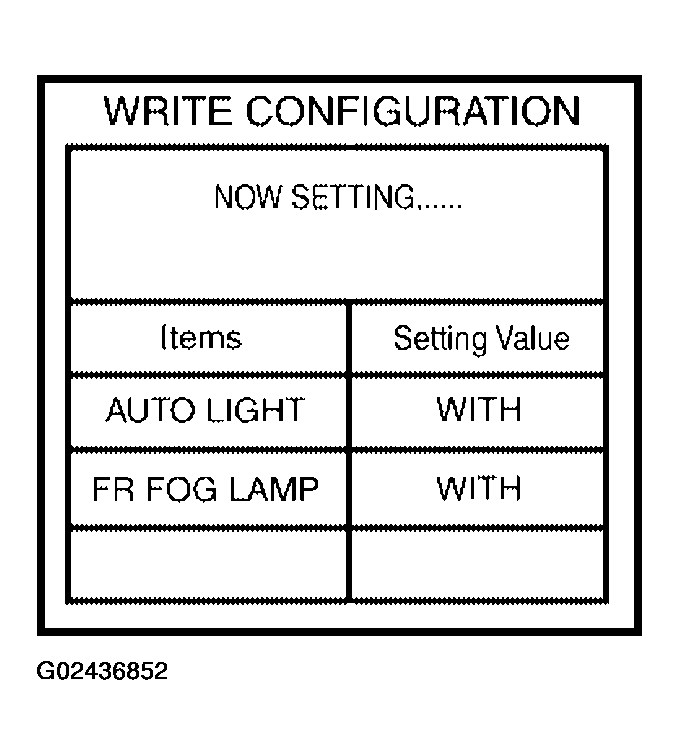

Fig 10: Write Configuration Procedure Display (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

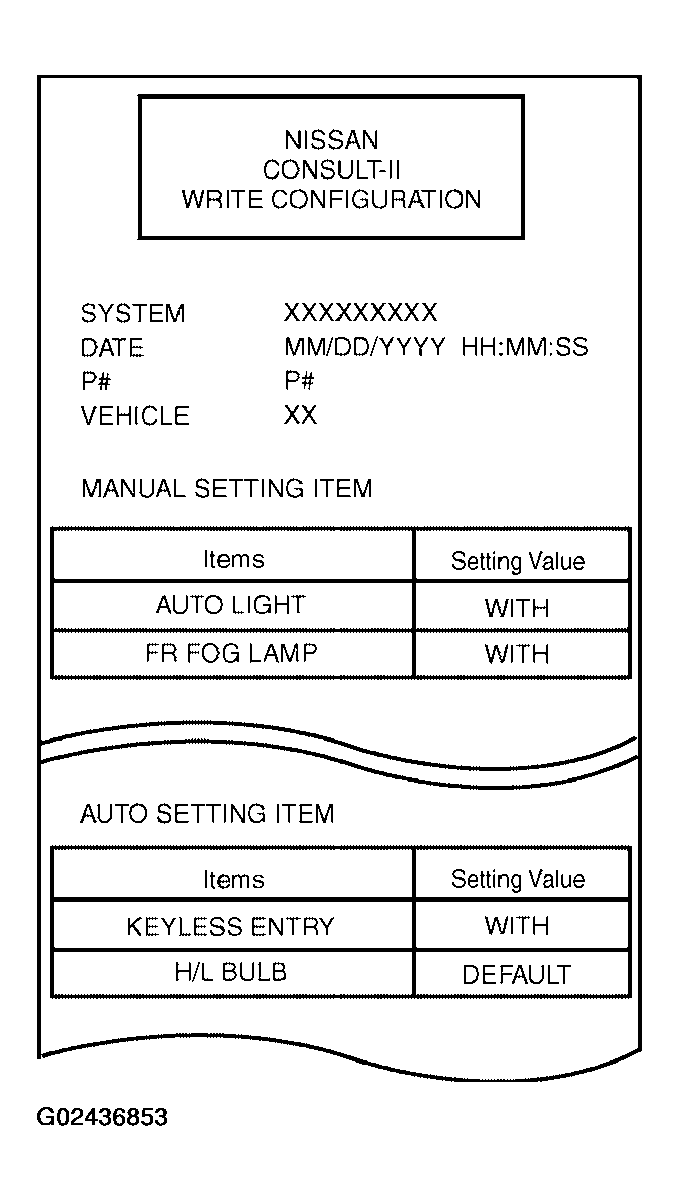

WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step 9.

Fig 11: Manual Setting Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

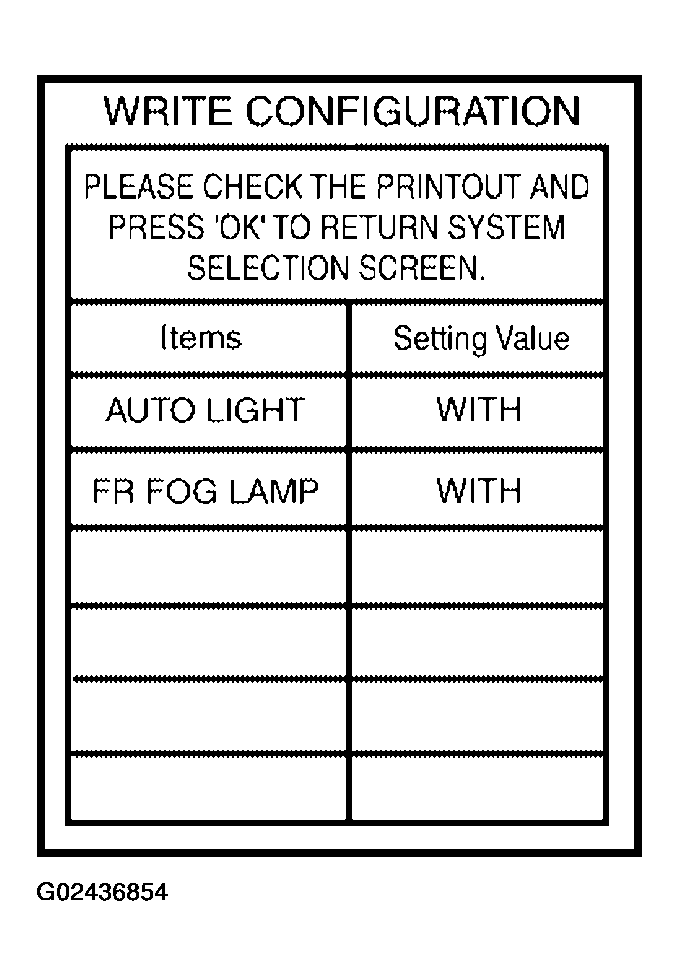

Fig 12: Write Configuration Display
Courtesy of NISSAN MOTOR CO., U.S.A.
