Door Switch Check

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR SWITCHES INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR") in DATA MONITOR mode with CONSULT-II. Refer to "MULTI REMOTE ENT" .

    • When any doors are open:
      • DOOR SW-DR: ON
      • DOOR SW-AS: ON
      • DOOR SW-RL: ON
      • DOOR SW-RR: ON
      • BACK DOOR SW: ON

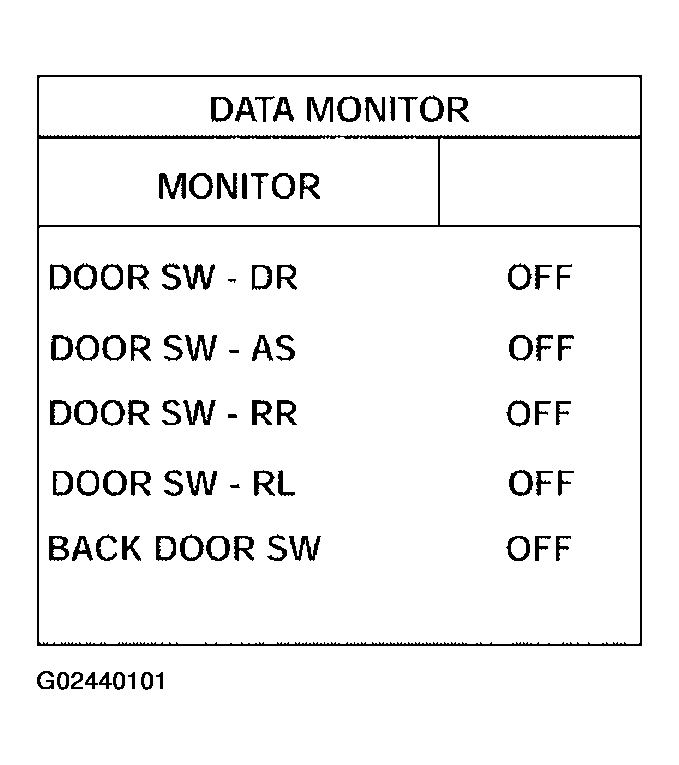

      Fig 1: CONSULT-II Display - DOOR SW-DR, DOOR SW-AS, DOOR SW-RL, DOOR SW-RR
      G02440101Courtesy of NISSAN MOTOR CO., U.S.A.
    • When any doors are closed:
      • DOOR SW-DR: OFF
      • DOOR SW-AS: OFF
      • DOOR SW-RL: OFF
      • DOOR SW-RR: OFF
      • BACK DOOR SW: OFF

    Without CONSULT-II

    Check voltage between BCM connector M18 or M19 terminals 12, 13, 43, 47, 48 and ground.

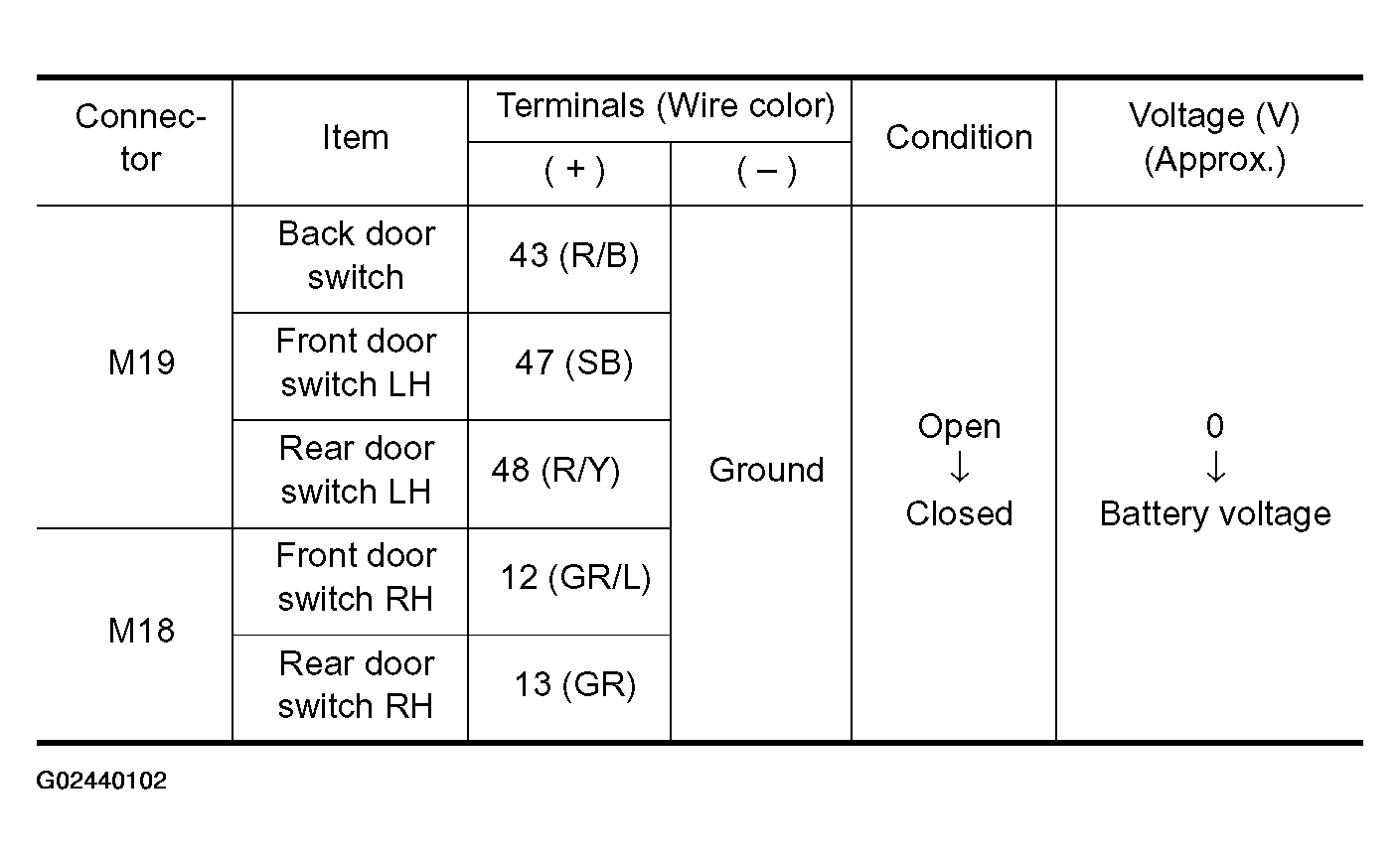

    Fig 2: BCM Connector M18 & M19 Terminal Specification Chart
    G02440102Courtesy of NISSAN MOTOR CO., U.S.A.

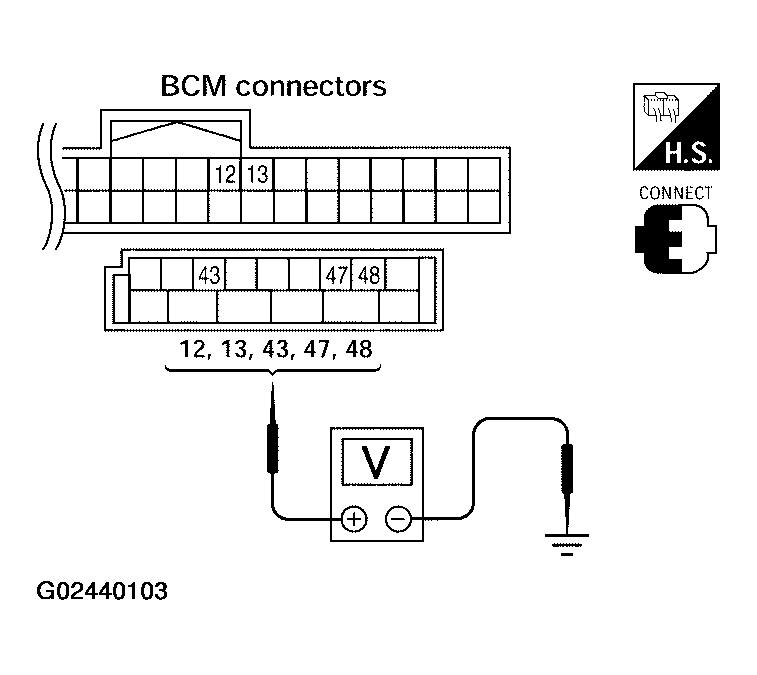

    Fig 3: Checking Voltage Between BCM Connector M18 Or M19 Terminals 12, 13, 47, 48 & Ground
    G02440103Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: System is OK.
    • NG: GO TO  2.
  2. CHECK DOOR SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect door switch and BCM.
    3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B116 (Rear RH) terminal 2 or D502 (Back) terminal 3 and BCM connector M18, M19 terminals 12, 13, 43, 47 and 48.
      • 2 (SB) - 47 (SB): Continuity should exist
      • 2 (R/L) - 12 (R/L): Continuity should exist
      • 2 (R/Y) - 48 (R/Y): Continuity should exist
      • 2 (GR) - 13 (GR): Continuity should exist
      • 3 (R/B) - 43 (R/B): Continuity should exist
    4. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B116 (Rear RH) terminal 2 or D502 (Back) terminal 3 and ground.

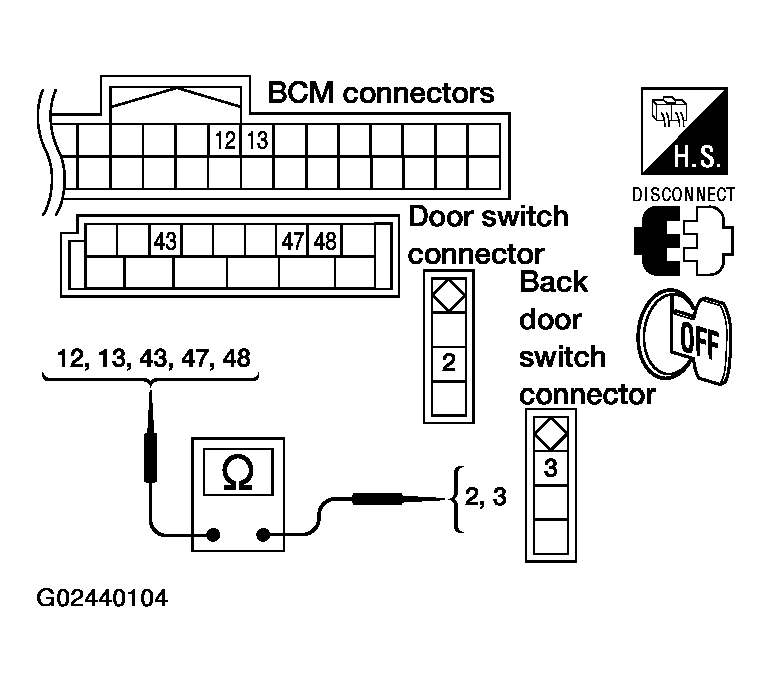

      Fig 4: Checking Voltage Between BCM Harness Connector Terminals
      G02440104Courtesy of NISSAN MOTOR CO., U.S.A.
      • 2 (SB, R/L, R/Y or GR) -: Continuity should not exist Ground
      • 3 (R/B) - Ground: Continuity should not exist

    OK or NG

    • OK: GO TO  3.
    • NG: Repair or replace harness.
  3. CHECK DOOR SWITCHES
    • Disconnect door switch harness.
    • Check continuity between door switch connector terminals.

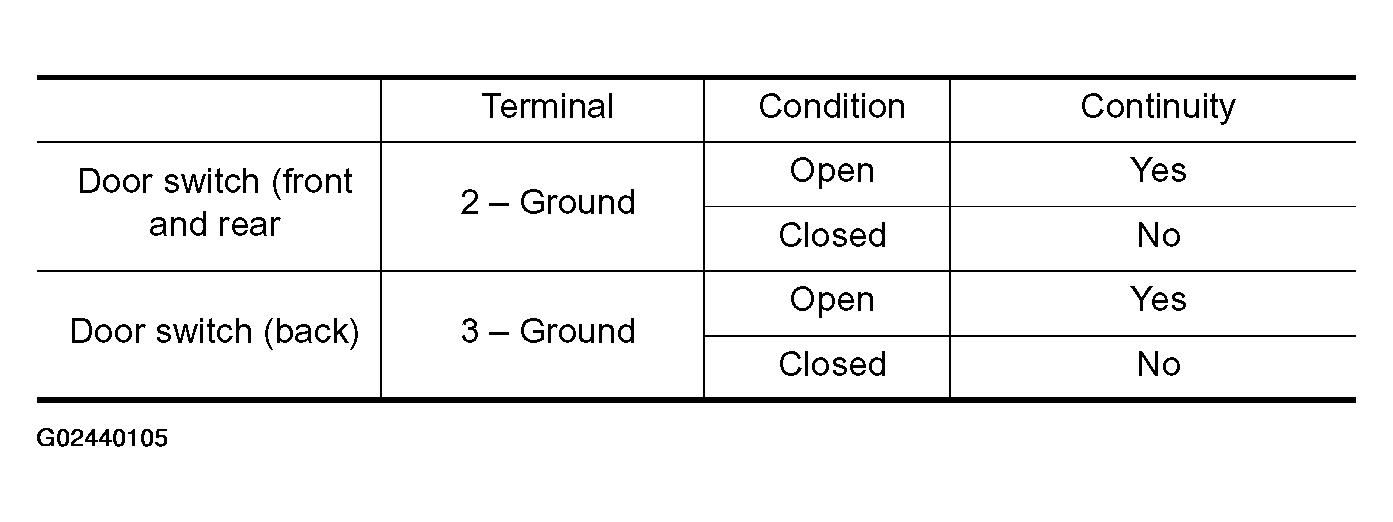

      Fig 5: Door Switch Connector Terminals Continuity
      G02440105Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Check door switch case ground condition (front and rear door) or ground circuit (back door).
    • NG: Replace door switch.

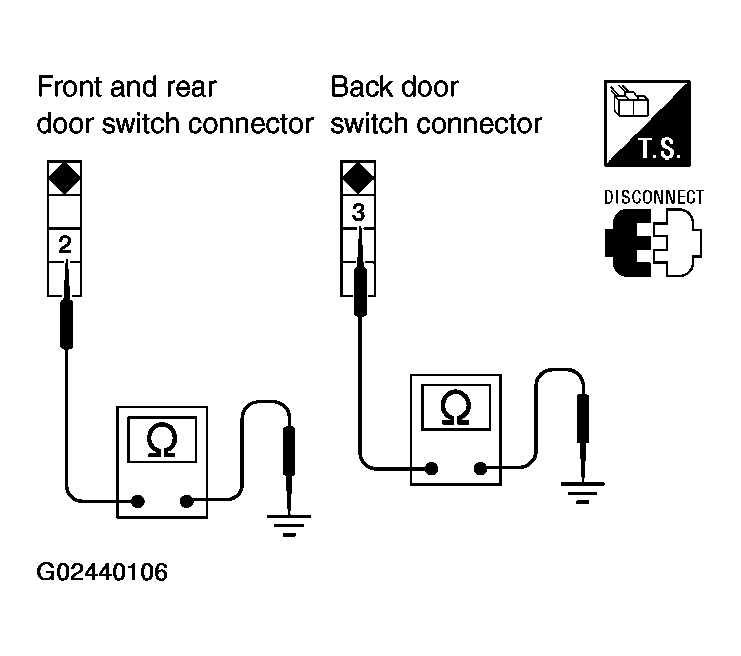

    Fig 6: Checking Continuity Between Door Switch Harness Connector
    G02440106Courtesy of NISSAN MOTOR CO., U.S.A.
