CHECK ACC POWER
With CONSULT-II

Check "ACC ON SW" in DATA MONITOR mode with CONSULT-II. Refer to "MULTI REMOTE ENT" .

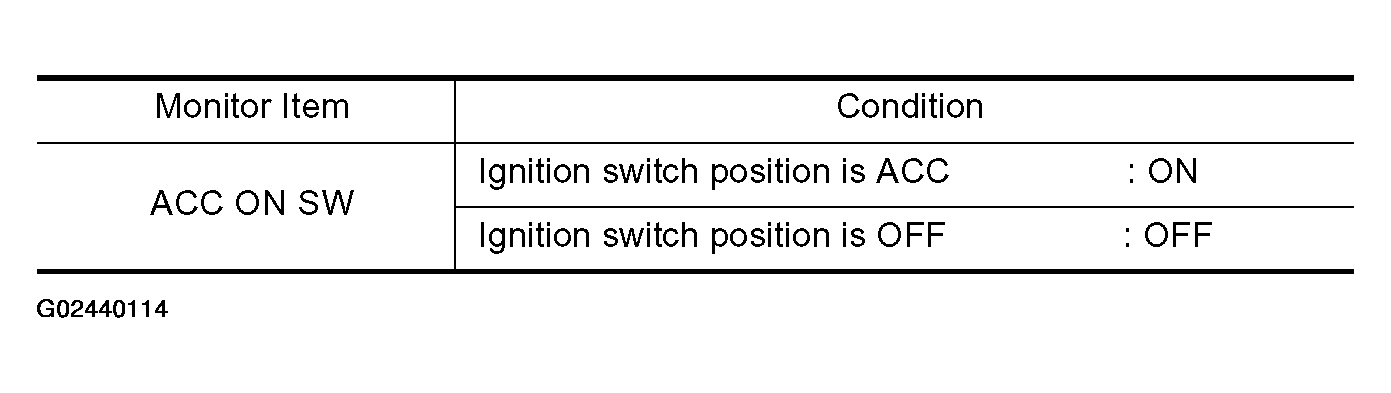

Fig 1: DATA MONITOR Mode Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

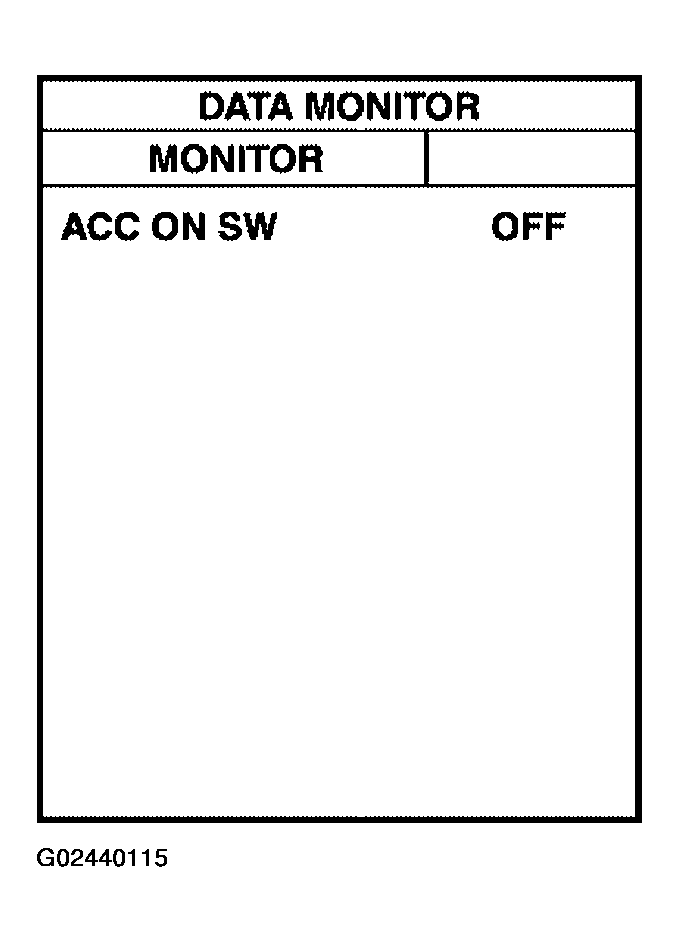

Fig 2: Identifying Scan Tool Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

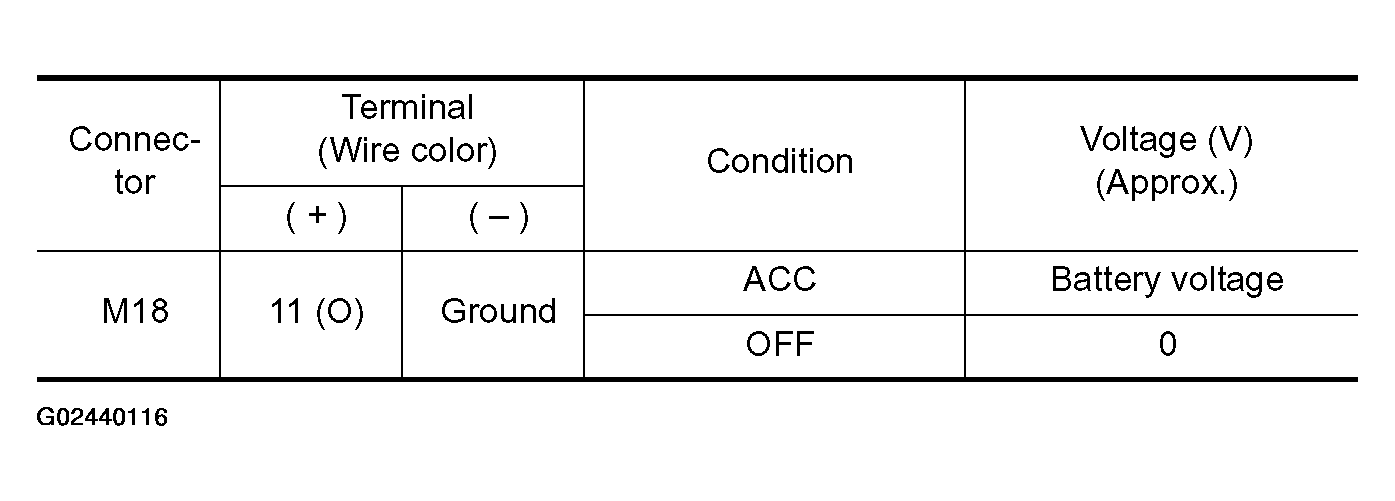

Fig 3: Voltage Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

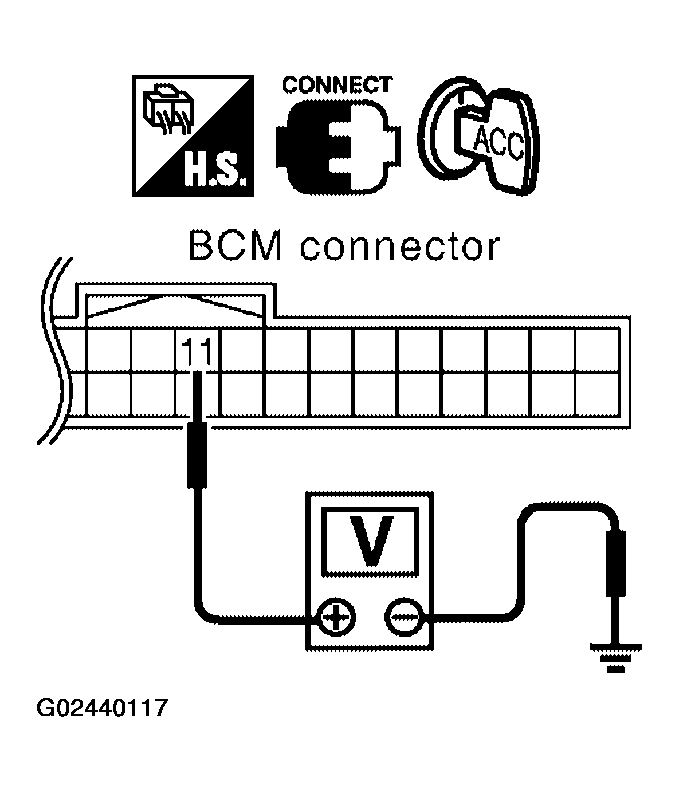

Fig 4: Checking Voltage Between BCM Connector M18 Terminal 11 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: ACC power circuit is OK.
- NG: Check the following.
  - 10A fuse [No. 4, located in fuse block (J/B)]
  - Harness for open or short.
