Band Servo Piston Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install new D-rings to servo piston retainer.
    NOTE:
    • Apply ATF to new D-rings.
    • Pay attention to the position of each D-ring.

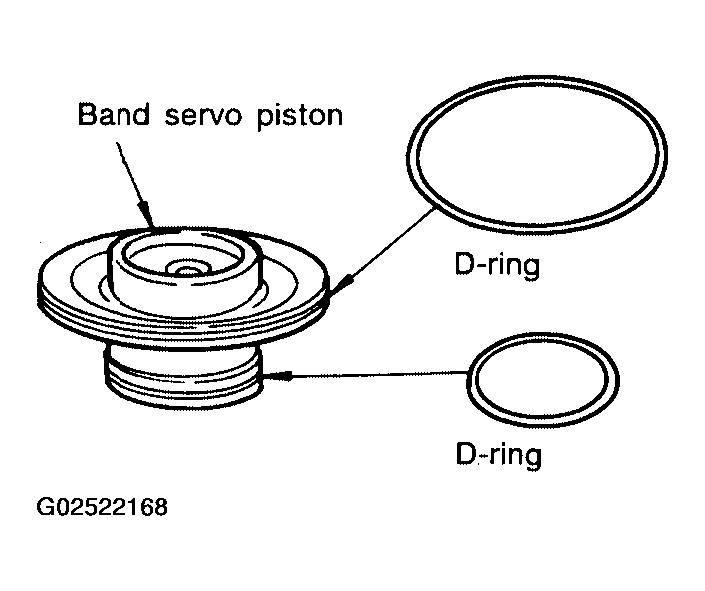

    Fig 1: Installing New D-Rings To Servo Piston Retainer
    G02522168Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.

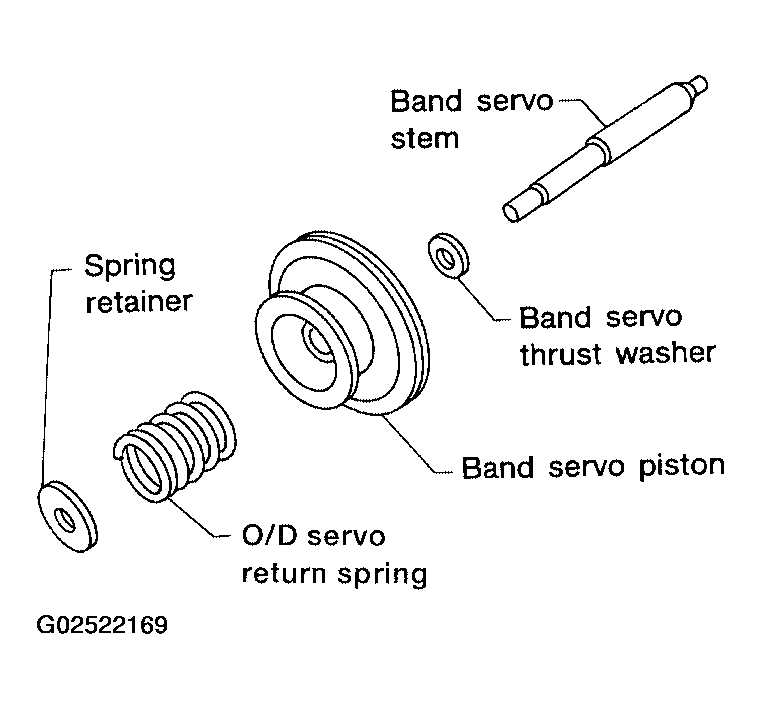

    Fig 2: Installing Band Servo Piston Stem, Band Servo Thrust Washer, O/D Servo Return Spring And Spring Retainer To Band Servo Piston
    G02522169Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring using suitable tool.

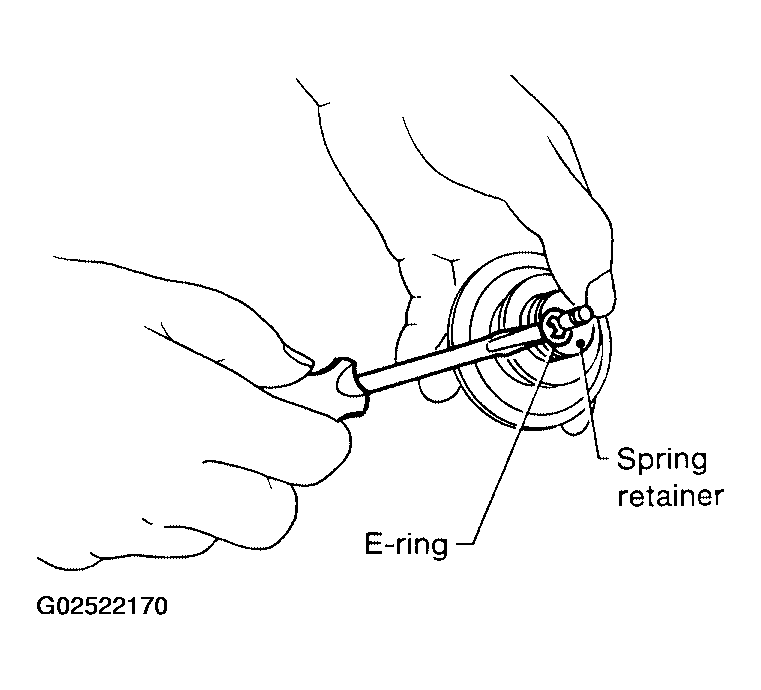

    Fig 3: Installing E-Ring Using Suitable Tool
    G02522170Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    NOTE:
    • Apply ATF to the new O-rings.
    • Pay attention to the position of the new O-rings.

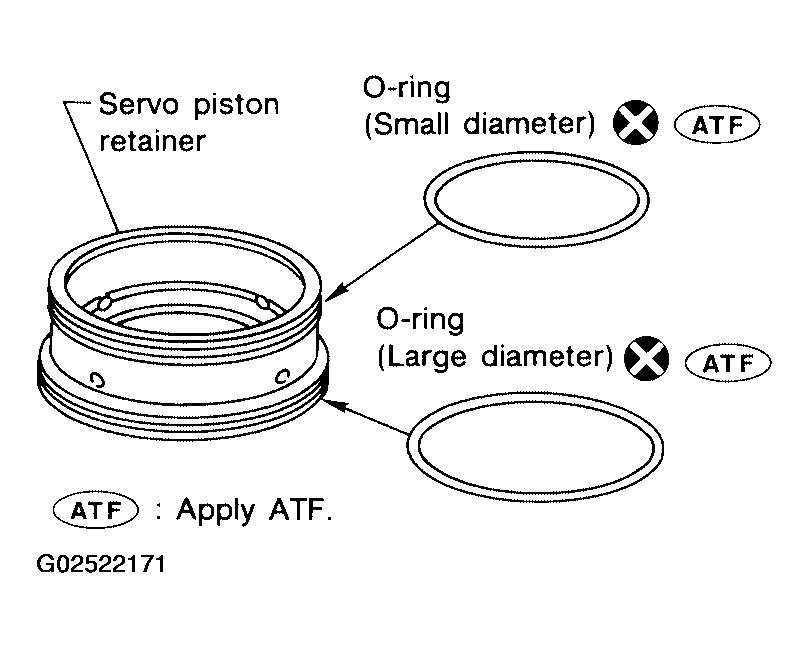

    Fig 4: Installing O-Rings To Servo Piston Retainer
    G02522171Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.

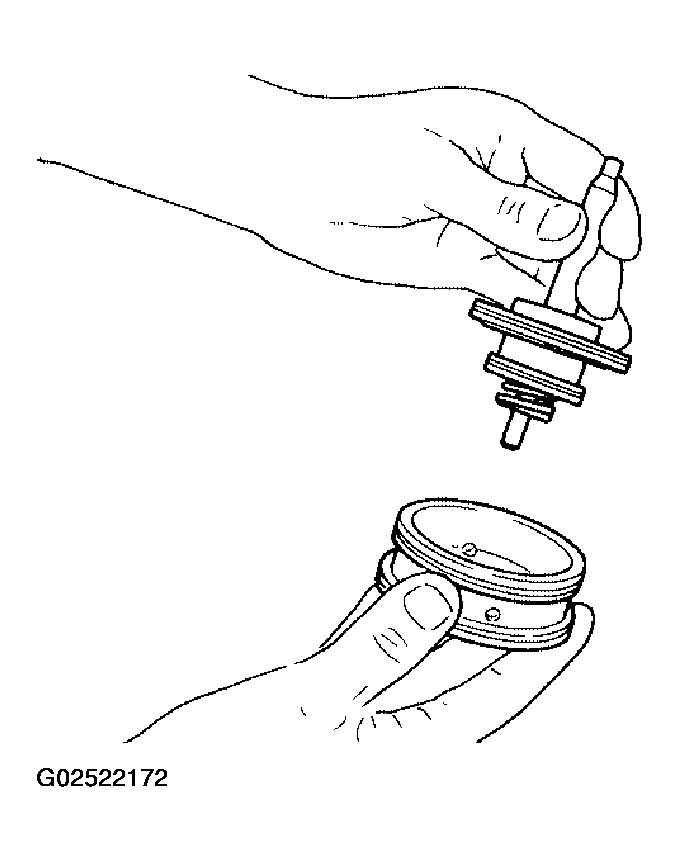

    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G02522172Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install new D-ring to O/D servo piston.
    NOTE:
    • Apply ATF to the new D-ring.
    • Pay attention to the position of the new D-ring.

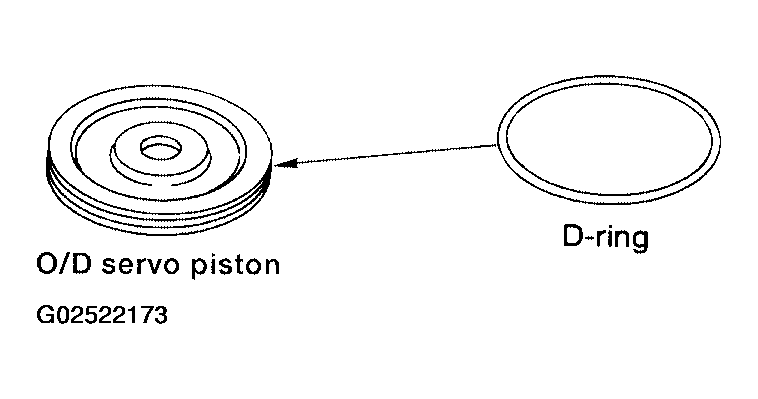

    Fig 6: Installing New D-Ring To O/D Servo Piston
    G02522173Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install new O-rings to O/D serve piston retainer.
    NOTE:
    • Apply ATF to the new O-rings.
    • Pay attention to the position of the new O-rings.

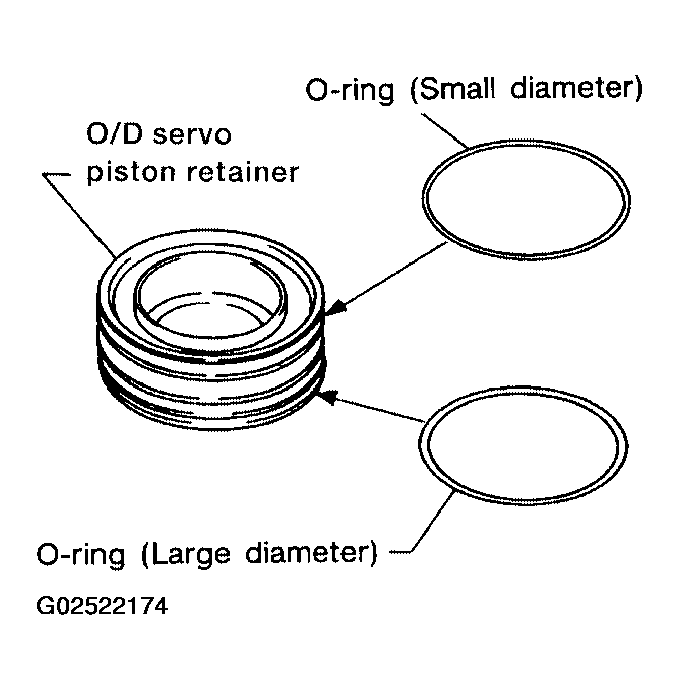

    Fig 7: Installing New O-Rings To O/D Serve Piston Retainer
    G02522174Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install O/D servo piston to O/D servo piston retainer.

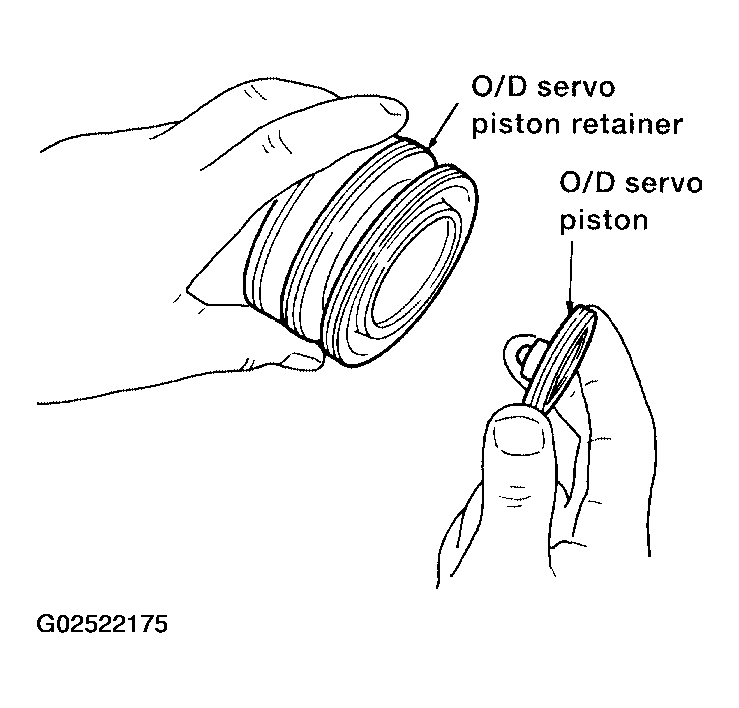

    Fig 8: Installing O/D Servo Piston To O/D Servo Piston Retainer
    G02522175Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transaxle case.
    NOTE: Apply ATF to O-ring of the band servo and transaxle case

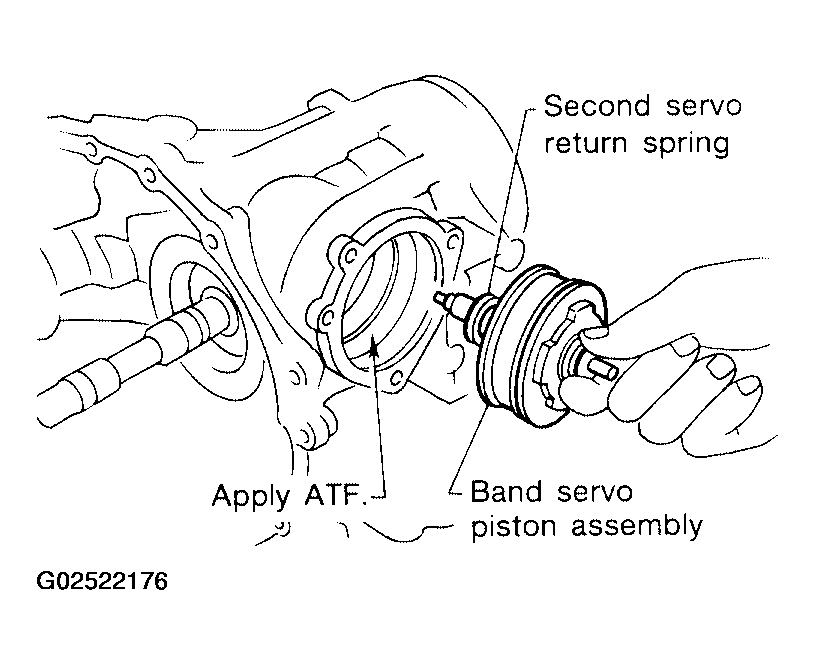

    Fig 9: Installing Band Servo Piston Assembly And 2nd Servo Return Spring To Transaxle Case
    G02522176Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install O/D servo piston assembly to transaxle case.
    NOTE: Apply ATF to O-ring of the O/D servo and transaxle case

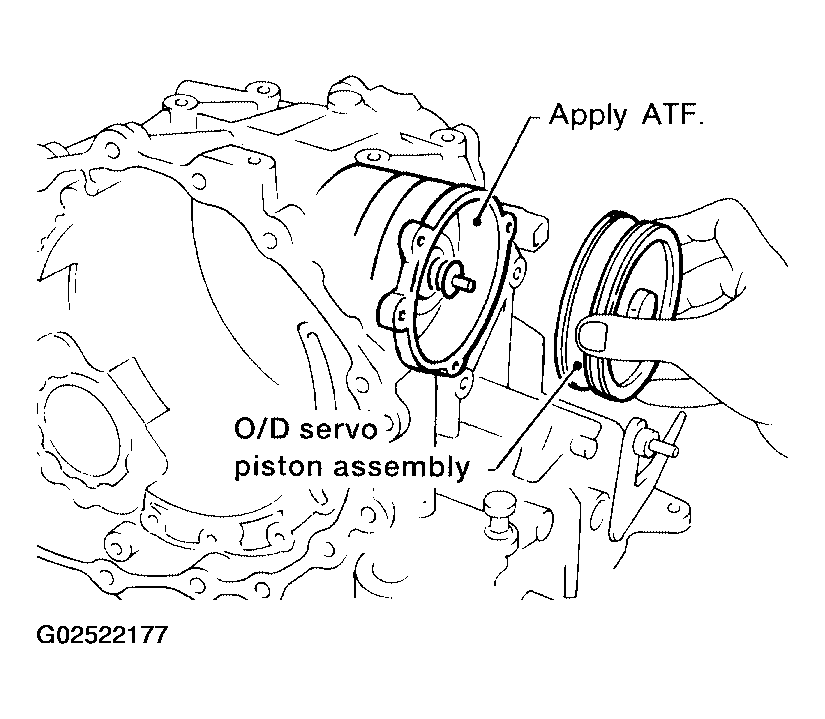

    Fig 10: Installing O/D Servo Piston Assembly To Transaxle Case
    G02522177Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install O/D servo piston retainer to transaxle case using suitable tool.

    Refer to "COMPONENTS ".

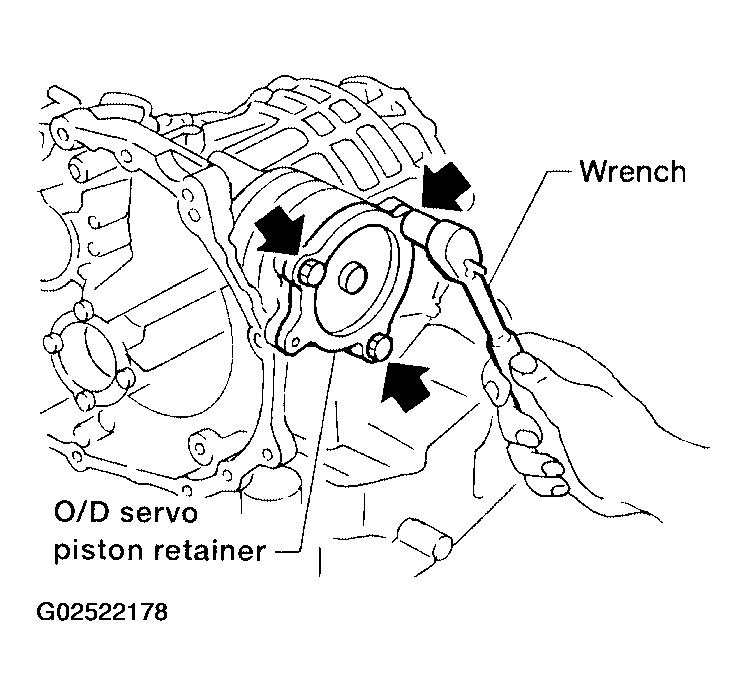

    Fig 11: Installing O/D Servo Piston Retainer To Transaxle Case Using Suitable Tool
    G02522178Courtesy of NISSAN MOTOR CO., U.S.A.
