Control Valve Assembly: Components

WARNING: This page is about a different variant/trim than selected.

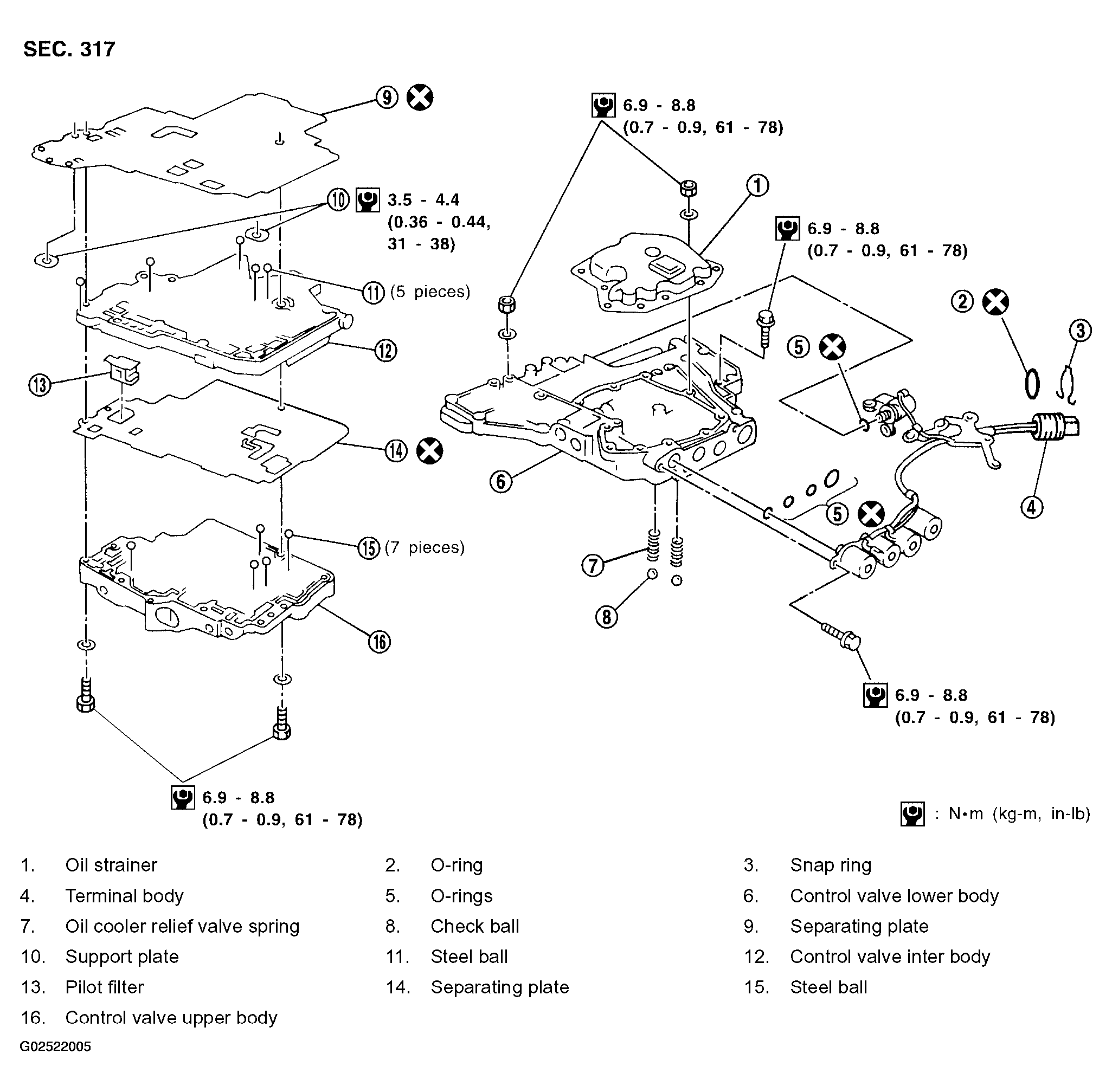

Fig 1: Control Valve Assembly Replacement Components -- With Torque Specifications
G02522005Courtesy of NISSAN MOTOR CO., U.S.A.
