Assembly (3)

WARNING: This page is about a different variant/trim than selected.
  1. Install anchor end pin and lock nut on transaxle case.
  2. Place brake band on outside of reverse clutch drum. Tighten anchor end pin just enough so that brake band is evenly fitted on reverse clutch drum.

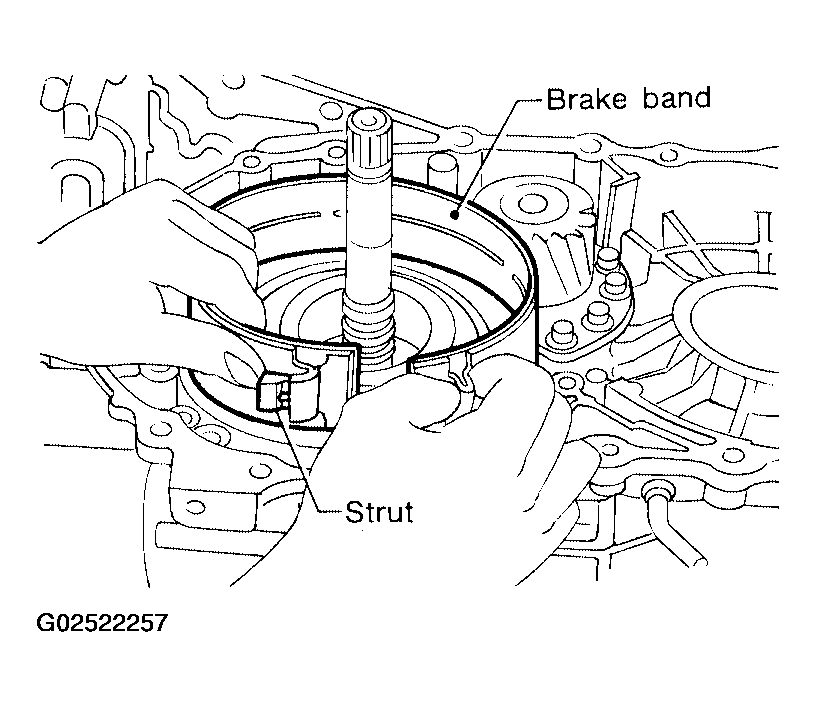

    Fig 1: Placing Brake Band On Outside Of Reverse Clutch Drum
    G02522257Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place bearing race selected in total end play adjustment step on oil pump cover.
    NOTE: Apply petroleum jelly to bearing race.
  4. Place thrust washer selected in reverse clutch end play step on reverse clutch drum.
    NOTE: Apply petroleum jelly to thrust washer.

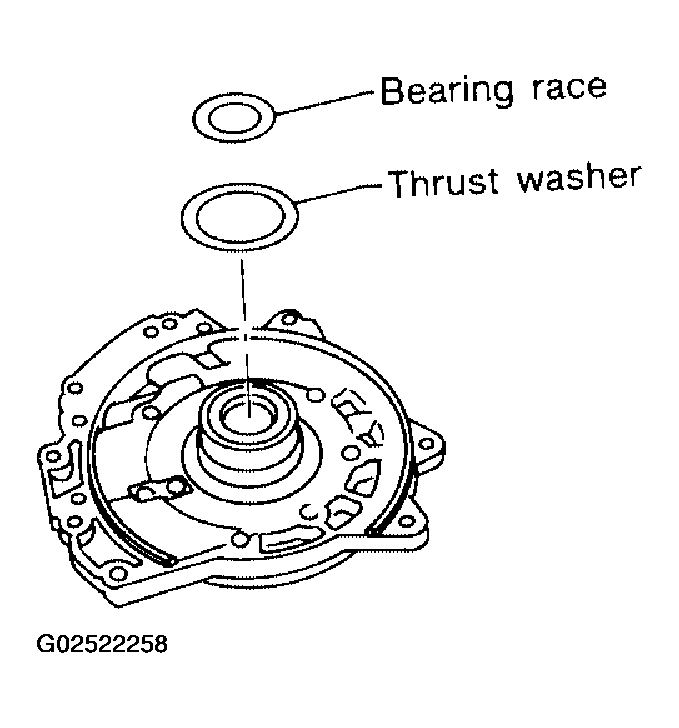

    Fig 2: Installing Bearing Race And Thrust Washer
    G02522258Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install oil pump assembly, baffle plate and gasket on transaxle case.
  6. Tighten oil pump bolts to the specified torque.

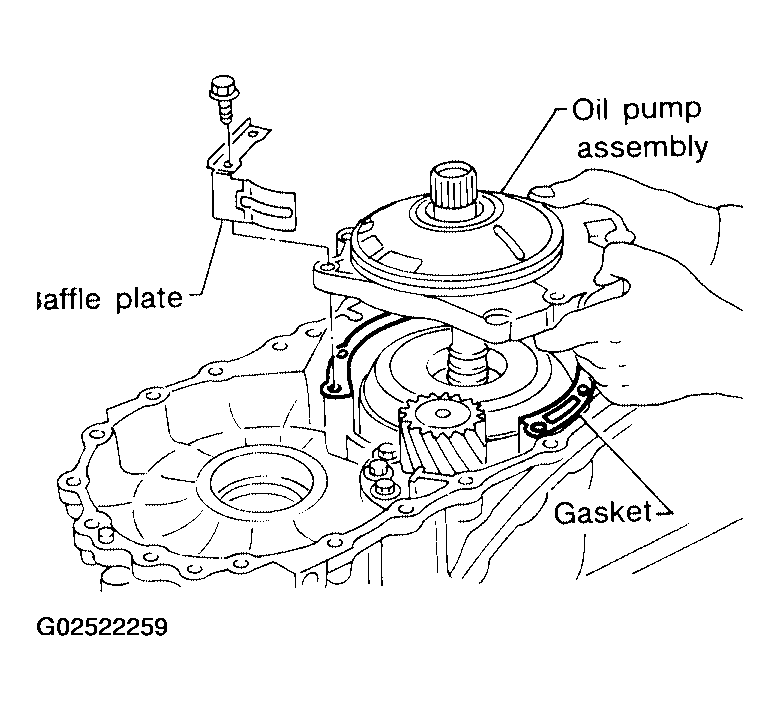

    Fig 3: Installing Oil Pump Assembly, Baffle Plate And Gasket On Transaxle Case
    G02522259Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install new O-ring to input shaft.
    NOTE: Apply ATF to new O-ring.

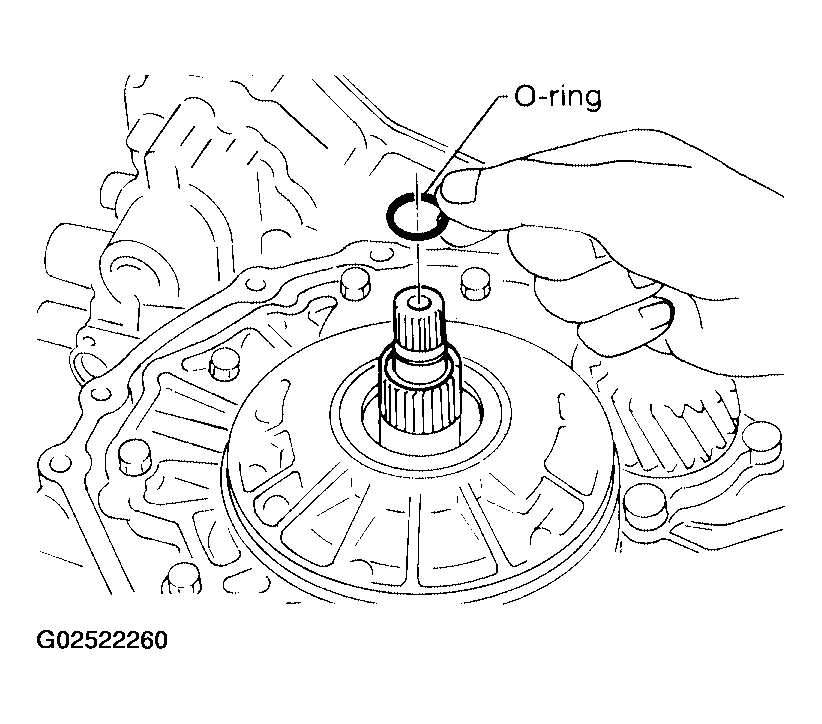

    Fig 4: Installing New O-Ring To Input Shaft
    G02522260Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Adjust brake band.
    1. Tighten anchor end pin to the specified torque using suitable tool.

      Anchor end pin: Refer to  "BRAKE BAND ".

    2. Back off anchor end pin two and a half turns.
    3. While holding anchor end pin, tighten lock nut.

      Lock nut: Refer to  "BRAKE BAND ".

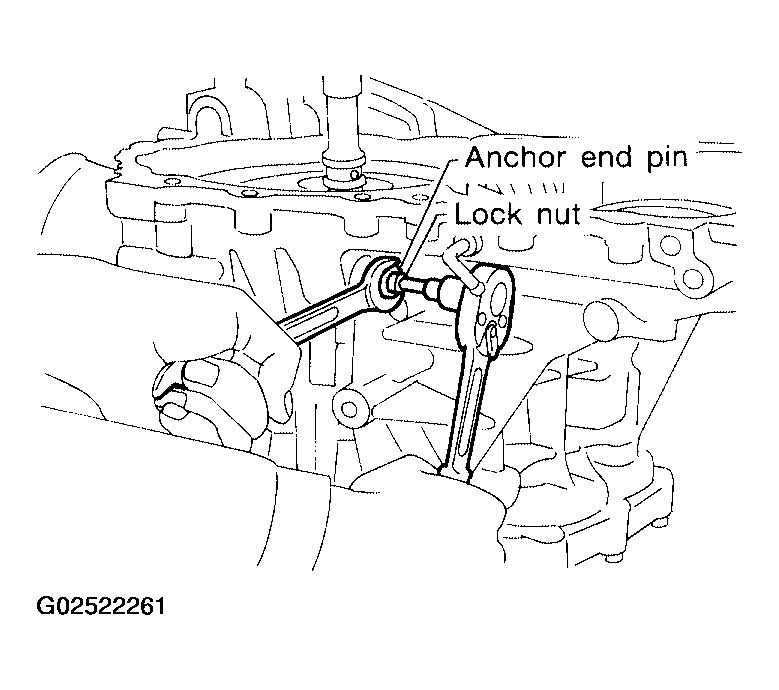

    Fig 5: Tightening Anchor End Pin
    G02522261Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Apply compressed air to oil holes of transaxle case and check operation of brake band.

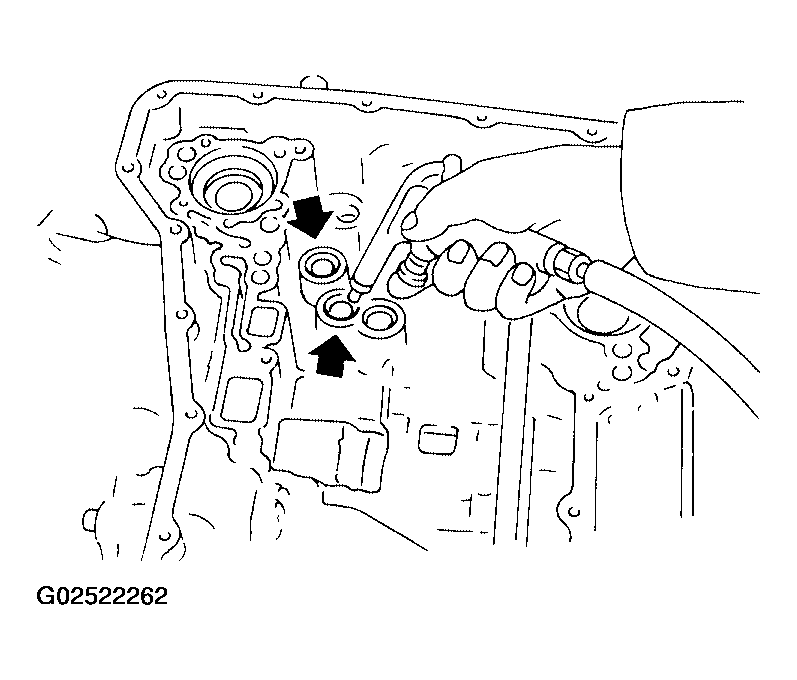

    Fig 6: Applying Compressed Air To Oil Holes Of Transaxle Case
    G02522262Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install final drive assembly on transaxle case.

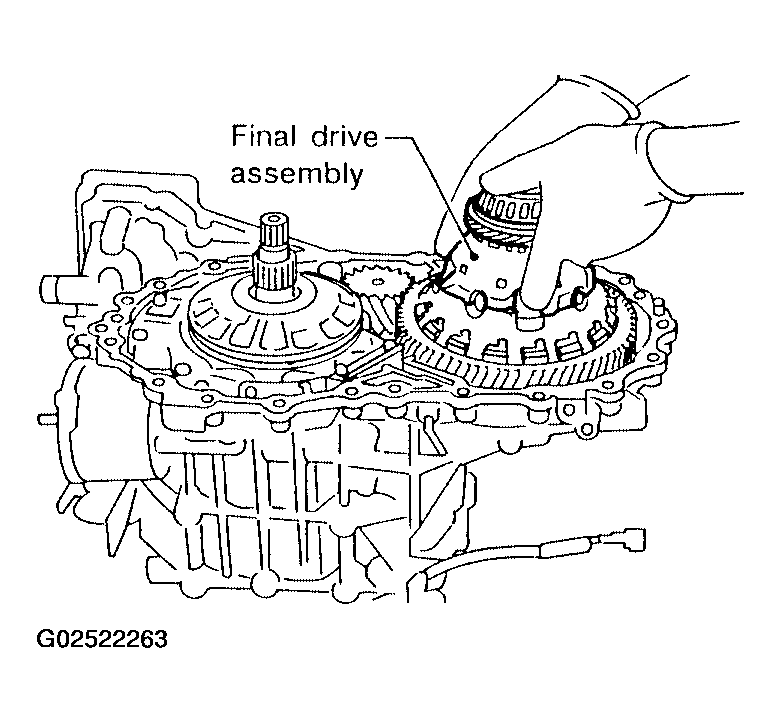

    Fig 7: Installing Final Drive Assembly On Transaxle Case
    G02522263Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install differential lubricant tube on converter housing. Tighten differential lubricant tube bolts to the specified torque. Refer to "COMPONENTS ".

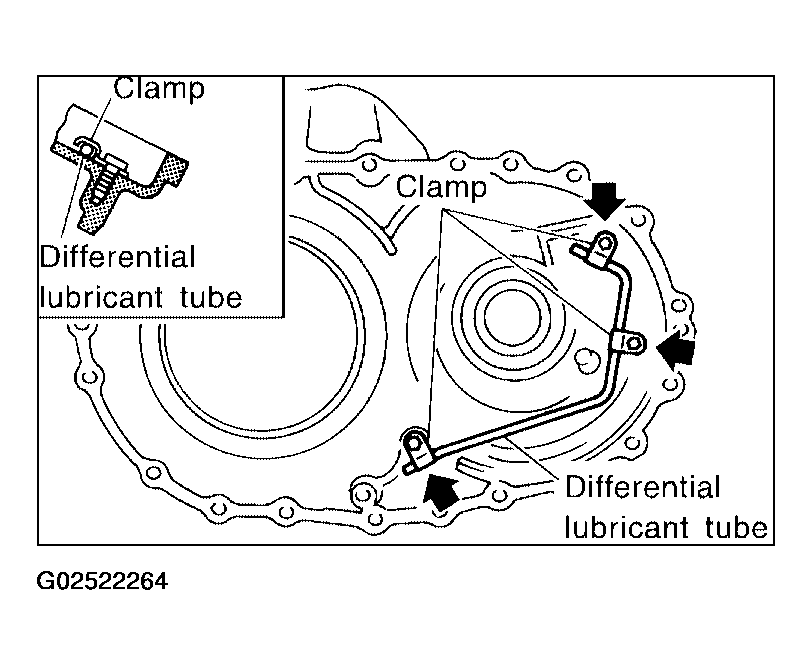

    Fig 8: Installing Differential Lubricant Tube On Converter Housing
    G02522264Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install new O-ring on differential oil port of transaxle case.

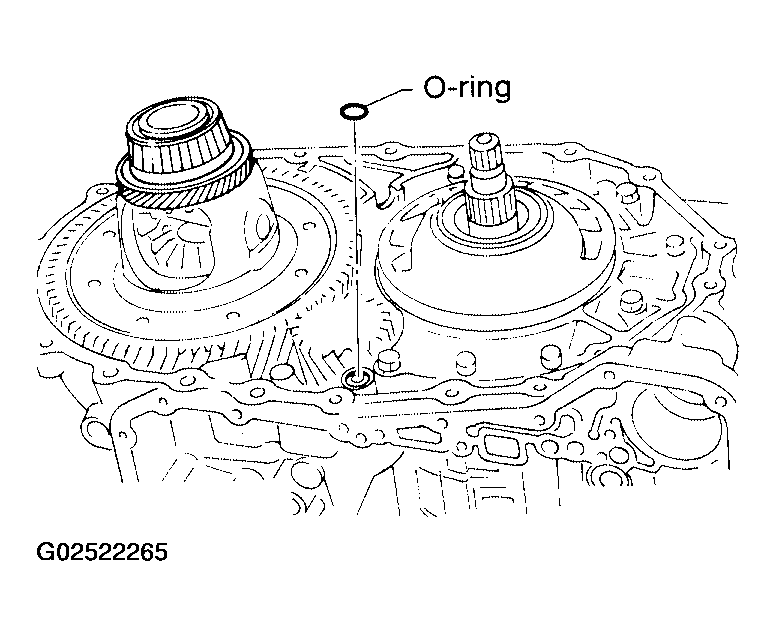

    Fig 9: Installing New O-Ring On Differential Oil Port Of Transaxle Case
    G02522265Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install converter housing on transaxle case.
    NOTE: Apply locking sealant to mating surface of converter housing. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

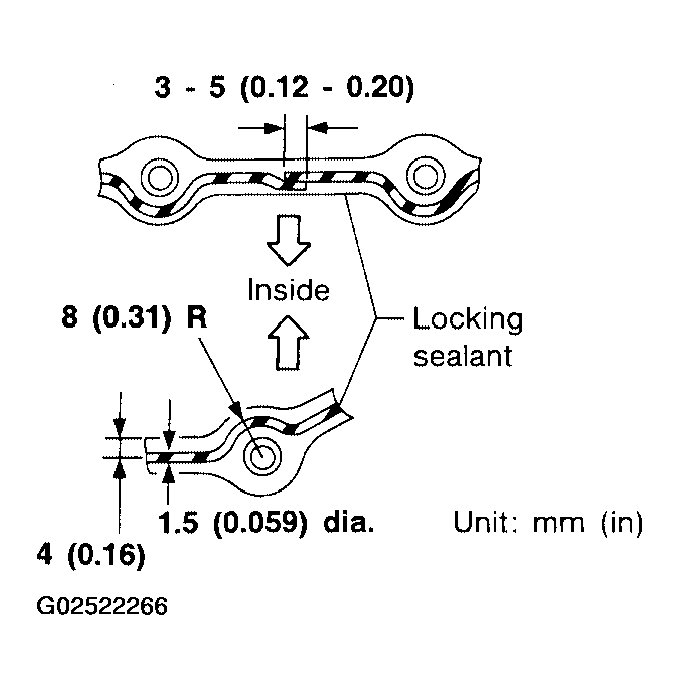

    Fig 10: Applying Locking Sealant To Mating Surface Of Converter Housing
    G02522266Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: Tighten converter housing bolts to the specified torque. Refer to "COMPONENTS ".

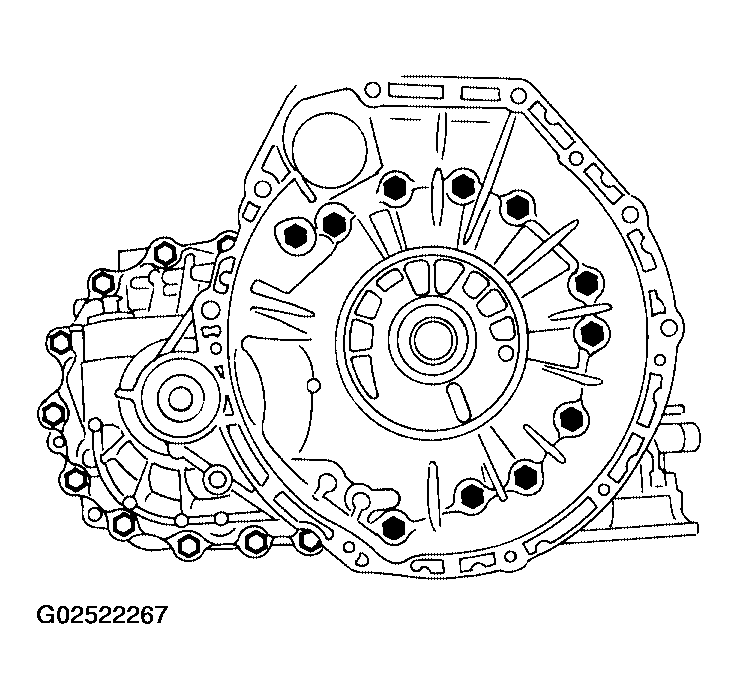

    Fig 11: Tightening Converter Housing Bolts
    G02522267Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install accumulator piston.
    1. Check contact surface of accumulator piston for damage.

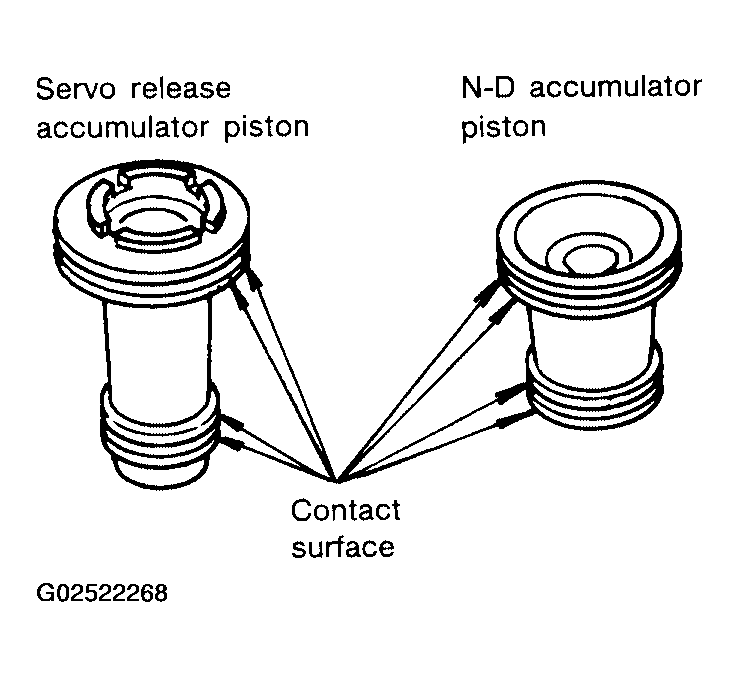

      Fig 12: Checking Contact Surface Of Accumulator Piston For Damage
      G02522268Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install new O-rings on accumulator piston.
      NOTE: Apply ATF to new O-rings.
      Accumulator piston O-rings: Refer to "O-RING "

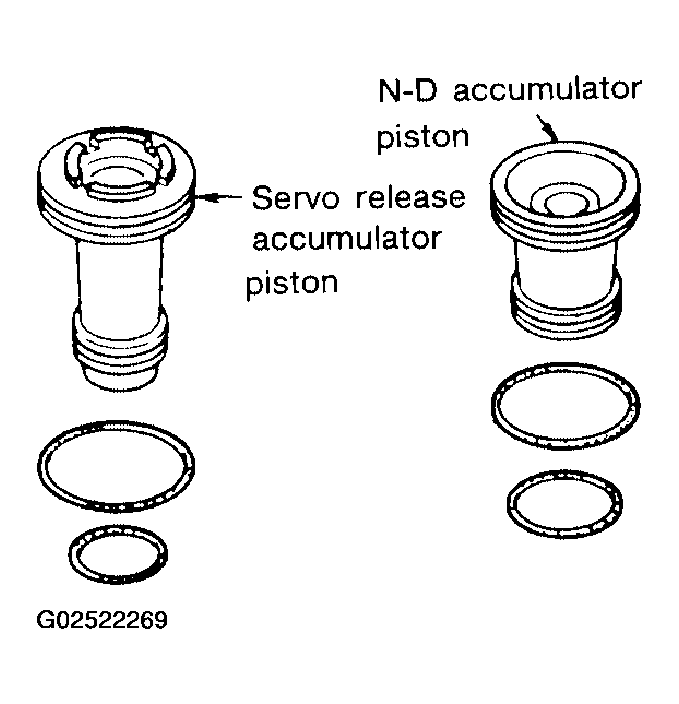

      Fig 13: Installing New O-Rings On Accumulator Piston
      G02522269Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Install accumulator pistons and return springs on transaxle case.
      NOTE: Apply ATF to inner surface of transaxle case.
      Return springs: Refer to "RETURN SPRING ".

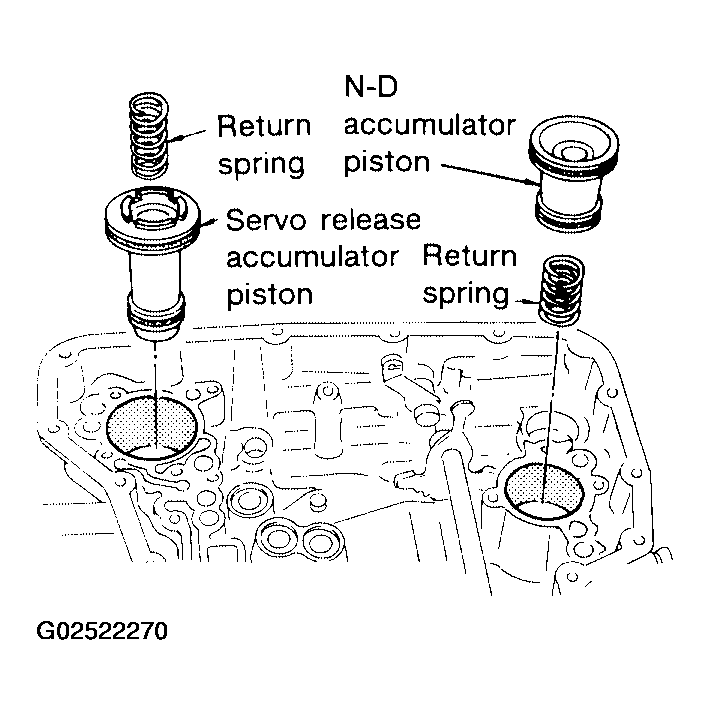

    Fig 14: Installing Accumulator Pistons And Return Springs On Transaxle Case
    G02522270Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install new lip seals for band servo oil holes on transaxle case.
    NOTE: Apply petroleum jelly to new lip seals.

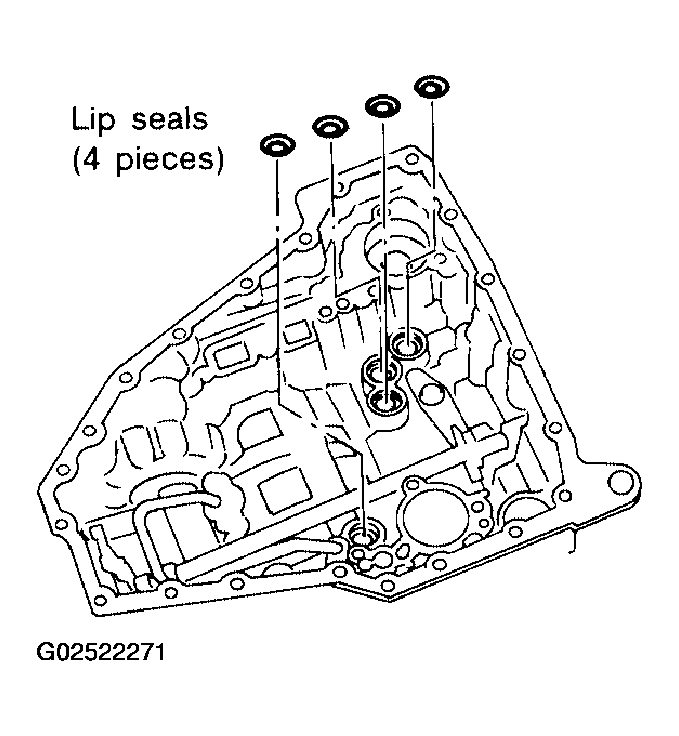

    Fig 15: Installing New Lip Seals For Band Servo Oil Holes On Transaxle Case
    G02522271Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install L & R oil tube and oil sleeve. Tighten L & R oil tube bolts to the specified torque. Refer to "COMPONENTS ".

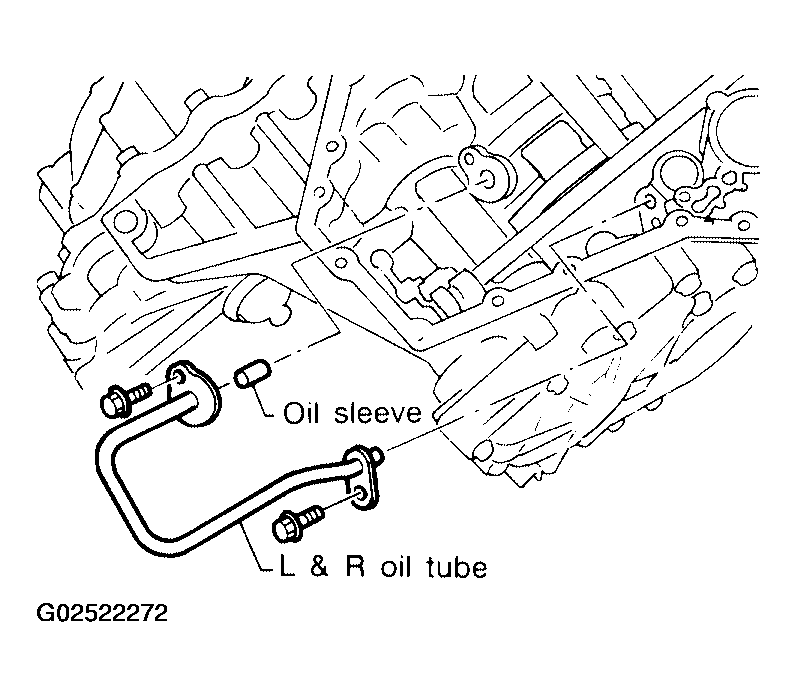

    Fig 16: Installing L & R Oil Tube And Oil Sleeve
    G02522272Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install control valve assembly.
    1. Insert manual valve into control valve assembly.
      NOTE: Apply ATF to manual valve.

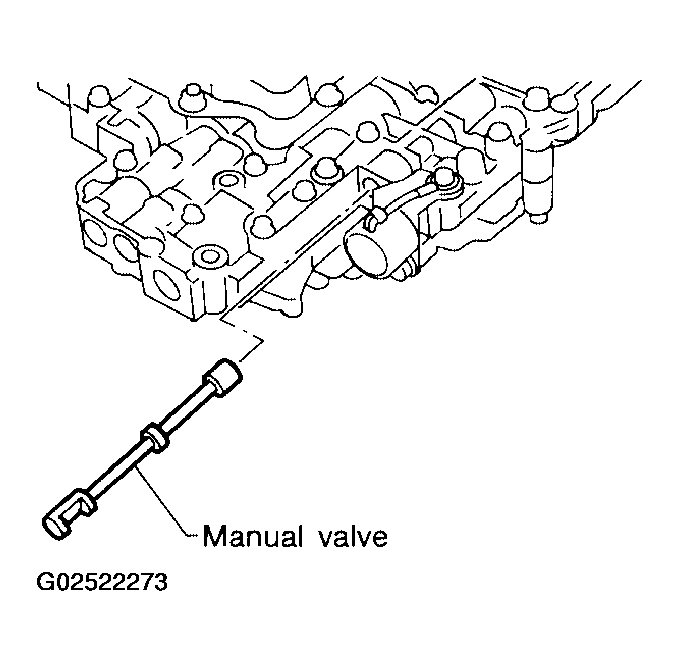

      Fig 17: Installing Manual Valve Into Control Valve Assembly
      G02522273Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Set manual shaft in Neutral position.
    3. Install control valve assembly on transaxle case while aligning manual valve with manual plate.
    4. Pass solenoid harness through transaxle case and install terminal body on transaxle case by pushing it.
    5. Install stopper ring to terminal body.

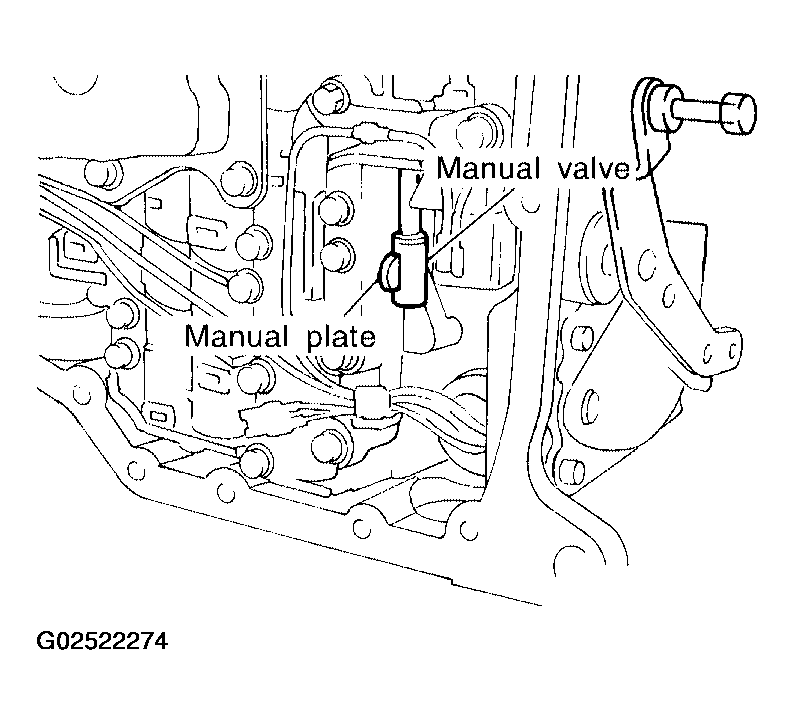

      Fig 18: Aligning Manual Valve With Manual Plate
      G02522274Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Tighten bolts I, X  and O.

      Bolt length, number and location:

    BOLTS SYMBOL AND LENGTH SPECIFICATION

    Bolt symbol I X O
    Bolt length "l" mm (in) 40 (1.57) 33 (1.30) 43.5 (1.713)
    Number of bolts 5 6 2

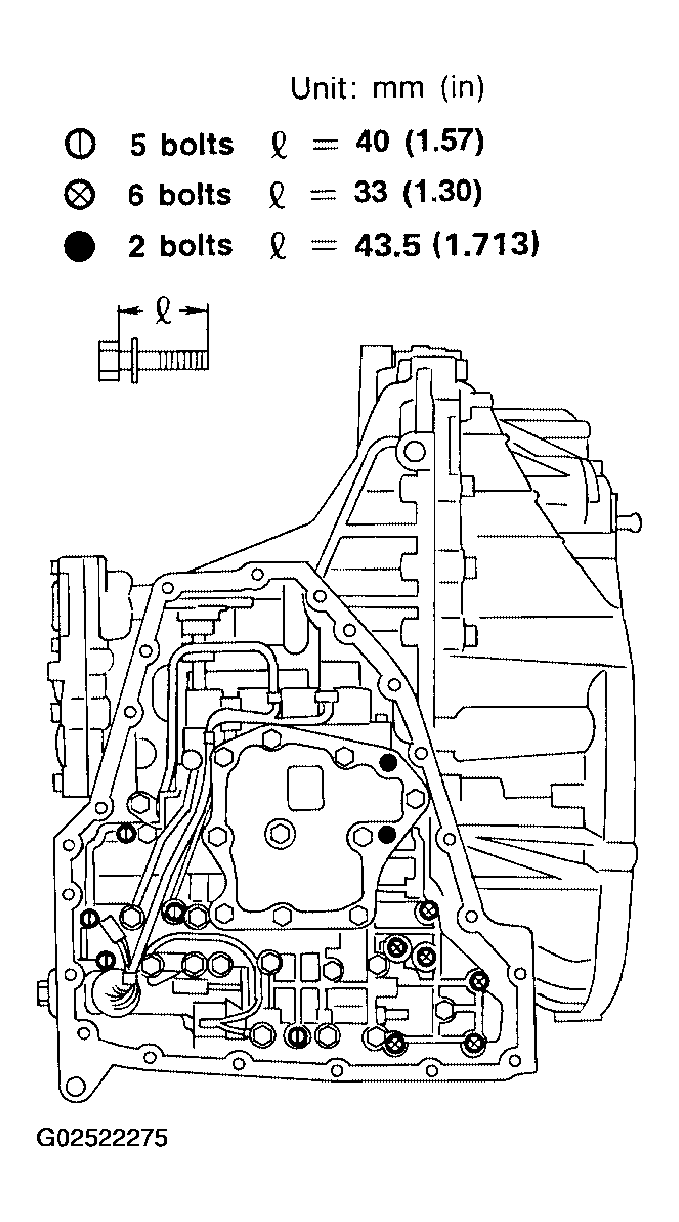

    Fig 19: Tightening Bolts
    G02522275Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install oil pan.
    1. Attach a magnet to oil pan.
    2. Install new oil pan gasket on transaxle case.
    3. Install oil pan on transaxle case.
      NOTE:
      • Always replace oil pan bolts as they are self-sealing bolts.
      • Tighten four bolts in a criss-cross pattern to prevent dislocation of gasket.

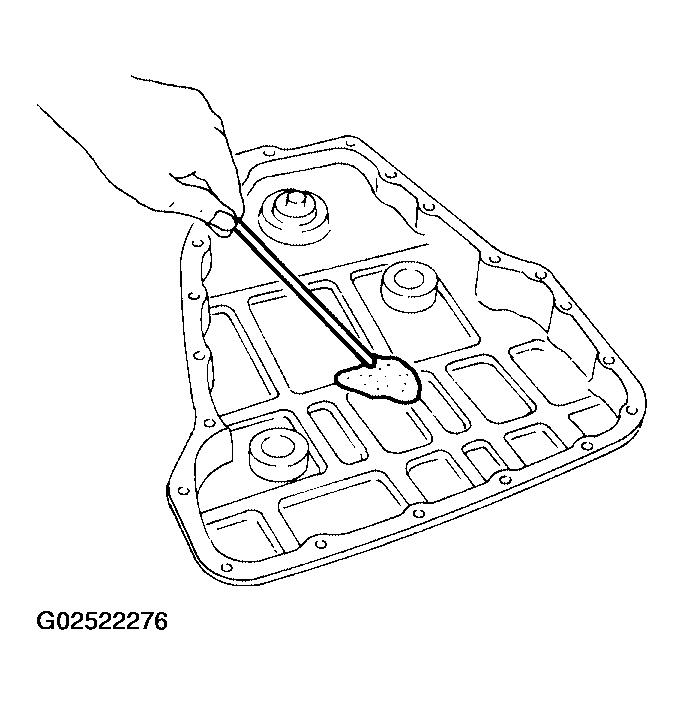

      Fig 20: Attaching Magnet To Oil Pan
      G02522276Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Tighten oil pan bolts and drain plug to the specified torque. Refer to "COMPONENTS ".
  19. Install park/neutral position (PNP) switch.
    1. Set manual shaft in P position.
    2. Temporarily install park/neutral position (PNP) switch on manual shaft.
    3. Move selector lever to N position.

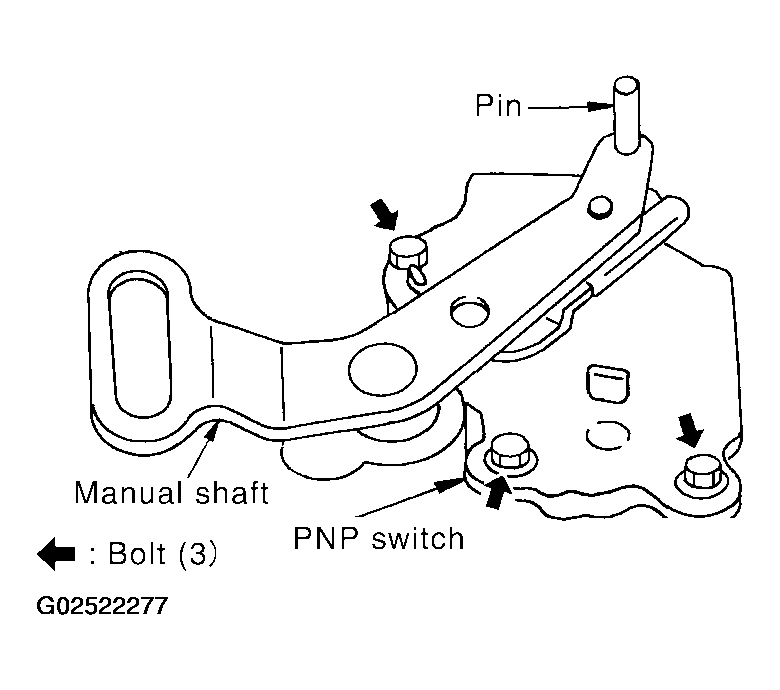

      Fig 21: Installing Install Park/Neutral Position Switch On Manual Shaft
      G02522277Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Use a 4 mm (0.16 in) pin for this adjustment.
      1. Insert the pin straight into the manual shaft adjustment hole.
      2. Rotate park/neutral position (PNP) switch until the pin can also be inserted straight into hole in park/neutral position (PNP) switch.
    5. Tighten park/neutral position (PNP) switch fixing bolts. Refer to "COMPONENTS ".
    6. Remove pin from adjustment hole after adjusting park/neutral position (PNP) switch.

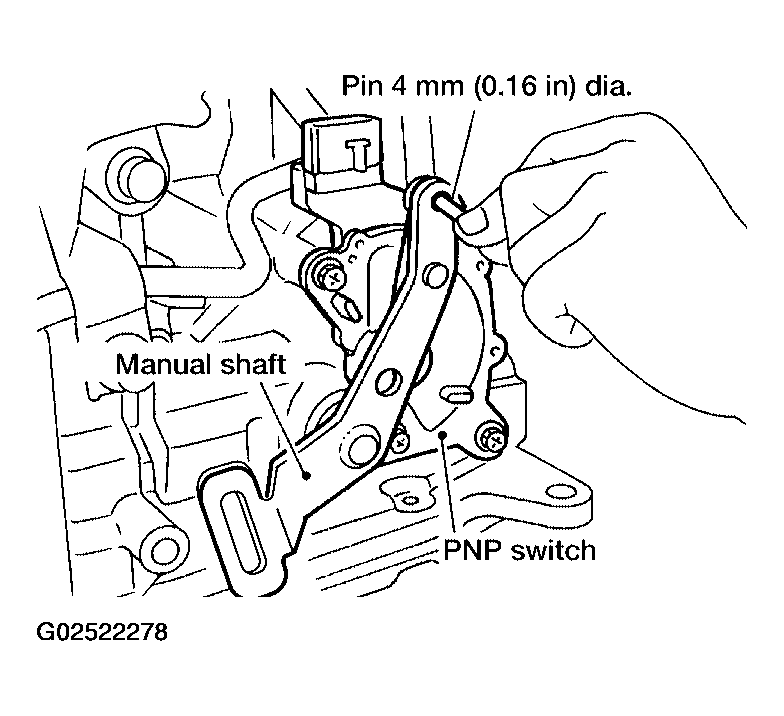

    Fig 22: Installing Pin Straight Into Manual Shaft Adjustment Hole
    G02522278Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install A/T fluid charging pipe and fluid cooler tube to transaxle case. Tighten A/T fluid charging pipe and fluid cooler tube bolts to the specified torque. Refer to "COMPONENTS ".

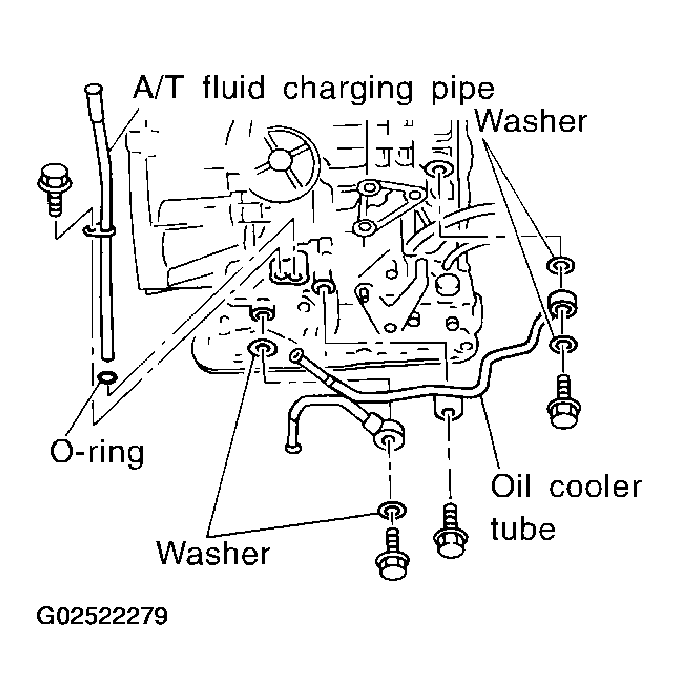

    Fig 23: Tightening A/T Fluid Charging Pipe And Fluid Cooler Tube Bolts
    G02522279Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Install torque converter.
    1. Pour ATF into torque converter.
      NOTE:
      • Approximately 1 liter (1-1/8 US qt, 7/8 Imp qt) of fluid is required for a new torque converter.
      • When reusing old torque converter, add the same amount of fluid as was drained.

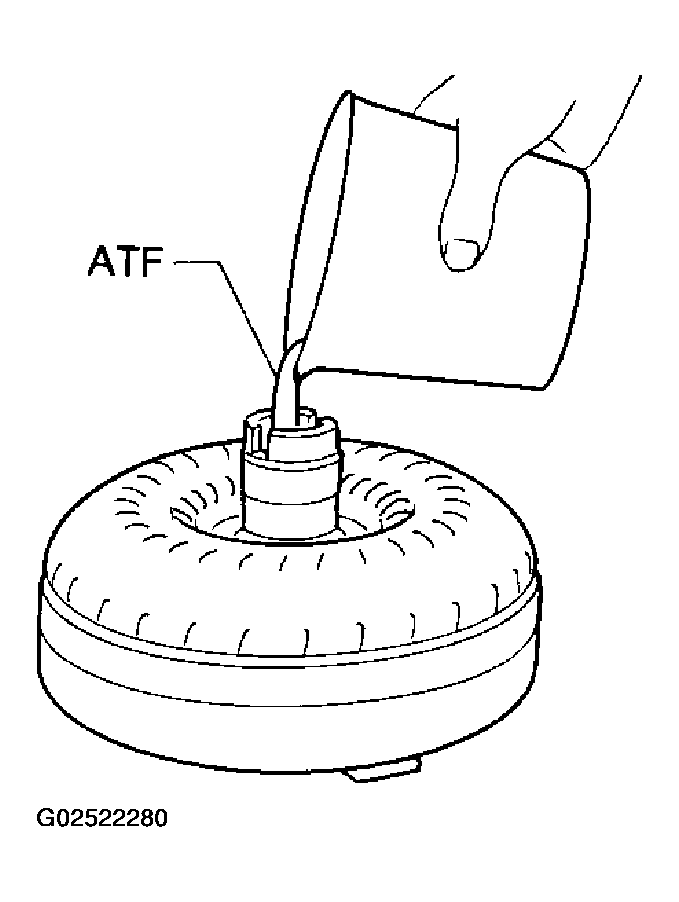

      Fig 24: Pouring ATF Into Torque Converter
      G02522280Courtesy of NISSAN MOTOR CO., U.S.A.

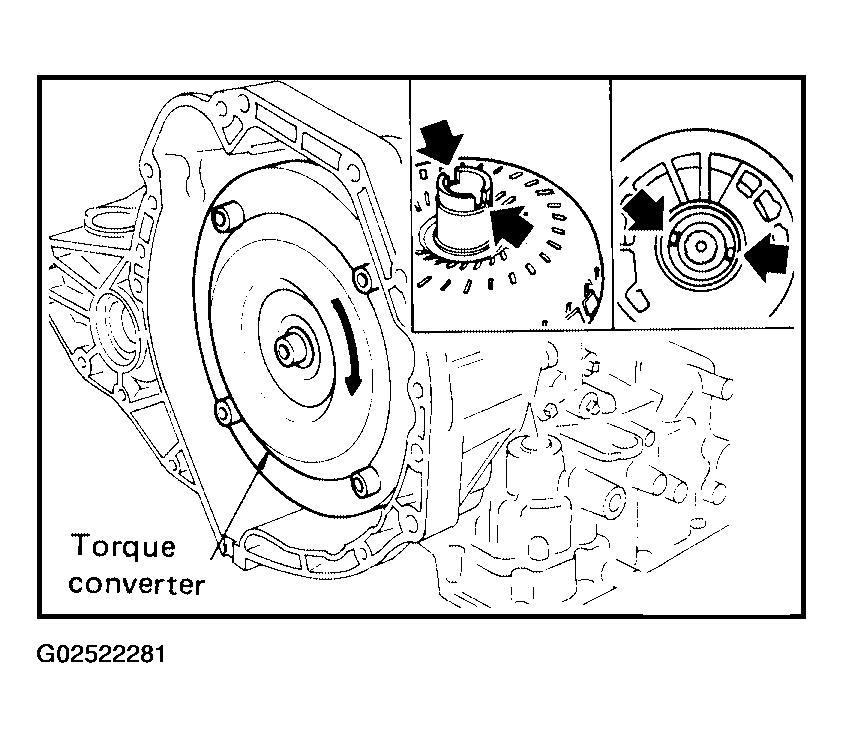

    2. Install torque converter while aligning notches of torque converter with notches of oil pump.
      Fig 25: Installing Torque Converter
      G02522281Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Measure distance "A" to check that torque converter is in proper position.

      Distance A: 14 mm (0.55 in) or more

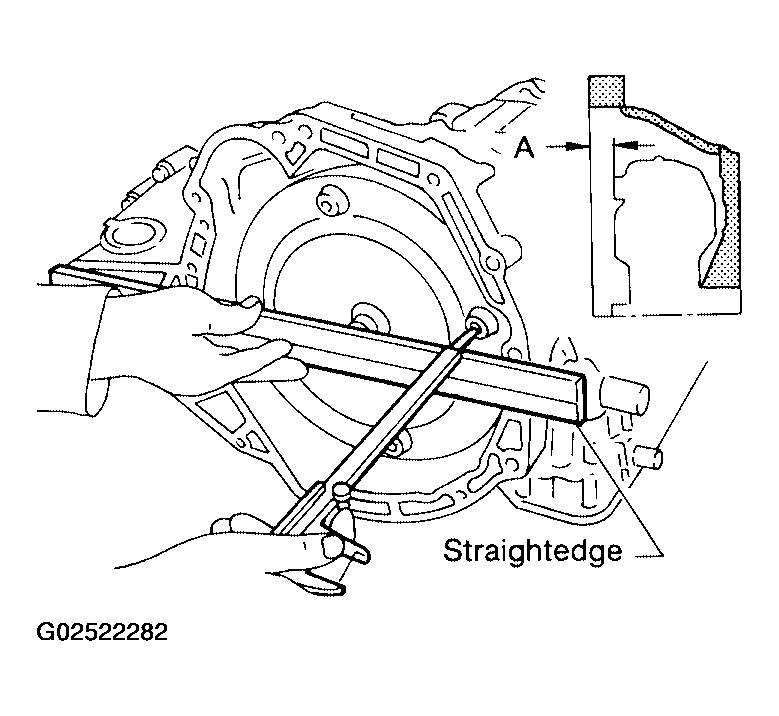

    Fig 26: Checking Torque Converter
    G02522282Courtesy of NISSAN MOTOR CO., U.S.A.
