Section 5 (Automatic Transmission (Re4F04B)): Overhaul: Components

WARNING: This page is about a different variant/trim than selected.

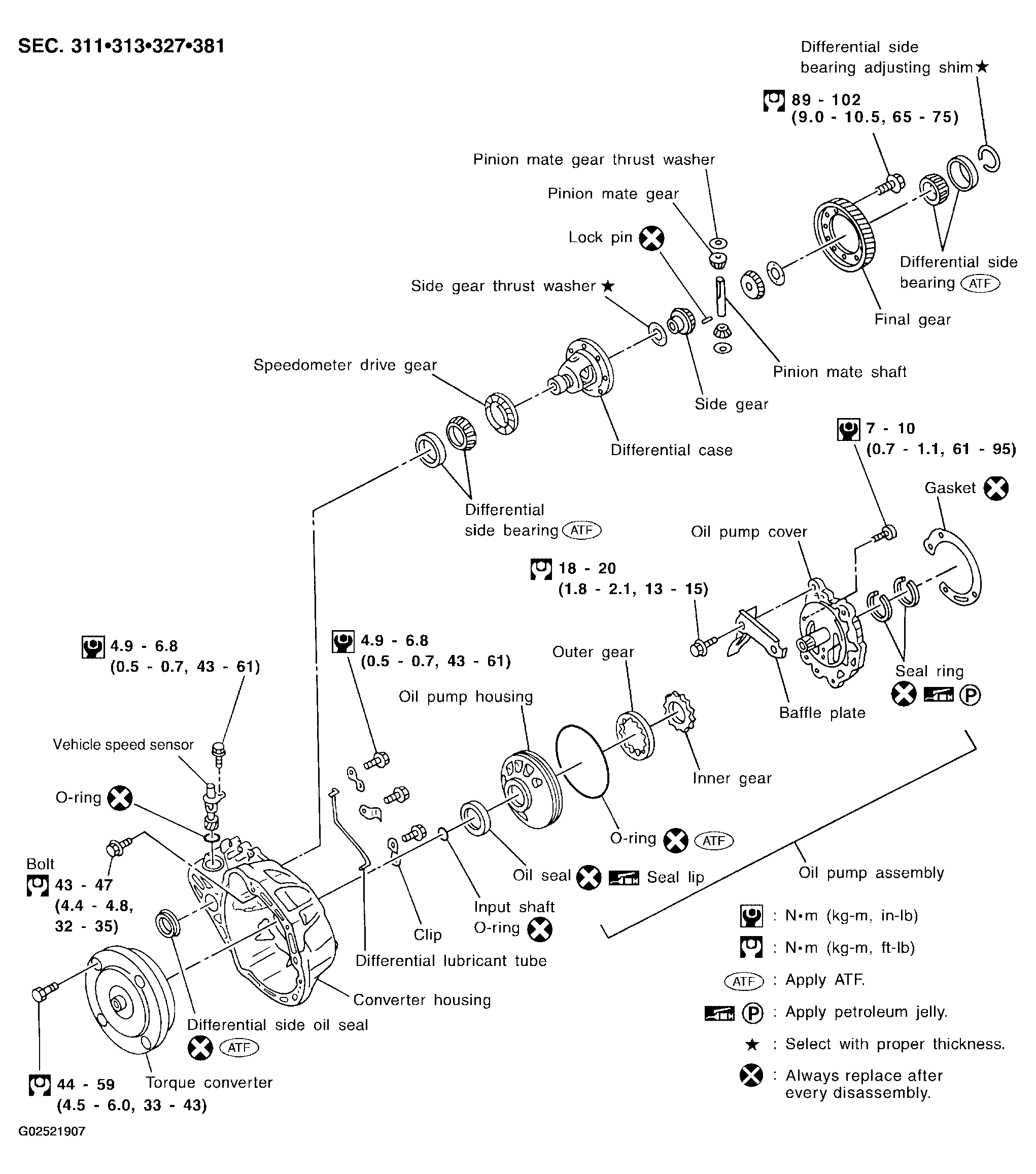

Fig 1: Automatic Transmission System Replacement Components (1 Of 3) -- With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

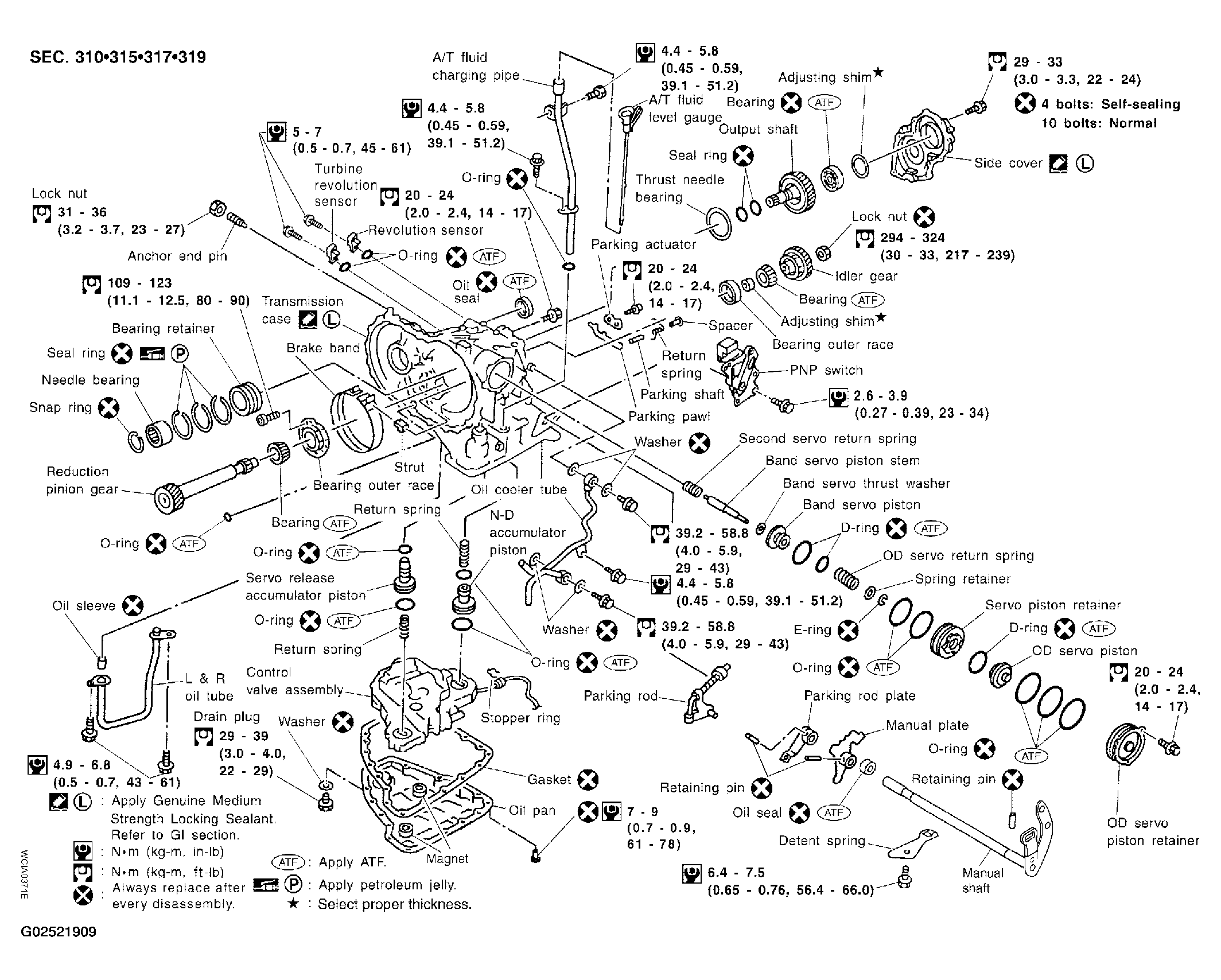

Fig 2: Identifying Automatic Transmission System Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

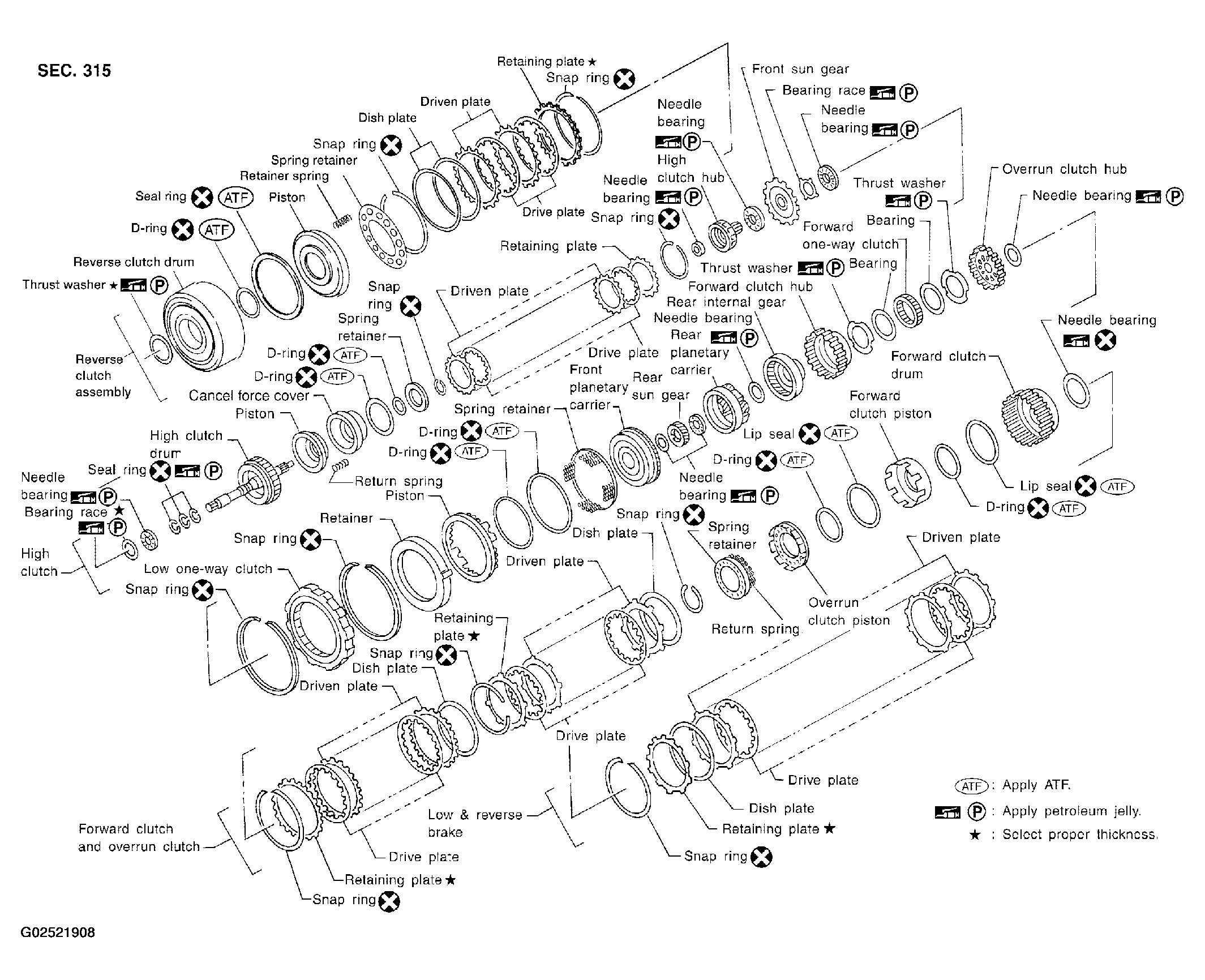

Fig 3: Automatic Transmission System Replacement Components (3 Of 3) -- With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
