Assembly (2)

WARNING: This page is about a different variant/trim than selected.
  1. Apply anaerobic liquid gasket to transaxle case as shown. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

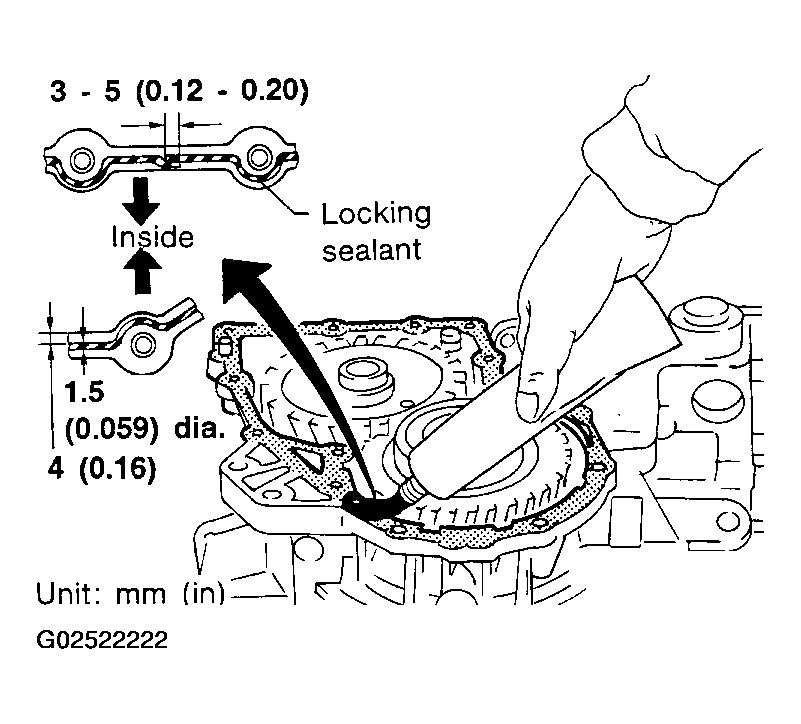

    Fig 1: Applying Anaerobic Liquid Gasket To Transaxle Case
    G02522222Courtesy of NISSAN MOTOR CO., U.S.A.

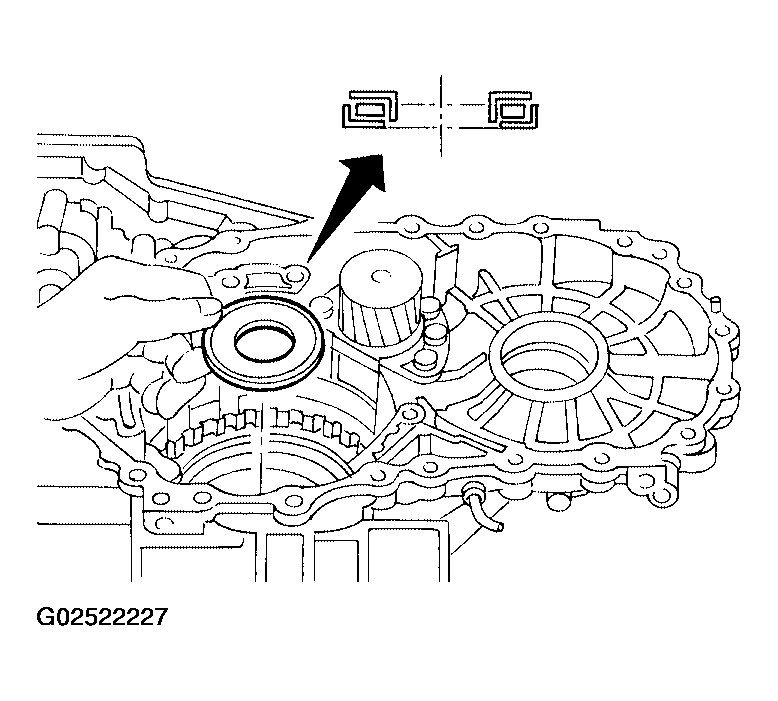

  2. Set side cover on transaxle case using suitable tool.

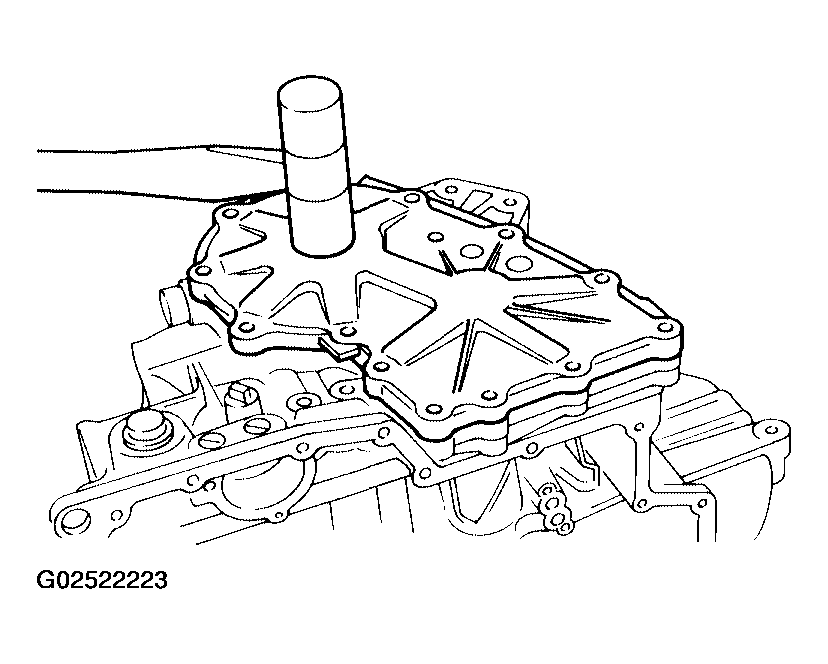

    Fig 2: Setting Side Cover On Transaxle Case
    G02522223Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Tighten side cover bolts to specified torque. Refer to "COMPONENTS ".
    CAUTION:
    • Do not mix bolts A and B.
    • Always replace bolts A as they are self-sealing bolts.

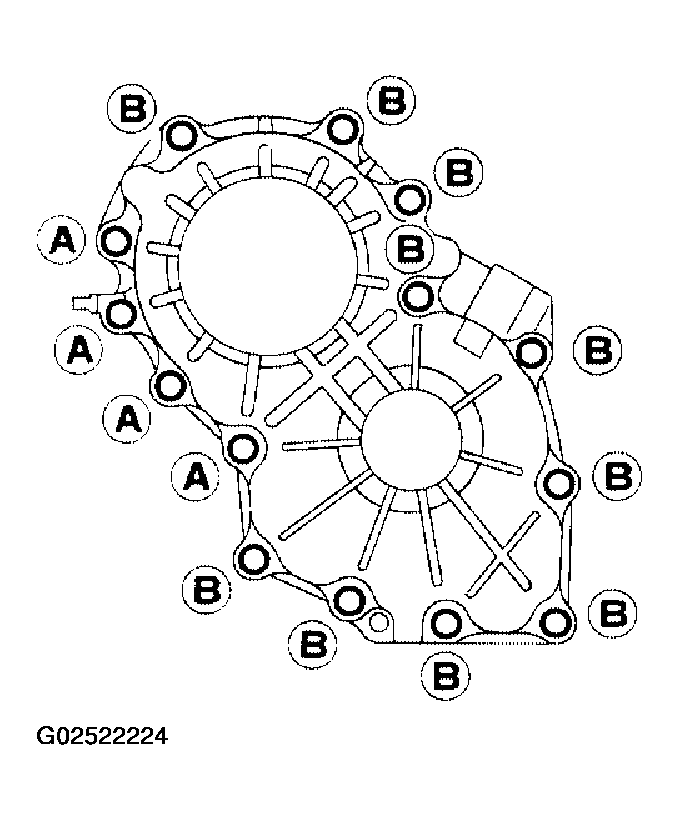

    Fig 3: Tightening Side Cover Bolts
    G02522224Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove paper rolled around bearing retainer.
  5. Install thrust washer on bearing retainer.
    NOTE: Apply petroleum jelly to thrust washer.

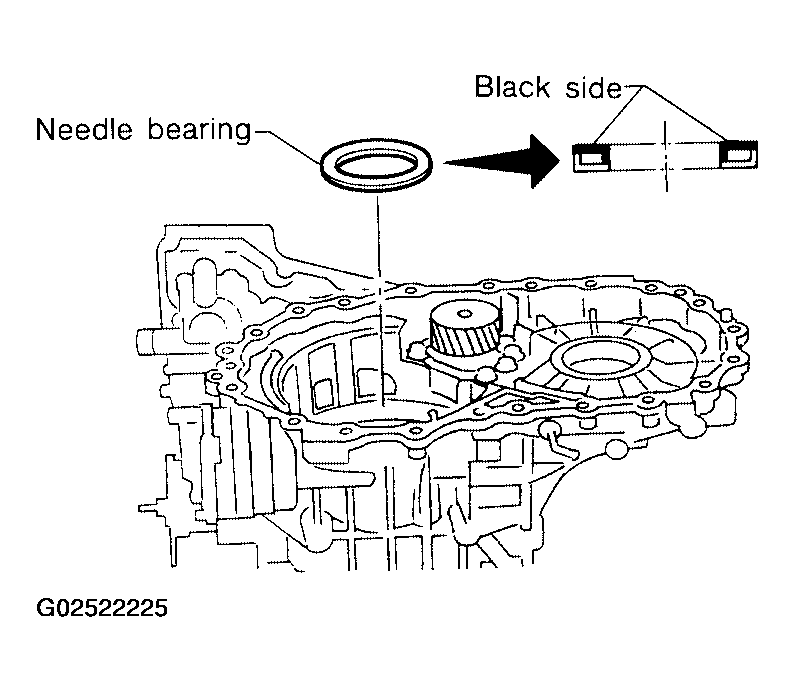

    Fig 4: Installing Needle Bearing
    G02522225Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install forward clutch assembly.
    NOTE:
    • Align teeth of low and reverse brake drive plates before installing.
    • Make sure that the bearing retainer seal rings have not spread.
    • If forward clutch assembly is correctly seated, points 1 and 2 are at the same level.

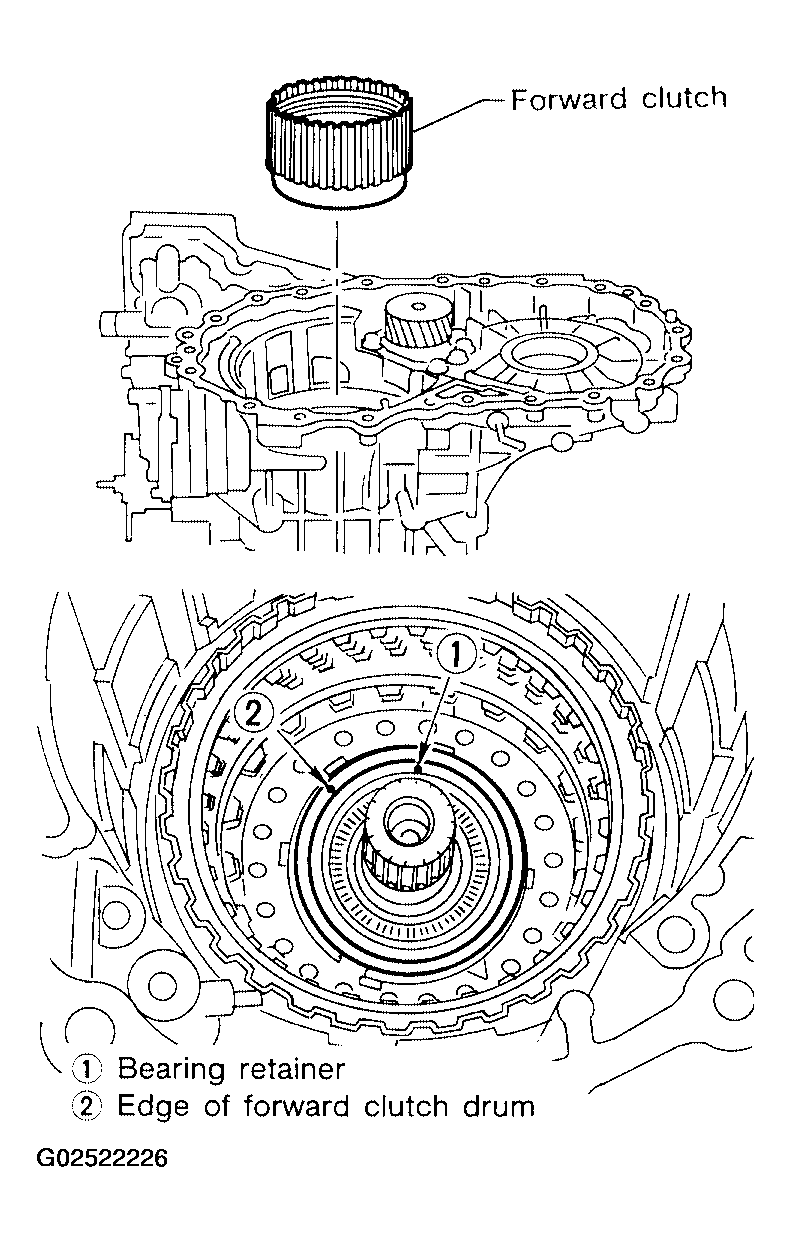

    Fig 5: Installing Forward Clutch Assembly
    G02522226Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install thrust needle bearing on bearing retainer.
    NOTE:
    • Apply petroleum jelly to the thrust needle bearing.
    • Pay attention to the direction of the thrust needle bearing as shown.
    Fig 6: Installing Thrust Needle Bearing On Bearing Retainer
    G02522227Courtesy of NISSAN MOTOR CO., U.S.A.

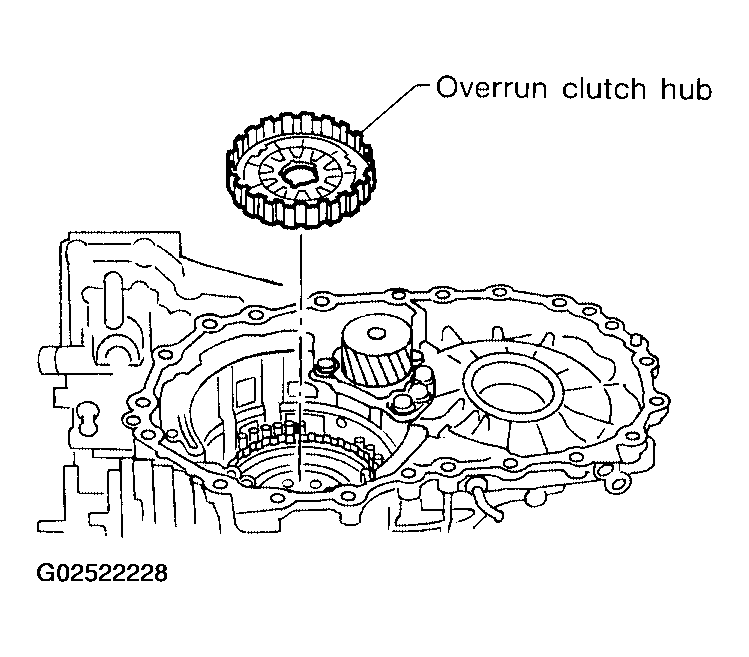

  8. Install overrun clutch hub.
    NOTE:
    • Apply petroleum jelly to the thrust needle bearing.
    • Align the teeth of overrun clutch drive plates before installing.
    Fig 7: Installing Overrun Clutch Hub
    G02522228Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Hold forward clutch hub and turn rear internal gear.
    • Check overrun clutch hub for correct directions of lock and unlock.
    • If not shown as illustrated, check installed direction of forward one-way clutch.

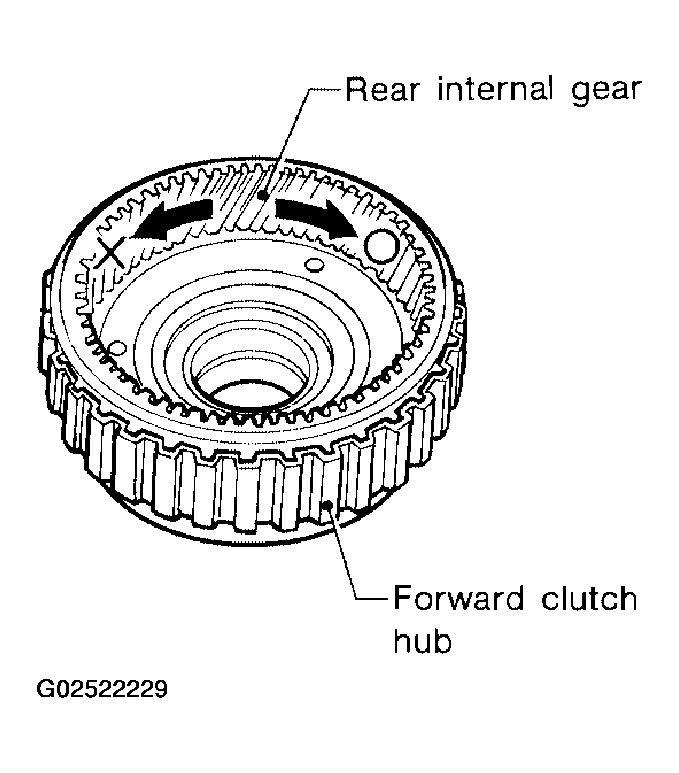

    Fig 8: Holding Forward Clutch Hub And Turning Rear Internal Gear
    G02522229Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install forward clutch hub and rear internal gear assembly.
    NOTE:
    • Align teeth of forward clutch drive plates before installing.
    • Check the three hooks of the thrust washer are correctly aligned before installing.

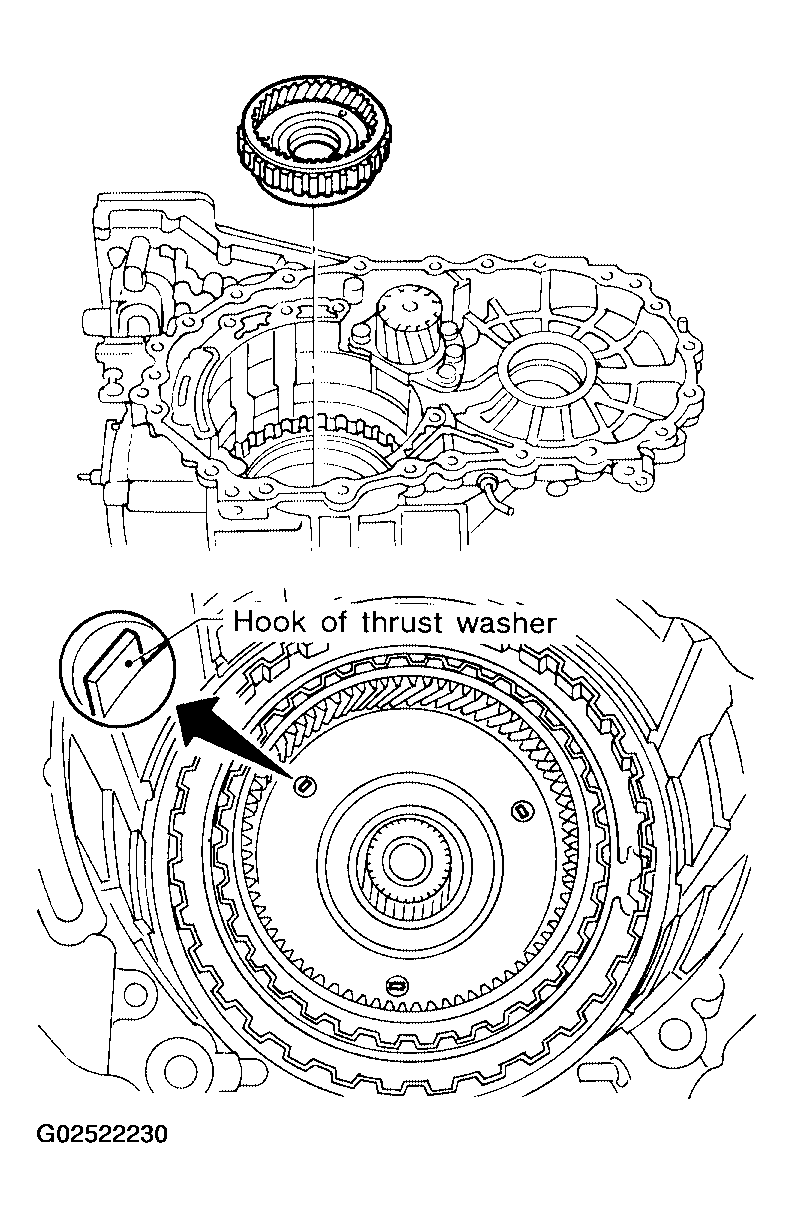

    Fig 9: Installing Forward Clutch Hub And Rear Internal Gear Assembly
    G02522230Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install rear planetary carrier assembly and rear sun gear according to the following procedures.
    1. Install needle bearings on rear planetary carrier.
      NOTE:
      • Apply petroleum jelly to needle bearings.
      • Pay attention to direction of needle bearings.

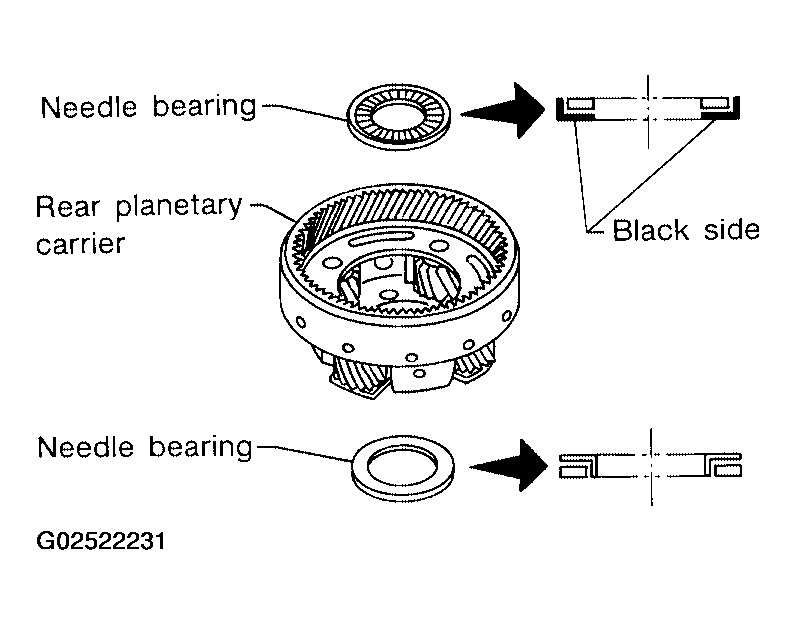

      Fig 10: Installing Needle Bearings On Rear Planetary Carrier
      G02522231Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install rear sun gear on rear planetary carrier.
      NOTE: Pay attention to direction of rear sun gear.

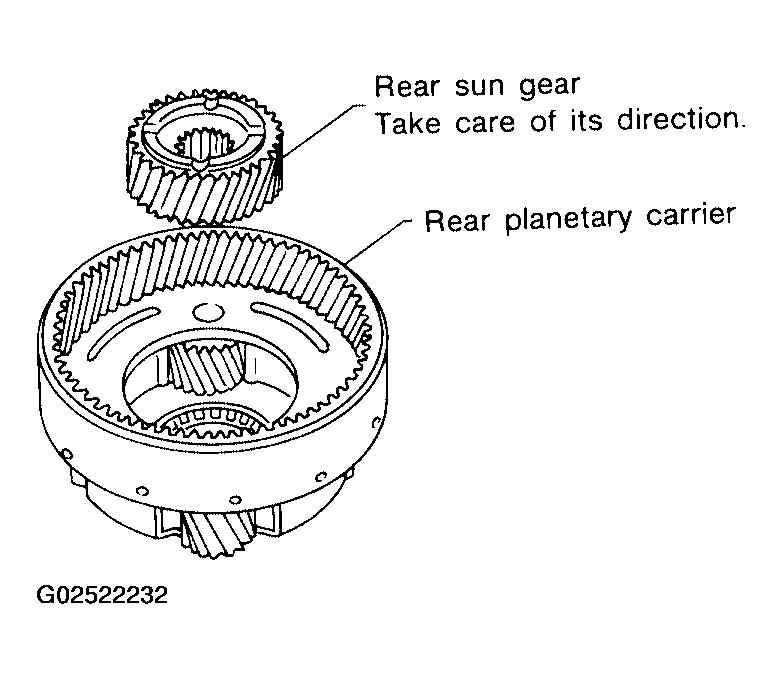

      Fig 11: Installing Rear Sun Gear On Rear Planetary Carrier
      G02522232Courtesy of NISSAN MOTOR CO., U.S.A.

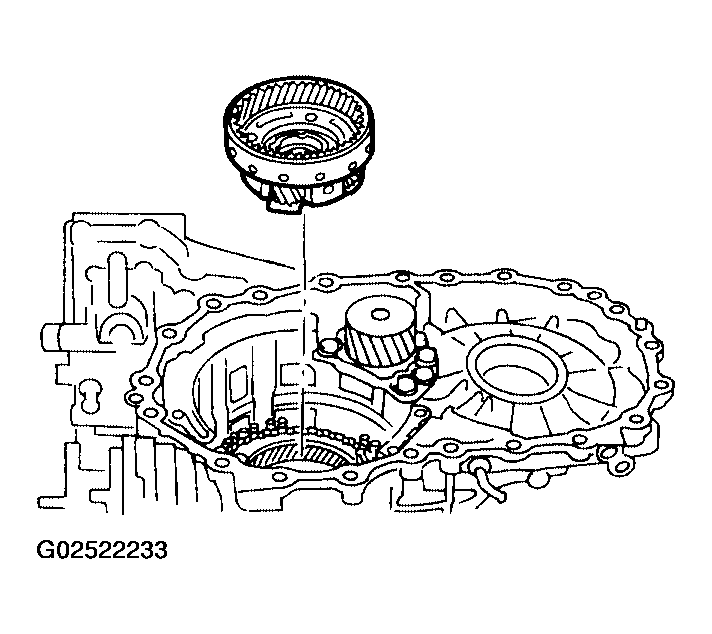

    3. Install rear planetary carrier on transaxle case.
    Fig 12: Installing Rear Planetary Carrier On Transaxle Case
    G02522233Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install thrust needle bearing on front planetary carrier, then install them together on transaxle case.
    NOTE:
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.

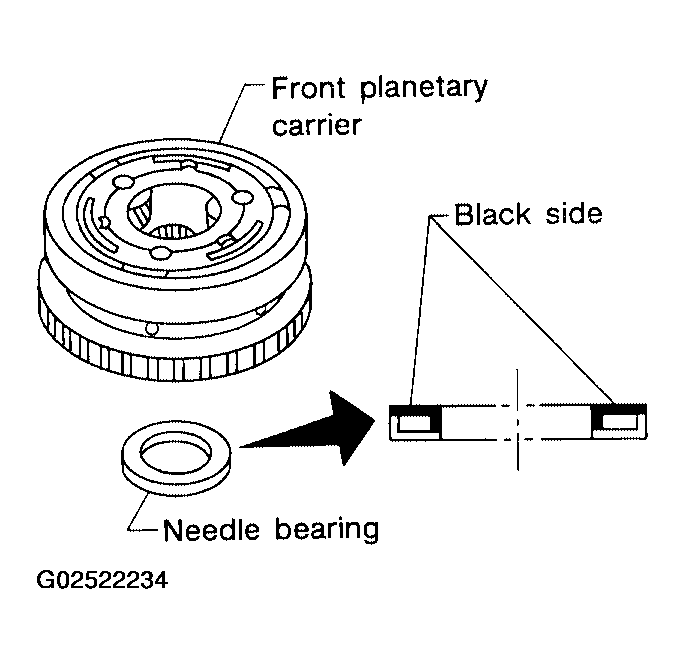

    Fig 13: Installing Thrust Needle Bearing On Front Planetary Carrier
    G02522234Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install low and reverse brake piston according to the following procedures.
    1. Set and align return springs to transaxle case gutters as shown in illustration.

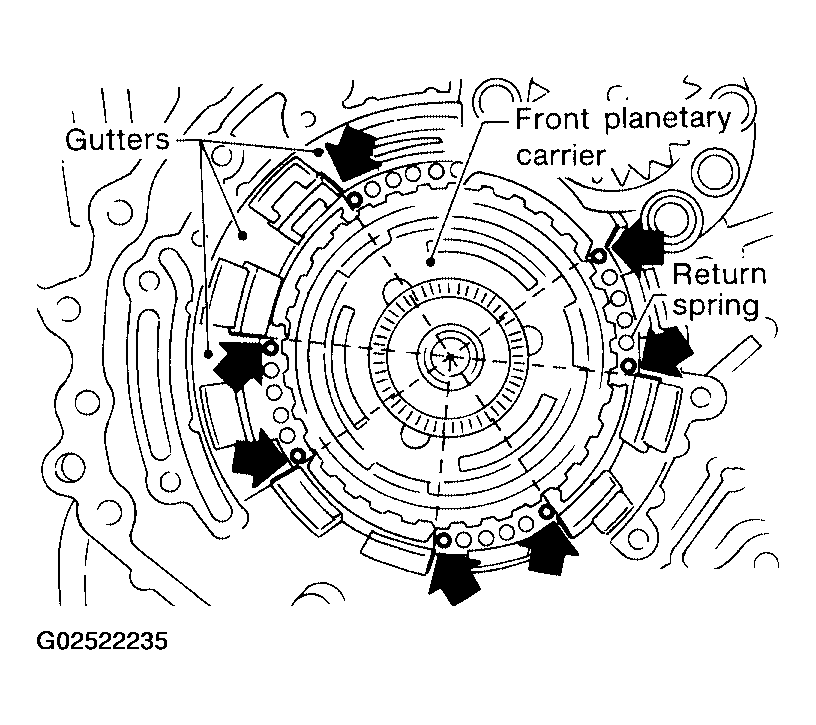

      Fig 14: Aligning Return Springs To Transaxle Case Gutters
      G02522235Courtesy of NISSAN MOTOR CO., U.S.A.

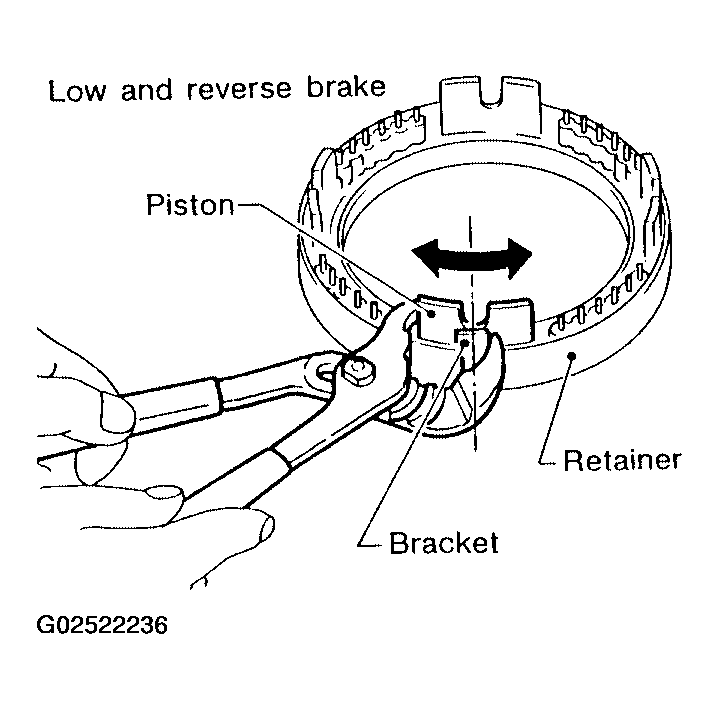

    2. Set and align piston with retainer using suitable tool.
      Fig 15: Aligning Piston With Retainer Using Suitable Tool
      G02522236Courtesy of NISSAN MOTOR CO., U.S.A.

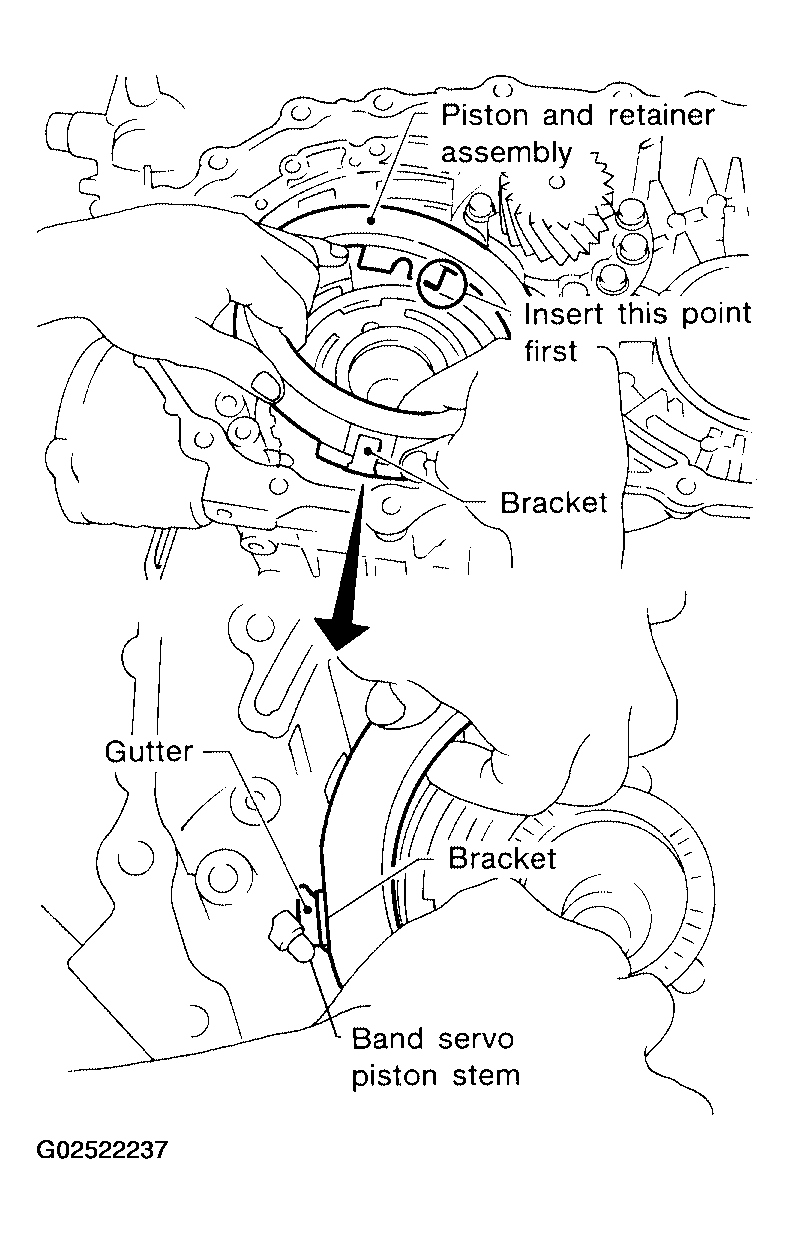

    3. Install piston and retainer assembly on the transaxle case.
      NOTE: Align bracket to specified gutter in illustration as shown.
      Fig 16: Installing Piston And Retainer Assembly On Transaxle Case
      G02522237Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check that each protrusion of piston is correctly set to corresponding return spring as follows.
      NOTE:
      • Push piston and retainer assembly evenly and confirm they move smoothly.
      • If they can not move smoothly, remove piston and retainer assembly and align return spring correctly as instructed in step "a".

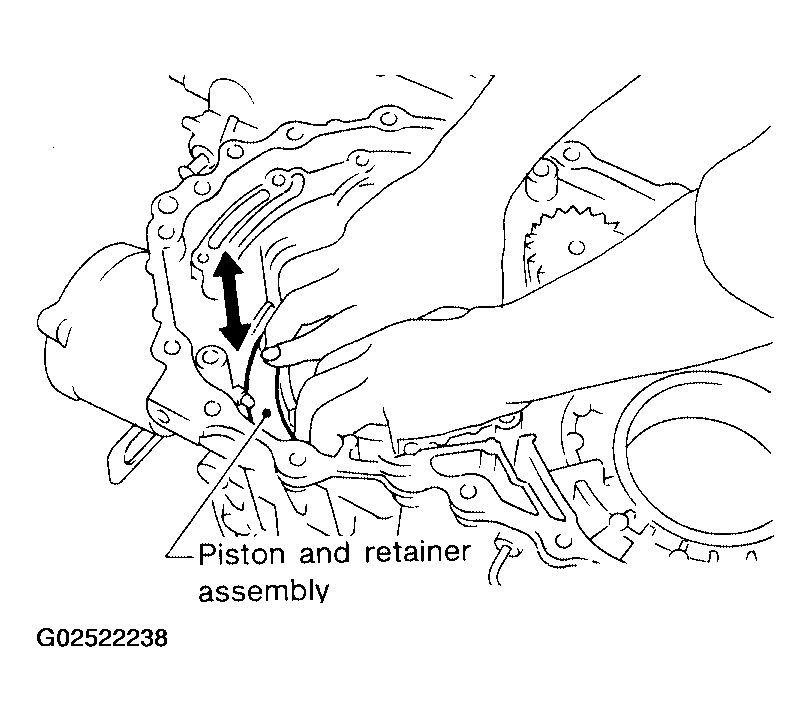

      Fig 17: Checking Correct Installation Of Piston
      G02522238Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Push down piston and retainer assembly and install snap ring using Tool.

      Tool number: KV31102400 (J-34285 and J-34285-87)

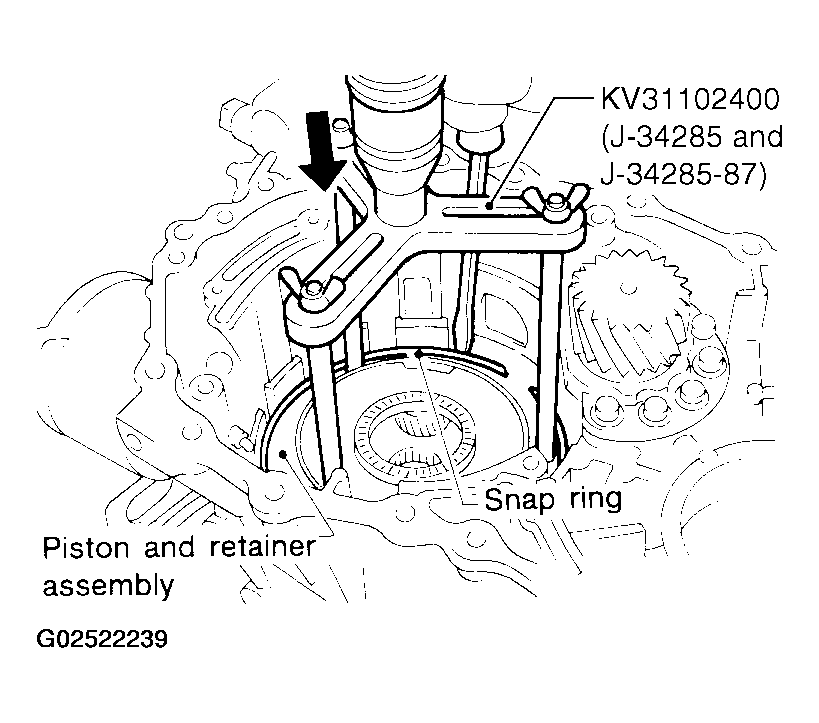

    Fig 18: Installing Snap Ring Using Tool
    G02522239Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install low one-way clutch to front planetary carrier by turning carrier in the direction of the arrow shown.

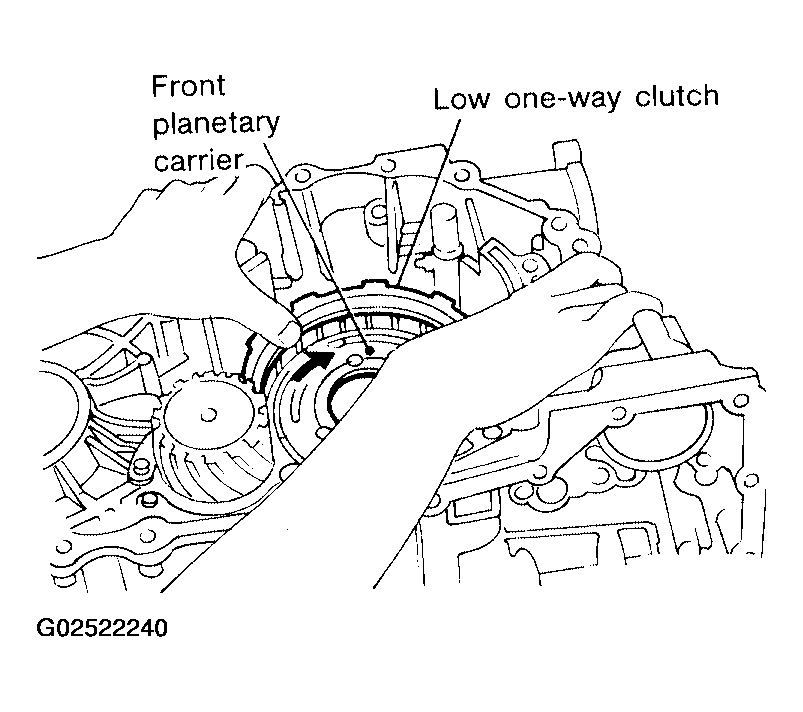

    Fig 19: Installing Low One-Way Clutch To Front Planetary Carrier
    G02522240Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring using screwdriver.
    NOTE: Forward clutch and bearing must be correctly installed for snap ring to fit into groove of transaxle case.

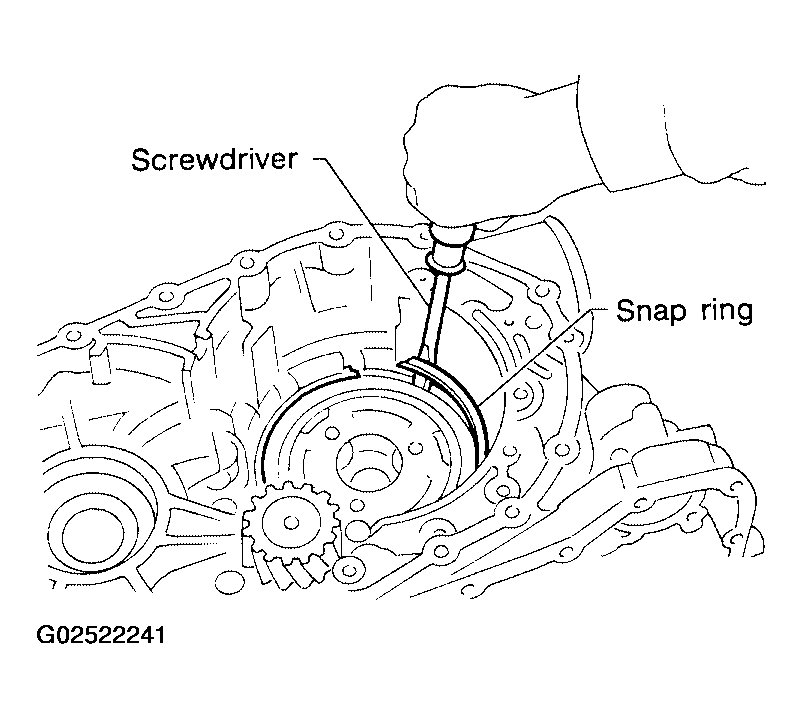

    Fig 20: Installing Snap Ring Using Screwdriver
    G02522241Courtesy of NISSAN MOTOR CO., U.S.A.

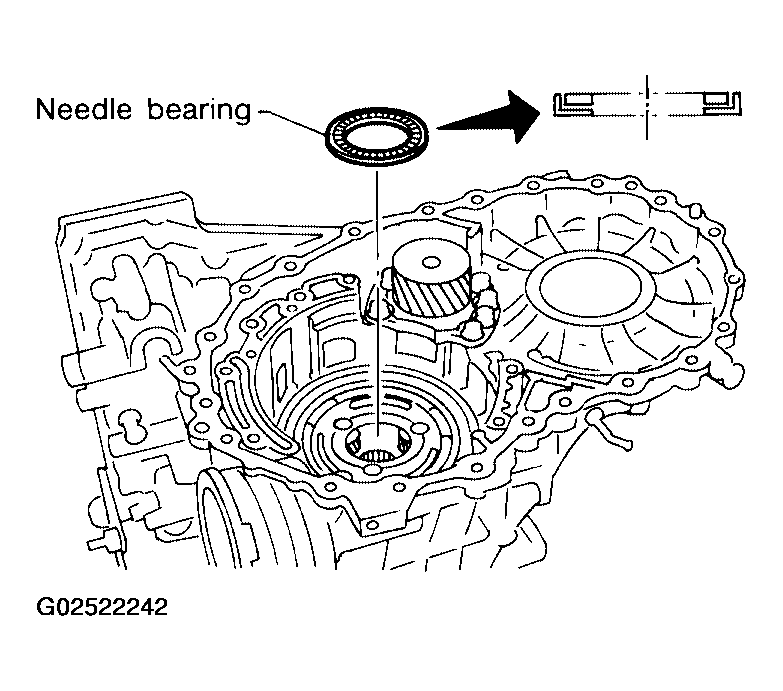

  16. Install needle bearing on transaxle case.
    NOTE:
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.
    Fig 21: Installing Needle Bearing On Transaxle Case
    G02522242Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install bearing race, needle bearing and high clutch hub on front sun gear.
    NOTE:
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

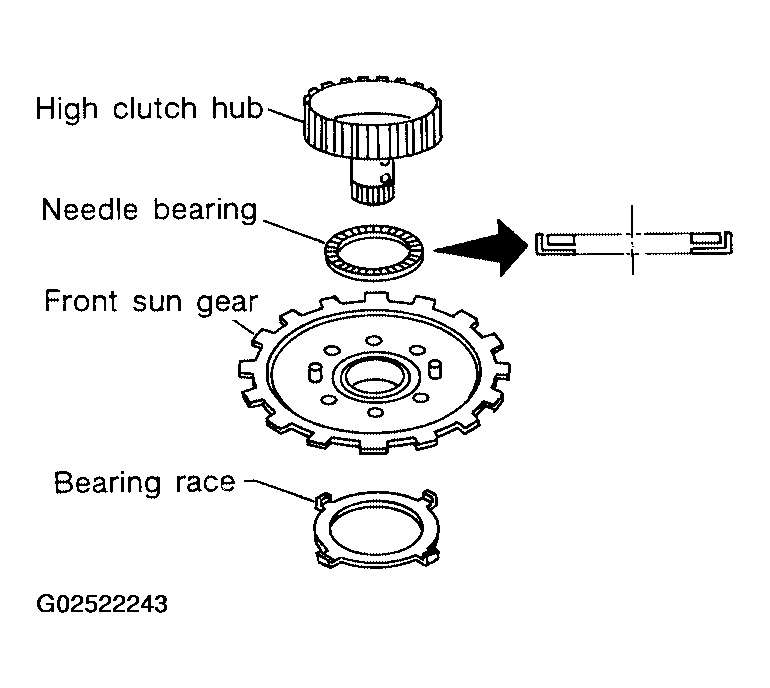

    Fig 22: Installing Bearing Race, Needle Bearing And High Clutch Hub On Front Sun Gear
    G02522243Courtesy of NISSAN MOTOR CO., U.S.A.

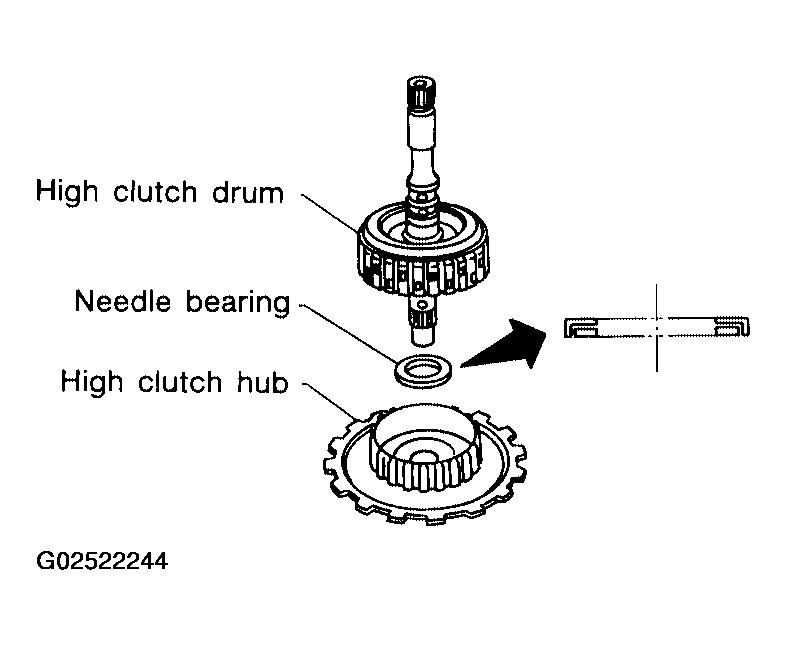

  18. Install needle bearing and high clutch drum on high clutch hub.
    Fig 23: Installing Needle Bearing And High Clutch Drum On High Clutch Hub
    G02522244Courtesy of NISSAN MOTOR CO., U.S.A.

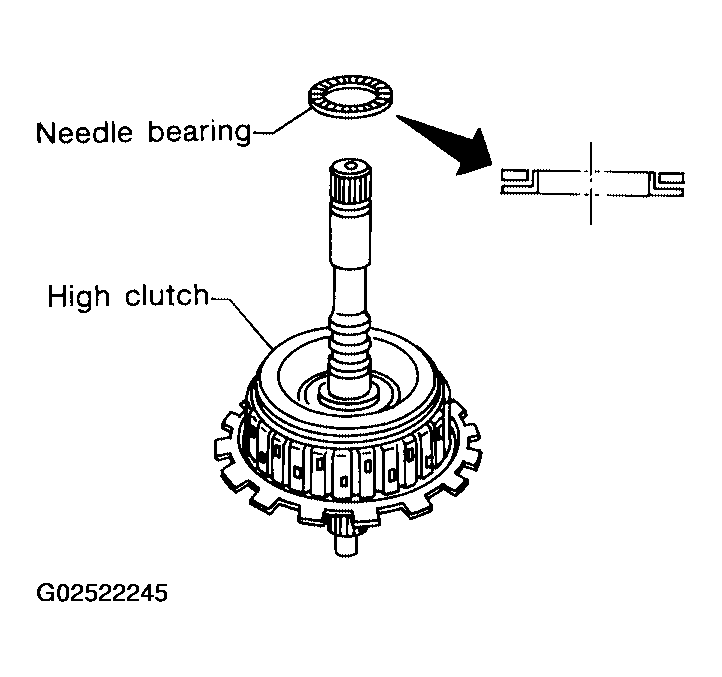

  19. Install needle bearing on high clutch drum.
    NOTE:
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.
    Fig 24: Installing Needle Bearing On High Clutch Drum
    G02522245Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Remove paper rolled around input shaft.
  21. Install input shaft assembly in reverse clutch.
    NOTE: Align teeth of reverse clutch drive plates before installing.

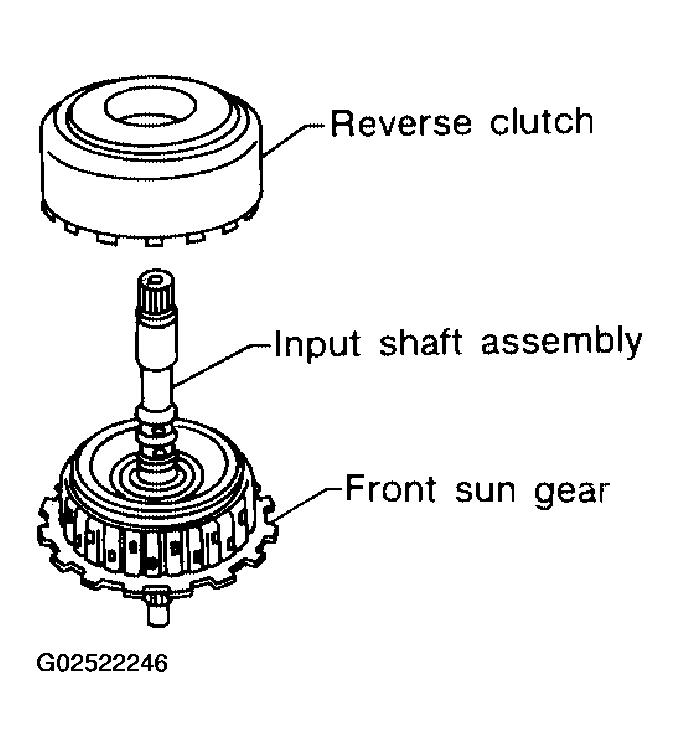

    Fig 25: Installing Input Shaft Assembly In Reverse Clutch
    G02522246Courtesy of NISSAN MOTOR CO., U.S.A.

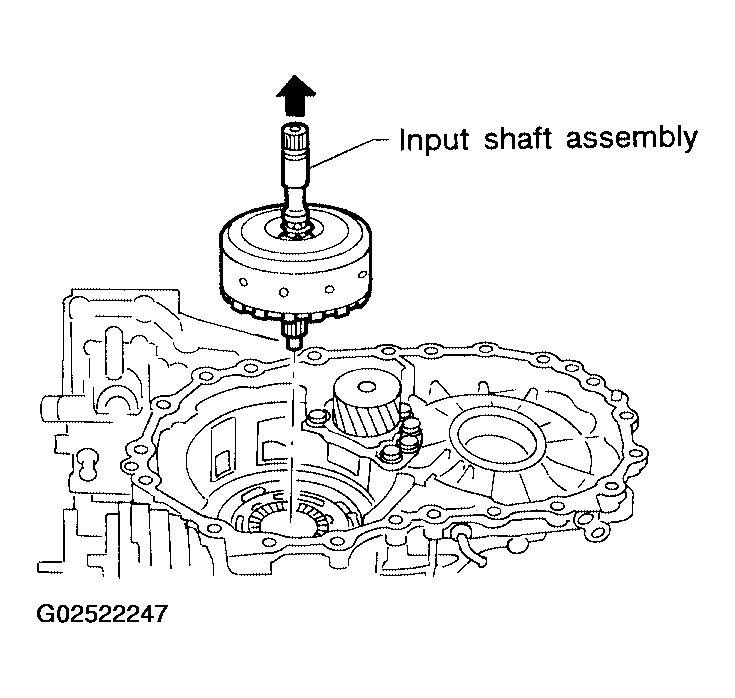

  22. Install reverse clutch assembly on transaxle case.
    NOTE: Align teeth of high clutch drive plates before installing.
    Fig 26: Installing Reverse Clutch Assembly On Transaxle Case
    G02522247Courtesy of NISSAN MOTOR CO., U.S.A.
