Assembly (1)

WARNING: This page is about a different variant/trim than selected.

Install new differential side oil seals on transaxle case and converter housing using Tool.
Tool number: ST33400001 (J-26082)

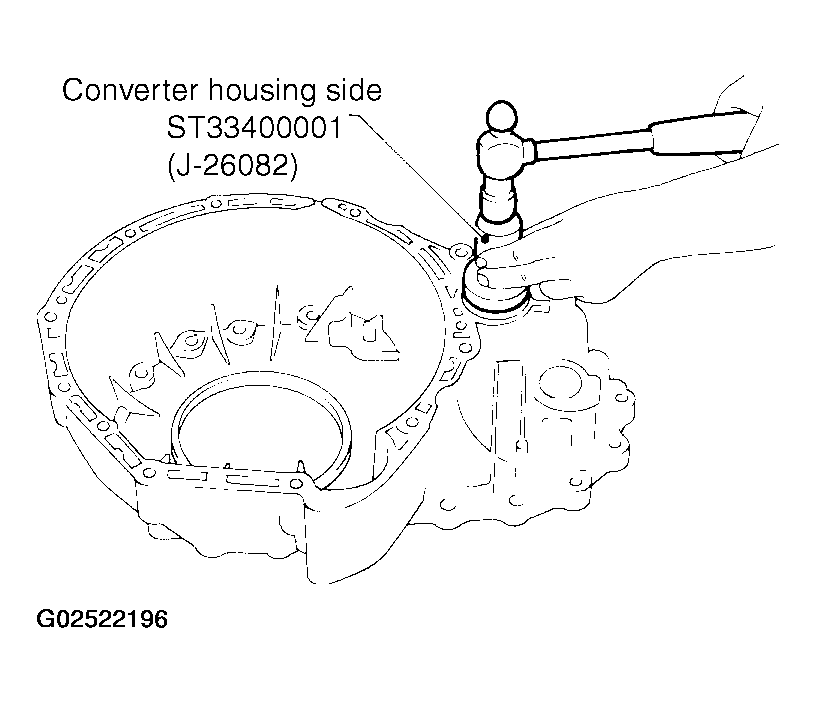

Fig 1: Installing New Differential Side Oil Seals On Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

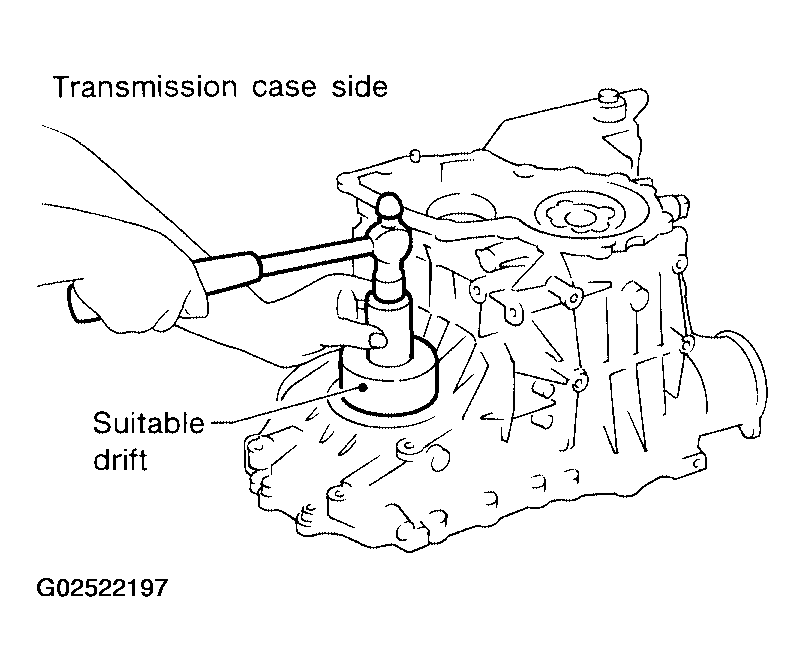

Fig 2: Installing New Differential Side Oil Seals On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transaxle case. Tighten parking actuator support bolts to the specified torque. Refer to "COMPONENTS ".
NOTE: Pay attention to the direction of the parking actuator support.

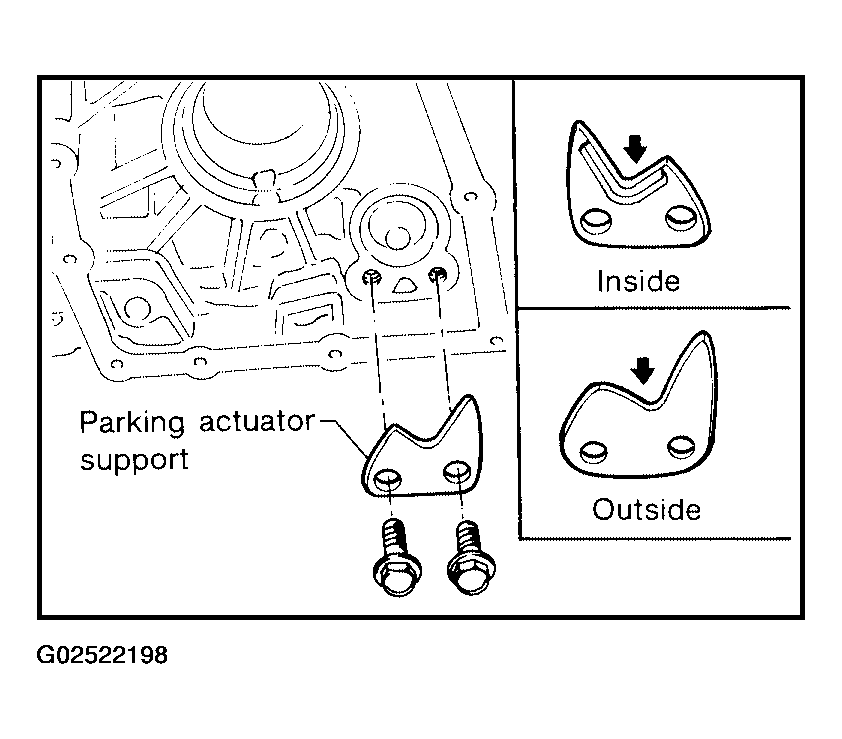

Fig 3: Installing Parking Actuator Support To Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transaxle case and fix it with parking shaft.
Install return spring.

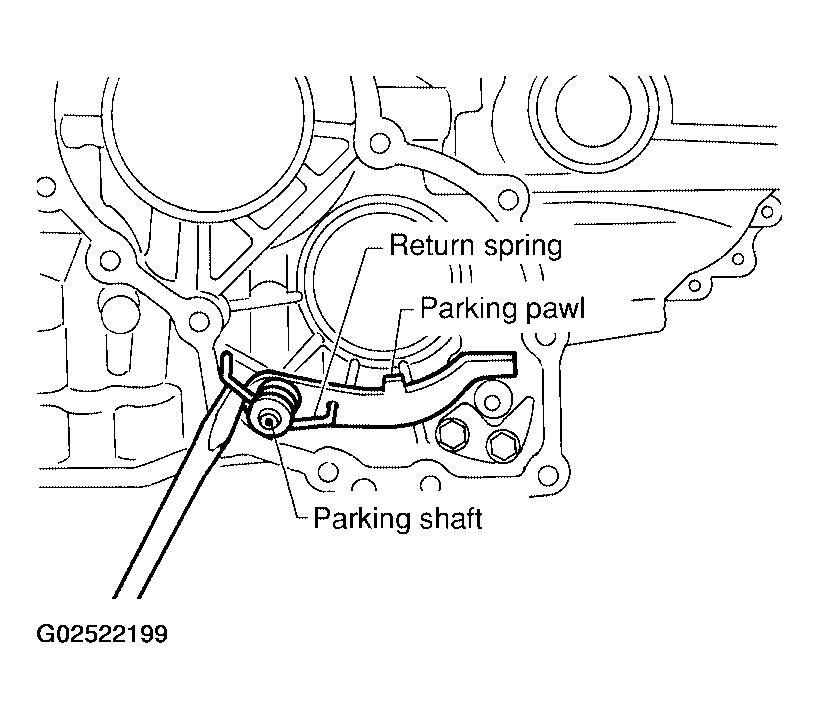

Fig 4: Installing Parking Pawl On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
