Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see PRECAUTION  )).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT SEAT ASSEMBLY
    1. Remove the front seat (see REMOVAL ).
  3. REMOVE SEAT SLIDE POSITION SENSOR PROTECTOR
  4. REMOVE SEAT POSITION AIRBAG SENSOR
    1. Remove the seat slide position sensor protector from the seat position sensor.
    2. Using a "torx" socket (T30), remove the "torx" screw and seat position sensor with sensor protector.
    3. Disconnect the connector.

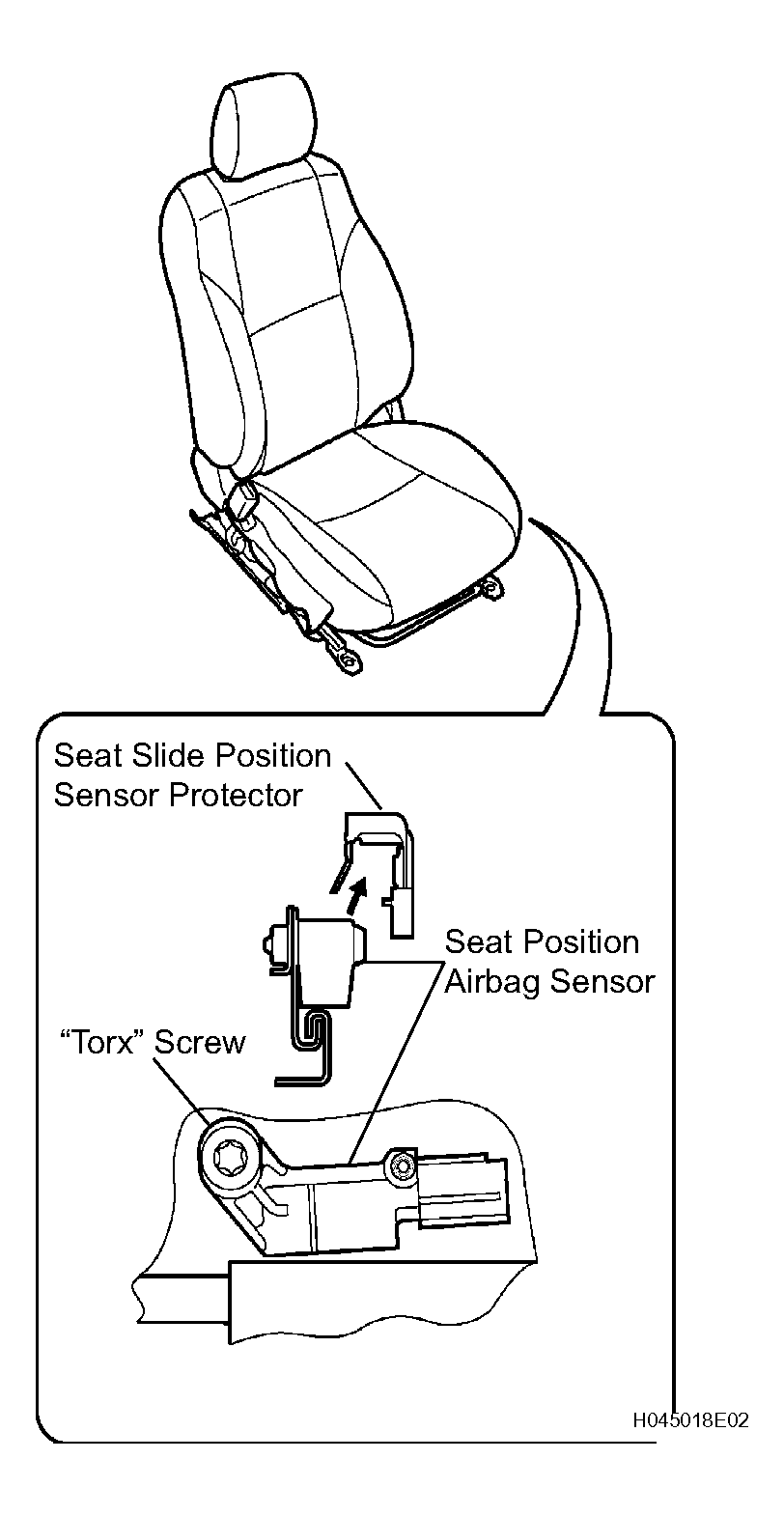

    Fig 1: Removing "TORX" Screw And Seat Position Sensor With Sensor Protector
    G04224022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
