Front Seat Assembly: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE SEAT TRACK BRACKET COVER OUTER LH
   1. Using a screwdriver, detach the 2 claws and remove the bracket cover.

   HINT:

   Tape the screwdriver tip before use.

   Fig 1: Removing Seat Track Bracket Cover Outer LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE SEAT TRACK BRACKET COVER INNER LH
   1. Using a screwdriver, detach the 3 claws and remove the cover.

   HINT:

   Tape the screwdriver tip before use.

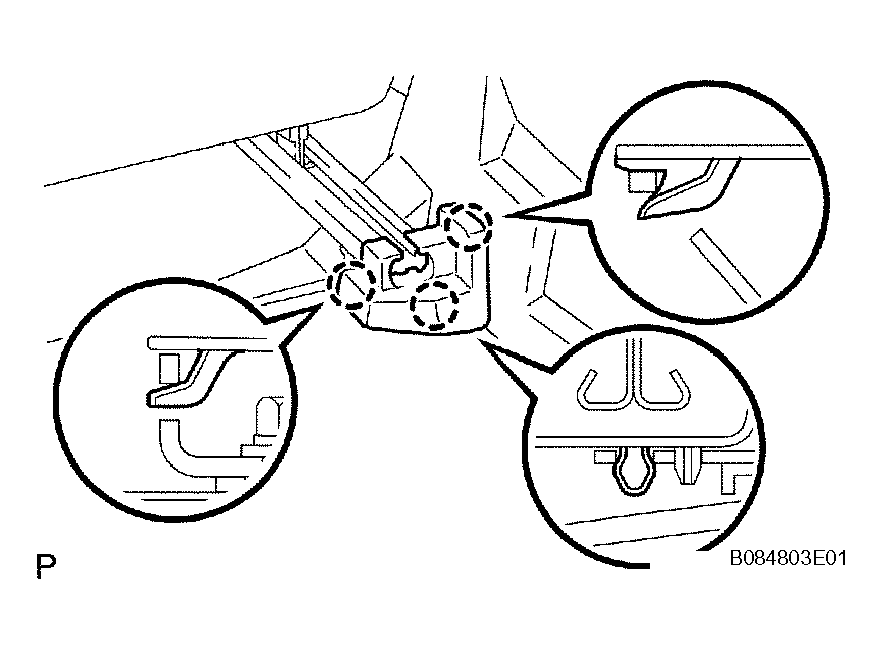

   Fig 2: Removing Seat Track Bracket Cover Inner LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE FRONT SEAT HEADREST ASSEMBLY
5. REMOVE FRONT SEAT ASSEMBLY
   1. Lift up the seat track adjusting handle and move the seat to the rearmost position.
   2. Remove the 2 bolts on the front side of the seat.
   3. Lift up the seat track adjusting handle and move the seat to the foremost position.
   4. Remove the 3 bolts on the rear side of the seat.
   5. Lift up the seat track adjusting handle and move the seat to the center position. Also, operate the reclining adjuster release handle and move the seatback to the upright position.
   6. Disconnect the connectors under the seat. Then remove the front seat.
   NOTE: Be careful not to damage the vehicle body.
