Curtain Shield Airbag Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see PRECAUTION  ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ROOF HEADLINING ASSEMBLY
    1. Remove the roof headlining (see REMOVAL ).
  3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

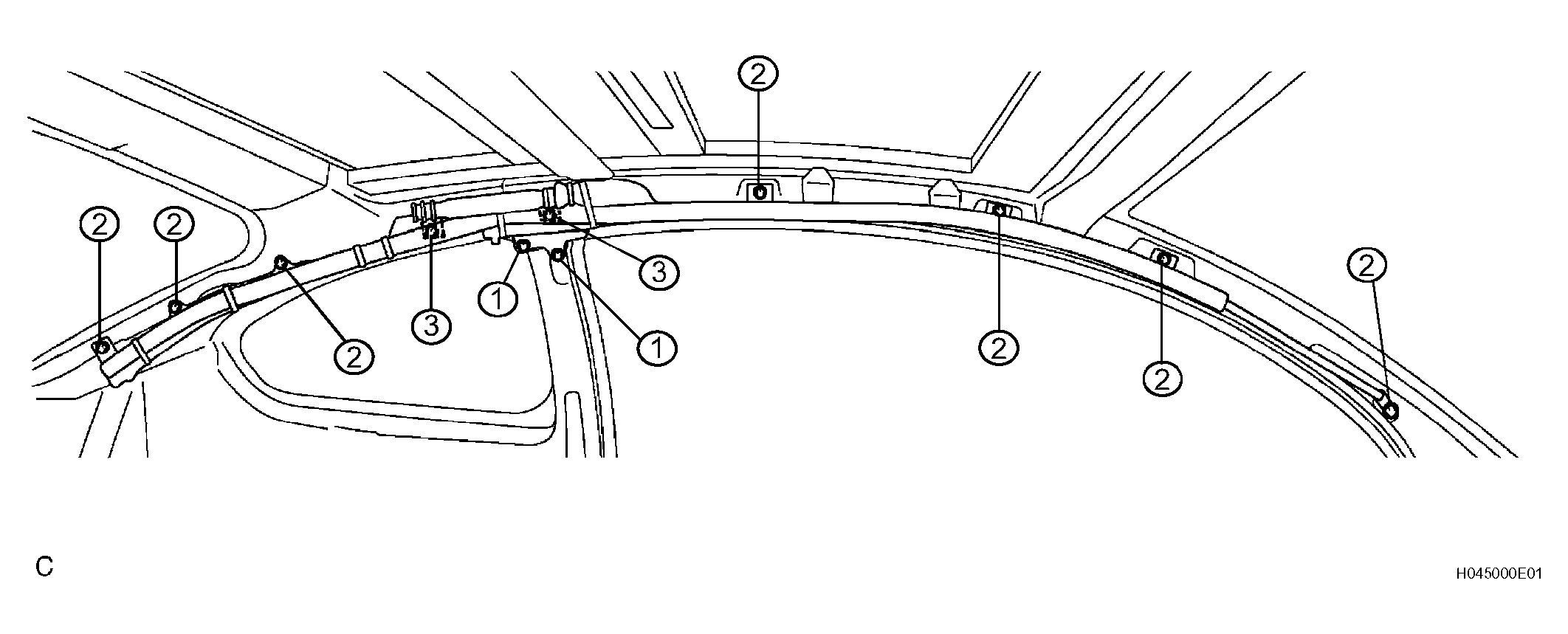

    Fig 1: Removing Roof Headlining
    G04223979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Remove the 11 bolts and the curtain shield airbag assembly.
