Transmission Revolution Sensor: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BATTERY
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE BATTERY CARRIER (See  REMOVAL  )
  3. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL  )
  4. REMOVE SPEED SENSOR (NT SENSOR)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
  5. REMOVE SPEED SENSOR (NC SENSOR)

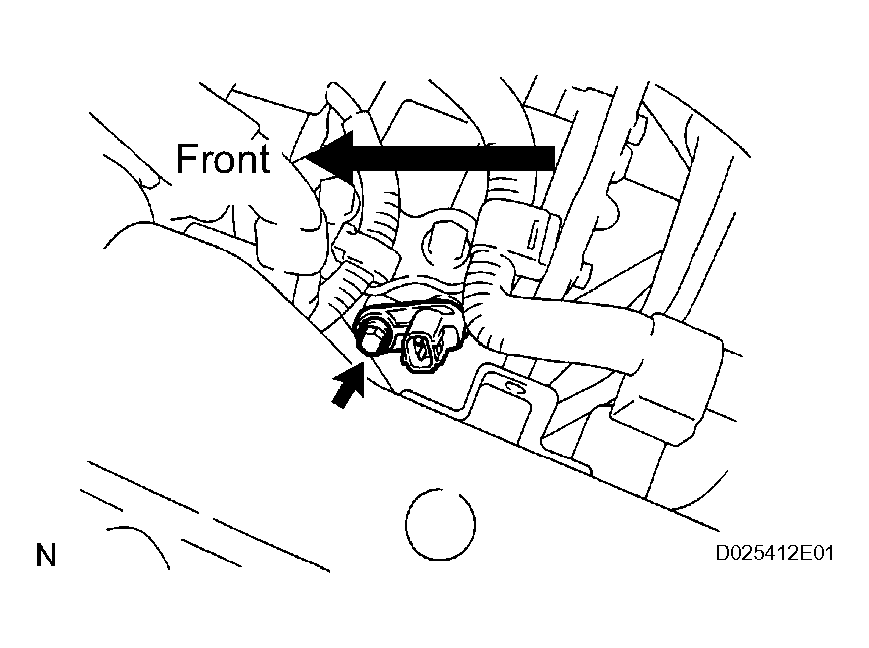

    Fig 1: Removing Speed Sensor (NT Sensor)
    G04222234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

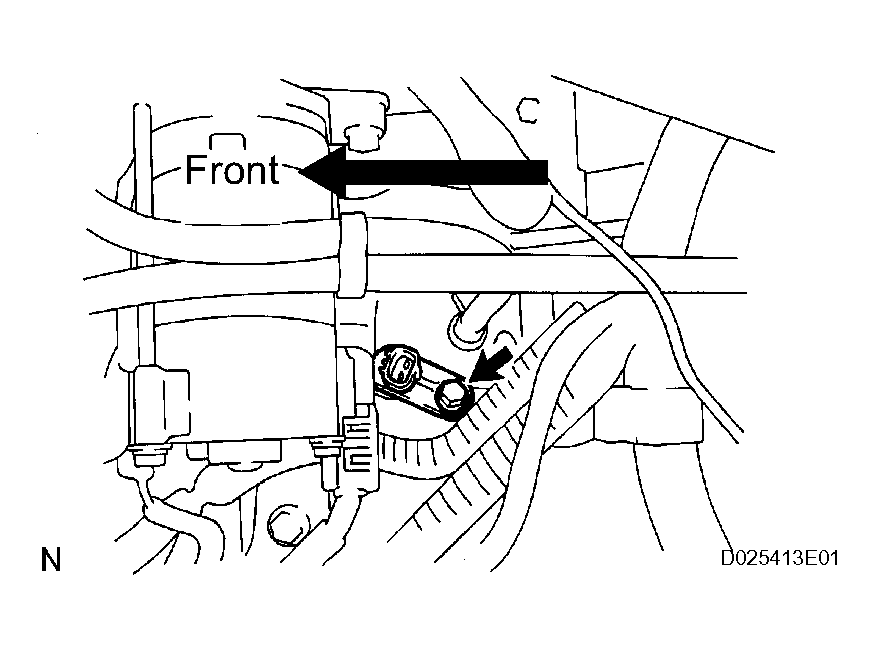

    Fig 2: Removing Speed Sensor (NC Sensor)
    G04222235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
