Clutch Unit: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CLUTCH DISC ASSEMBLY
1. Insert SST in the clutch, and then insert them in the flywheel.
SST 09301-00220

NOTE: Take care not to insert the clutch disc in the wrong direction.

Fig 1: Installing Clutch Disc Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH COVER ASSEMBLY
1. Align the matchmarks on the clutch cover and flywheel.
2. Install and tighten the 6 bolts as described below.
  1. Determine the first bolt to be tightened by choosing the bolt closest to the knock pin.
  2. Uniformly tighten the 6 bolts relative to the position of the first bolt to be tightened. Use the illustration as a reference.
    Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

    HINT:
    - Evenly tighten the bolts by following the order shown in the illustration.
    - Tighten the bolts after checking that the disc is in the center by lightly moving the SST up and down, left and right.

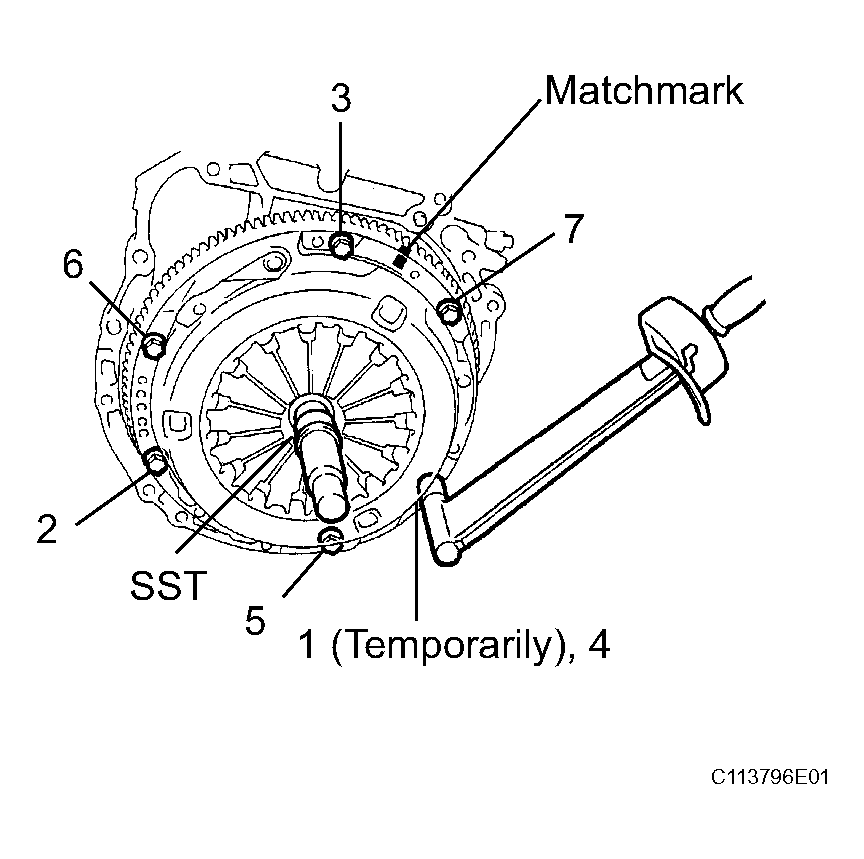

    Fig 2: Tightening Clutch Cover Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT AND ADJUST CLUTCH COVER ASSEMBLY

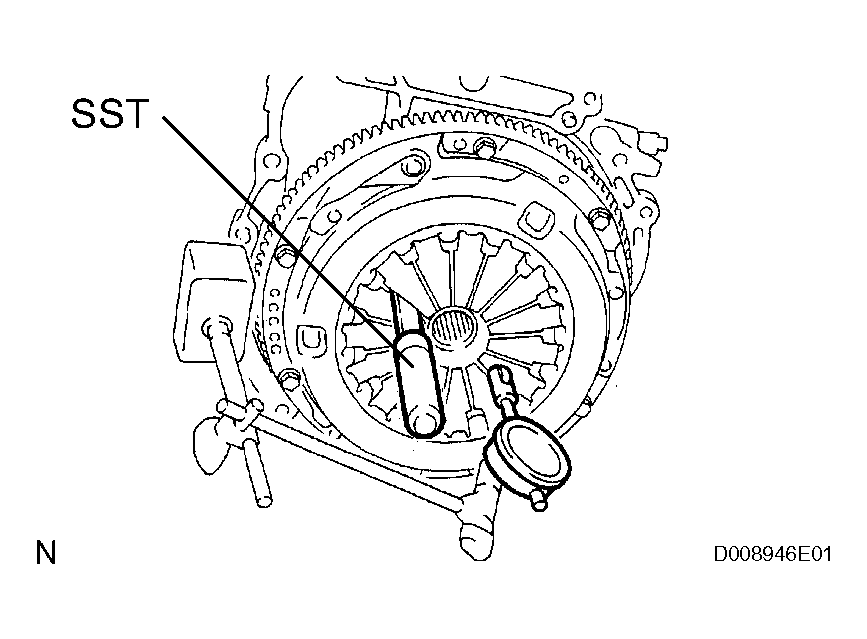

1. Using a dial indicator with a roller instrument, measure the diaphragm spring tip alignment.
  Maximum non-alignment:

  0.5 mm (0.020 in.)

  If the alignment is greater than the maximum, adjust the diaphragm spring tip alignment using SST.

  SST 09333-00013
INSTALL RELEASE FORK SUPPORT
1. Install the release fork support to the transaxle.
  Torque: 47 N.m (480 kgf.cm, 35 ft.lbf)

  Fig 3: Installing Release Fork Support To Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH RELEASE FORK SUB-ASSEMBLY
1. Apply release hub grease to the contact surfaces of, the release fork and release bearing assembly, release fork and push rod, and release fork and support.
  Sealant:

  Part No. 08887-01806, RELEASE HUB GREASE or equivalent
2. Install the release fork to the release bearing.
3. Install the release bearing hub clip.
Fig 4: Installing Release Bearing Hub Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH RELEASE BEARING ASSEMBLY
1. Apply clutch spline grease to the input shaft spline as shown in the illustration.
  Sealant:

  Part No. 08887-01706, CLUTCH SPLINE GREASE or equivalent
2. Install the release fork with the release bearing assembly to the manual transaxle.
NOTE: After installation, move the fork back and forth to check that the release bearing slides smoothly.
INSTALL CLUTCH RELEASE FORK BOOT
INSTALL MANUAL TRANSAXLE ASSEMBLY
1. Install the transaxle (See INSTALLATION ).
Fig 5: Installing Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
