Manual Transaxle Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR ENGINE MOUNTING BRACKET
    1. Install the rear engine mounting bracket to the transaxle with the 3 bolts.

      Torque: 64 N.m (653 kgf.cm, 47 ft. lbf)

    2. Install the rear engine mounting insulator with the bolt to the rear engine mounting bracket.

    Torque: 87 N.m (887 kgf.cm, 64 ft. lbf)

    Fig 1: Installing Rear Engine Mounting Bracket To Transaxle With 3 Bolts
    G04222498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT ENGINE MOUNTING BRACKET
    1. Install the front engine mounting bracket and 2 bolts to the transaxle.

      Torque: 64 N.m (653 kgf.cm, 47 ft. lbf)

    2. Install the front engine mounting insulator, bolt and nut to the front engine mounting bracket.

      Torque: 52 N.m (530 kgf.cm, 38 ft. lbf)

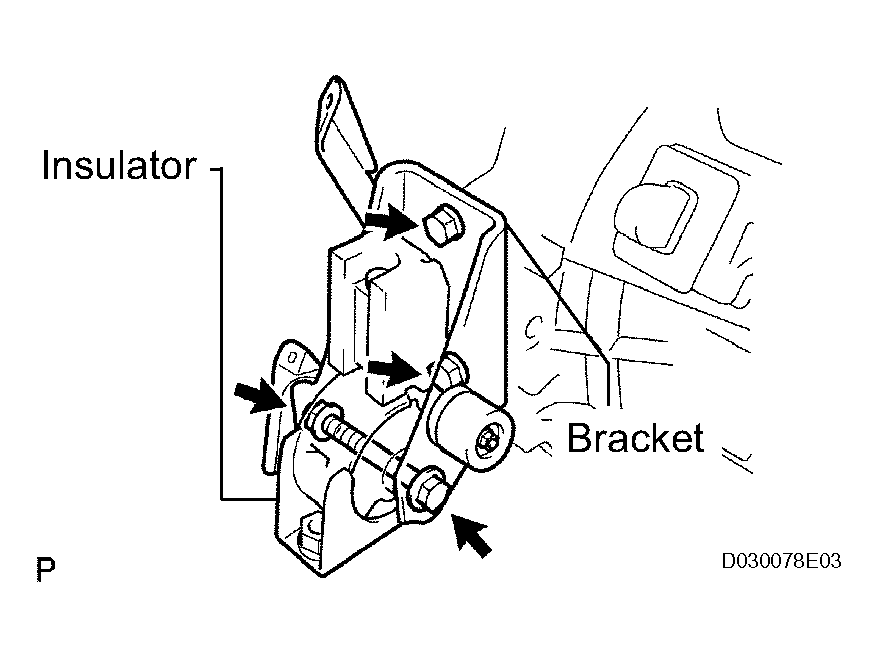

    Fig 2: Installing Front Engine Mounting Bracket And Bolts To Transaxle
    G04222499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL MANUAL TRANSMISSION CASE PROTECTOR
    1. Install the case protector with the 2 bolts.

    Torque: 18 N.m (184 kgf.cm, 13 ft. lbf)

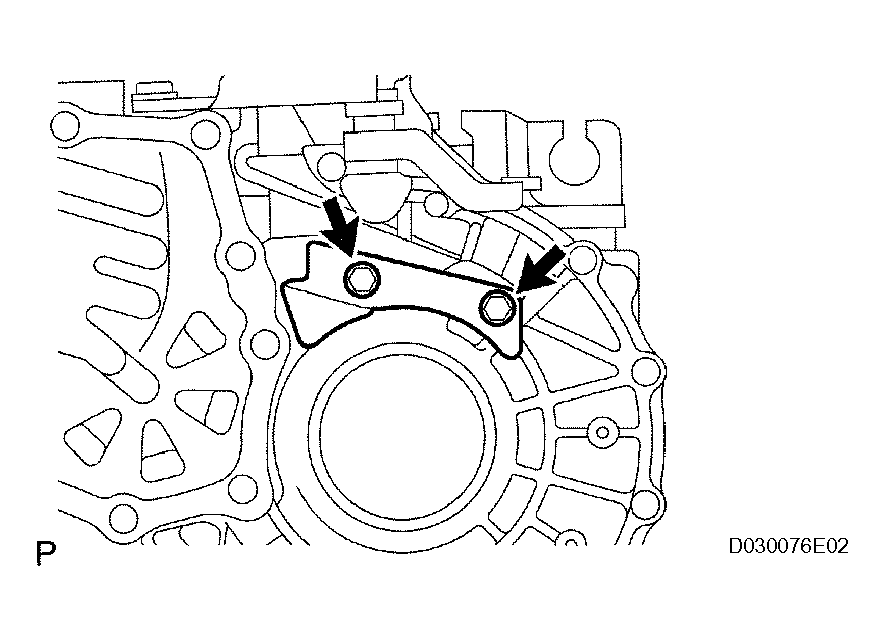

    Fig 3: Installing Case Protector With Bolts
    G04222500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL MANUAL TRANSAXLE ASSEMBLY
    1. Align the input shaft with the clutch disc and install the transaxle to the engine.
    2. Install the 10 bolts.

    Torque: 64 N.m (653 kgf.cm, 47 ft. lbf) for bolt A

    46 N.m (469 kgf.cm, 34 ft. lbf) for bolt B

    44 N.m (449 kgf.cm, 32 ft. lbf) for bolt C

    Fig 4: Installing Manual Transaxle Assembly Bolts
    G04222501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ENGINE MOUNTING BRACKET LH
    1. Install the engine mounting bracket to the transaxle with the 3 bolts.

    Torque: 64 N.m (653 kgf.cm, 47 ft. lbf)

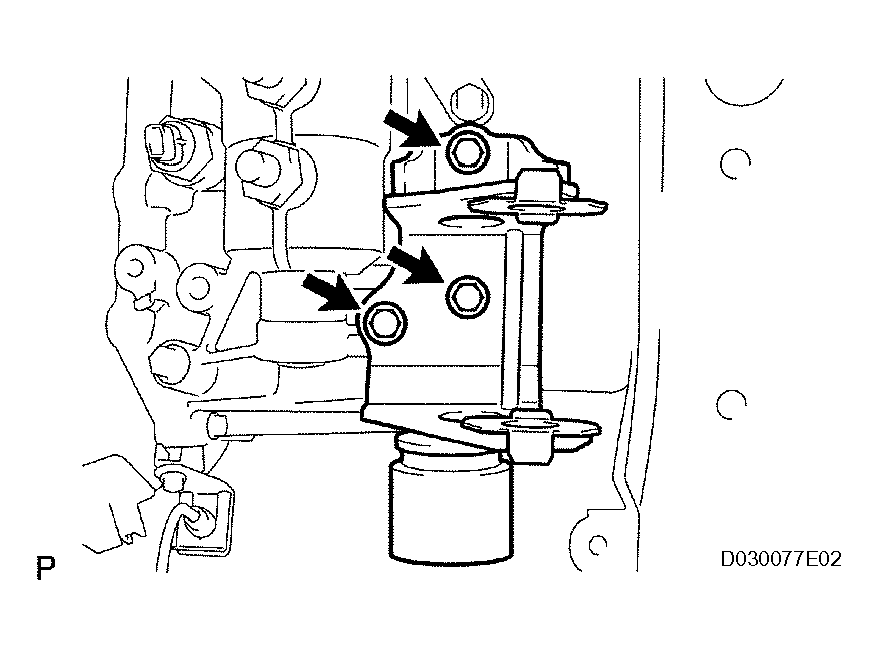

    Fig 5: Installing Engine Mounting Bracket To Transaxle With 3 Bolts
    G04222502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ENGINE MOUNTING INSULATOR LH
    1. Install the engine mounting insulator with the 5 bolts and nut.

    Torque: 52 N.m (530 kgf.cm, 38 ft. lbf) for bolt A

    87 N.m (887 kgf.cm, 64 ft. lbf) for bolt B

  7. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (See  INSTALLATION  )
  8. CONNECT PRESSURE FEED TUBE ASSEMBLY (See  INSTALLATION  )

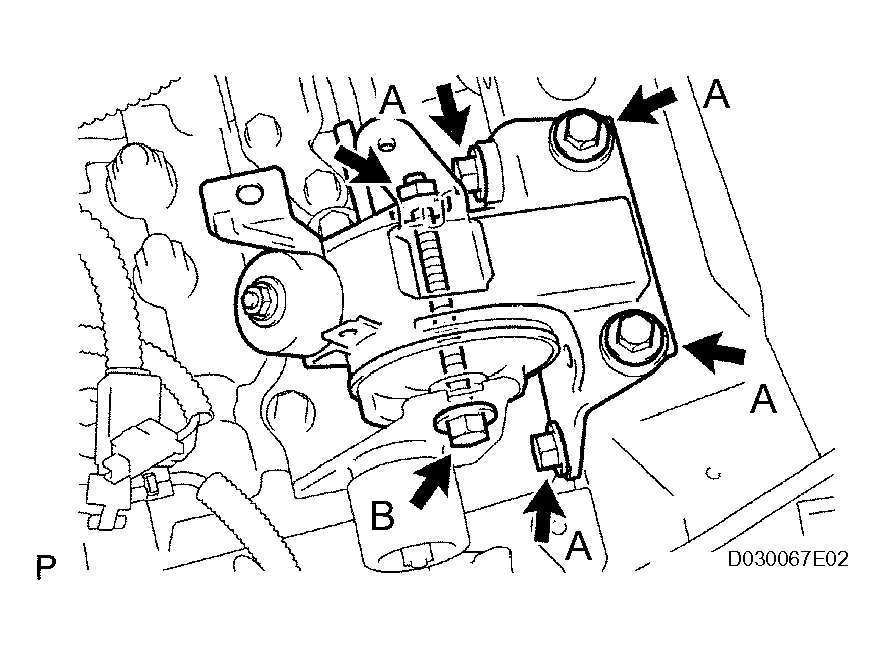

    Fig 6: Installing Engine Mounting Insulator With Bolts And Nut
    G04222503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
    1. Install the drive shaft (See INSTALLATION ).
  10. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
    1. Install the drive shaft (See INSTALLATION ).
  11. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Connect the 2 cable ends with the 2 washers and 2 clips.
    2. Install 2 new clips to the control cable bracket.
    Fig 7: Installing Transmission Control Cable Assembly
    G04222504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL CLUTCH RELEASE CYLINDER ASSEMBLY
    1. Install the release cylinder with the 3 bolts.

    Torque: 7.8 N.m (80 kgf.cm, 69 in. lbf) for bolt A

    12 N.m (120 kgf.cm, 9 ft. lbf) for bolt B

    Fig 8: Installing Release Cylinder With Bolts
    G04222505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. CONNECT BACK-UP LIGHT SWITCH

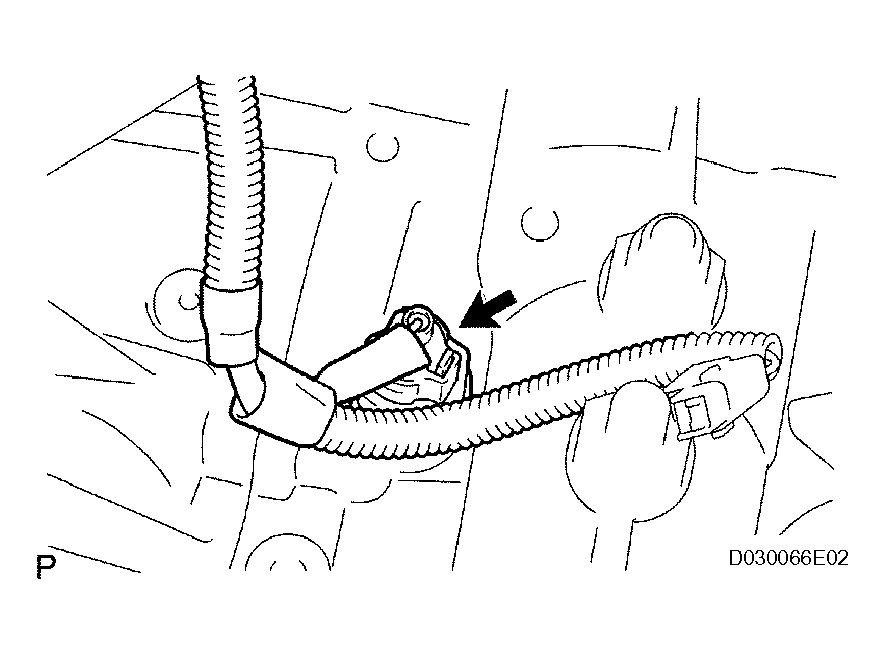

    Fig 9: Connecting Back-Up Light Switch
    G04222506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. CONNECT WIRE HARNESS
    1. Install the 3 wire harnesses with the 3 bolts.

    Torque: 26 N.m (260 kgf.cm, 19 ft. lbf) for bolt A

    8.4 N.m (85 kgf.cm, 74 in. lbf) for bolt B

    13 N.m (133 kgf.cm, 9.6 ft. lbf) for bolt C

  15. INSTALL STARTER ASSEMBLY (See  INSTALLATION  )
  16. INSTALL BATTERY CARRIER
    1. Install the battery carrier with the 3 bolts.

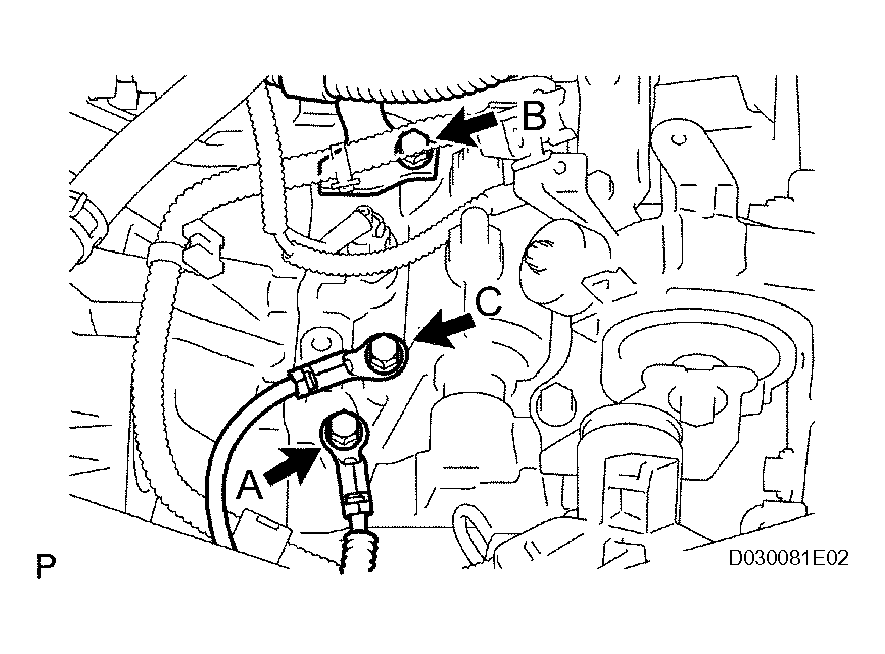

    Fig 10: Installing Wire Harnesses With 3 Bolts
    G04222507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL BATTERY TRAY
  18. INSTALL BATTERY
  19. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Torque: 5.0 N.m (51 kgf.cm, 44 in. lbf)

  20. INSTALL AIR CLEANER ASSEMBLY

    Torque: 5.0 N.m (51 kgf.cm, 44 in. lbf)

  21. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
  22. INSTALL HOOD SUB-ASSEMBLY

    Torque: 13 N.m (133 kgf.cm, 10 ft. lbf)

  23. ADJUST HOOD SUB-ASSEMBLY
    1. Adjust the hood (See ADJUSTMENT ).
  24. INSTALL CENTER EXHAUST PIPE ASSEMBLY (See  INSTALLATION  )
  25. ADD TRANSAXLE OIL (See  MANUAL TRANSAXLE OIL   )
  26. INSPECT TRANSAXLE OIL (See  MANUAL TRANSAXLE OIL   )
  27. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft. lbf)

  28. INSTALL NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
  29. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (See  INSTALLATION  )
  30. INSTALL COLUMN HOLE COVER SILENCER SHEET
  31. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  32. PERFORM INITIALIZATION
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
    1. Perform initialization (See INITIALIZATION ).
  33. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See TERMINALS OF ECU ).
  34. PLACE FRONT WHEEL FACING STRAIGHT AHEAD
  35. INSPECT STEERING WHEEL CENTER POINT
  36. ADD POWER STEERING FLUID
  37. BLEED AIR FROM POWER STEERING FLUID (See  ON-VEHICLE INSPECTION  )
  38. CHECK POWER STEERING FLUID LEVEL IN RESERVOIR (See  ON-VEHICLE INSPECTION  )
  39. CHECK FOR FLUID LEAKAGE
  40. INSPECT FRONT WHEEL ALIGNMENT
    1. Inspect wheel alignment (See ADJUSTMENT ).
  41. INSTALL ENGINE UNDER COVER LH
  42. INSTALL ENGINE UNDER COVER RH
  43. CHECK ABS SPEED SENSOR SIGNAL
    1. Check the sensor signal (See DATA LIST / ACTIVE TEST ).
