Components (AWD Models)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

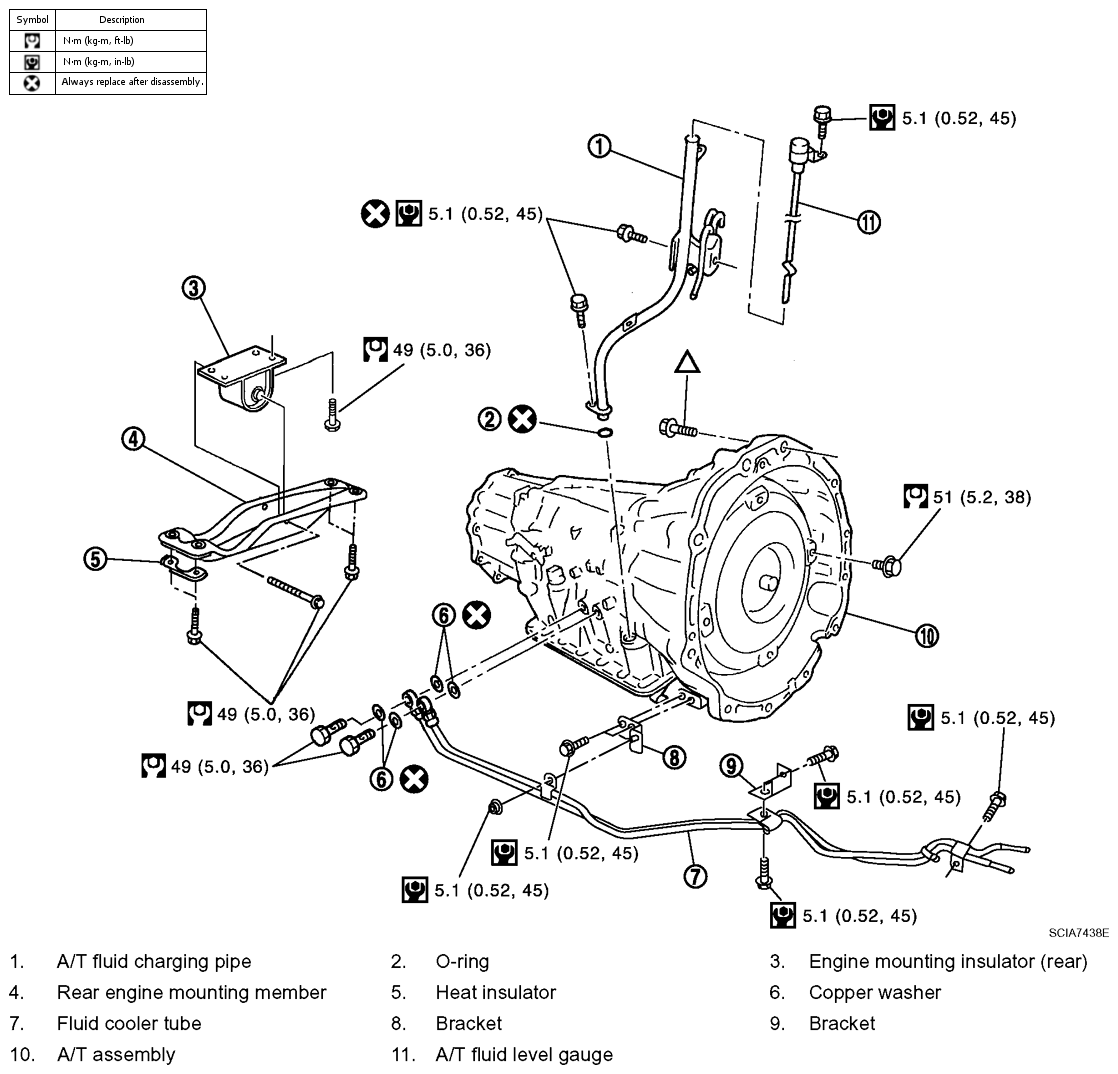

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (AWD Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following symbols for others.

For tightening torque, refer to "INSTALLATION ".
