Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

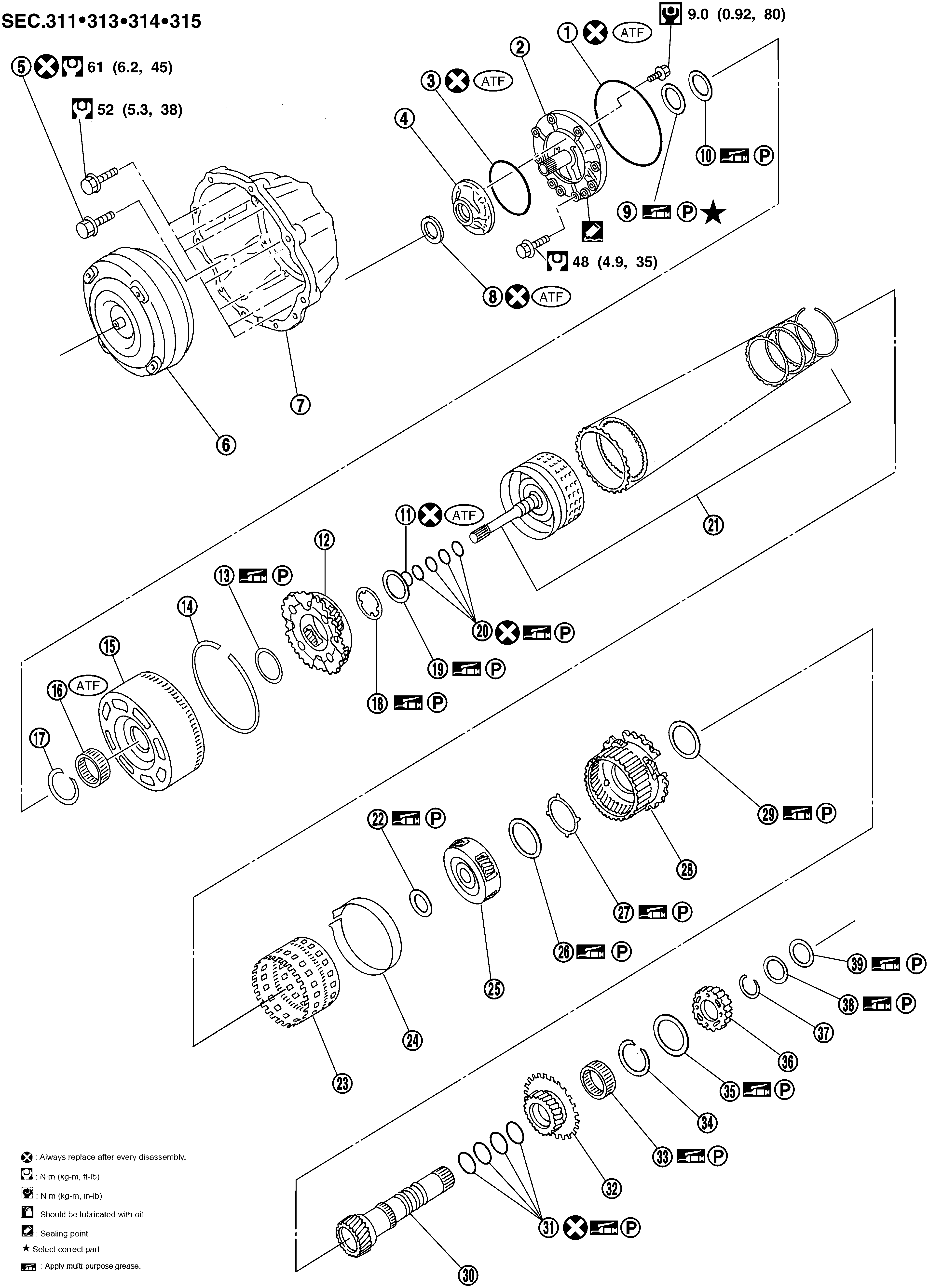

Install the removed parts in the reverse order of the removal, while paying attention to the following work.
- When installing A/T assembly to the engine, attach the fixing bolts in accordance with the following standard.

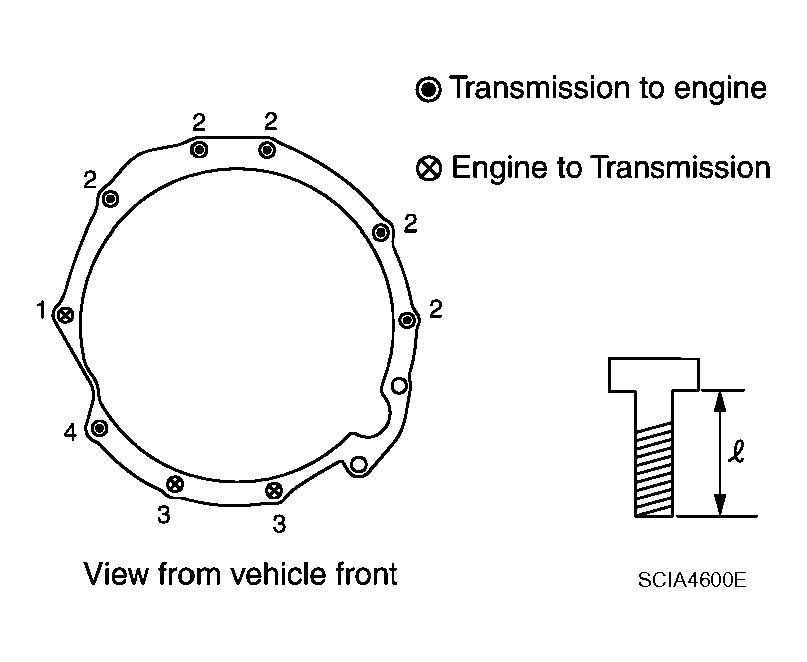

For 2WD models
BOLT SYMBOL AND LENGTH SPECIFICATION
| Bolt No. | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Number of bolts | 1 | 5 | 2 | 2 |
| Bolt length " "mm (in) | 55 (2.17) | 65 (2.56) | 50 (2.20) | 35 (1.38) |
| Tightening torque N.m (kg-m, ft-lb) | 75 (7.7, 55) | 55 (5.6, 41) | 47 (4.8, 35) | |

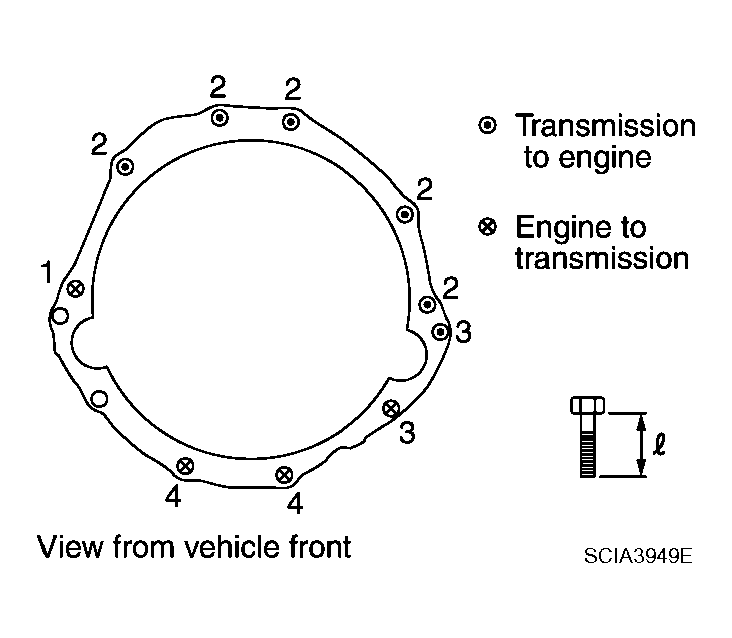

For AWD models
BOLT SYMBOL AND LENGTH SPECIFICATION
| Bolt No. | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Number of bolts | 1 | 5 | 2 | 1 |
| Bolt length " "mm (in) | 55 (2.17) | 65 (2.56) | 35 (1.38) | 40 (1.57) |
| Tightening torque N.m (kg-m, ft-lb) | 75 (7.7, 55) | 47 (4.8, 35) | 34 (3.5, 25) | |

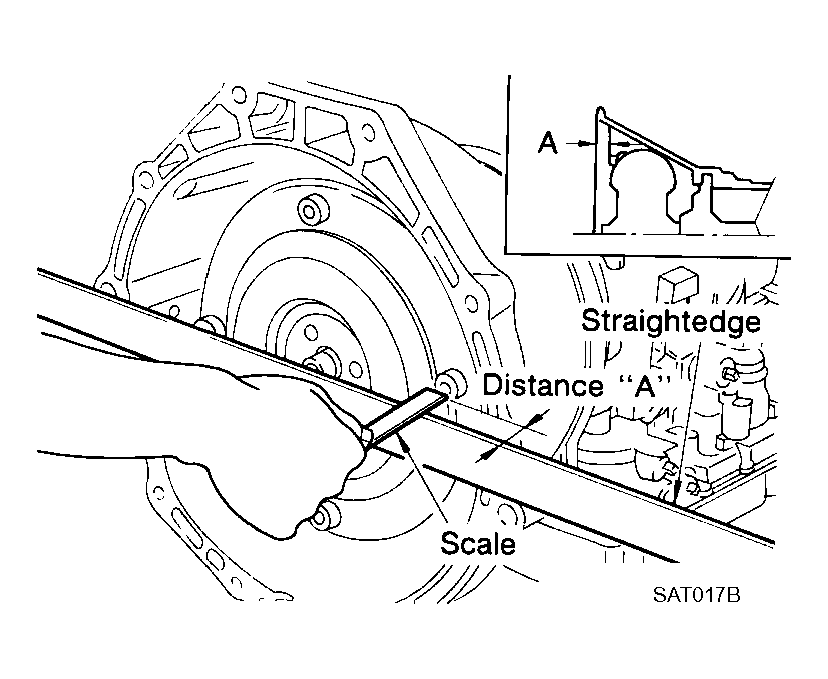

- Align the positions of tightening bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then tighten the bolts with the specified torque.
: 51 N.m (5.2 kg-m, 38 ft-lb)
CAUTION:
- When turning crankshaft, turn it clockwise as viewed from the front of the engine.
- When tightening the tightening bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts. Refer to "INSTALLATION ".
- After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that A/T rotates freely without binding.
- Install crankshaft position sensor (POS). Refer to "REMOVAL AND INSTALLATION (2WD MODEL) ", "REMOVAL AND INSTALLATION (AWD MODEL) ".
- After completing installation, check A/T fluid leakage, A/T fluid level and A/T position. Refer to "CHANGING A/T FLUID ", "CHECKING OF A/T POSITION ".
