A/T Interlock Coupling Pattern Table

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

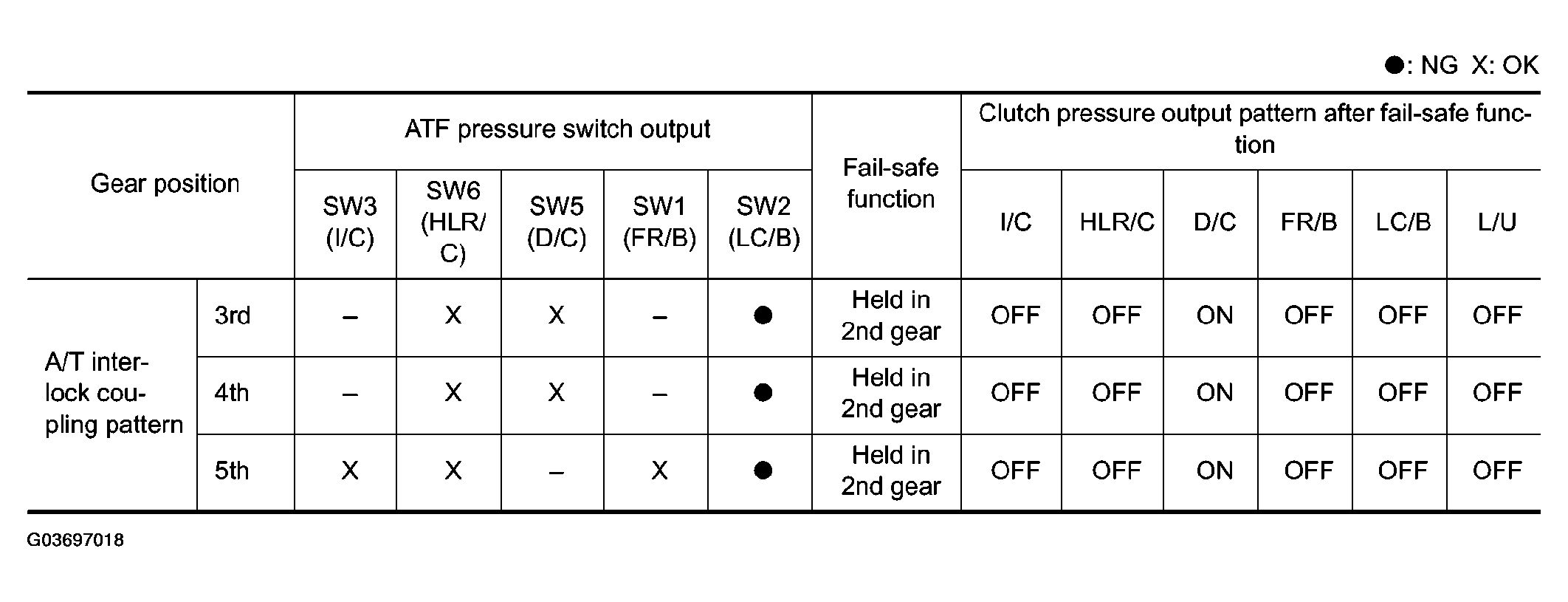

Fig 1: A/T Interlock Coupling Pattern Chart
G03697018Courtesy of NISSAN MOTOR CO., U.S.A.
