Control Device Removal And Installation: Removal
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect lower lever of control device and control rod.

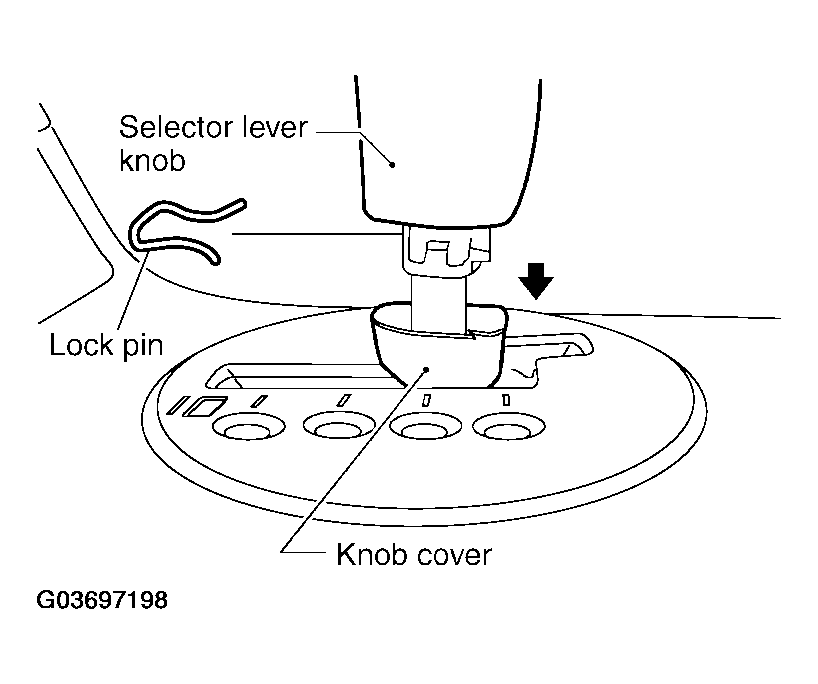

- Remove knob cover below selector lever downward.
- Pull lock pin out of selector lever knob.
- Remove selector lever knob.
- Remove console finisher.
- Refer to INSTRUMENT PANEL ASSEMBLY .
- Remove center console.
- Refer to INSTRUMENT PANEL ASSEMBLY .
- Remove key interlock cable from control device assembly.
- Refer to KEY INTERLOCK CABLE .
- Disconnect A/T device harness connector.
- Remove control device assembly.
