Adjustment Of A/T Position

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen nut of pivot pin.
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever toward rear of vehicle (in "P" position direction), tighten nut to specified torque.

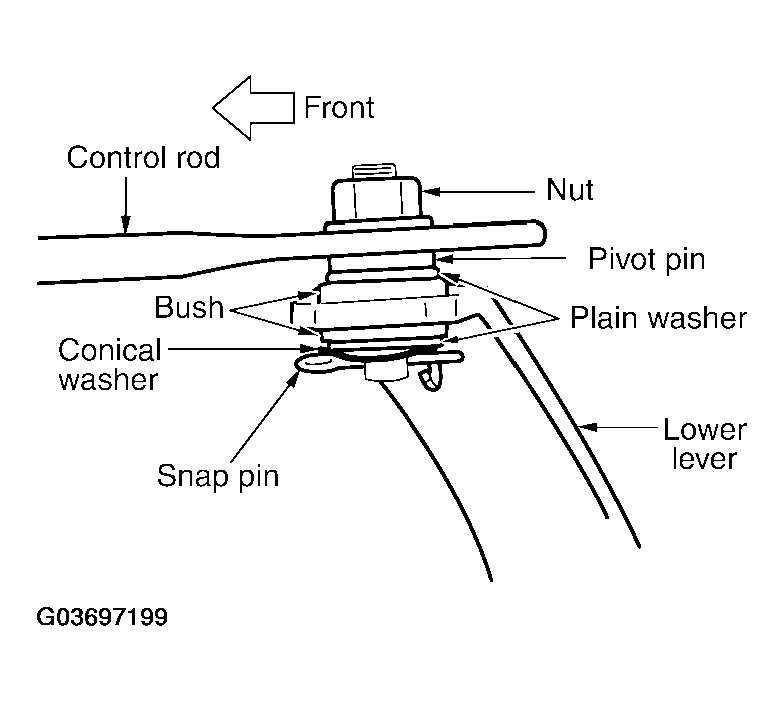

    Fig 1: Loosening Nut Of Pivot Pin
    G03697199Courtesy of NISSAN MOTOR CO., U.S.A.
