Revolution Sensor: Installation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to  CHANGING A/T FLUID  ,  CHECKING A/T FLUID  .
  1. Install revolution sensor in transmission case.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

    Tightening Torque: 5.8 N.m (0.59 kg-m, 51 in-lb)

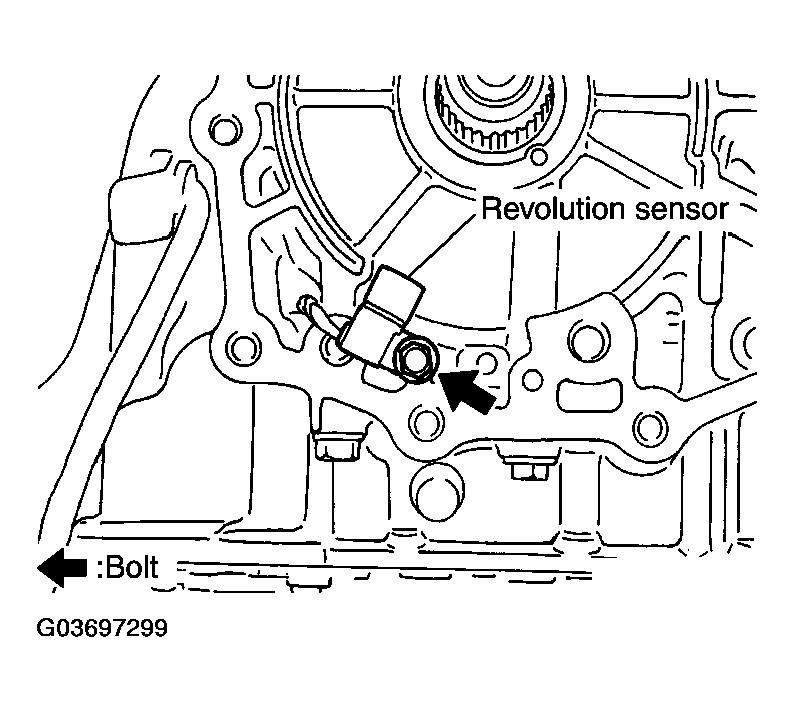

    Fig 1: Installing Revolution Sensor In Transmission Case
    G03697299Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect revolution sensor connector.
  3. Securely fasten revolution sensor harness with clips.

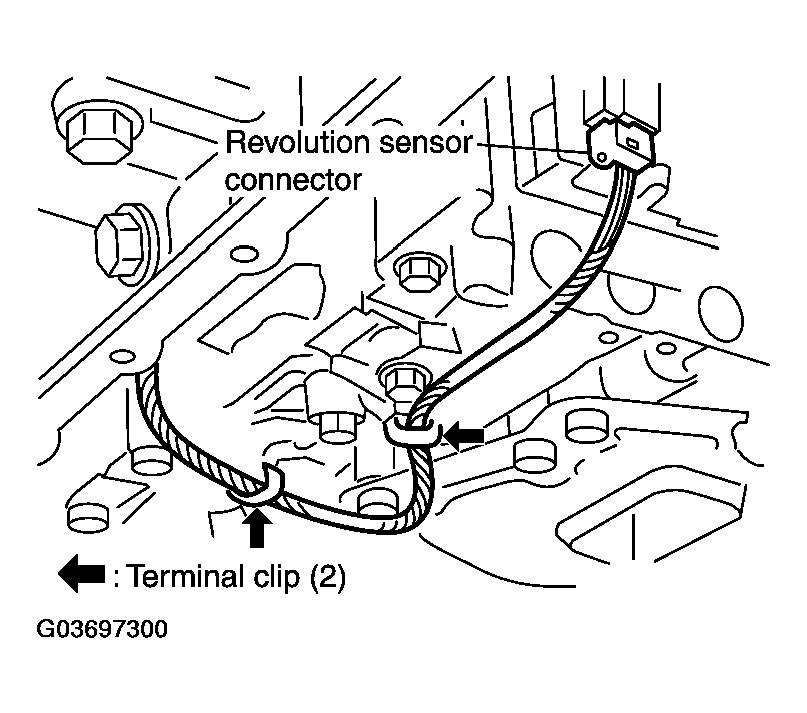

    Fig 2: Connecting Revolution Sensor Connector
    G03697300Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .) to rear extension assembly as shown in Fig 3 .

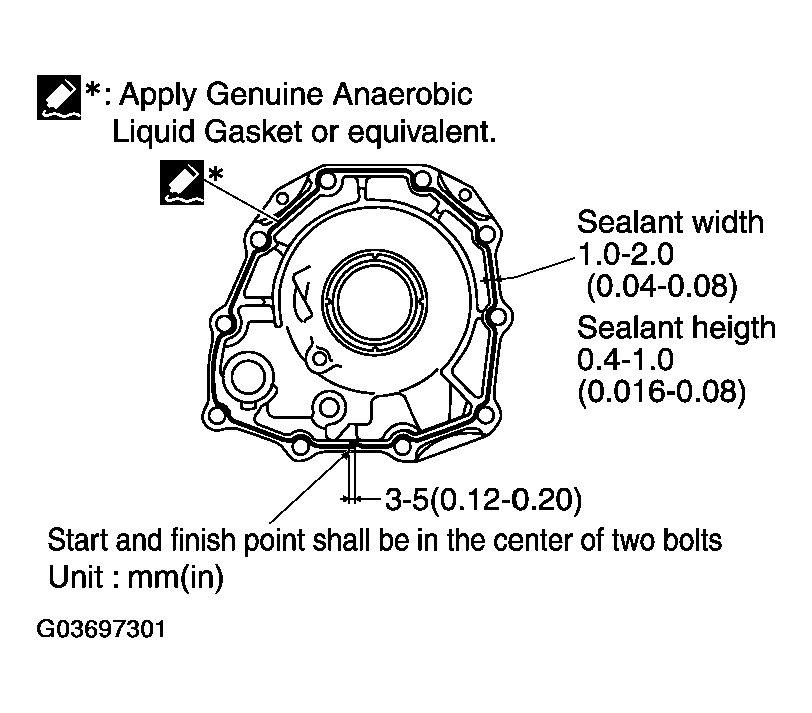

    Fig 3: Applying Recommended Sealant
    G03697301Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Complete remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.
  5. Install rear extension assembly to transmission case. (With needle bearing.)

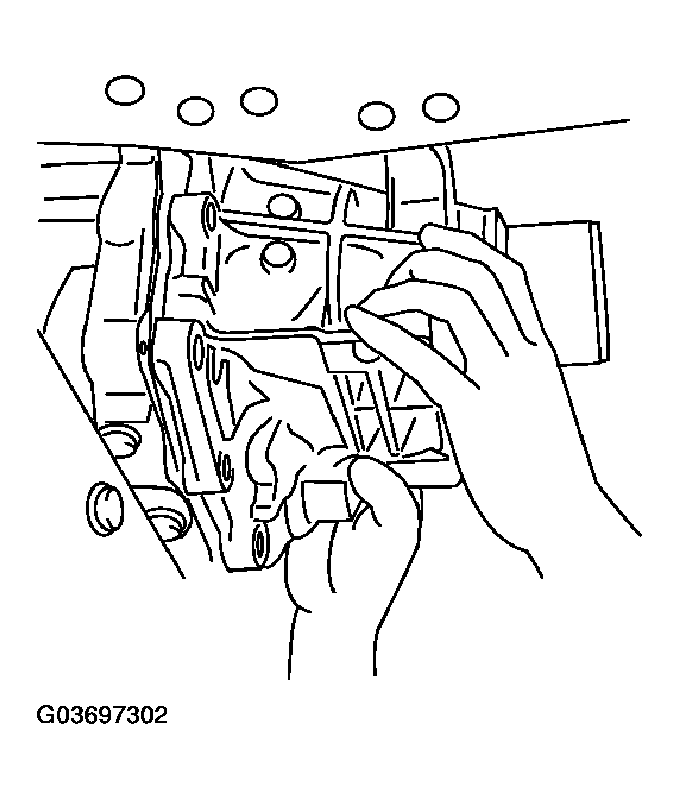

    Fig 4: Installing Rear Extension Assembly To Transmission Case
    G03697302Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten rear extension assembly mounting bolts to specified torque.
    CAUTION: Do not reuse self-sealing bolt.

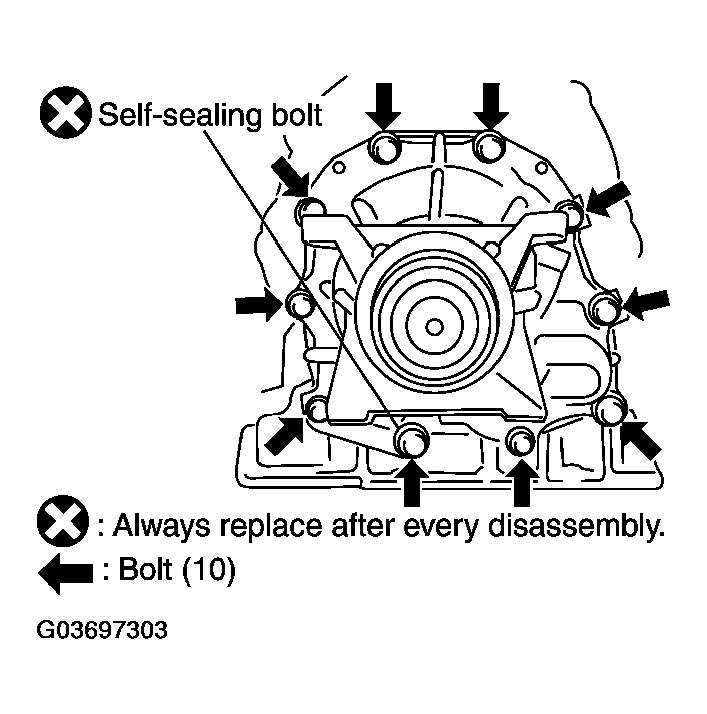

    Fig 5: Tightening Rear Extension Assembly Mounting Bolts
    G03697303Courtesy of NISSAN MOTOR CO., U.S.A.

    Rear extension assembly mounting bolt:

    Tightening Torque 52 N.m (5.3 Kg-m, 38 ft-lb)

    Self-sealing bolt:

    Tightening Torque: 61 N.m (6.2 Kg-m, 45 ft-lb)

  7. Install engine rear member. Refer to REMOVAL AND INSTALLATION .
  8. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case.

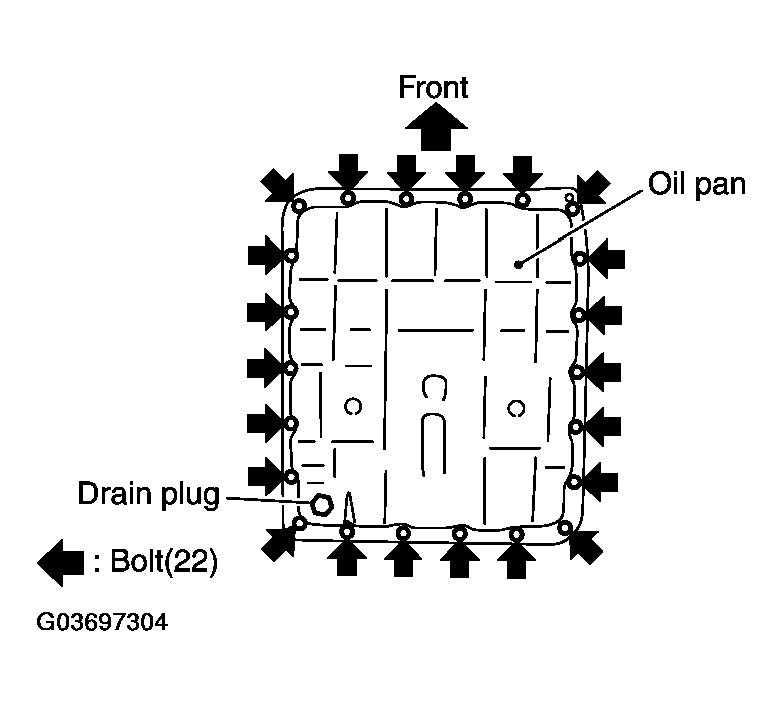

      Fig 6: Installing Oil Pan To Transmission Case
      G03697304Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in  Fig 6  .
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in Fig 7 after temporarily tightening them.

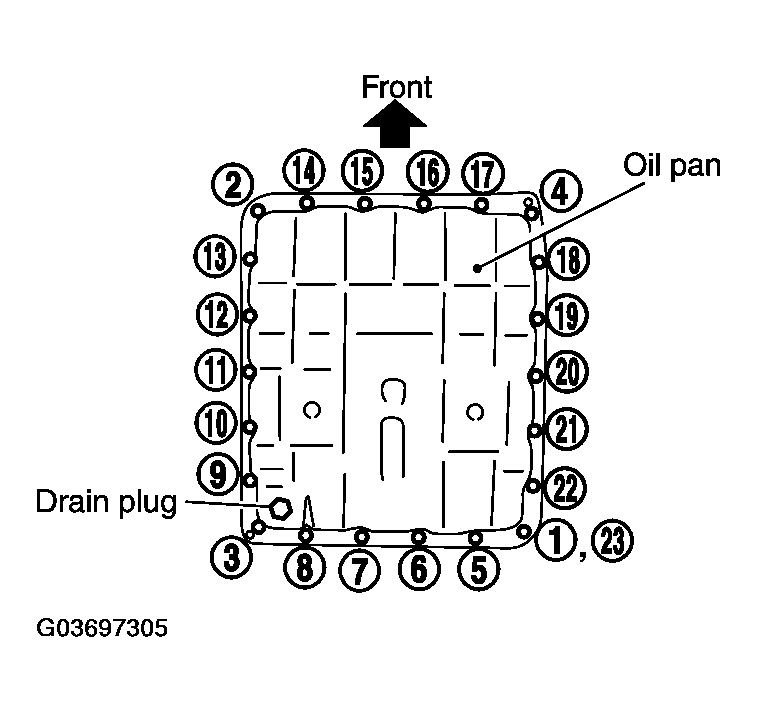

      Fig 7: Tightening Oil Pan Mounting Bolts
      G03697305Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Do not reuse oil pan mounting bolts.

      Tightening Torque: 7.9 N.m (0.81 kg-m, 70 in-lb)

  9. Install drain plug to oil pan.
    CAUTION: Do not reuse drain plug gasket.

    Tightening Torque: 34 N.m (3.5 kg-m, 25 ft-lb)

  10. Install rear propeller shaft. Refer to REMOVAL AND INSTALLATION .
  11. Install exhaust front tube and center muffler. Refer to REMOVAL AND INSTALLATION .
  12. Pour ATF into transmission assembly. Refer to CHANGING A/T FLUID .
  13. Connect negative battery terminal.
