Parking Components: Installation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to  CHANGING A/T FLUID  ,  CHECKING A/T FLUID  .

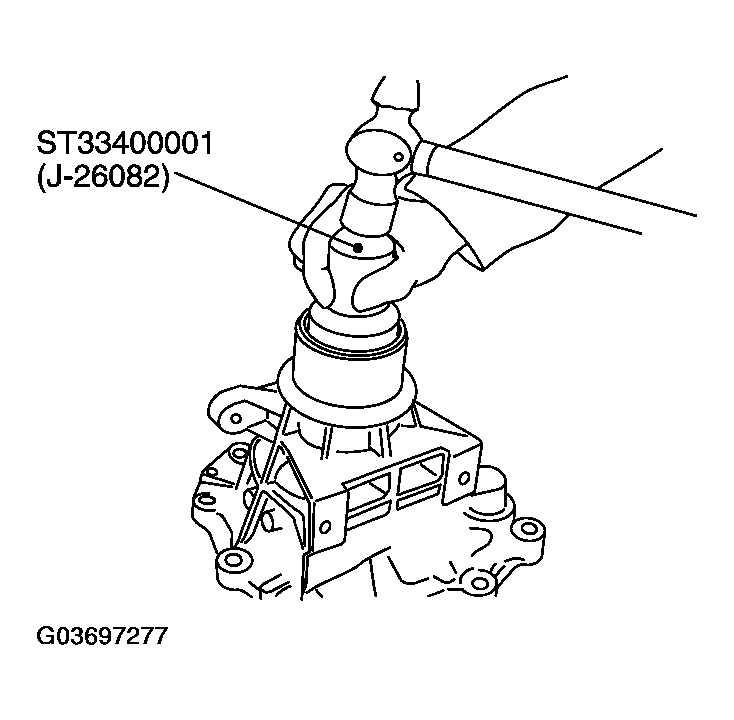

  1. As shown in Fig 1 , use a drift to drive rear oil seal into the rear extension until it is flush.
    CAUTION:
    • Apply ATF to rear oil seal.
    • Do not reuse rear oil seal.
      Fig 1: Installing Rear Oil Seal Into Rear Extension
      G03697277Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install return spring to parking pawl.

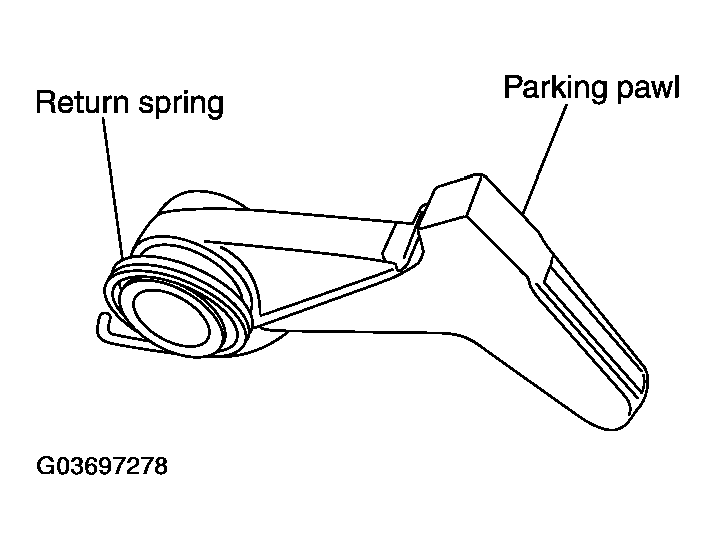

    Fig 2: Installing Return Spring To Parking Pawl
    G03697278Courtesy of NISSAN MOTOR CO., U.S.A.

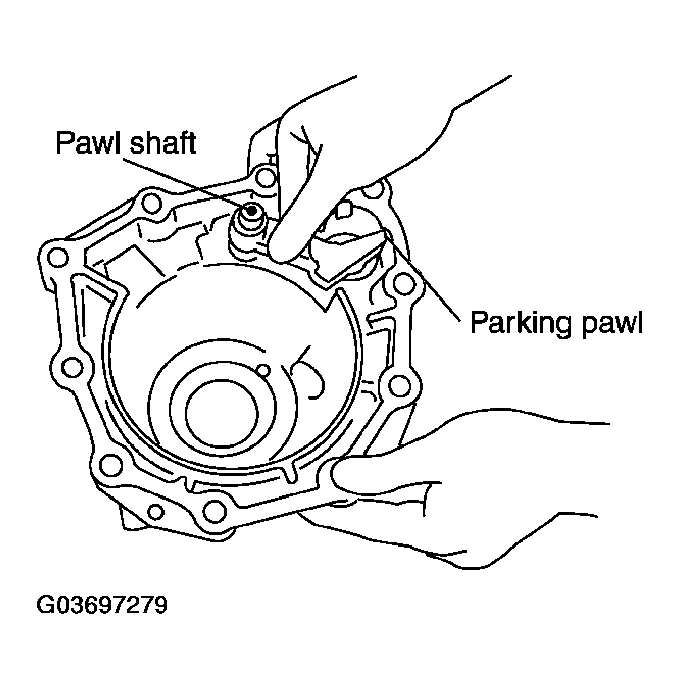

  3. Install parking pawl (with return spring) and pawl shaft to rear extension.
    Fig 3: Installing Parking Pawl & Pawl Shaft To Rear Extension
    G03697279Courtesy of NISSAN MOTOR CO., U.S.A.

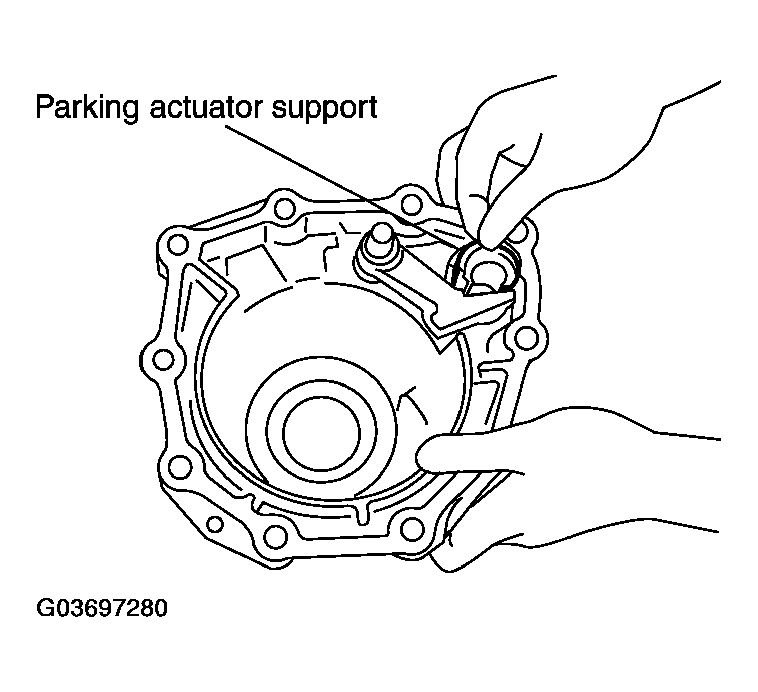

  4. Install parking actuator support to rear extension.
    Fig 4: Installing Parking Actuator Support To Rear Extension
    G03697280Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install needle bearing to rear extension.
    CAUTION: Apply petroleum jelly to needle bearing.

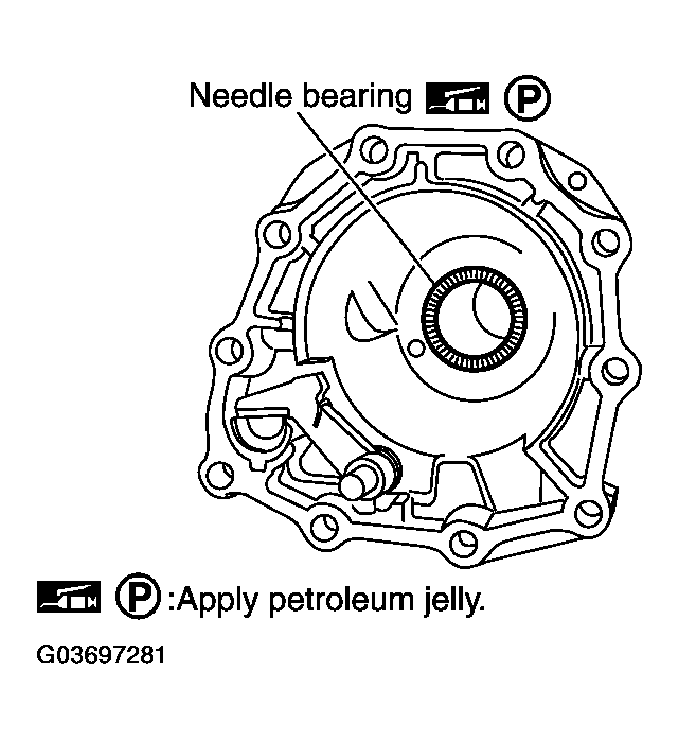

    Fig 5: Installing Needle Bearing To Rear Extension
    G03697281Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install seal rings in output shaft.
    CAUTION:
    • Do not reuse seal rings.
    • Apply petroleum jelly to seal rings.

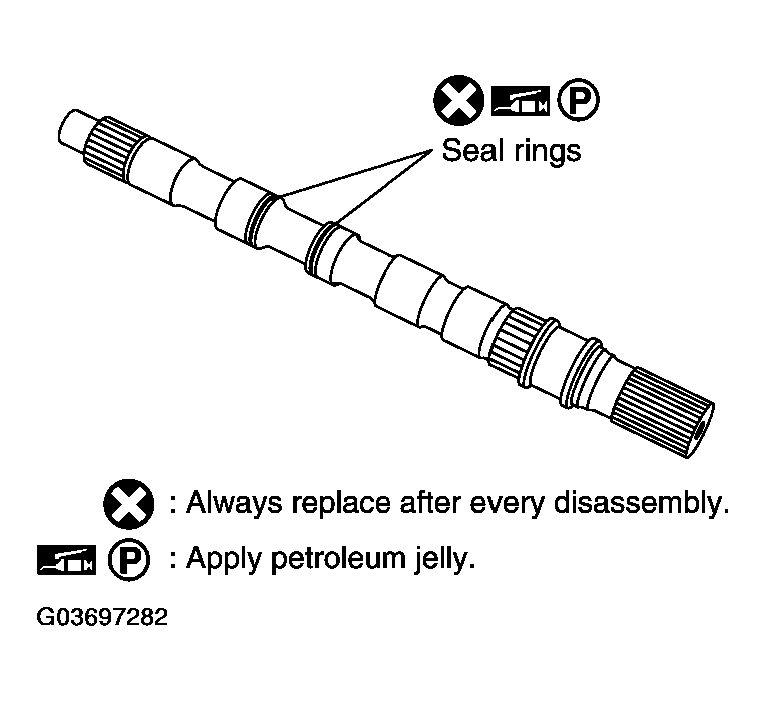

      Fig 6: Installing Seal Rings In Output Shaft
      G03697282Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install parking gear to output shaft.

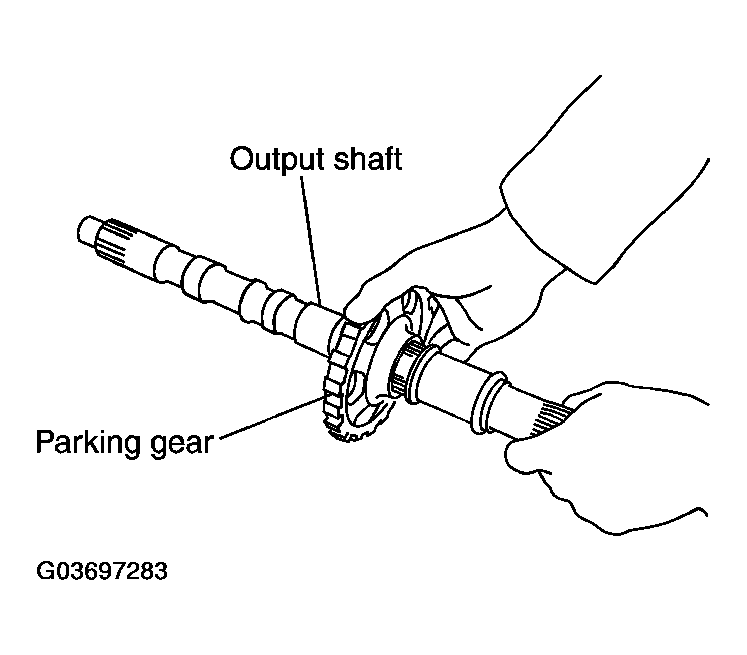

    Fig 7: Installing Parking Gear To Output Shaft
    G03697283Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install output shaft to transmission case.

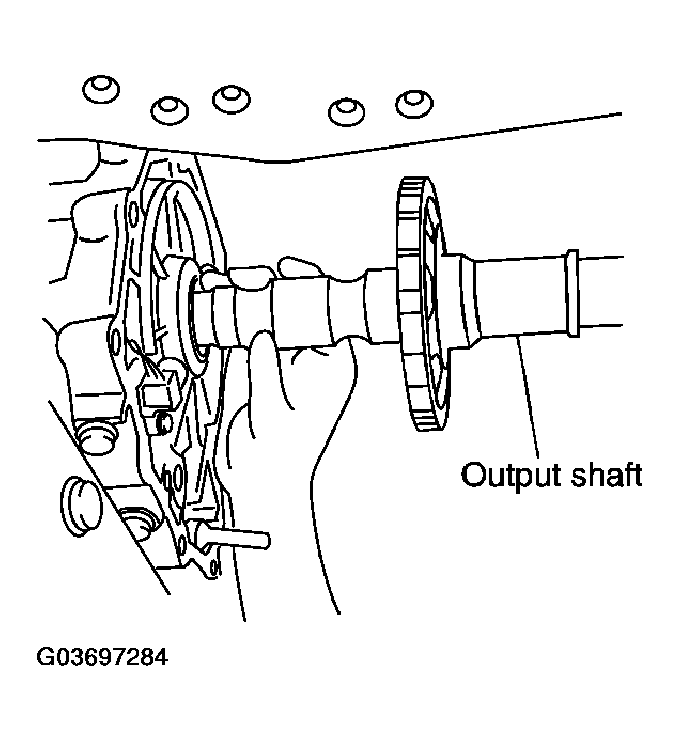

    Fig 8: Installing Output Shaft To Transmission Case
    G03697284Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install bearing race to output shaft.

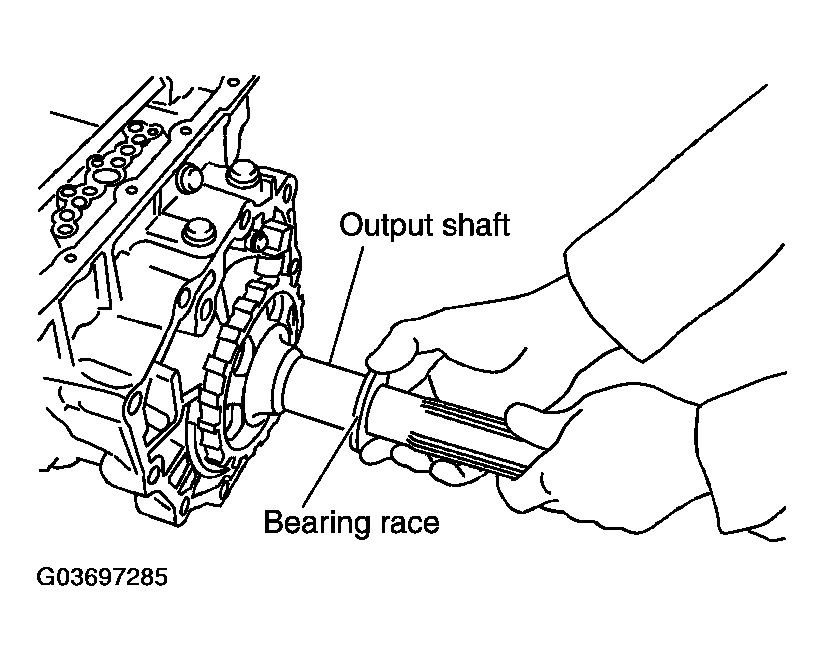

    Fig 9: Installing Bearing Race To Output Shaft
    G03697285Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .) to rear extension assembly as shown in Fig 10 .
    CAUTION: Complete remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

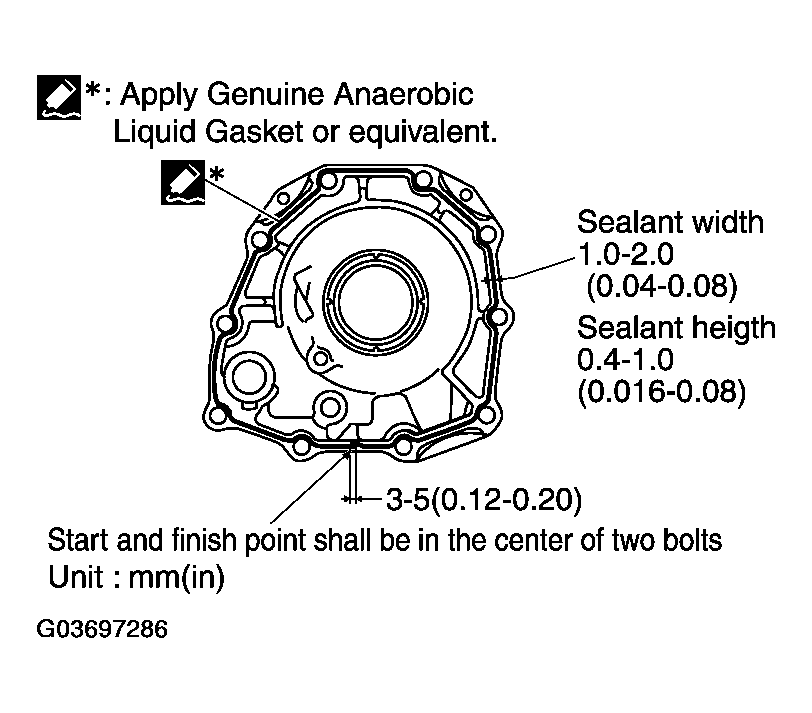

    Fig 10: Applying Recommended Sealant
    G03697286Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install rear extension assembly to transmission case. (With needle bearing.)
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

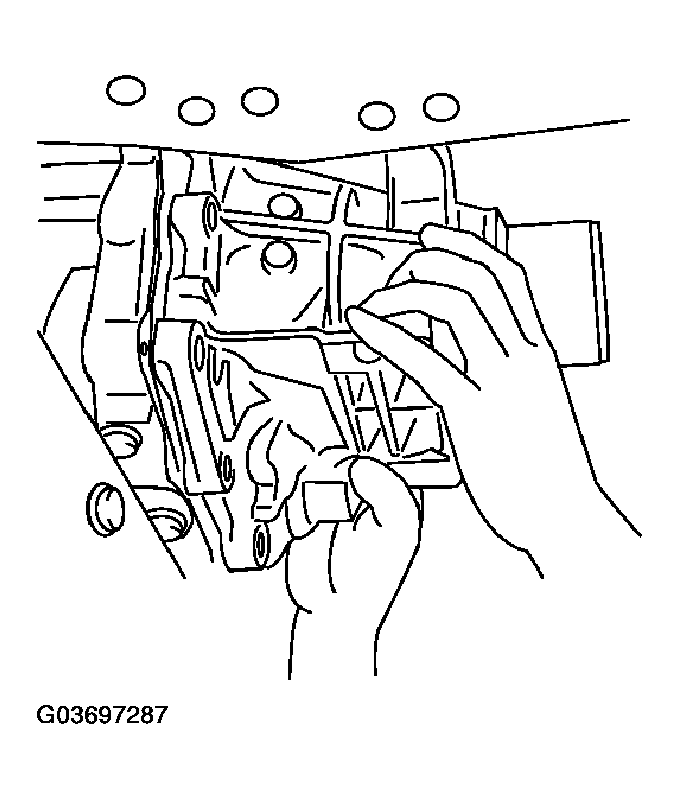

    Fig 11: Inserting Tip Of Parking Rod Between Parking Pawl & Parking Actuator Support
    G03697287Courtesy of NISSAN MOTOR CO., U.S.A.

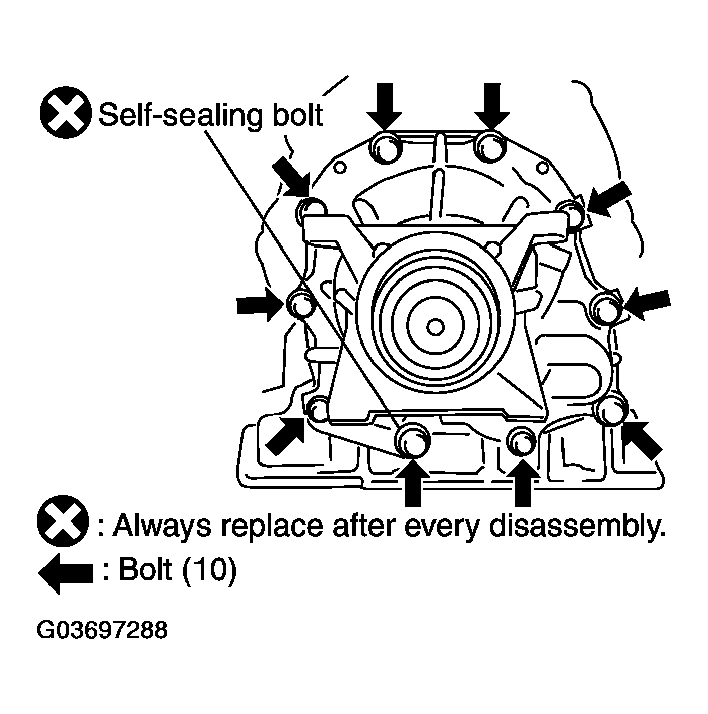

  12. Tighten rear extension assembly mounting bolts to specified torque.
    CAUTION: Do not reuse self-sealing bolt.

    Rear extension assembly mounting bolt:

    Tightening Torque: 52 N.m (5.3 Kg-m, 38 ft-lb)

    Self-sealing bolt:

    Tightening Torque: 61 N.m (6.2 Kg-m, 45 ft-lb)

    Fig 12: Tightening Mounting Bolts For Rear Extension Assembly
    G03697288Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install engine rear member. Refer to REMOVAL AND INSTALLATION .
  14. Install control rod. Refer to SHIFT CONTROL SYSTEM .
  15. Install rear propeller shaft. Refer to REMOVAL AND INSTALLATION .
  16. Install exhaust front tube and center muffler. Refer to REMOVAL AND INSTALLATION .
  17. Install drain plug in oil pan.
    CAUTION: Do not reuse drain plug gasket.

    Tightening Torque: 34 N.m (3.5 kg-m, 25 ft-lb)

  18. Pour ATF into transmission assembly. Refer to CHANGING A/T FLUID .
