Control Valve And TCM Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to  CHANGING A/T FLUID  ,  CHECKING A/T FLUID  .
  1. Connect TCM connector and park/neutral position switch connector.

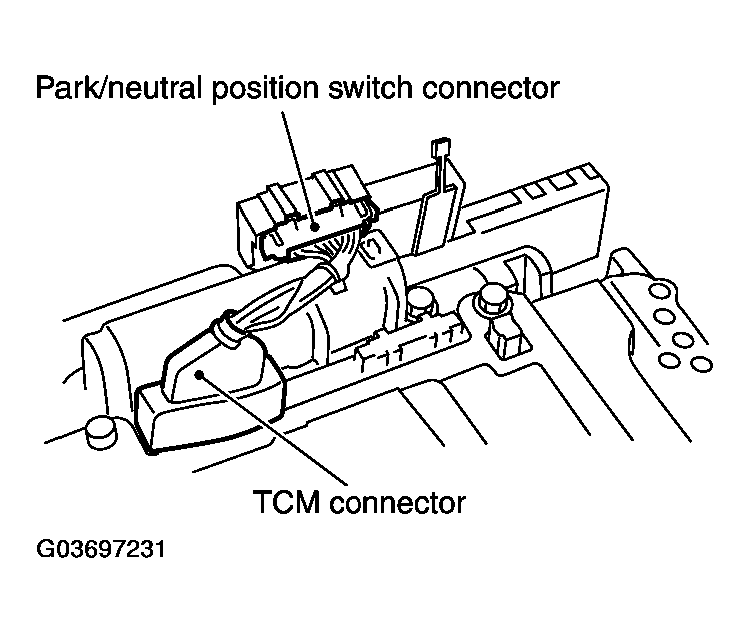

    Fig 1: Connecting TCM Connector & Park/Neutral Position Switch Connector
    G03697231Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install A/T assembly harness connector from control valve with TCM.

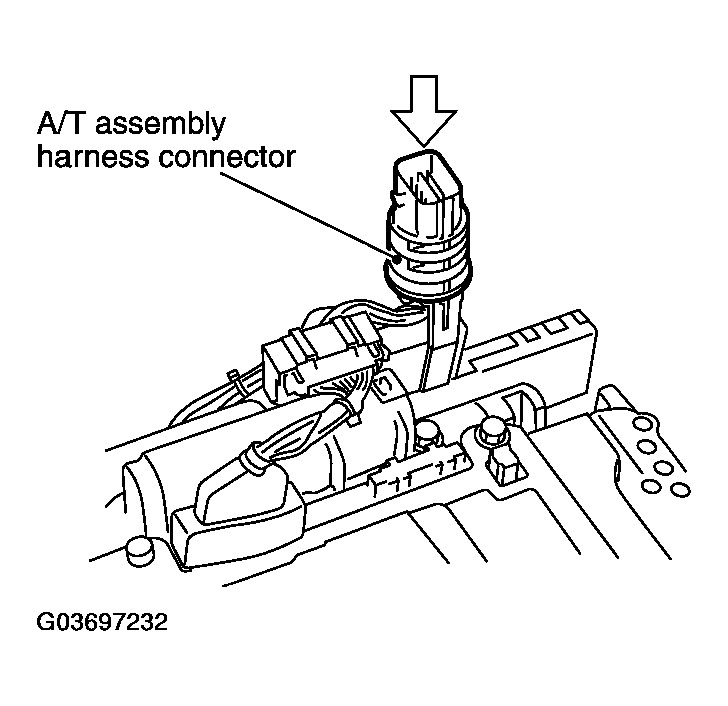

    Fig 2: Installing A/T Assembly Harness Connector From Control Valve With TCM
    G03697232Courtesy of NISSAN MOTOR CO., U.S.A.

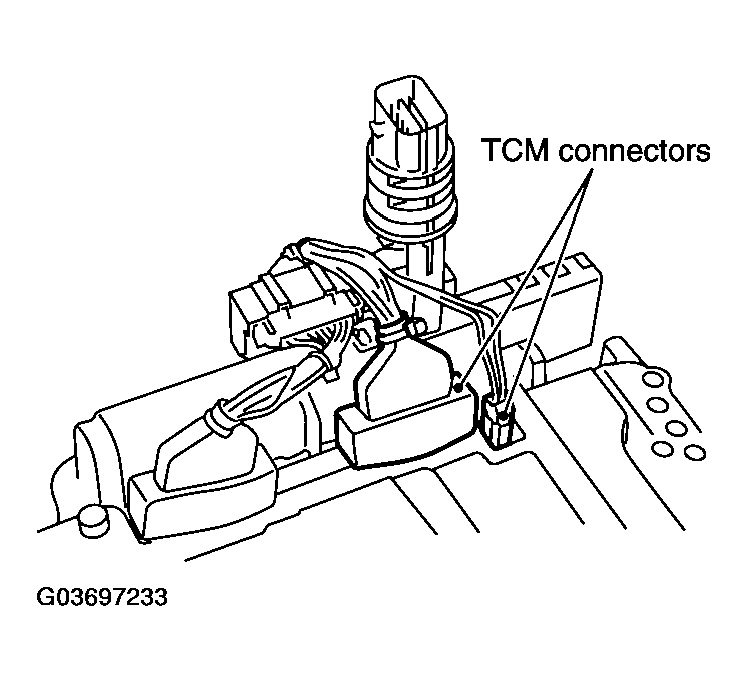

  3. Connect TCM connectors.
    Fig 3: Connecting TCM Connectors
    G03697233Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-ring in A/T assembly harness connector.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

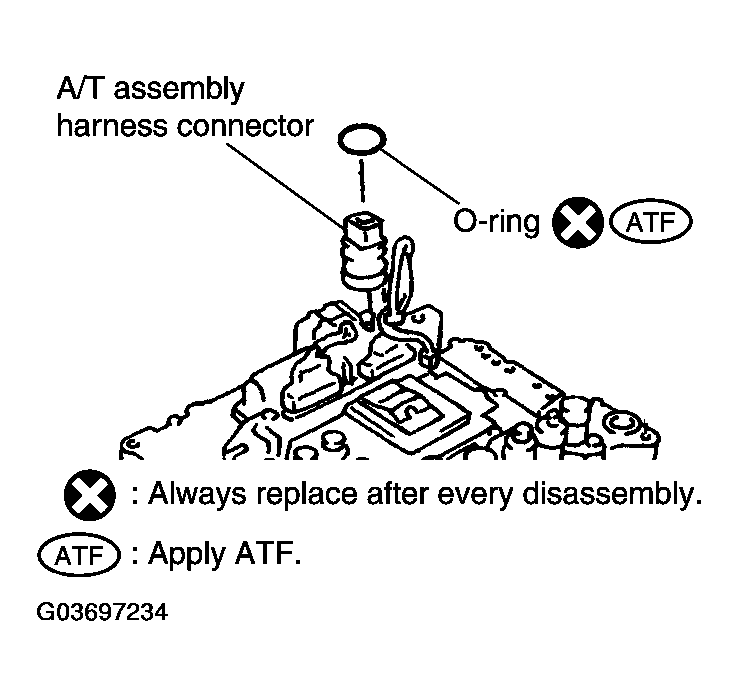

    Fig 4: Installing O-Ring In A/T Assembly Harness Connector
    G03697234Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install A/T fluid temperature sensor 2 to bracket.

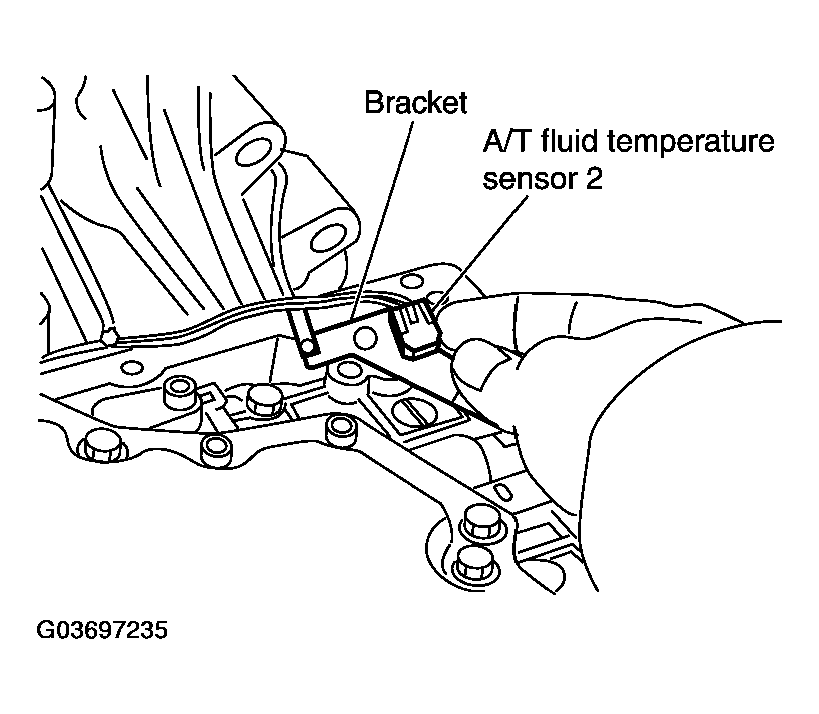

    Fig 5: Installing A/T Fluid Temperature Sensor 2 To Bracket
    G03697235Courtesy of NISSAN MOTOR CO., U.S.A.

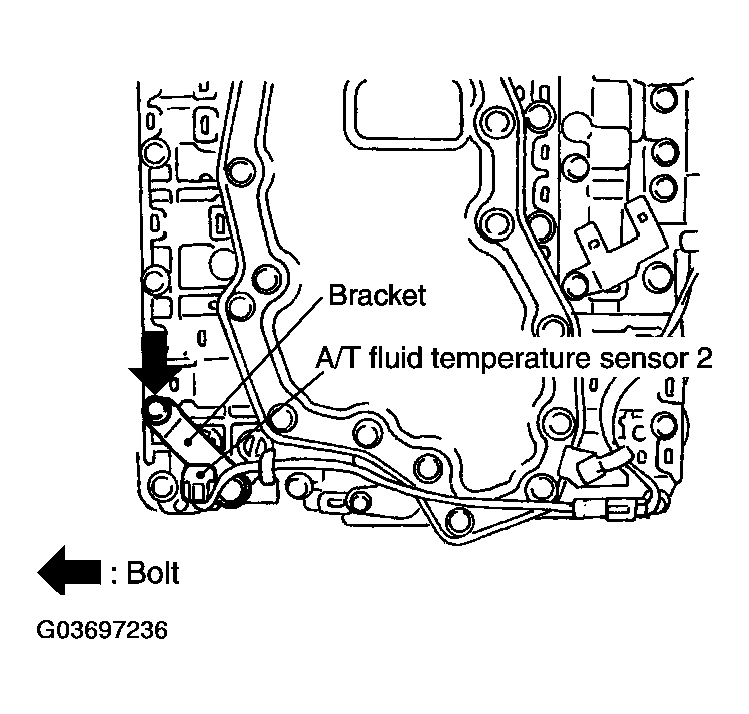

  6. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM.
    CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.

    Tightening Torque: 7.9 N.m (0.81 kg-m, 70 in-lb)

    Fig 6: Installing A/T Fluid Temperature Sensor 2 In Control Valve With TCM
    G03697236Courtesy of NISSAN MOTOR CO., U.S.A.

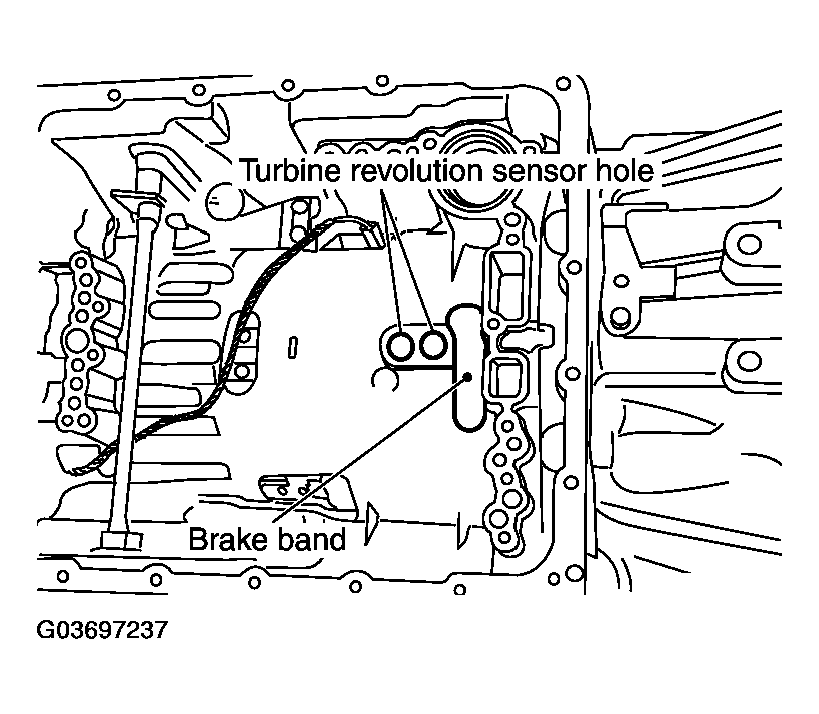

  7. Install control valve with TCM in transmission case.
    Fig 7: Installing Control Valve With TCM
    G03697237Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
    • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
    • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
    • Assemble it so that manual valve cutout is engaged with manual plate projection  .

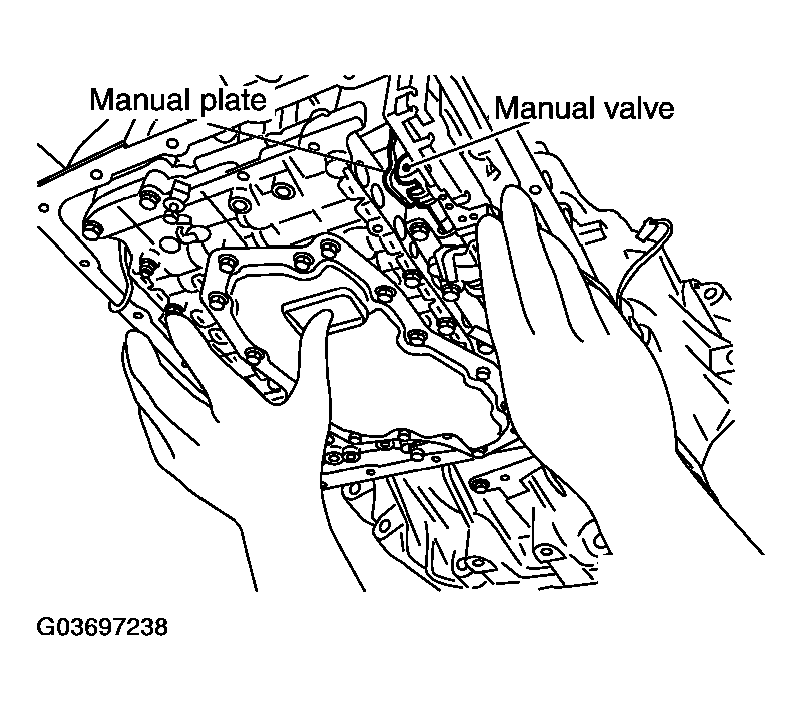

      Fig 8: Installing Manual Valve With Manual Plate
      G03697238Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install bolts A, B and C in control valve with TCM.
    BOLT SYMBOL LENGTH AND NUMBER OF BOLTS

    Bolt symbol Length mm (in) Number of bolts
    A 42 (1.65) 5
    B 55 (2.17) 6
    C 40 (1.57) 1

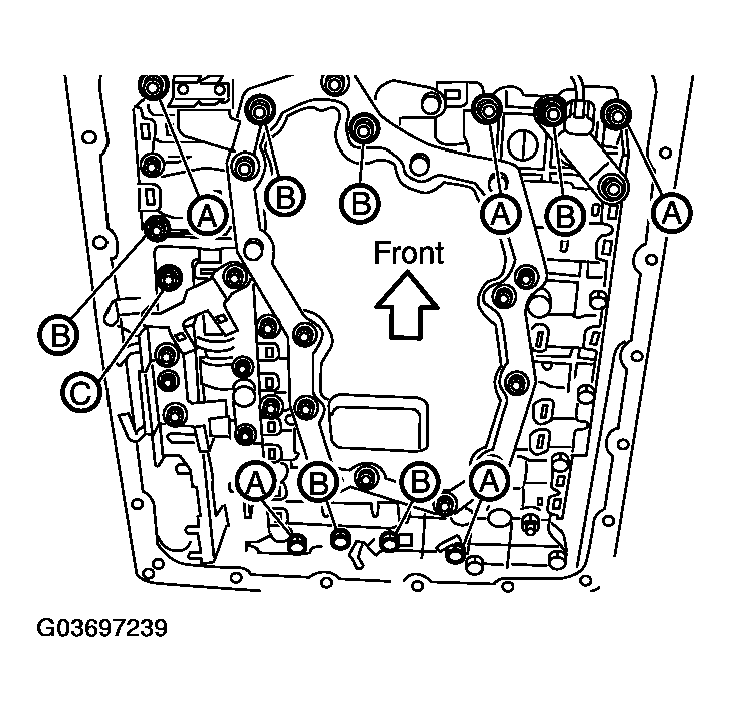

    Fig 9: Installing Bolts A, B & C In Control Valve With TCM
    G03697239Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.

    Tightening Torque: 7.9 N.m (0.81 kg-m, 70 in-lb)

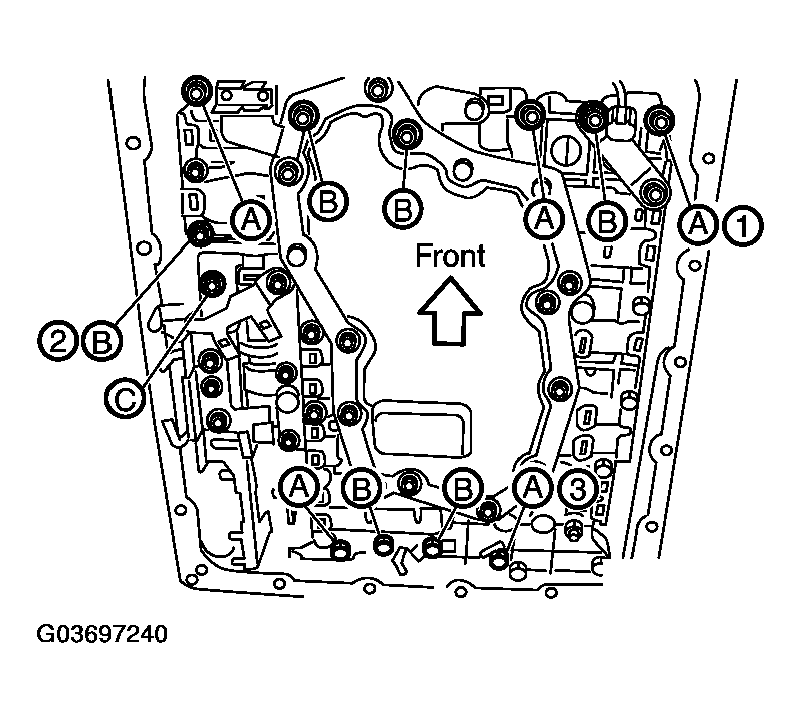

    Fig 10: Tightening Bolt
    G03697240Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector.

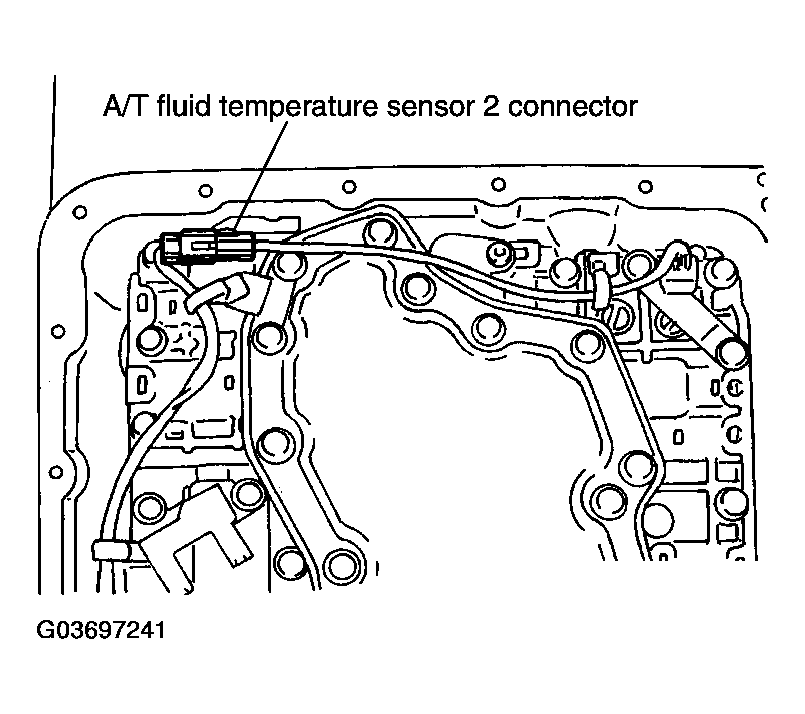

    Fig 11: Connecting A/T Fluid Temperature Sensor 2 Connector
    G03697241Courtesy of NISSAN MOTOR CO., U.S.A.

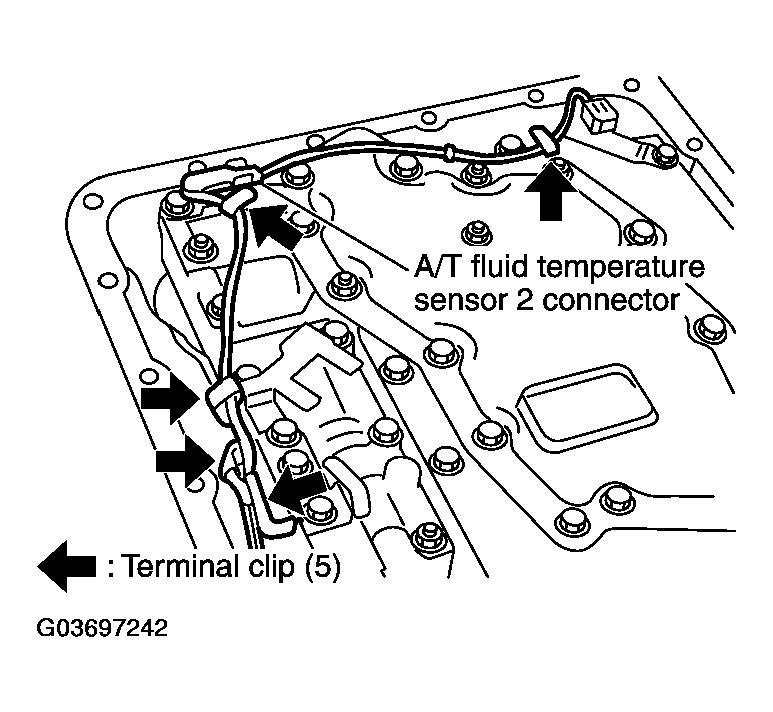

  11. Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.
    Fig 12: Fastening Terminal Cord Assembly & A/T Fluid Temperature Sensor 2 Harness With Terminal Clips
    G03697242Courtesy of NISSAN MOTOR CO., U.S.A.

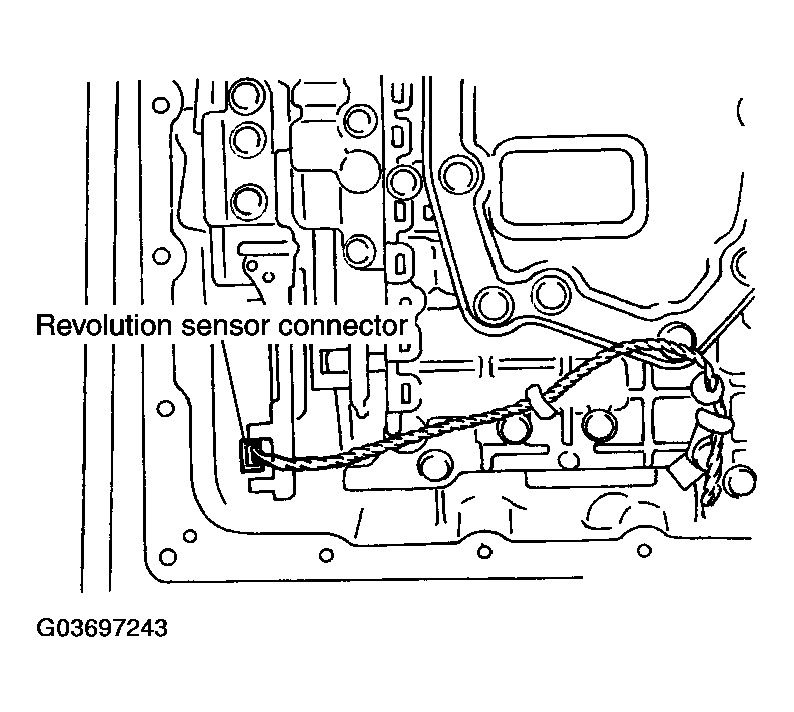

  12. Connect revolution sensor connector.
    Fig 13: Connecting Revolution Sensor Connector
    G03697243Courtesy of NISSAN MOTOR CO., U.S.A.

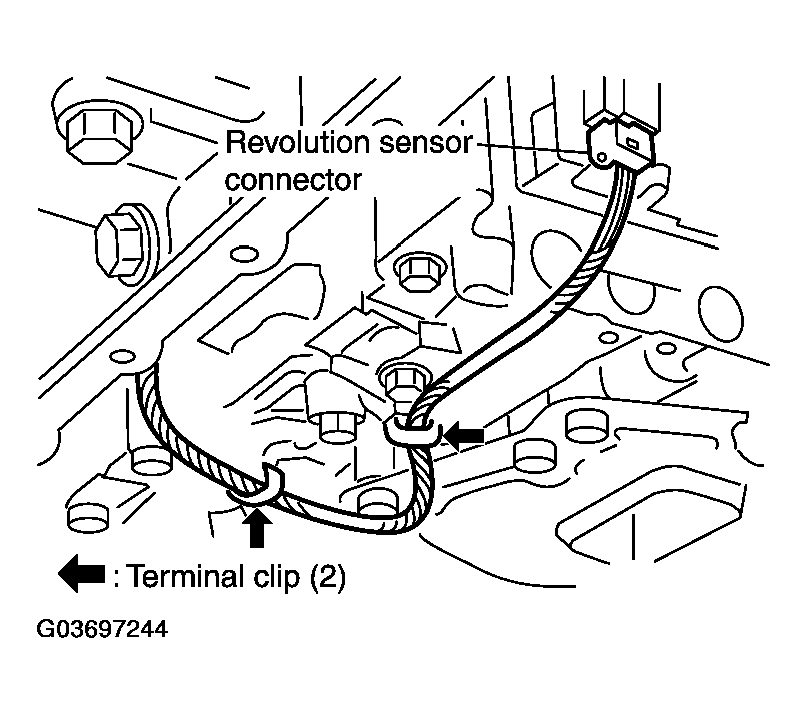

  13. Securely fasten revolution sensor harness with terminal clips.
    Fig 14: Fastening Revolution Sensor Harness With Terminal Clips
    G03697244Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install magnets in oil pan.

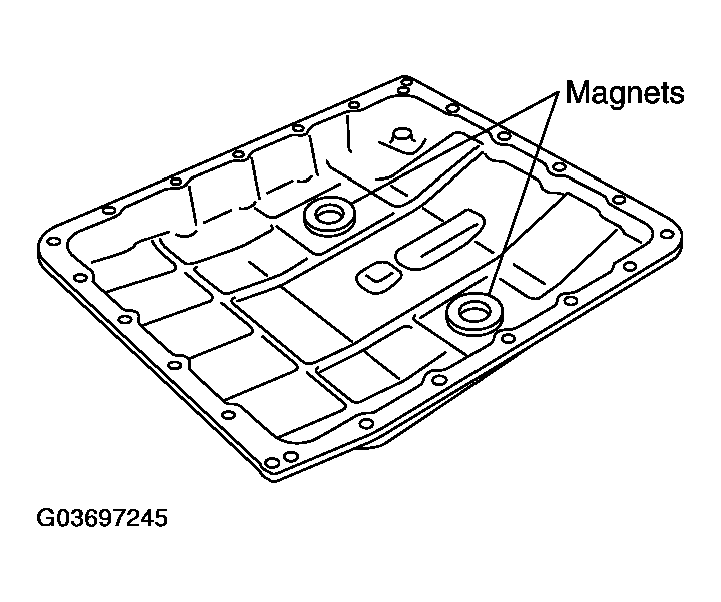

    Fig 15: Installing Magnets In Oil Pan
    G03697245Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in  Fig 16  .
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
        Fig 16: Installing Oil Pan Bolts to Transmission Case
        G03697246Courtesy of NISSAN MOTOR CO., U.S.A.

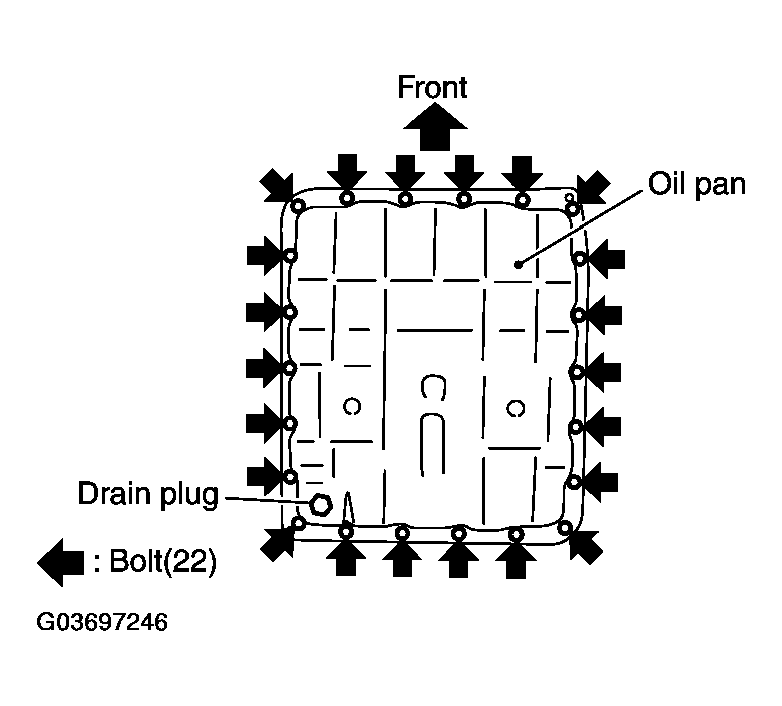

    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in Fig 17 after temporarily tightening them.
      CAUTION: Do not reuse oil pan mounting bolts.

      Tightening Torque: 7.9 N.m (0.81 kg-m, 70 in-lb)

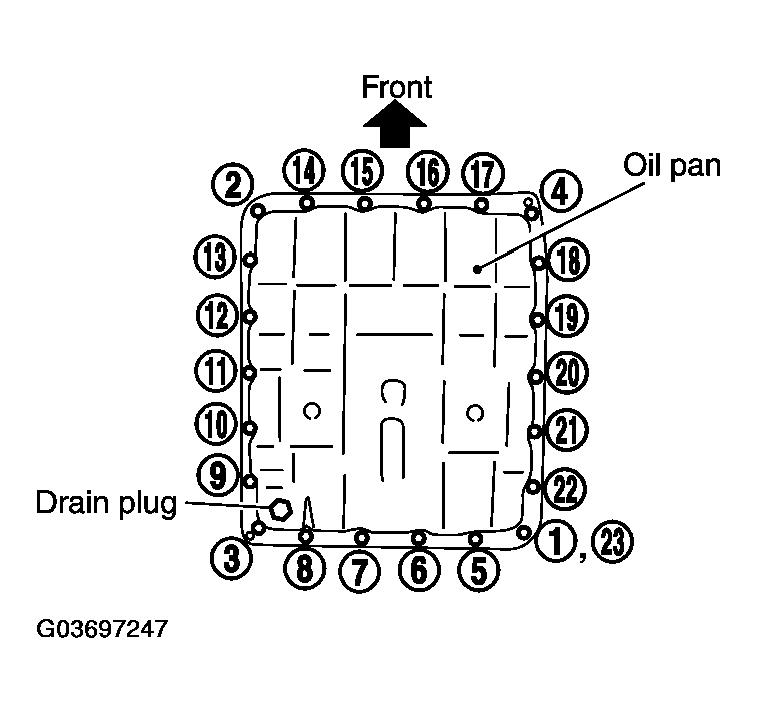

      Fig 17: Tightening Oil Pan Mounting Bolts
      G03697247Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install drain plug to oil pan.
    CAUTION: Do not reuse drain plug gasket.

    Tightening Torque: 34 N.m (3.5 kg-m, 25 ft-lb)

  17. Pull up A/T assembly harness connector.
    CAUTION: Be careful not to damage connector.

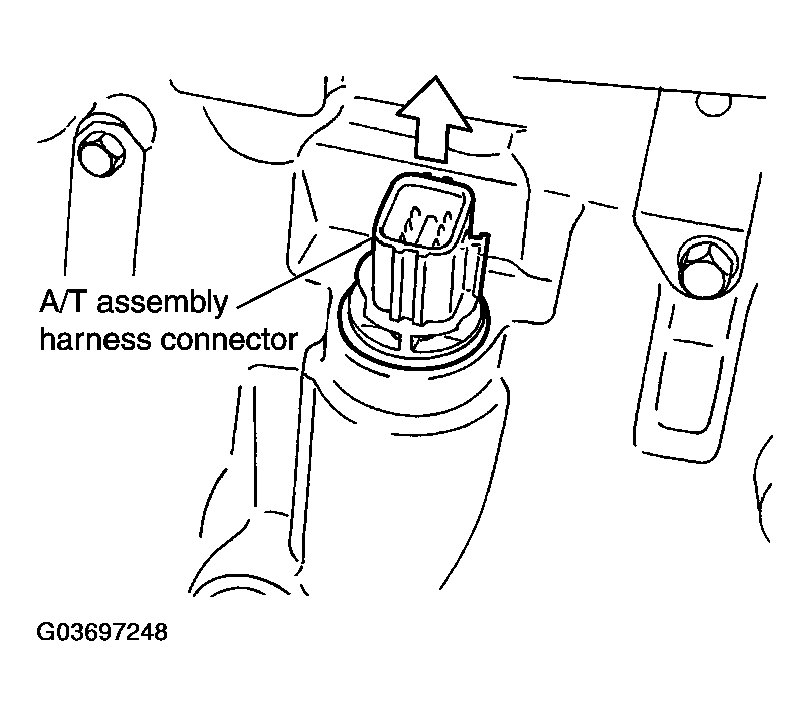

    Fig 18: Pulling Up A/T Assembly Harness Connector
    G03697248Courtesy of NISSAN MOTOR CO., U.S.A.

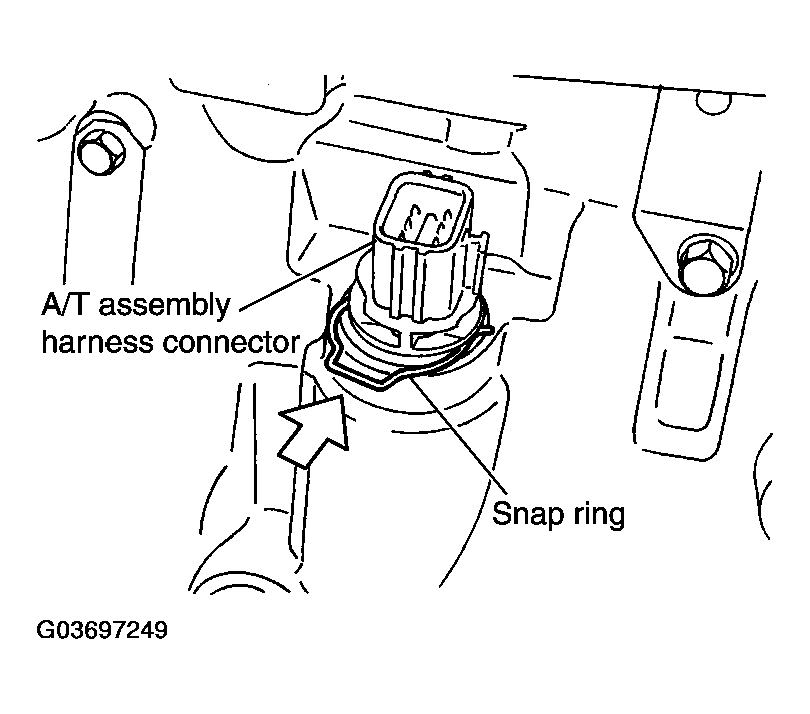

  18. Install snap ring to A/T assembly harness connector.
  19. Connect A/T assembly harness connector.
    Fig 19: Installing Snap Ring To A/T Assembly Harness Connector
    G03697249Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Connect heated oxygen sensor 2 harness connector.
  21. Pour ATF into transmission assembly. Refer to "CHANGING A/T FLUID ".
  22. Connect negative battery terminal.
