Control Valve, TCM And A/T Fluid Temperature Sensor 2: Components

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

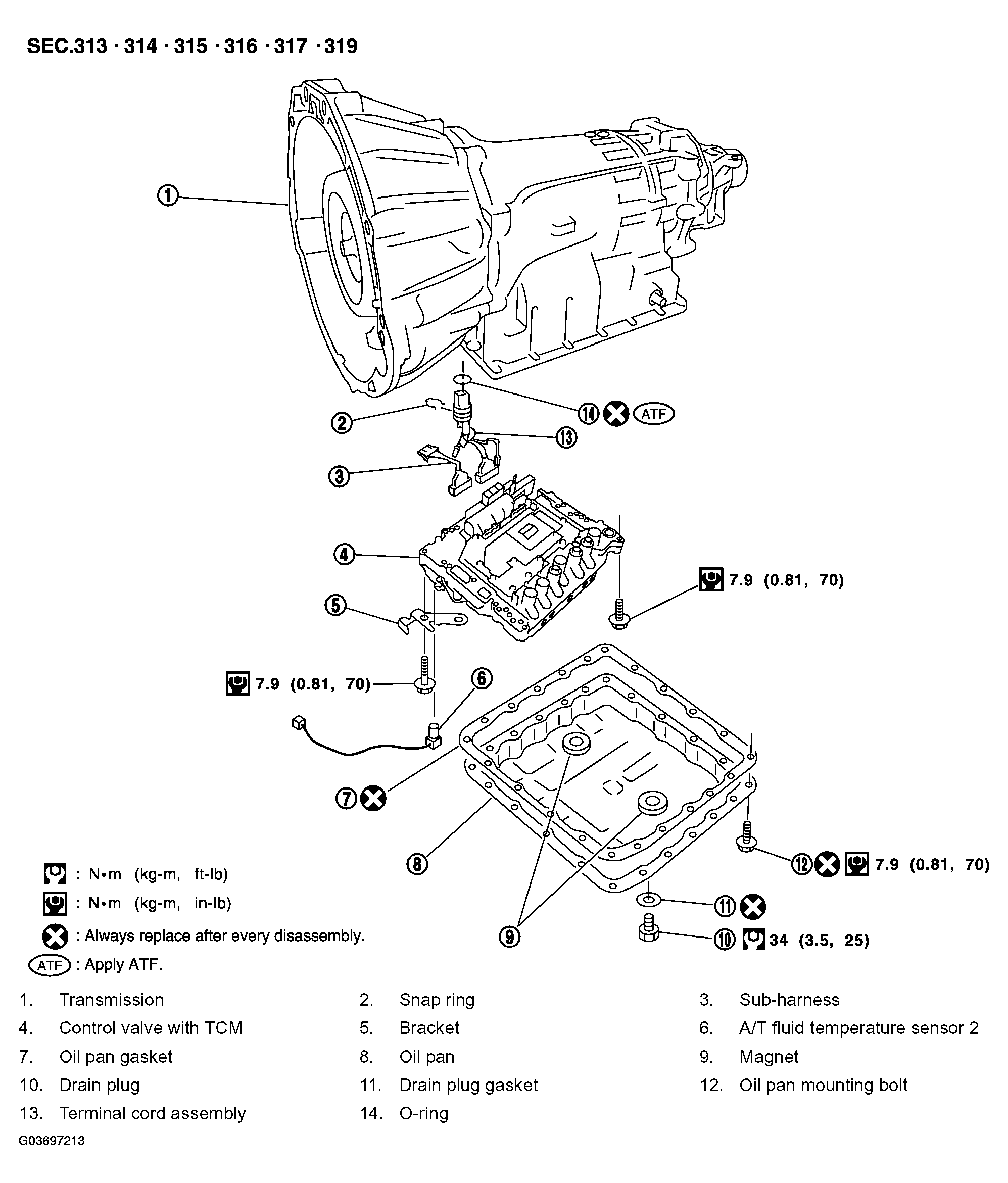

Fig 1: Replacement Components A/T With Torque Specifications
G03697213Courtesy of NISSAN MOTOR CO., U.S.A.
