Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from key interlock cable.

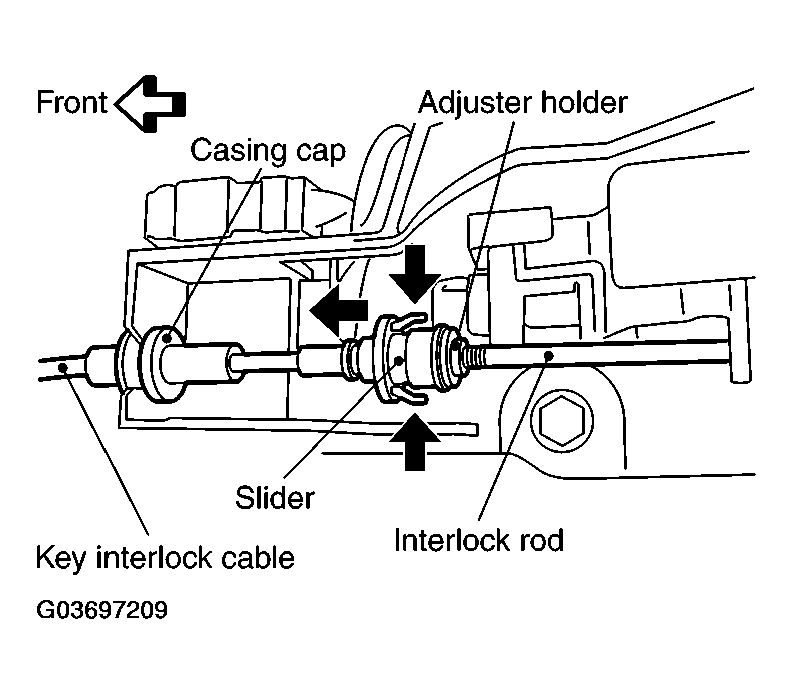

    Fig 1: Unlocking Slider By Squeezing Lock Tabs On Slider From Adjuster Holder
    G03697209Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

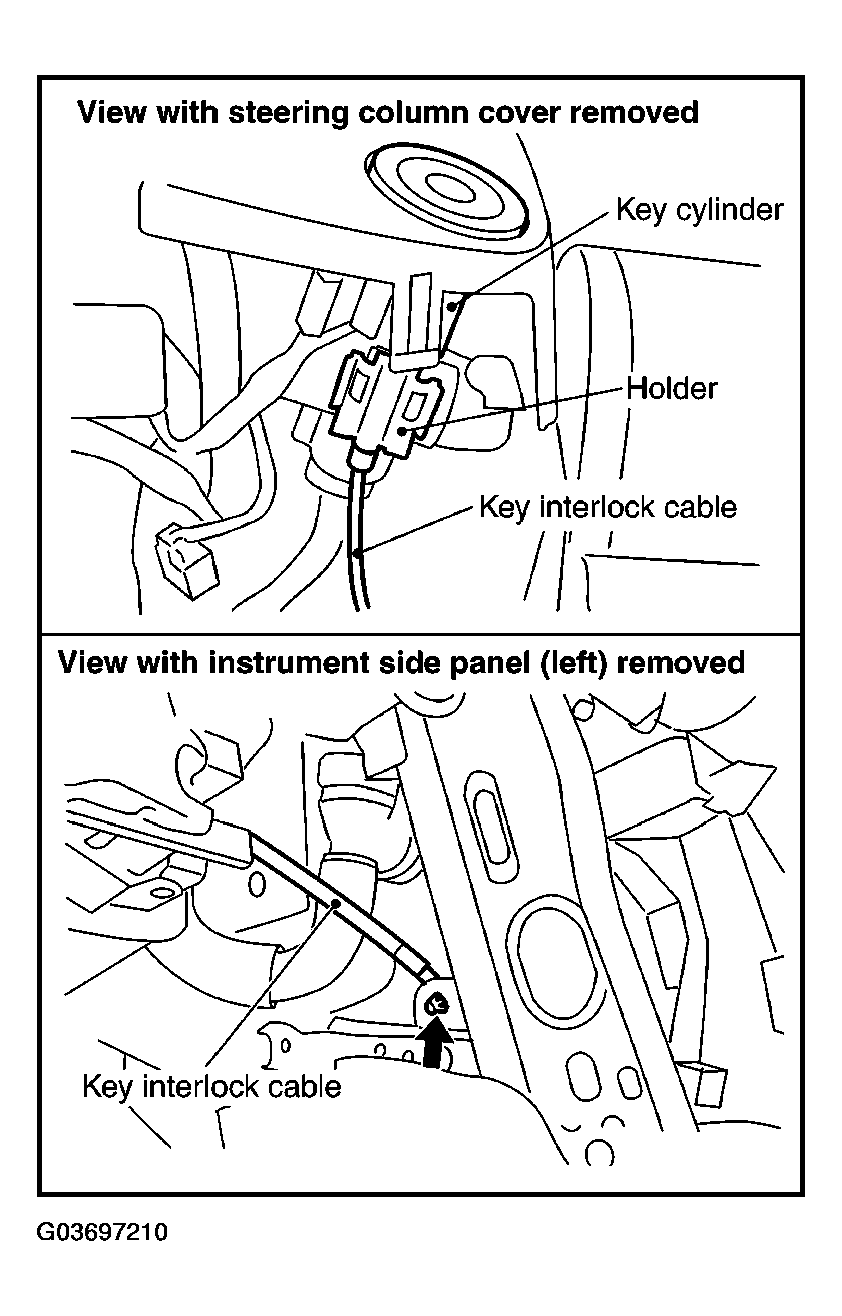

    Fig 2: Removing Holder From Key Cylinder
    G03697210Courtesy of NISSAN MOTOR CO., U.S.A.
