Key Interlock Cable: Installation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Set key interlock cable to key cylinder and install holder.
Clamp cable and fix to control cable with band.
Turn ignition key to lock position.
Set select lever to P position.

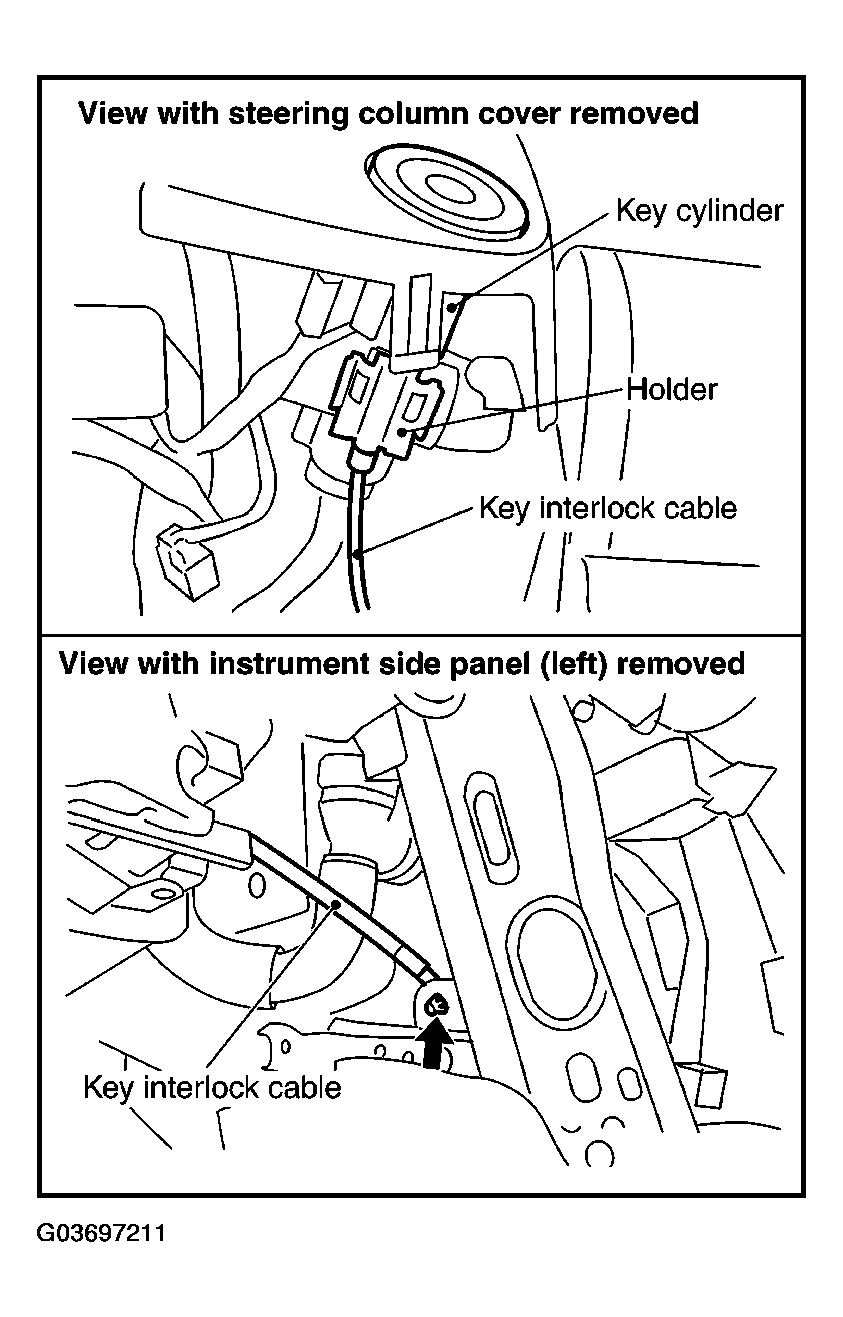

Fig 1: Installing Key Interlock Cable To Key Cylinder
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.
CAUTION: Do not touch any adjacent parts of key interlock cable when slider is being held.
Insert slider into key interlock rod straightly.

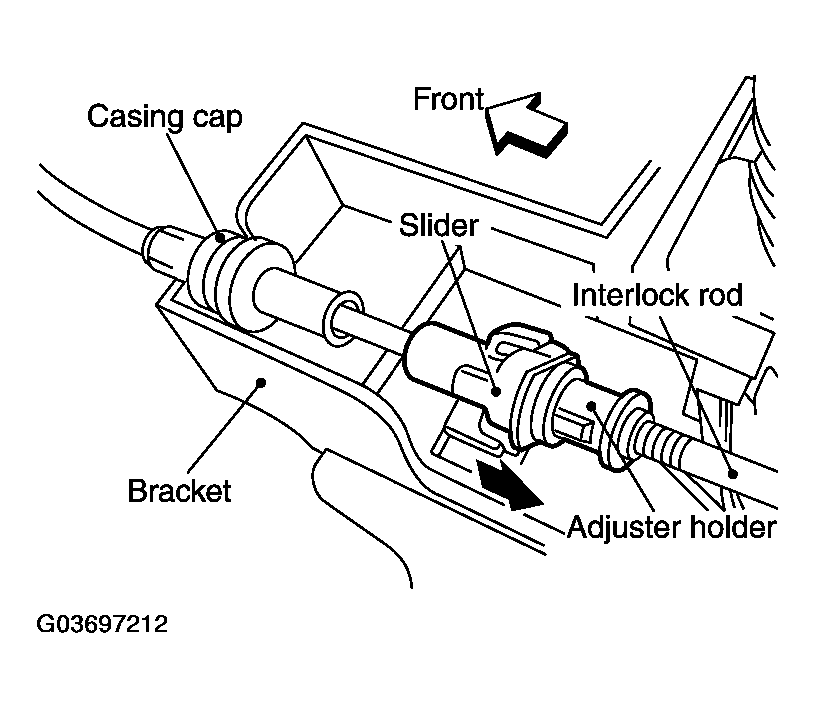

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
