Manual Mode Switch
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

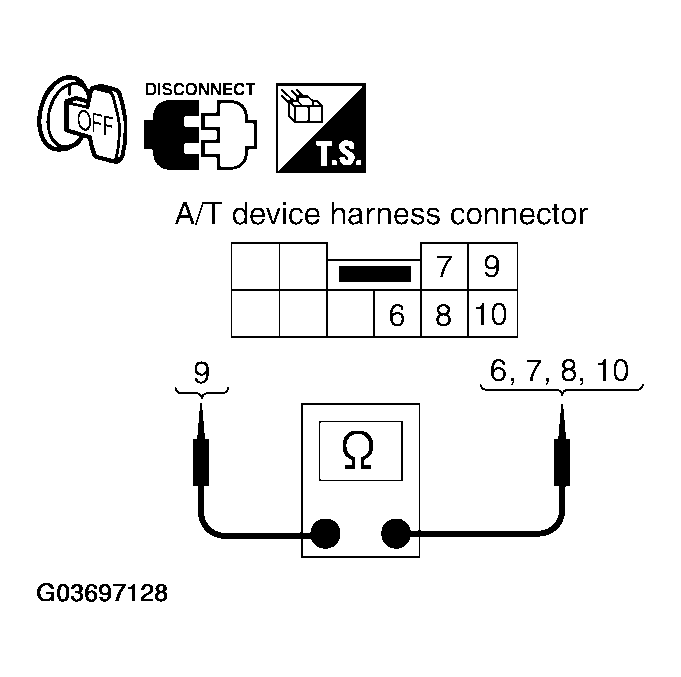

Check continuity between terminals.
Courtesy of NISSAN MOTOR CO., U.S.A. ITEM, POSITION, CONNECTORS AND TERMINAL CONTINUITY DESCRIPTION
| Item |
Position |
Connector |
Terminal (Unit side) |
Continuity |
| Manual mode select switch |
Auto |
M47 |
9 - 10 |
Yes |
| Manual |
6 - 9 |
| Manual mode position select switch |
UP |
8 - 9 |
| DOWN |
7 - 9 |
