With Consult-II

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to ON. (Do not start engine.)
  2. Select "DATA MONITOR" mode for A/T with CONSULT-II.
  3. Start the engine.
  4. Run engine for at least 2 consecutive seconds at idle speed.
  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

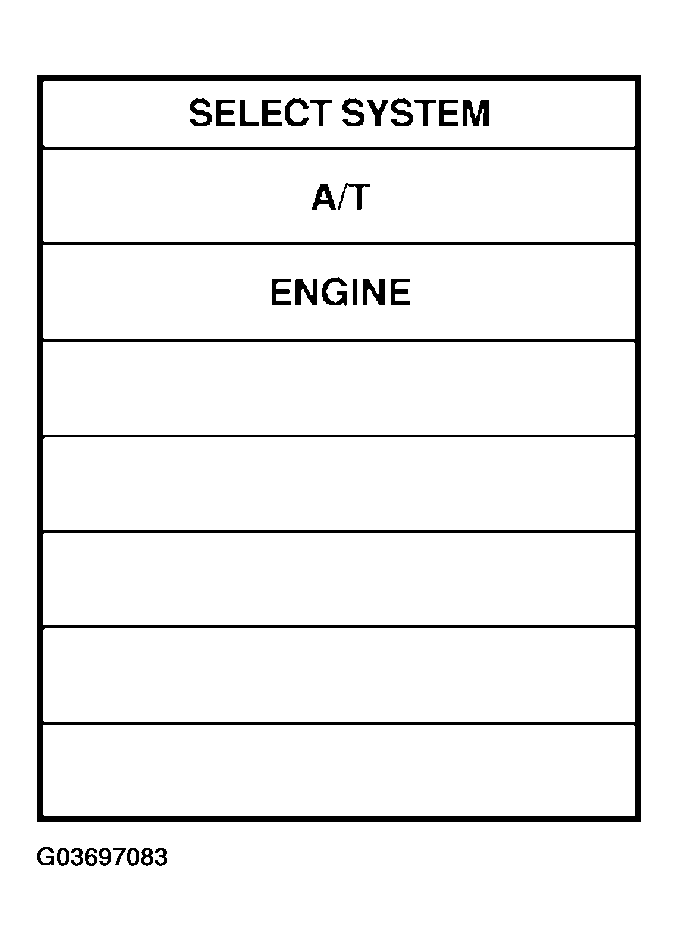

    Fig 1: Identifying CONSULT-II Select System Display
    G03697083Courtesy of NISSAN MOTOR CO., U.S.A.
