Clutch And Band Chart

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

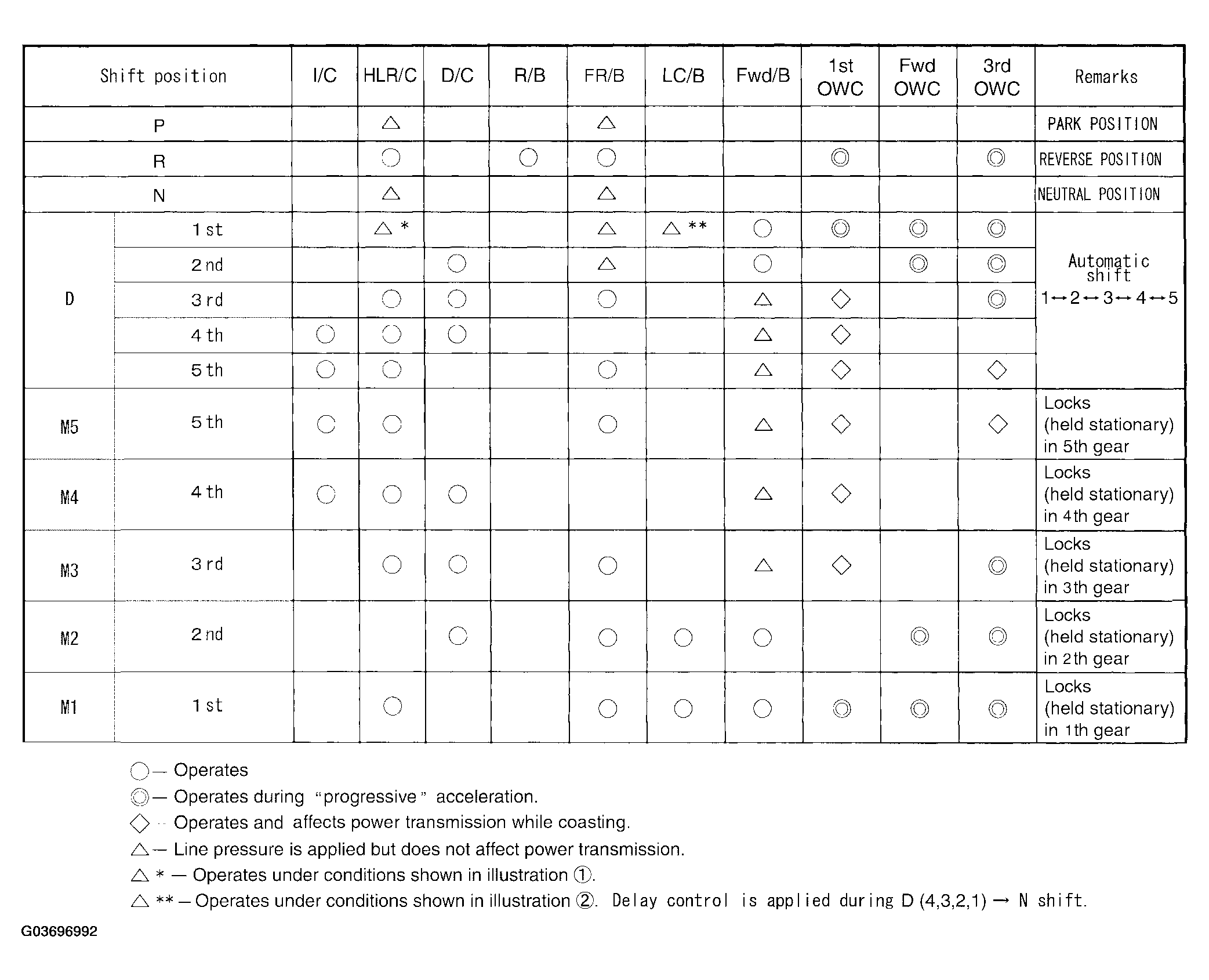

Fig 1: Clutch & Band Specification Chart
G03696992Courtesy of NISSAN MOTOR CO., U.S.A.

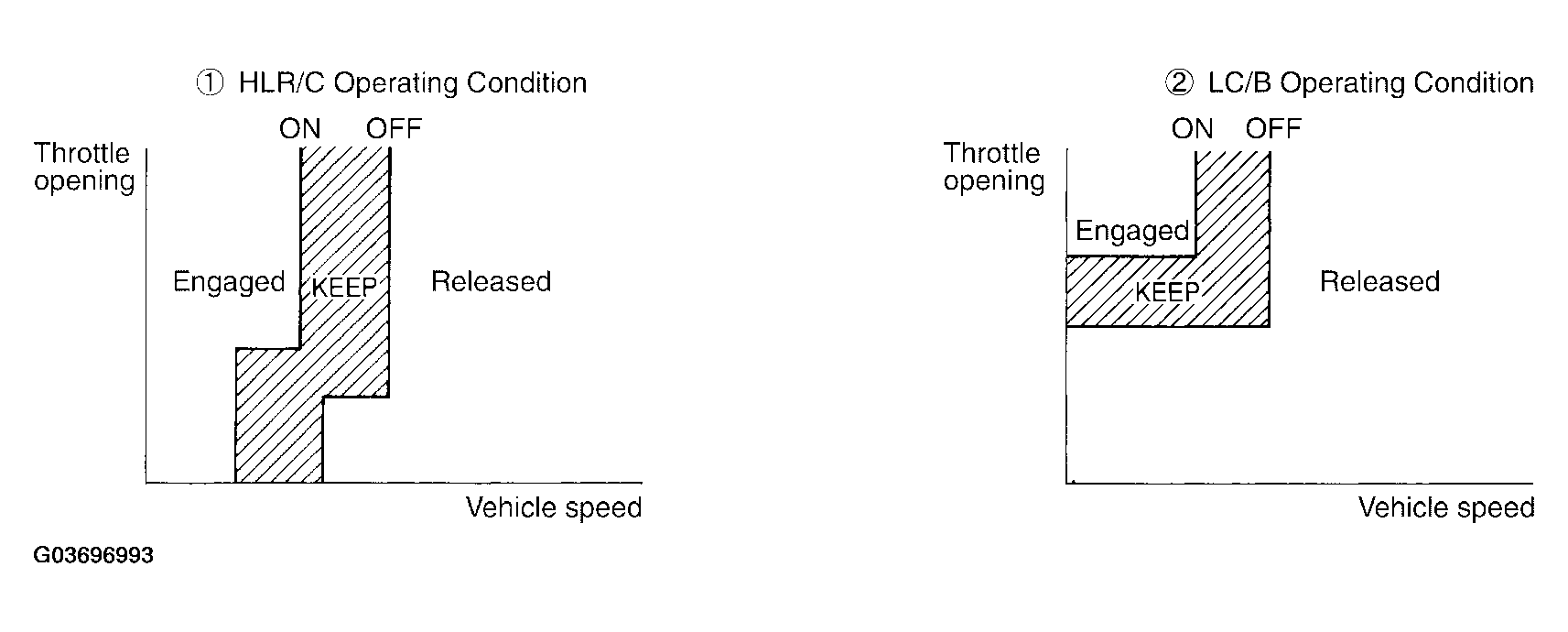

Fig 2: Throttle Opening To Vehicle Speed Graph
G03696993Courtesy of NISSAN MOTOR CO., U.S.A.
