Section 1330 (2004.5 - Automatic Transaxle - Coupe)
>>
A/T Control System
>>
Cross-Sectional View
Cross-Sectional View
WARNING:
This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

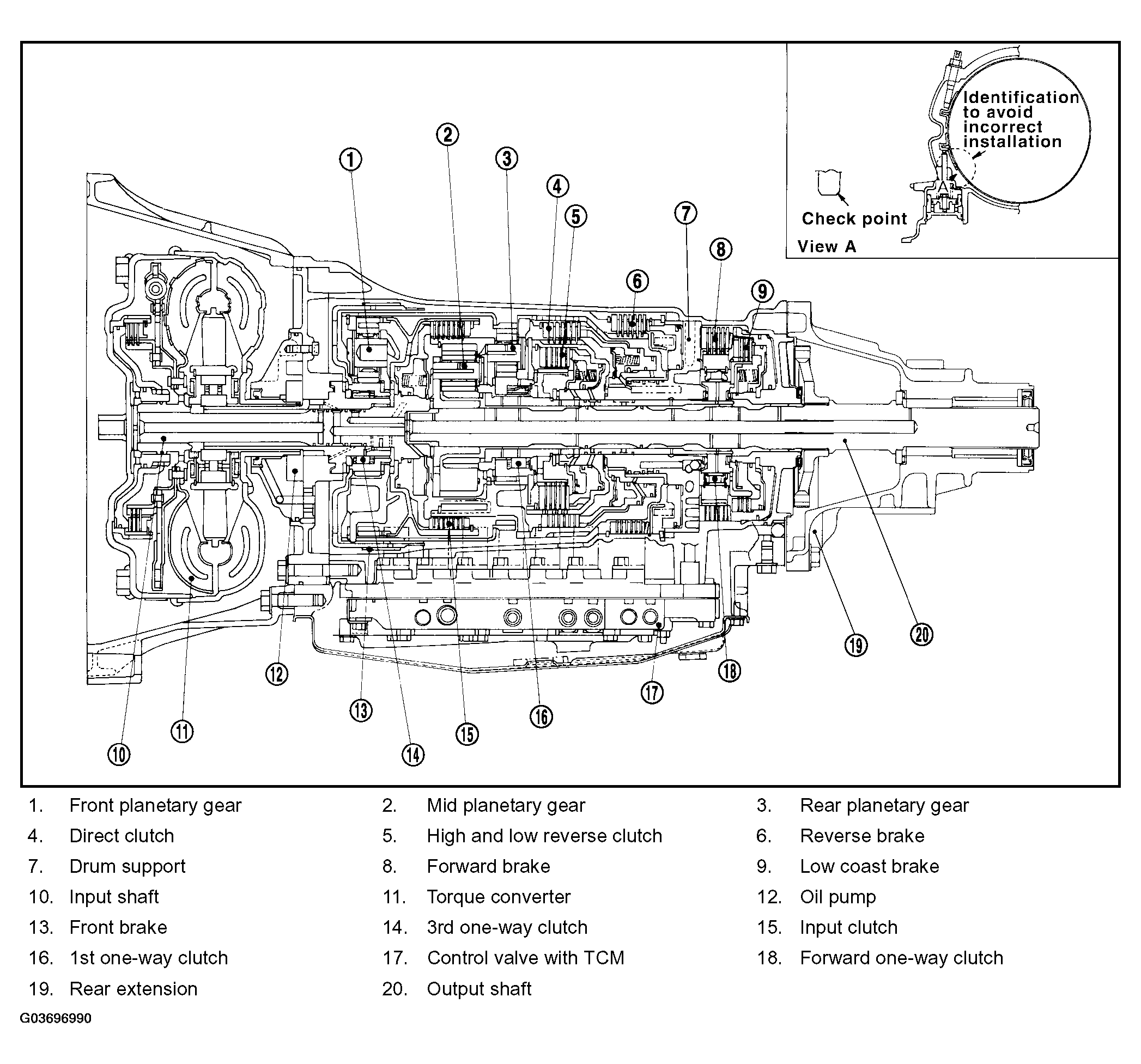

Fig 1: Identifying Cross-Sectional View - A/T Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
