Governor Valve Assembly: Components

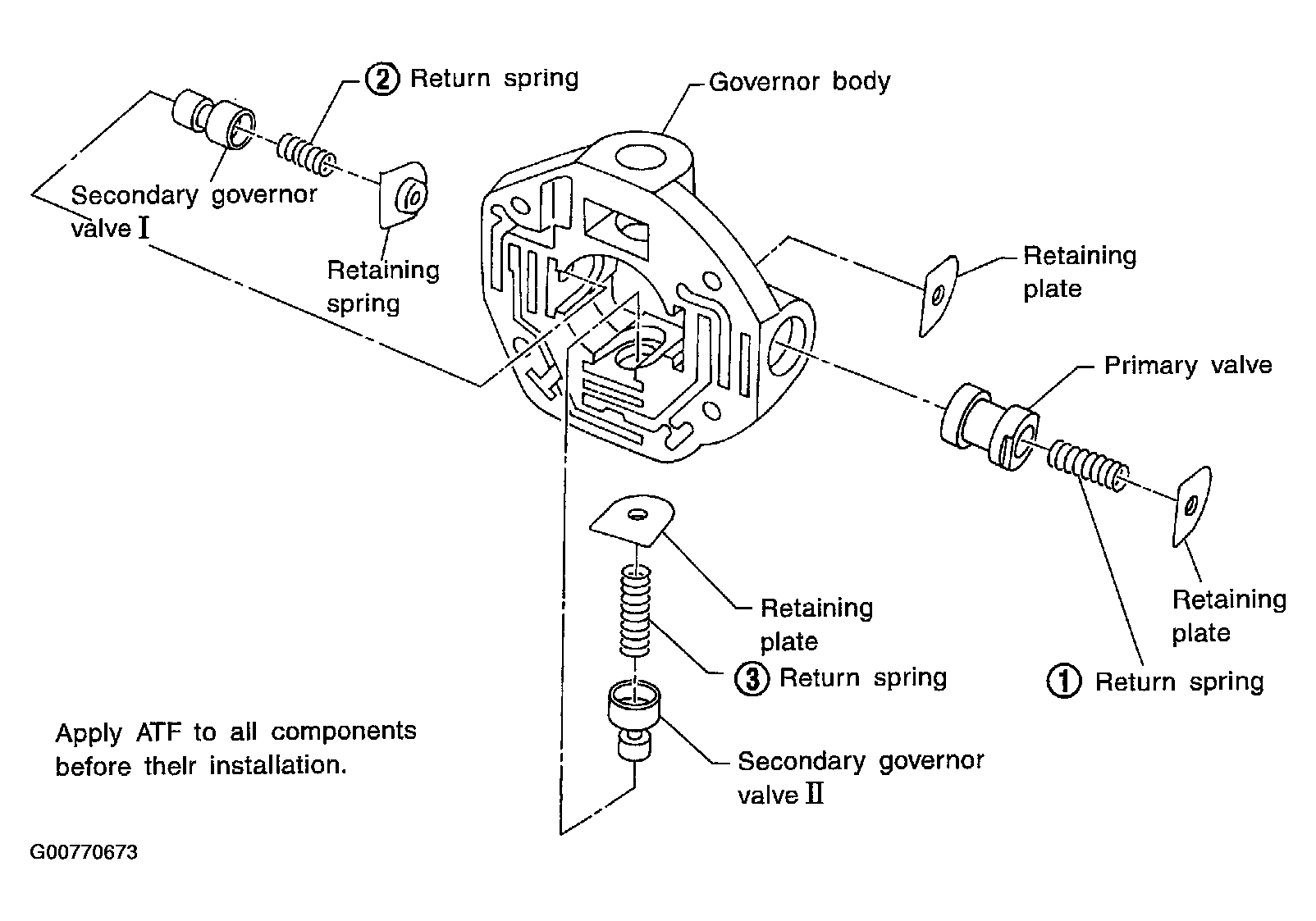

Fig 1: Identifying Governor Valve Assembly

G00770673

Courtesy of NISSAN MOTOR CO., U.S.A.

Numbers preceding valve springs correspond with those shown in RETURN SPRINGS .
