Automatic Transmission - RL4R01A
>>
Service Data And Specifications (SDS)
>>
Return Springs
Return Springs

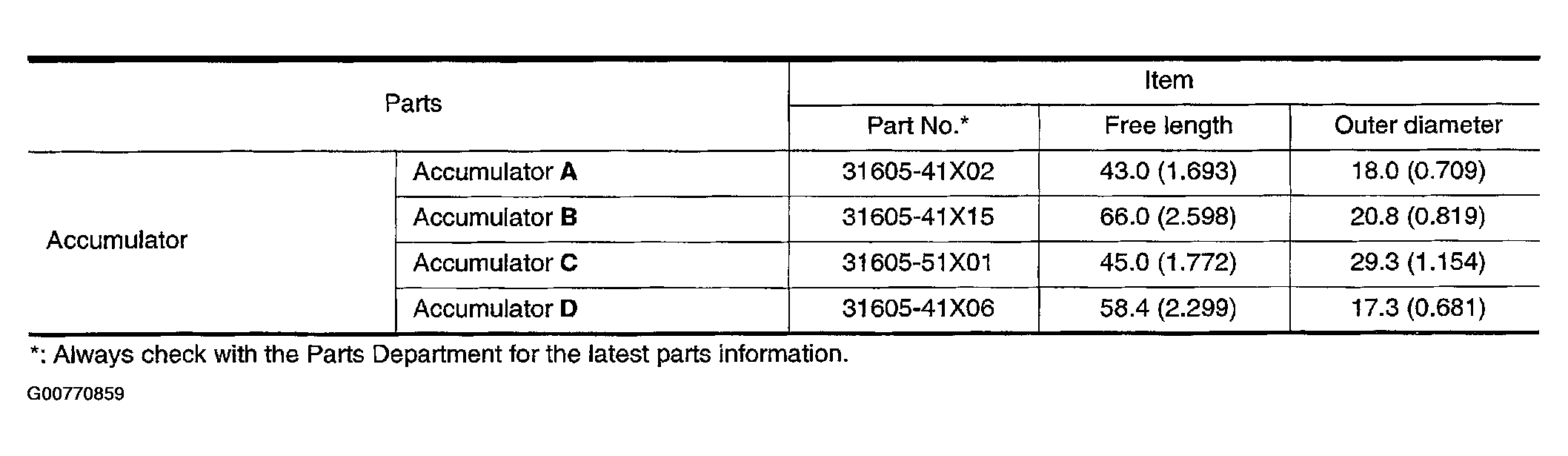

Fig 1: Return Springs Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

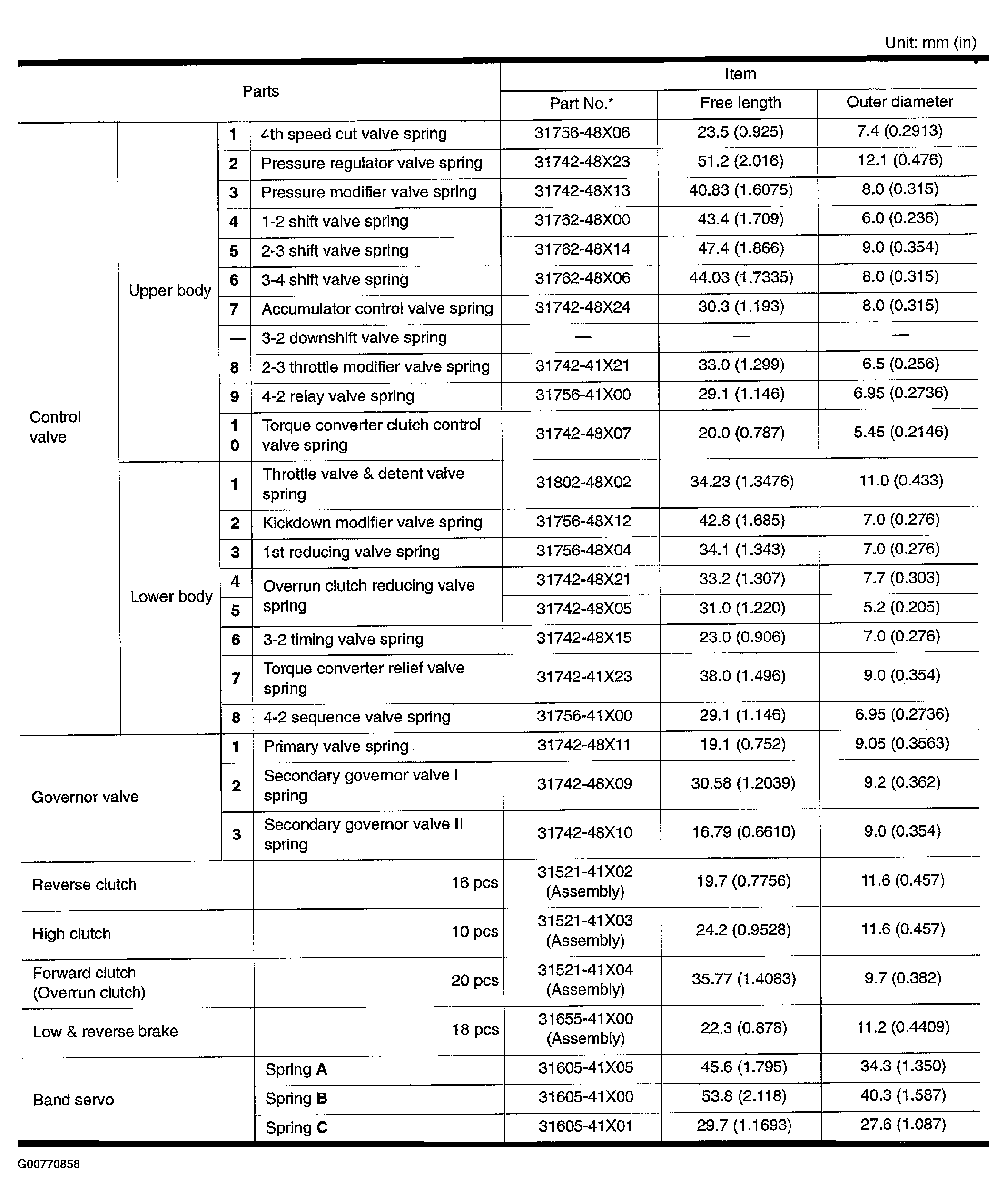

Fig 2: Return Springs Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
