Control Valve Lower Body: Components

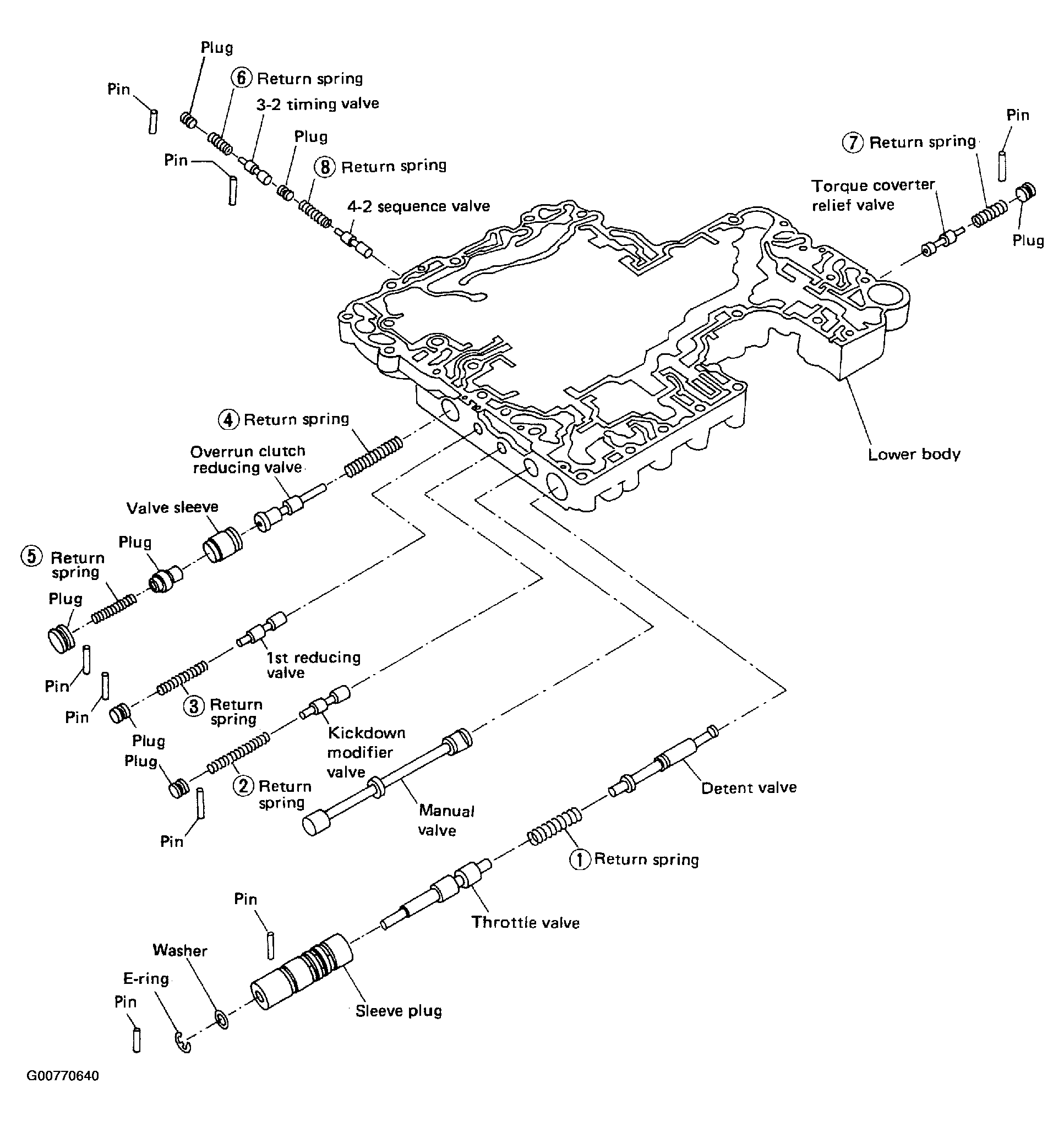

Fig 1: Exploded View Of Control Valve Lower Body

Courtesy of NISSAN MOTOR CO., U.S.A.

Apply ATF to all components before their installation.

Numbers preceding valve springs correspond with those shown in Return Springs Chart in SDS. Refer to RETURN SPRINGS .
