Control Valve Lower Body: Assembly

Install control valves.
For installation procedures, refer to ASSEMBLY .

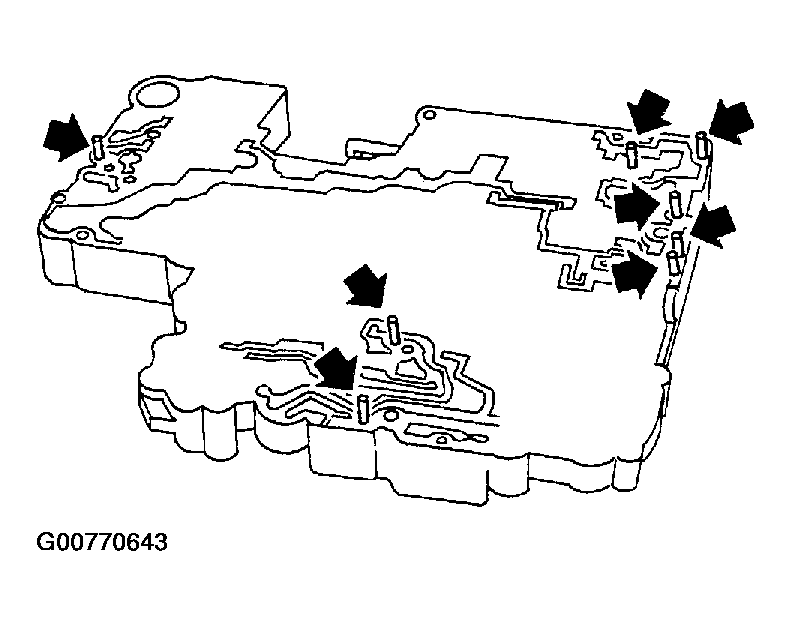

Fig 1: Installing Control Valves

G00770643

Courtesy of NISSAN MOTOR CO., U.S.A.
