Control Valve Assembly: Assembly

1. Position upper body with oil circuit facing up. Install steel balls in their proper positions.

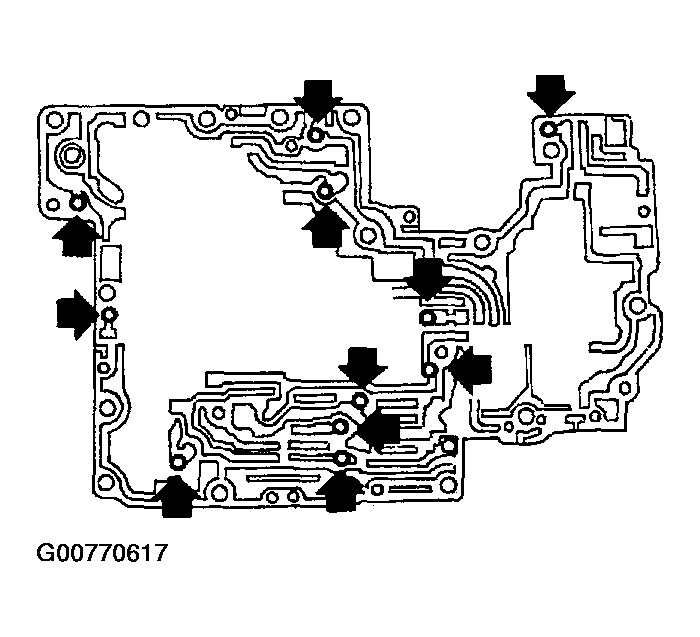

   Fig 1: Installing Steel Balls Positions

   Courtesy of NISSAN MOTOR CO., U.S.A.

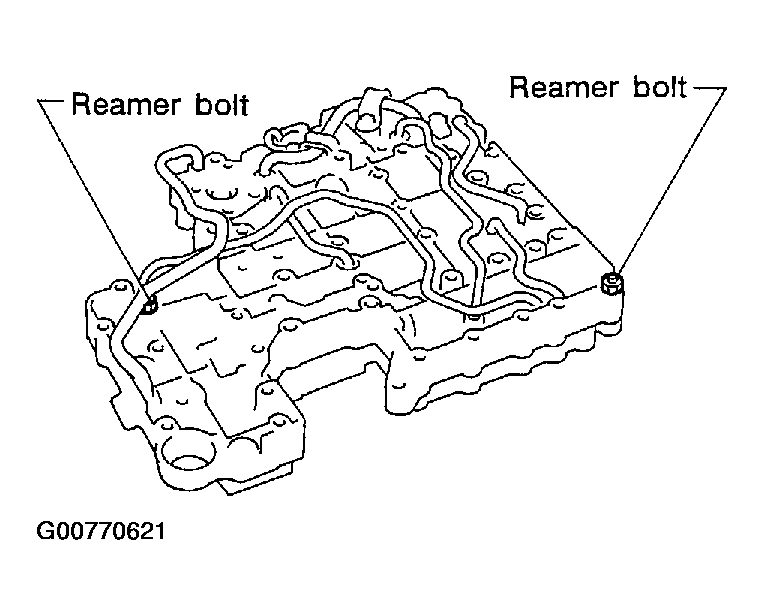

2. Install reamer bolts from bottom of upper body.
   Fig 2: Installing Reamer Bolts From Bottom Of Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Position lower body with oil circuit facing up. Install orifice check spring, orifice check valve.
   1. D : 2.0 mm (0.079 in)

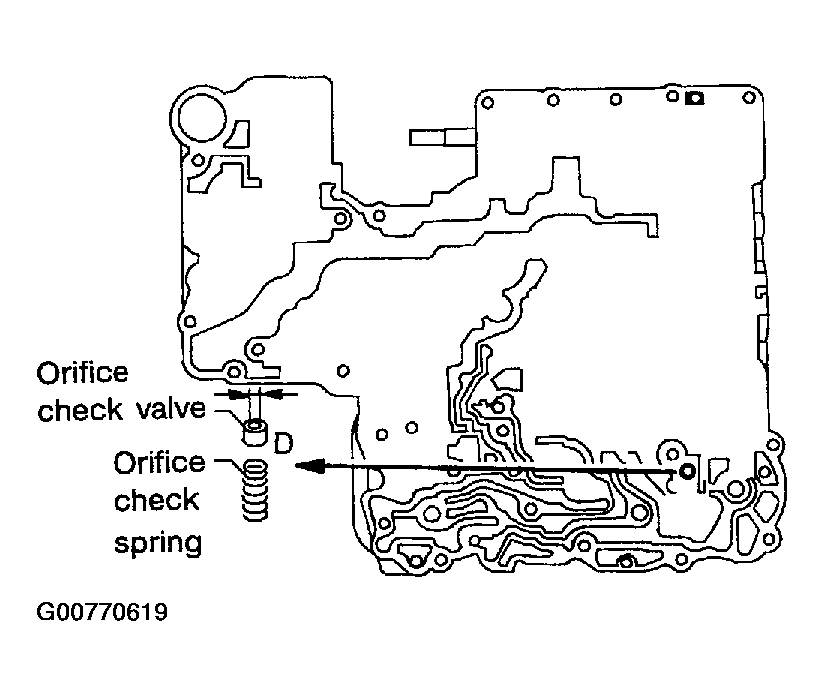

   Fig 3: Installing Orifice Check Spring, Orifice Check Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install separator plate on lower body.
5. Temporarily install support plates, side plate (with steel ball) and tube brackets.

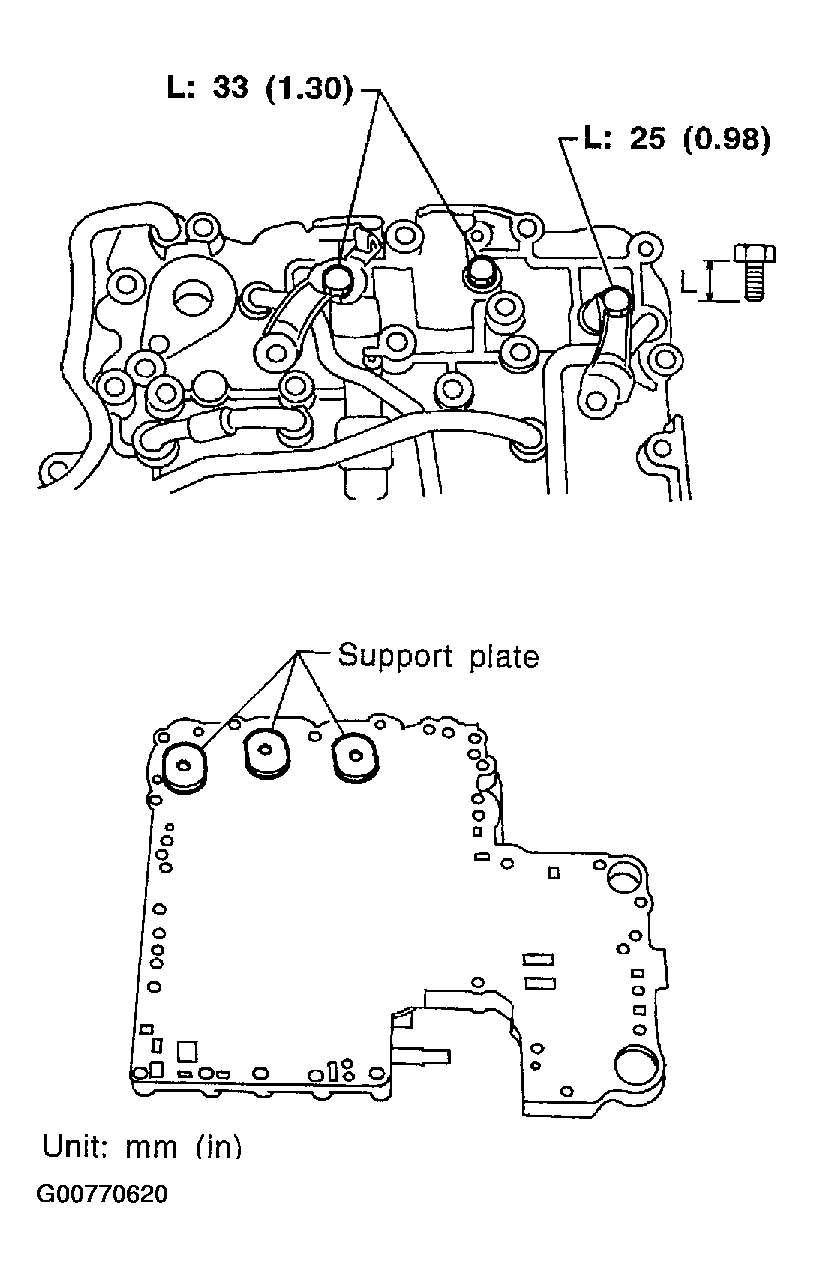

   Fig 4: Installing Support Plates, Side Plate (With Steel Ball) And Tube Brackets)

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Temporarily assemble lower and upper bodies, using reamer bolt as a guide.
   • Be careful not to dislocate or drop steel balls, orifice check spring and orifice check valve.

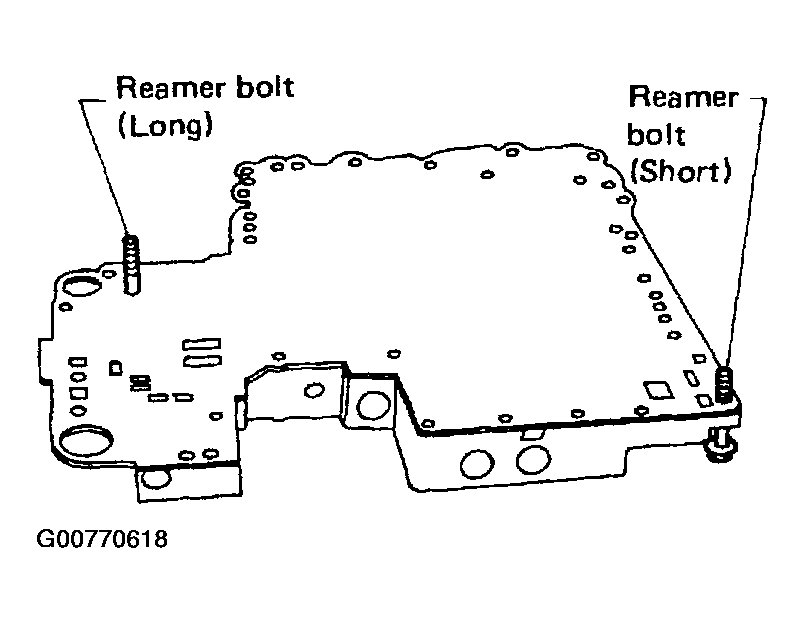

   Fig 5: Installing Reamer Bolt

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Install and temporarily tighten bolts and tube brackets in their proper locations.

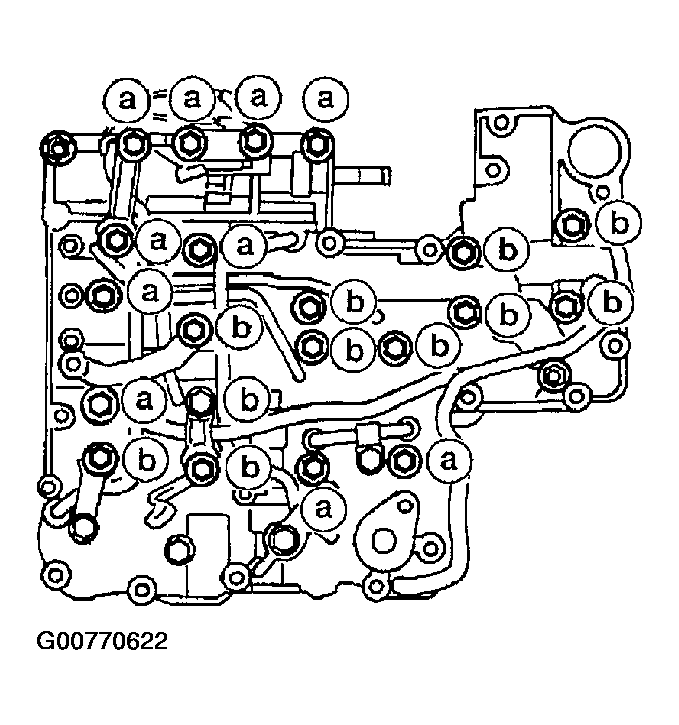

Fig 6: Tightening Bolts And Tube Brackets

Courtesy of NISSAN MOTOR CO., U.S.A.

Bolt length and location:

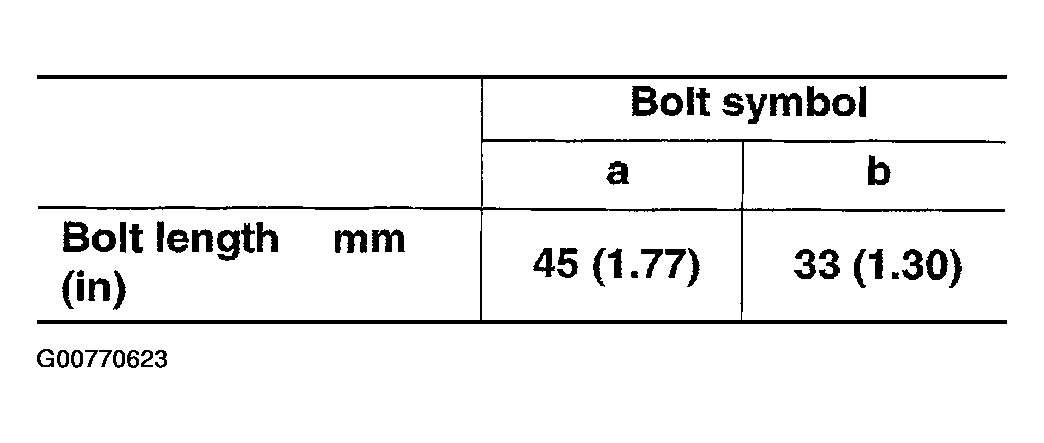

Fig 7: Bolt Length Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Attach O-ring and install overdrive cancel solenoid valve and side plate onto lower body.

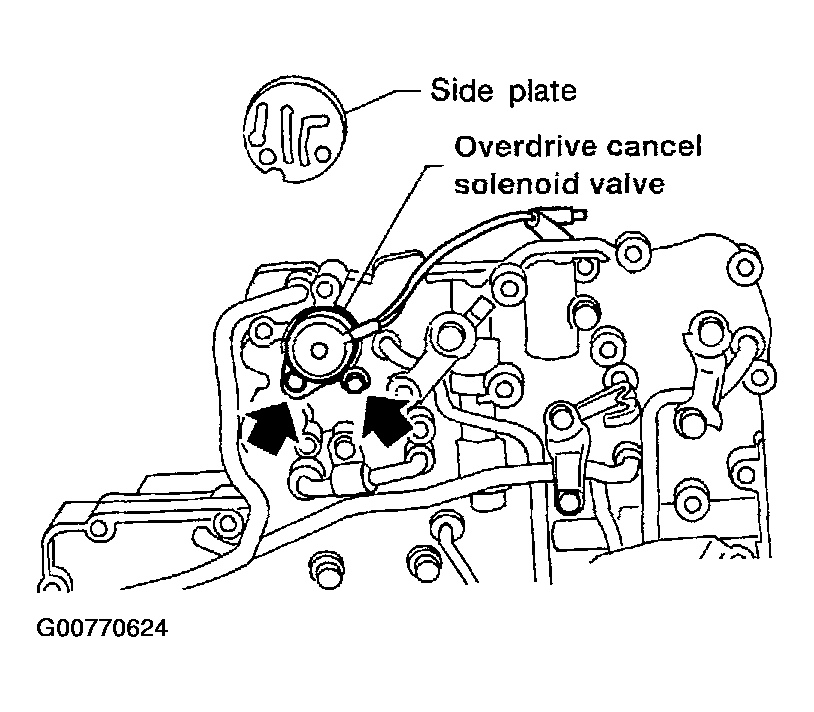

   Fig 8: Attaching O-Ring And Installing Overdrive Cancel Solenoid Valve And Side Plate Onto Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

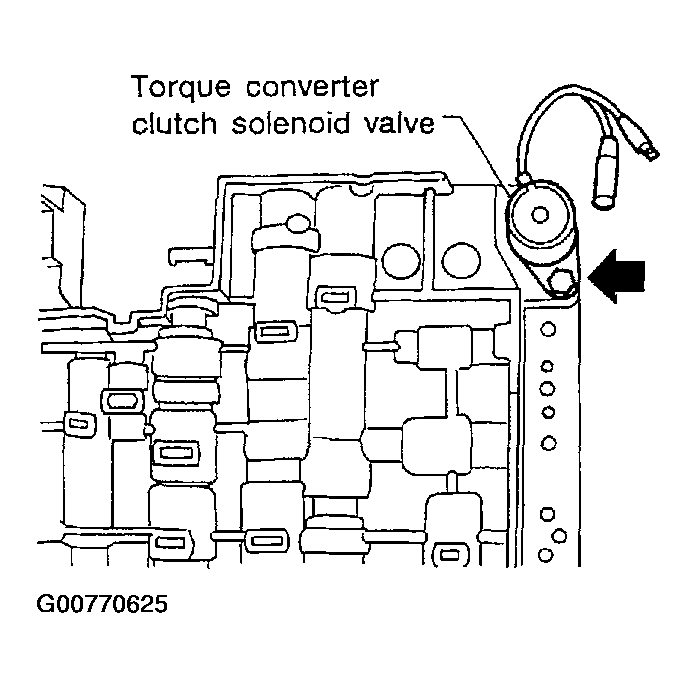

2. Attach O-ring and install torque converter clutch solenoid valve onto upper body.
