Home
>>
Nissan-Datsun
>>
2004
>>
Armada LE, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Overhaul
>>
Transfer Components
Transfer Components

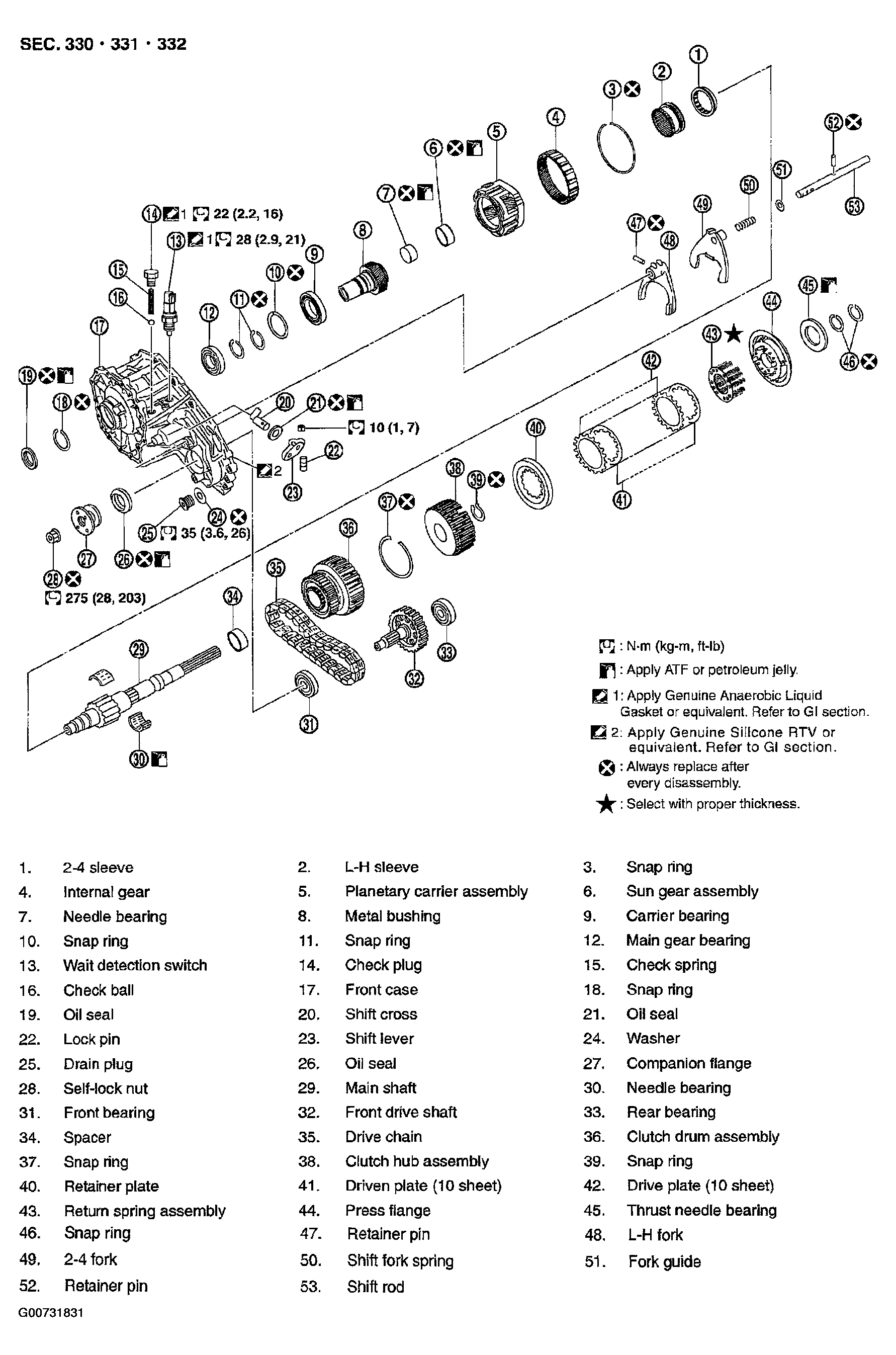

Fig 1: Transfer Components
Courtesy of NISSAN MOTOR CO., U.S.A.

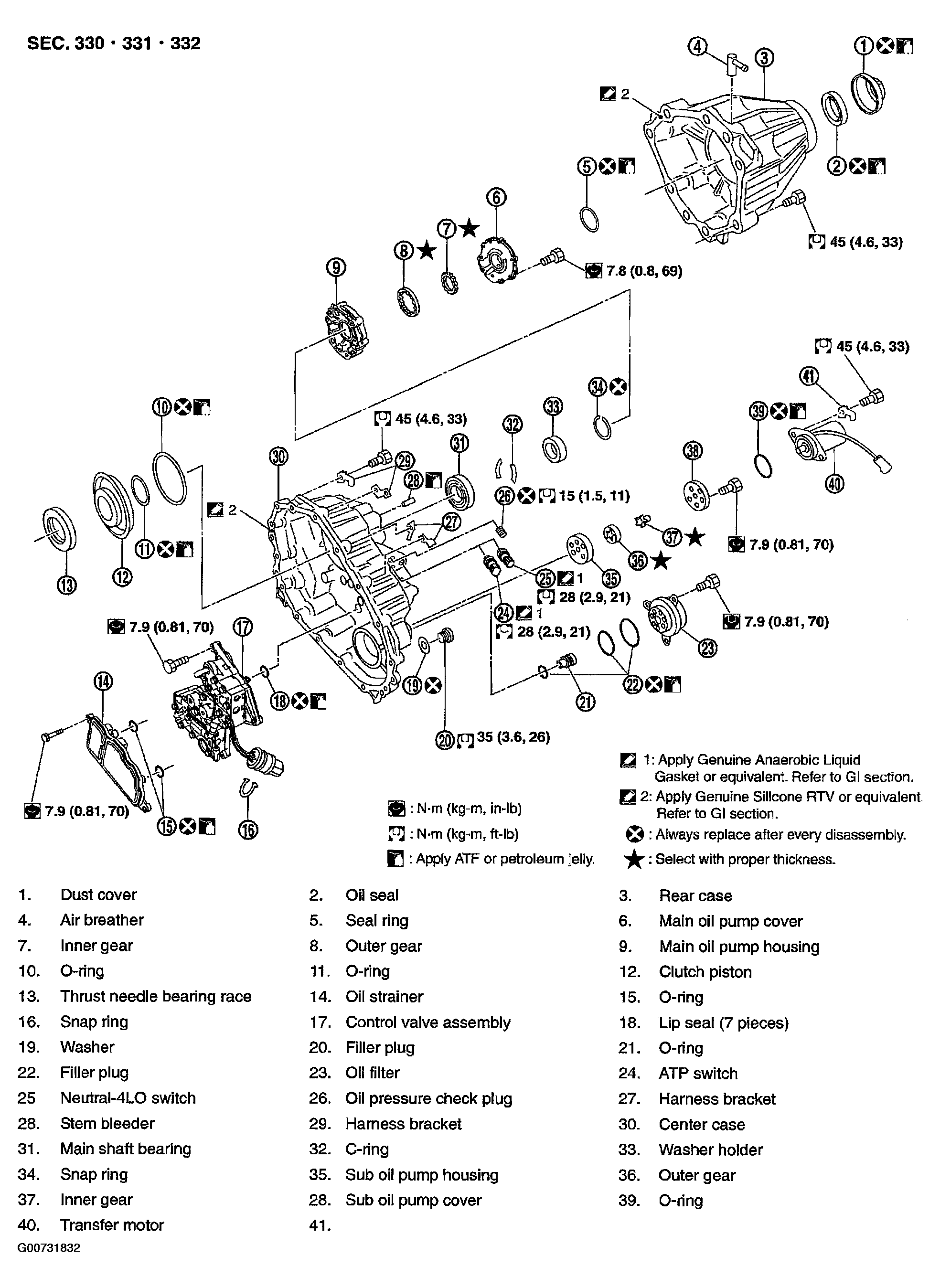

Fig 2: Transfer Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
