Center Case - Disassembly: Disassembly: Notes

1. Remove the rear cover. Refer to "Disassembly ".

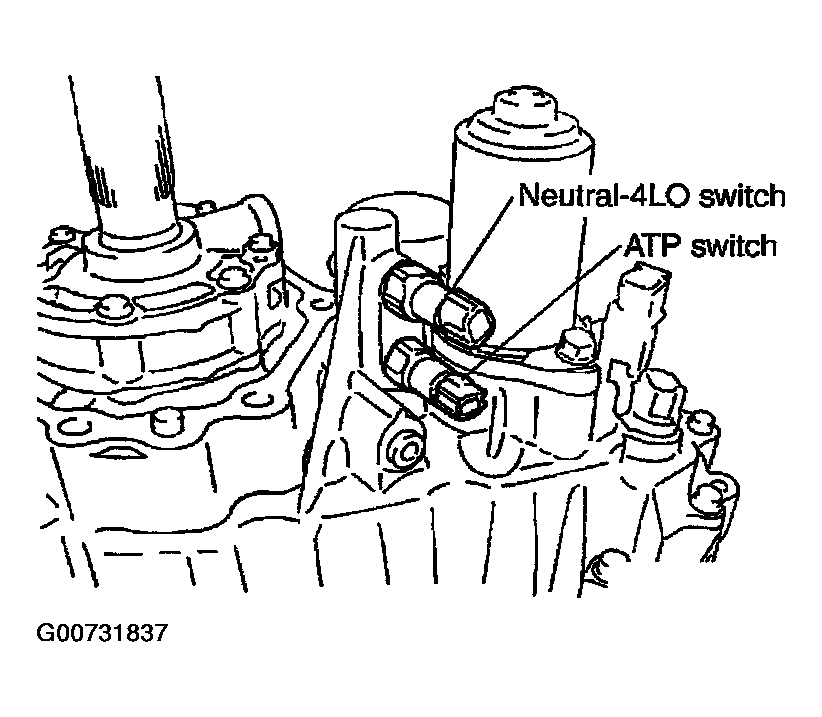

   1. Remove neutral-4LO and ATP switches.
      Fig 1: Center Case Disassembly (1 Of 10)

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Remove main oil pump from the center case. Refer to "MAIN OIL PUMP ".
2. Remove the stem bleeder from the bleed hole.

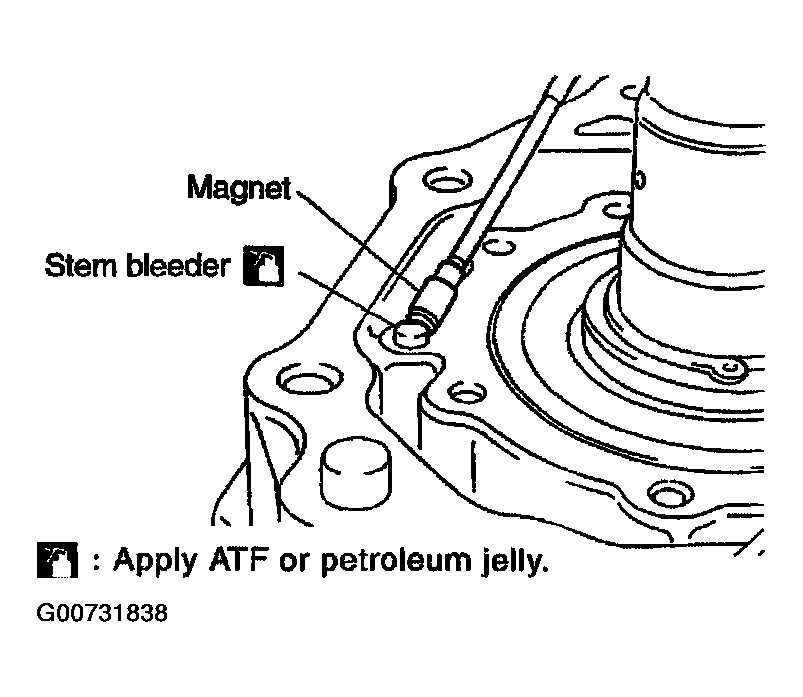

   Fig 2: Center Case Disassembly (2 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

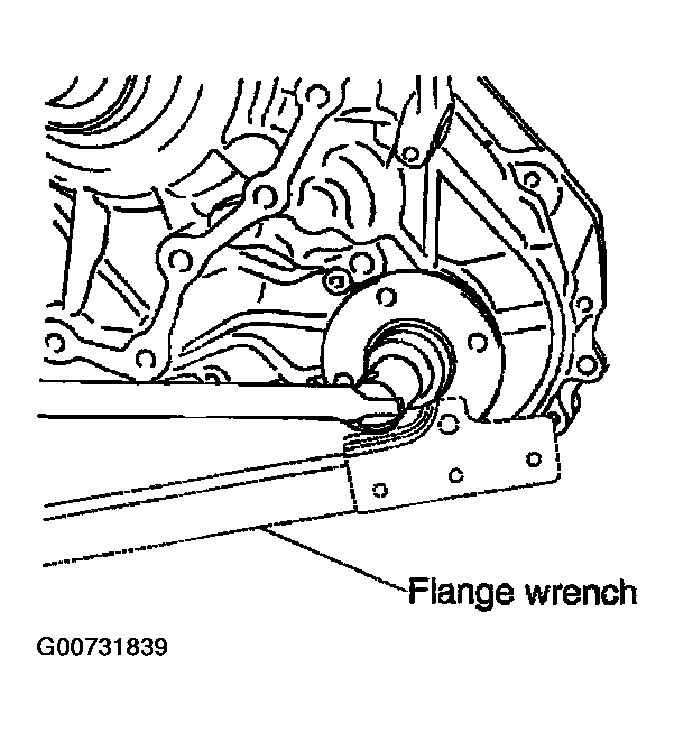

3. Remove self-lock nut from companion flange.
   Fig 3: Center Case Disassembly (3 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

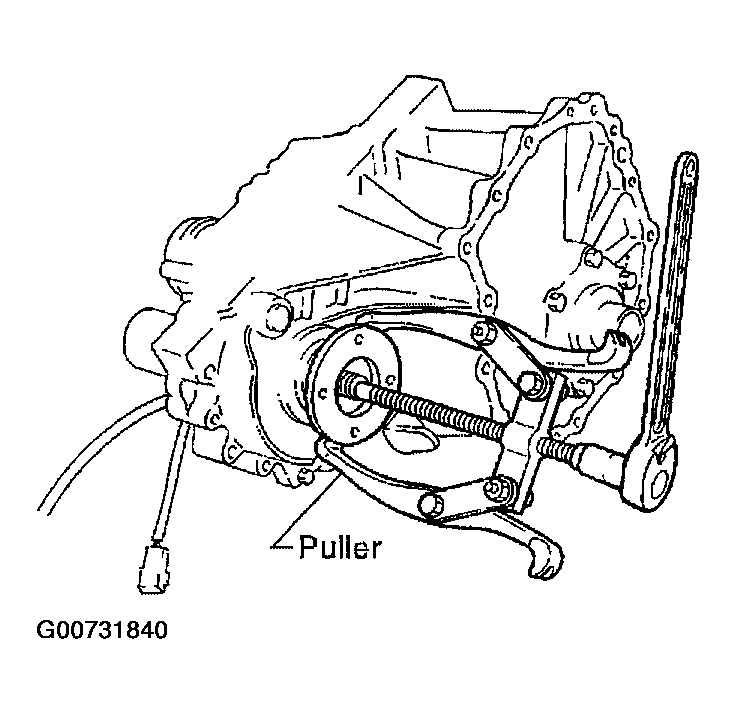

4. Remove companion flange.
   Fig 4: Center Case Disassembly (4 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

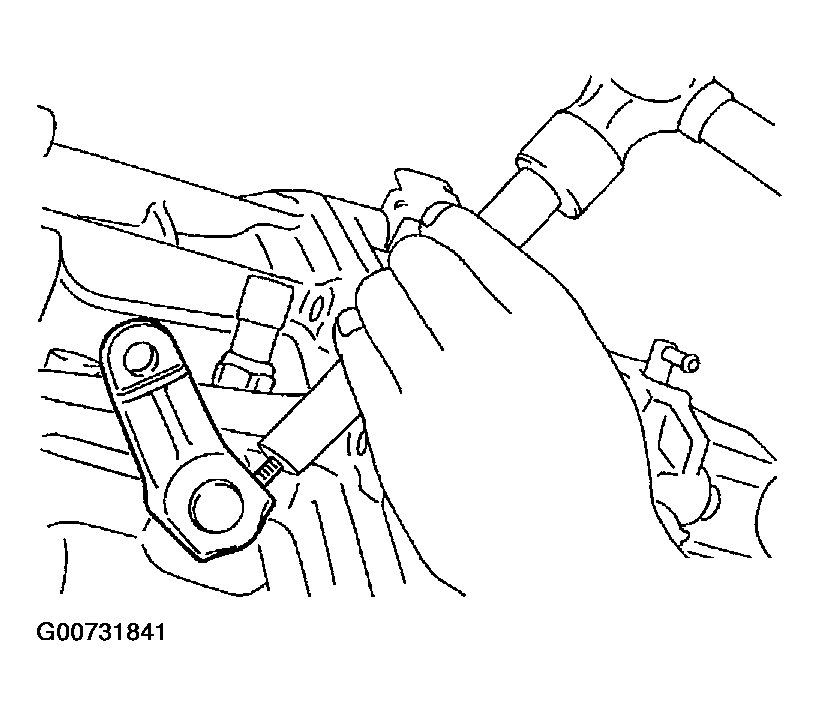

5. Remove lock pin and shift lever.
   Fig 5: Center Case Disassembly (5 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Remove the oil seal.
   CAUTION:

   • Be careful not to damage the front case.
   Fig 6: Center Case Disassembly (6 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

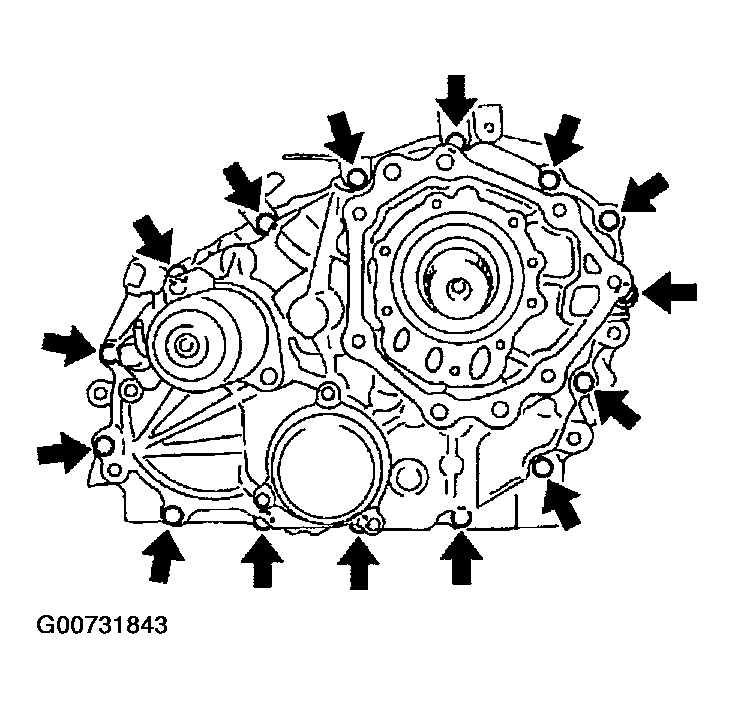

7. Remove bolts.
   Fig 7: Center Case Disassembly (7 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

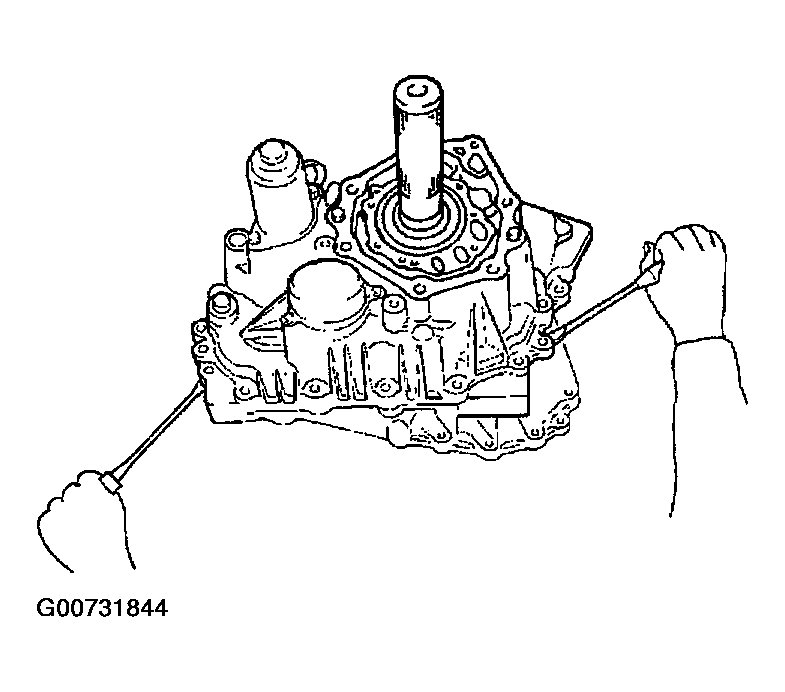

8. Using the suitable tool separate center case from front case. Then, remove center case by levering it up.
   • Be careful not to damage the mating surface.
   Fig 8: Center Case Disassembly (8 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

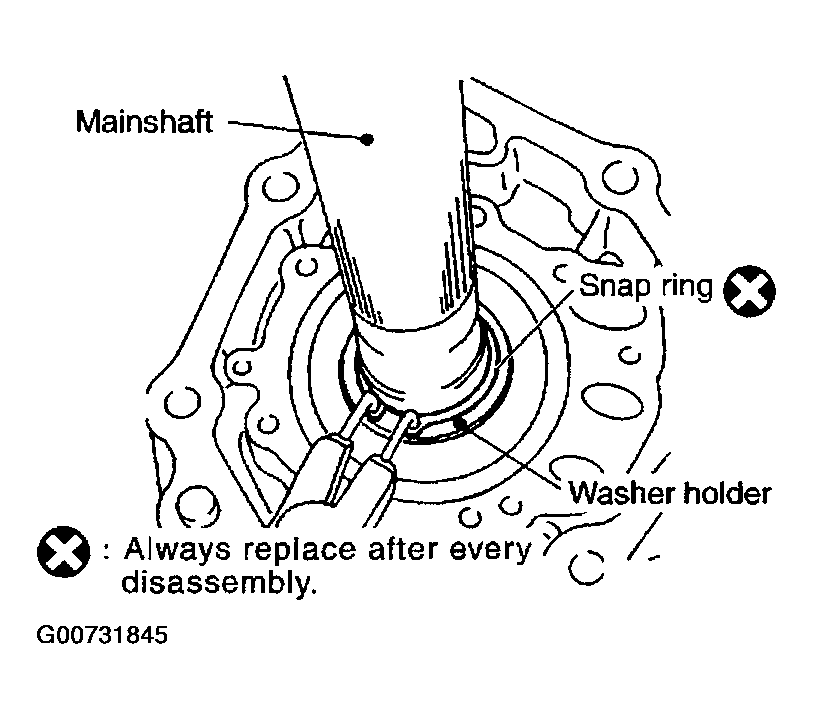

9. Remove snap ring and washer holder from the mainshaft.
   Fig 9: Center Case Disassembly (9 Of 10)

   Courtesy of NISSAN MOTOR CO., U.S.A.

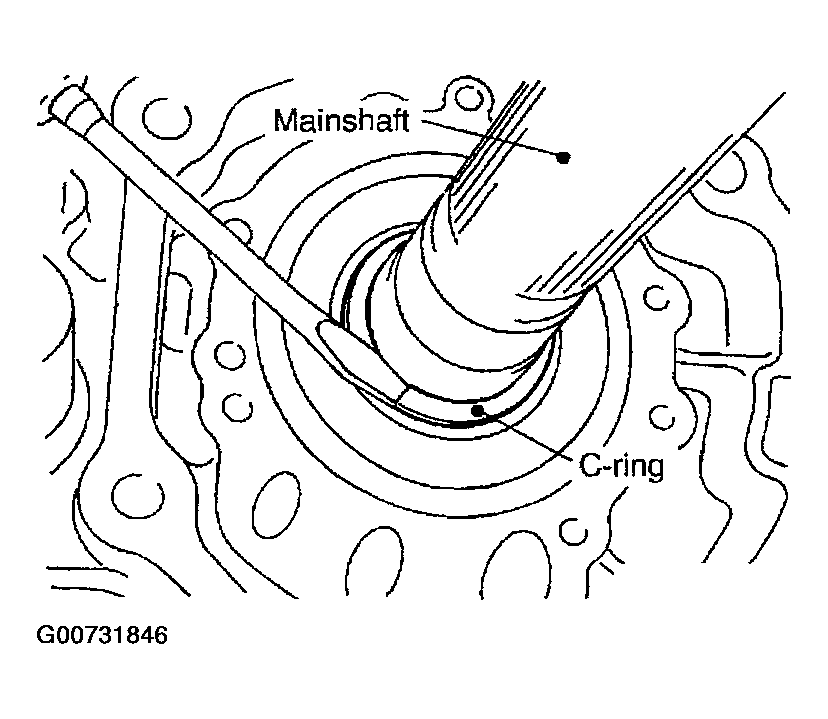

10. Remove C-rings from mainshaft bearing.
