Control System: Notes

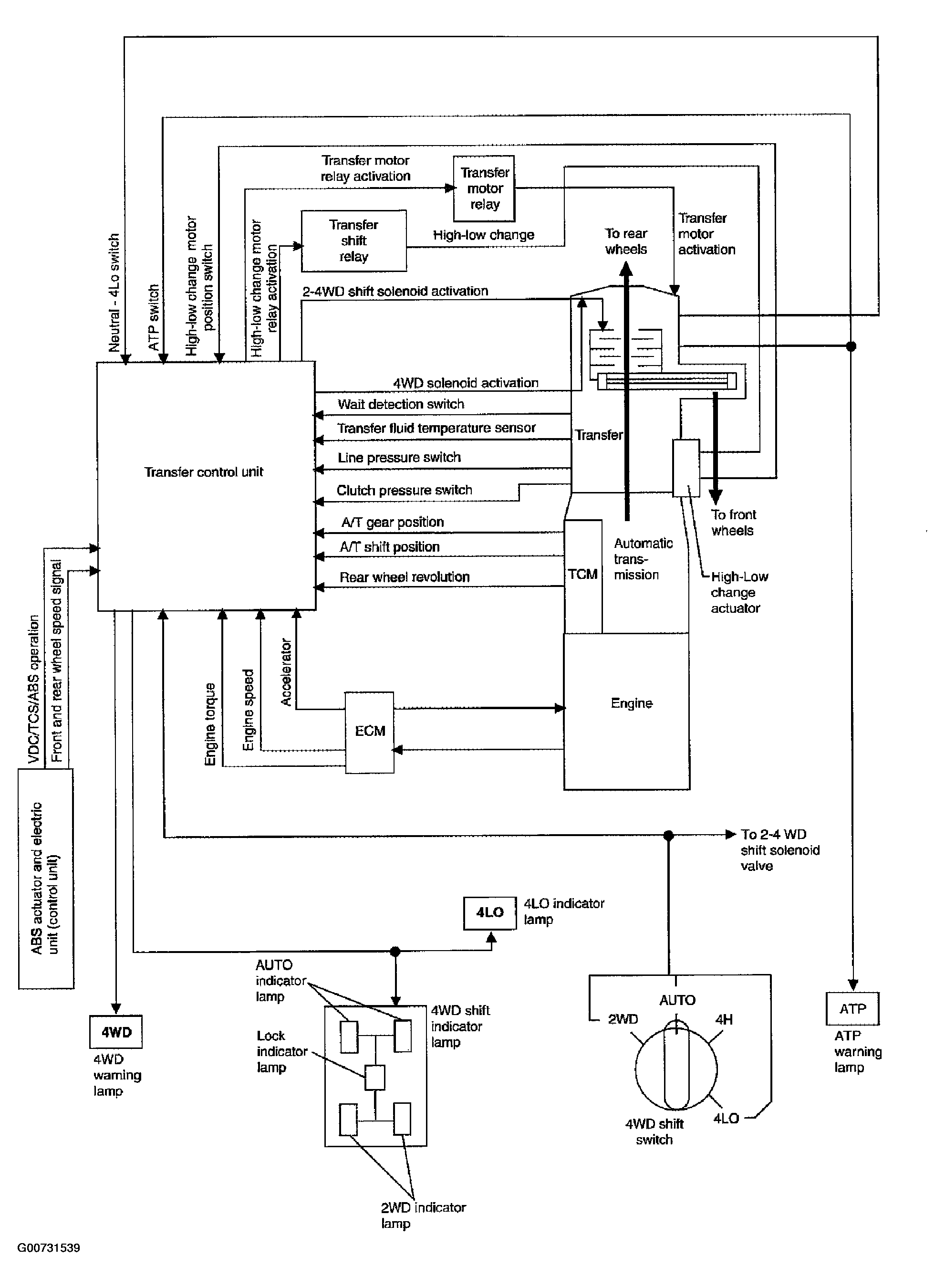

Fig 1: Control System Schematic

G00731539

Courtesy of NISSAN MOTOR CO., U.S.A.
