Band Servo Piston Assembly: Assembly

Install D-rings to servo piston retainer.
- Apply ATF to D-rings.
- Pay attention to position of each O-ring.

  Fig 1: Installing D-Rings To Band Servo Piston Retainer
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.

Fig 2: Installing Band Servo Piston Stem, Thrust Washer, OD Servo Return Spring & Spring Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

Fig 3: Installing E-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings to servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.

  Fig 4: Installing O-Rings To Servo Piston Retainer
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install band servo piston assembly to servo piston retainer by pushing it inward.

Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install D-ring to O/D servo piston.
- Apply ATF to D-ring.

  Fig 6: Installing D-Ring To OD Servo Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings to O/D servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.

  Fig 7: Installing O-Rings To OD Servo Piston Retainer
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O/D servo piston to O/D servo piston retainer.

Fig 8: Installing OD Servo Piston To OD Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install band servo piston assembly and 2nd servo return spring to transmission case.
- Apply ATF to O-ring of band servo piston and transmission case.

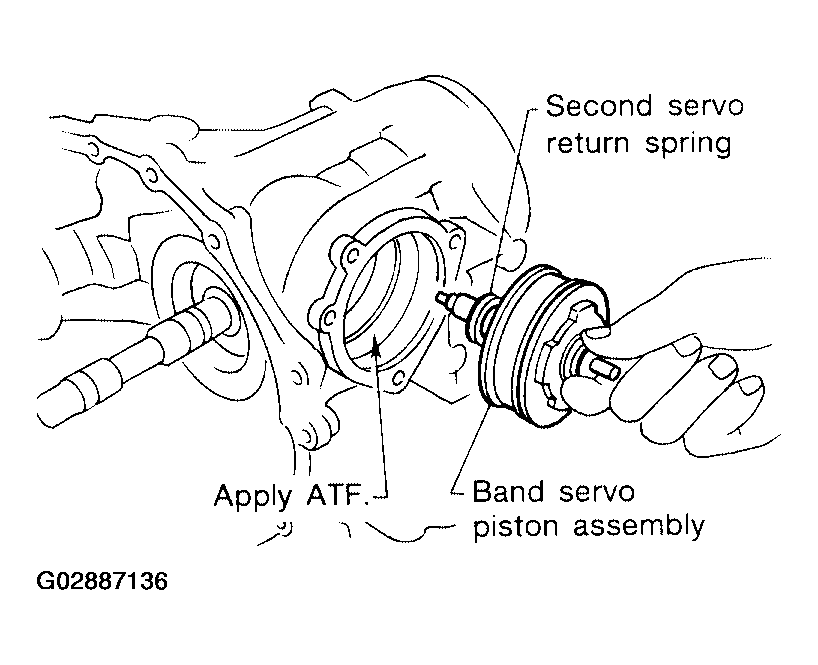

  Fig 9: Installing Band Servo Piston Assembly & 2nd Servo Return Spring To Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O/D servo piston assembly to transmission case.
- Apply ATF to O-ring of band servo piston and transmission case.

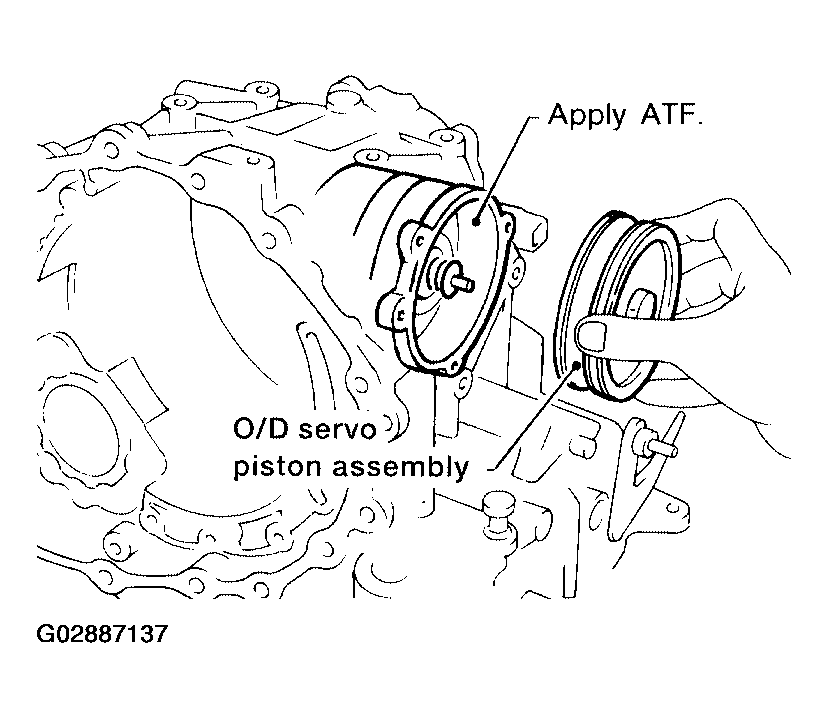

  Fig 10: Installing OD Servo Piston Assembly To Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O/D servo piston retainer to transmission case.
Refer to "COMPONENTS ".

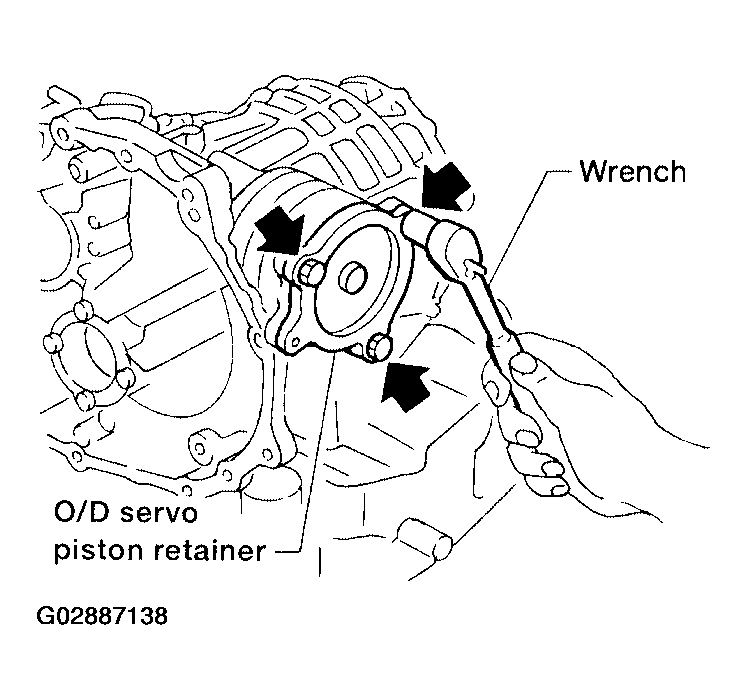

Fig 11: Installing O/D Servo Piston Retainer To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
