Band Servo Piston Assembly: Components

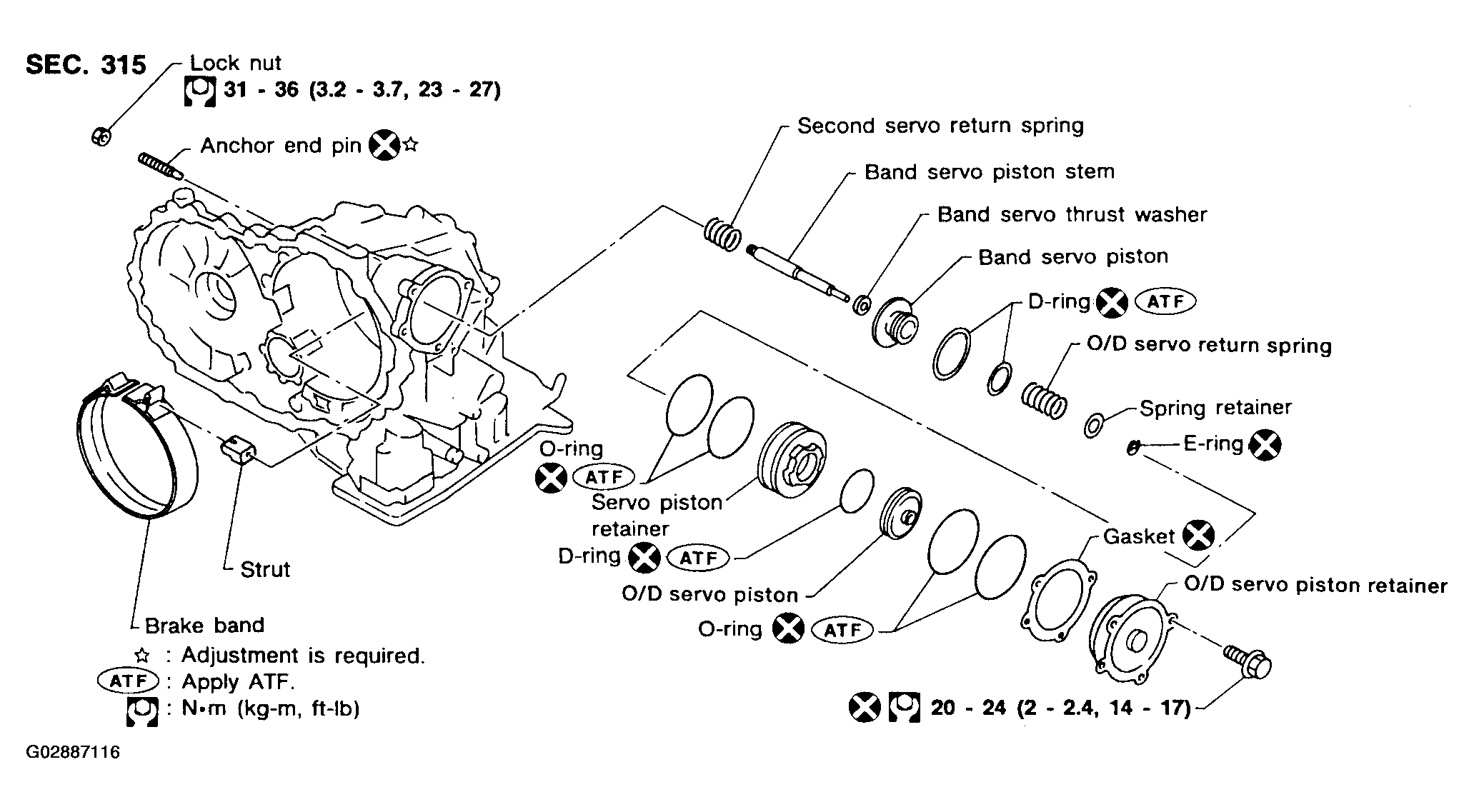

Fig 1: Exploded View Of Band Servo Piston Assembly Components & Torque Specifications

G02887116

Courtesy of NISSAN MOTOR CO., U.S.A.
