Removal Of Remote Control Lever

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

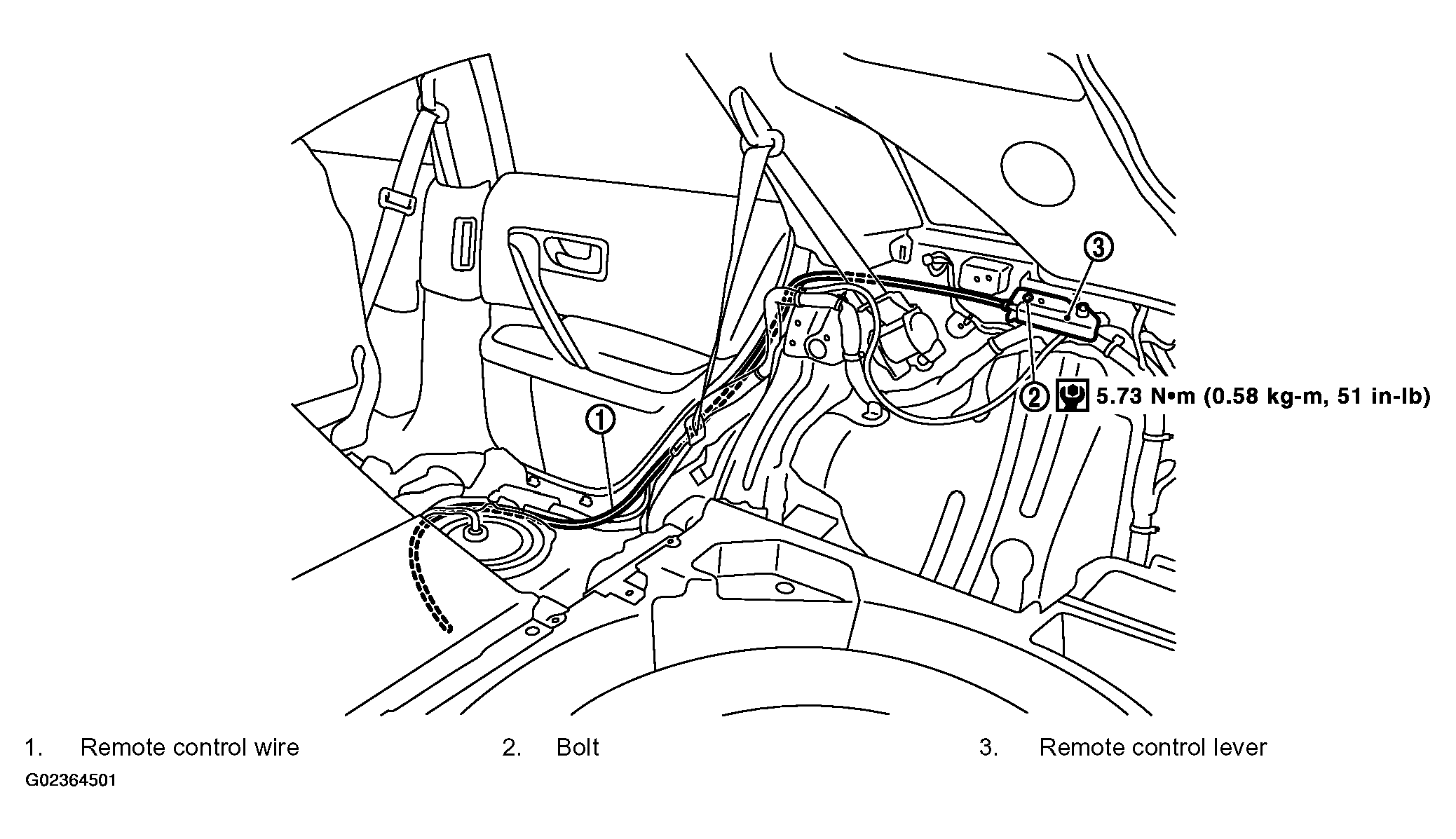

Fig 1: Remote Control Lever With Torque Specifications
G02364501Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the rear seat. Refer to "REMOVAL ".
  2. Remove the luggage side finisher assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the remote control lever.
  4. Remove the remote control lever mounting bolt.
  5. Remove the remote control lever assembly.
