Rear Seat: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the wire from the plastic hook, then pull the seat cushion forward to remove.

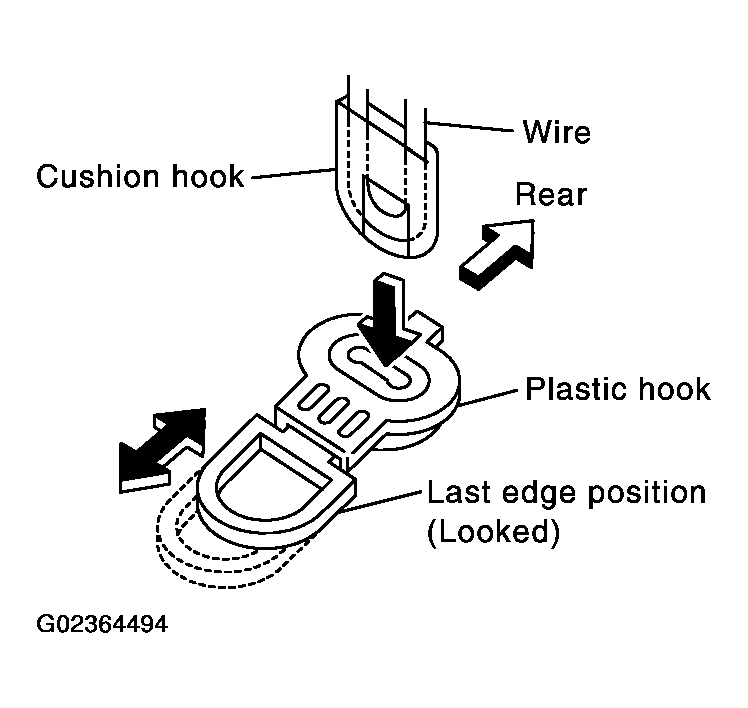

    Fig 1: Pulling Lock At Front Bottom Of Seat Cushion
    G02364494Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the seatback mounting nuts.

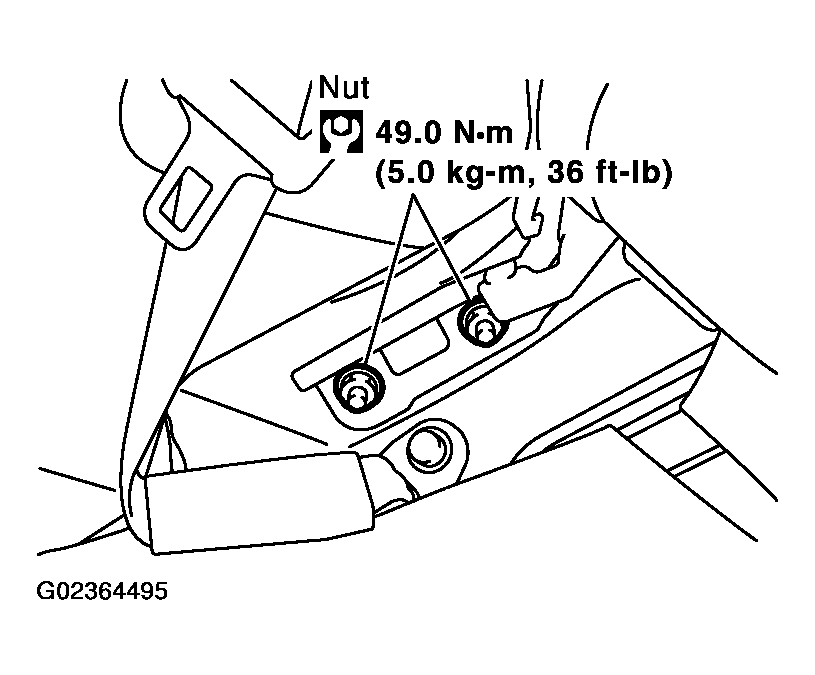

    Fig 2: Removing Seatback Mounting Nuts With Torque Specifications
    G02364495Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the seatback mounting bolt and nut.

    Remove the remote control wire.

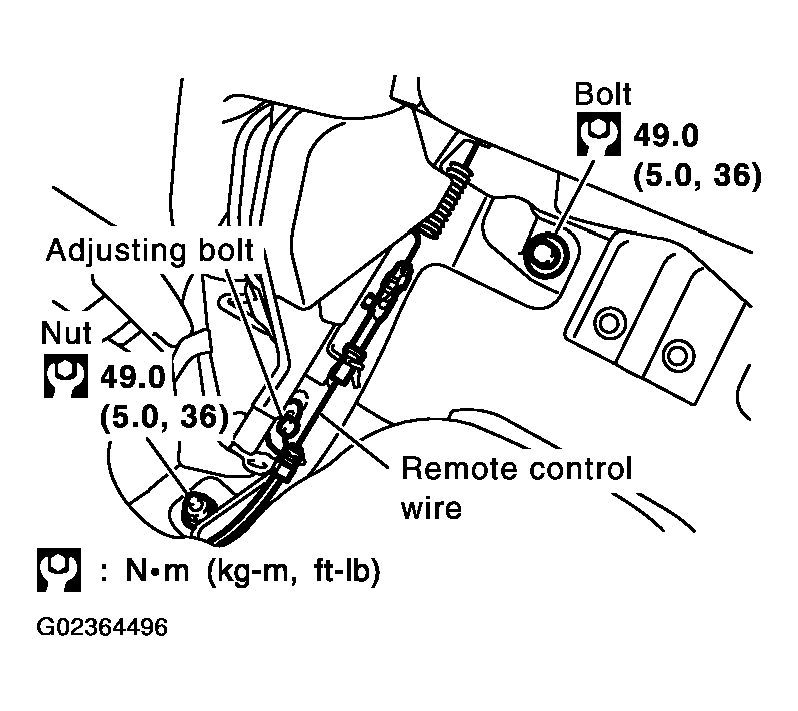

    Fig 3: Removing Remote Control Wire With Torque Specifications
    G02364496Courtesy of NISSAN MOTOR CO., U.S.A.
